Kubota M8950-S T00700 FLYWHEEL Parts Diagram
Exploded-view parts diagram "T00700 FLYWHEEL" for the Kubota M8950-S, Kubota M8950DT-S and Kubota M8970DT. 20 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP,FLYWHEEL 15482-25013 16547-25010 | 1 | $1,902.12 | |||
| 020 | GEAR, RING 16541-63820 16547-63820 | 1 | $303.12 | |||
| 030 | BOLT, FLYWHEEL 15481-25160 | 1 | $64.74 | |||
| 040 | HUB, SPLINE 36530-25510 | 1 | $210.47 | |||
| 050 | HOUSING,FW,COMP 16541-04600 H1650-04600 | 1 | $3,467.72 | |||
| 060 | PIN, STRAIGHT 05012-01016 | 1 | $1.51 | |||
| 070 | PIN, STRAIGHT 05012-01322 | 1 | $2.54 | |||
| 080 | BOLT 01073-51435 | 1 | $2.36 | |||
| 090 | BOLT 01173-50130 01073-51030 | 1 | $2.36 | |||
| 100 | BOLT 01073-51035 | 1 | $2.54 | |||
| 110 | STUD 15454-91492 | 1 | $14.44 | |||
| 120 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 130 | PLATE 15451-04670 Discontinued | 1 | $3.68 | |||
| 140 | STUD 15451-91500 | 1 | $10.67 | |||
| 150 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 160 | COVER 15451-04680 | 1 | $121.88 | |||
| 170 | NUT, CAP ** 15451-92332 15451-92330 | 1 | $8.21 | |||
| 180 | GASKET 15451-96660 | 1 | $5.04 | |||
| 190 | BRG BALL RADIAL3 08141-06007 | 1 | $20.30 | |||
| 200 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

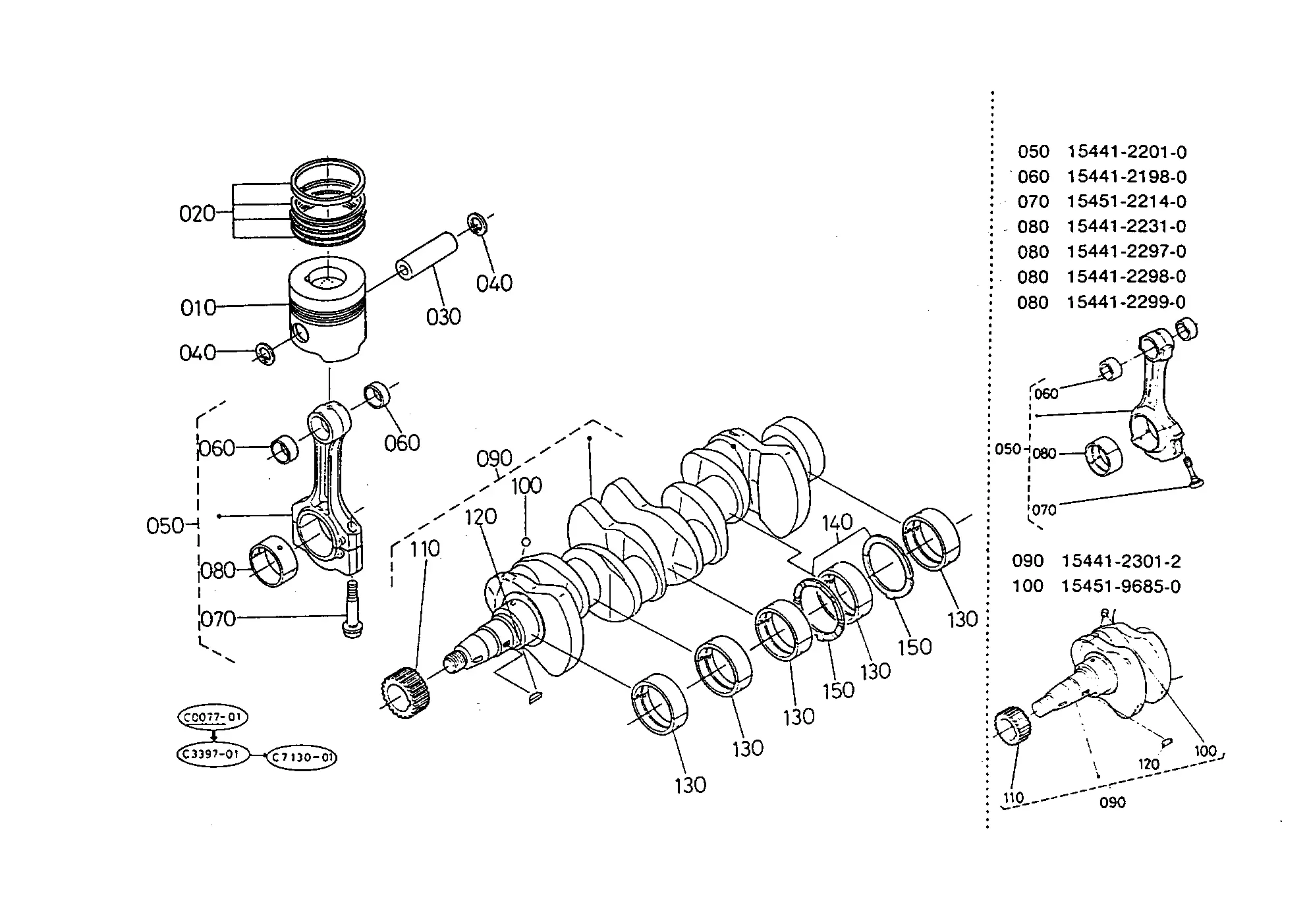

DIAG-T00600-85884 T00600 PISTON AND CRANKSHAFT
View Diagram -

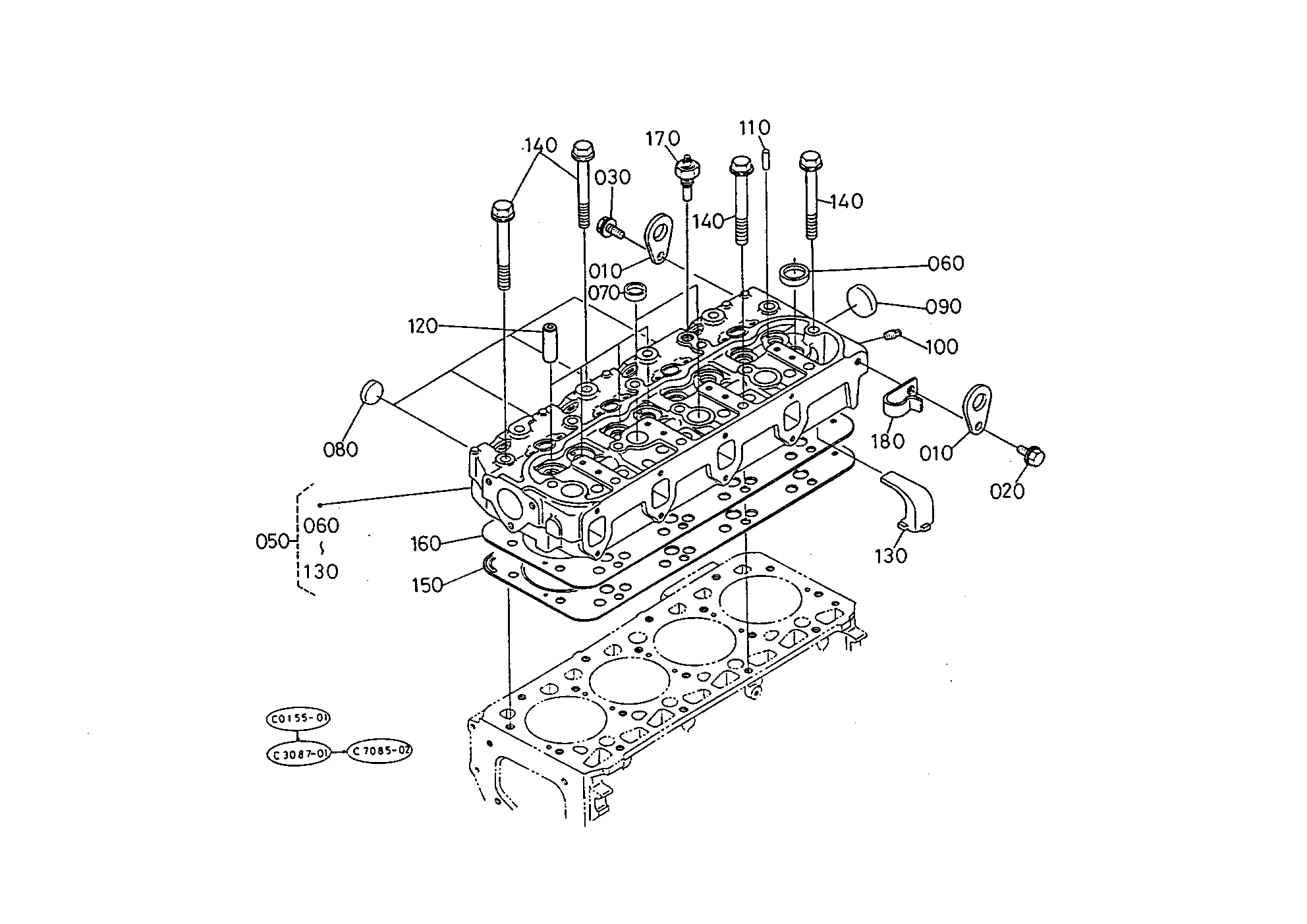

DIAG-T00800-85884 T00800 CYLINDER HEAD
