Kubota M7030SU T00700 FLYWHEEL Parts Diagram
Exploded-view parts diagram "T00700 FLYWHEEL" for the Kubota M7030SU and Kubota M7030SUDT. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FLYWHEEL COMP. 15452-25010 16141-25010 Discontinued | 1 | $394.74 | |||
| 020 | GEAR, RING 15451-63820 16141-63820 | 1 | $391.00 | |||
| 030 | BRG BALL RADIAL1 08141-06303 | 1 | $15.03 | |||
| 040 | BOLT 15451-25160 Discontinued | 1 | $43.19 | |||
| 040 | BOLT, FLYWHEEL 15471-25160 15471-25162 | 1 | $36.61 | |||
| 050 | WASHER, FLYWHEEL 15571-25170 Discontinued | 1 | $32.19 | |||
| 060 | FLYWHEEL HSNG AS 15451-04600 | 1 | $867.13 | |||
| 070 | PIN, STRAIGHT 05012-01016 | 1 | $1.51 | |||
| 080 | BOLT 01073-51435 | 1 | $2.36 | |||
| 090 | BOLT 01073-51400 | 1 | $15.20 | |||
| 100 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 110 | PLATE 15451-04670 Discontinued | 1 | $3.68 | |||
| 120 | STUD 15451-91500 | 1 | $10.67 | |||
| 130 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 140 | COVER 15451-04680 | 1 | $121.88 | |||
| 150 | NUT, CAP ** 15451-92332 15451-92330 | 1 | $8.21 | |||
| 160 | GASKET 15451-96660 | 1 | $5.04 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

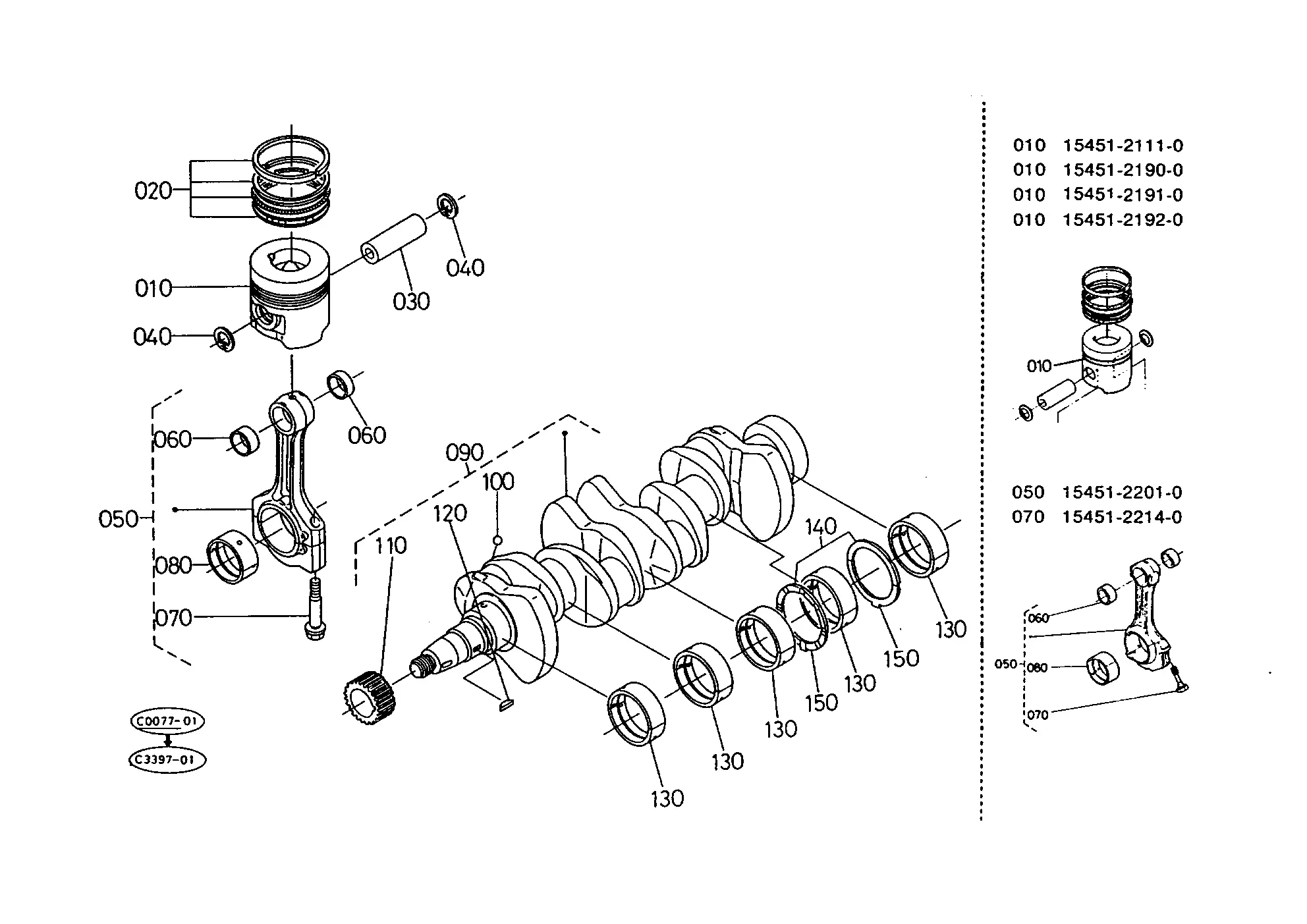

DIAG-T00600-85799 T00600 PISTON AND CRANKSHAFT
View Diagram -
DIAG-T00800-85799 T00800 CYLINDER HEAD
View Diagram -

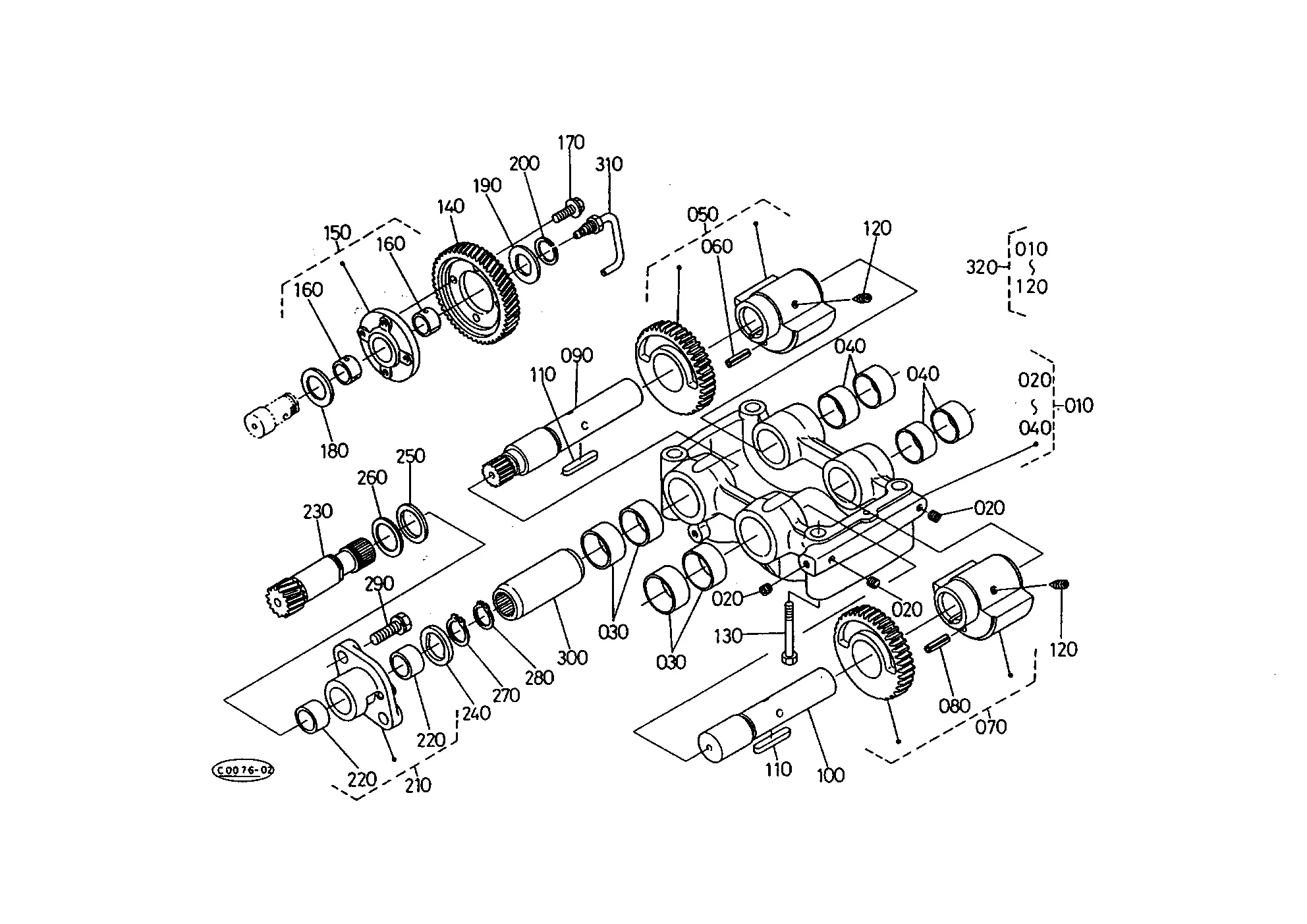

DIAG-T00502-85799 T00502 BALANCER [NEW TYPE]
