Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP FLYWHEEL 16493-25010 16493-25014 | 1 | $1,637.77 | |||
| 020 | GEAR, RING 15221-63822 15221-63820 | 1 | $260.56 | |||
| 030 | BOLT, FLYWHEEL 17394-25160 | 1 | $39.45 | |||
| 040 | HUB SPLINE 35080-14010 | 1 | $109.44 | |||
| 050 | COMP. HOUSING, F TA040-20102 TA040-20104 | 1 | $1,141.90 | |||
| 060 | PIN 05012-01018 | 1 | $1.51 | |||
| 070 | PLUG 31220-14293 31220-14290 | 1 | $1.62 | |||
| 080 | COVER 15521-04680 | 1 | $6.43 | |||
| 090 | PACKING, COVER 15521-04790 | 1 | $4.40 | |||
| 100 | BOLT 01123-60816 01123-70816 | 1 | $1.21 | |||
| 110 | BOLT 01173-50130 01073-51030 | 1 | $2.36 | |||
| 110 | BOLT 16427-91010 | 1 | $2.96 | |||
| 120 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 130 | Bolt 01073-51240 | 1 | $2.54 | |||
| 140 | Spring Washer (Lock Washer) 04512-50120 | 1 | $2.57 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

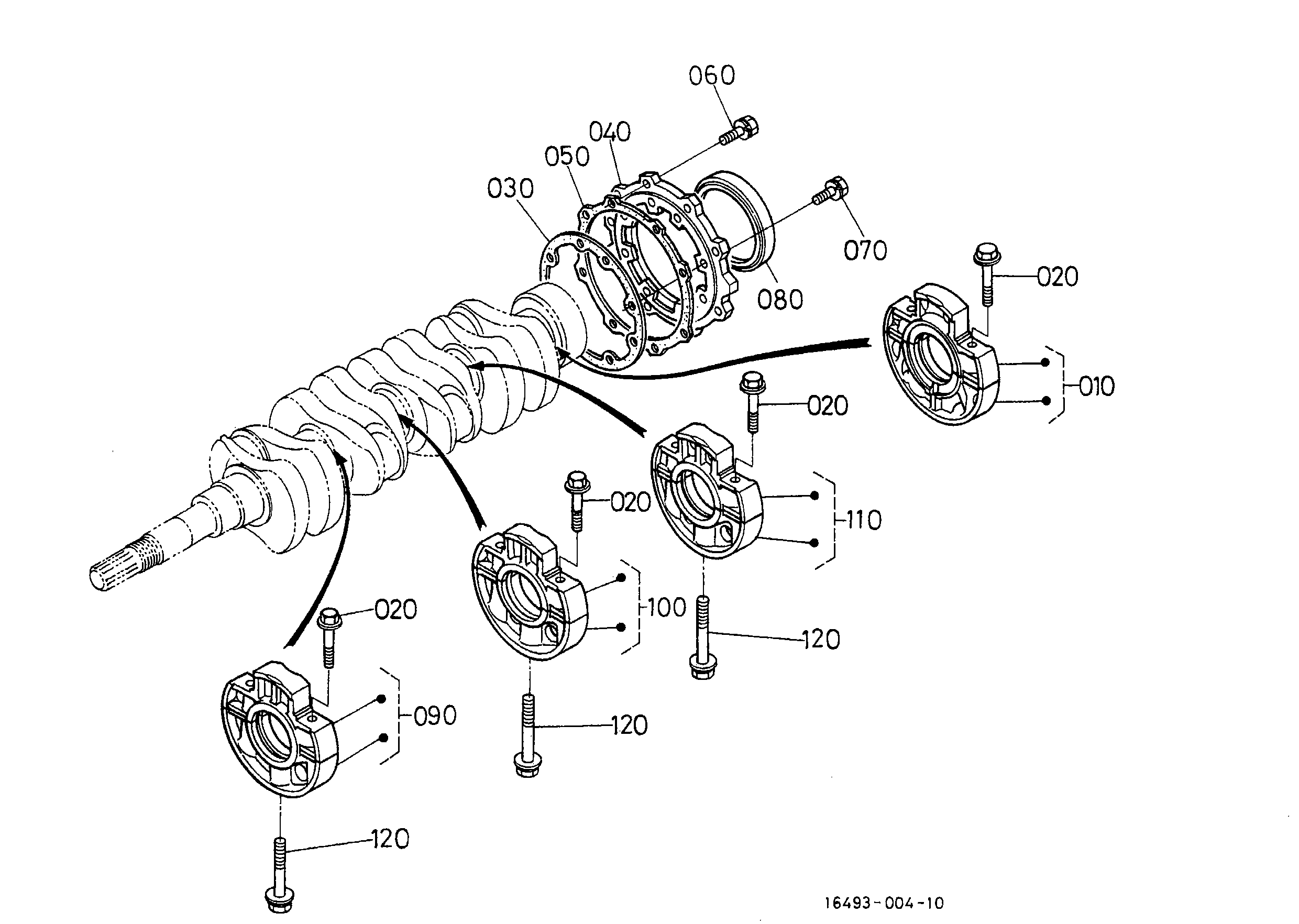

DIAG-T00501-93338 T00501 FLYWHEEL [W/O IND-PTO]
View Diagram -

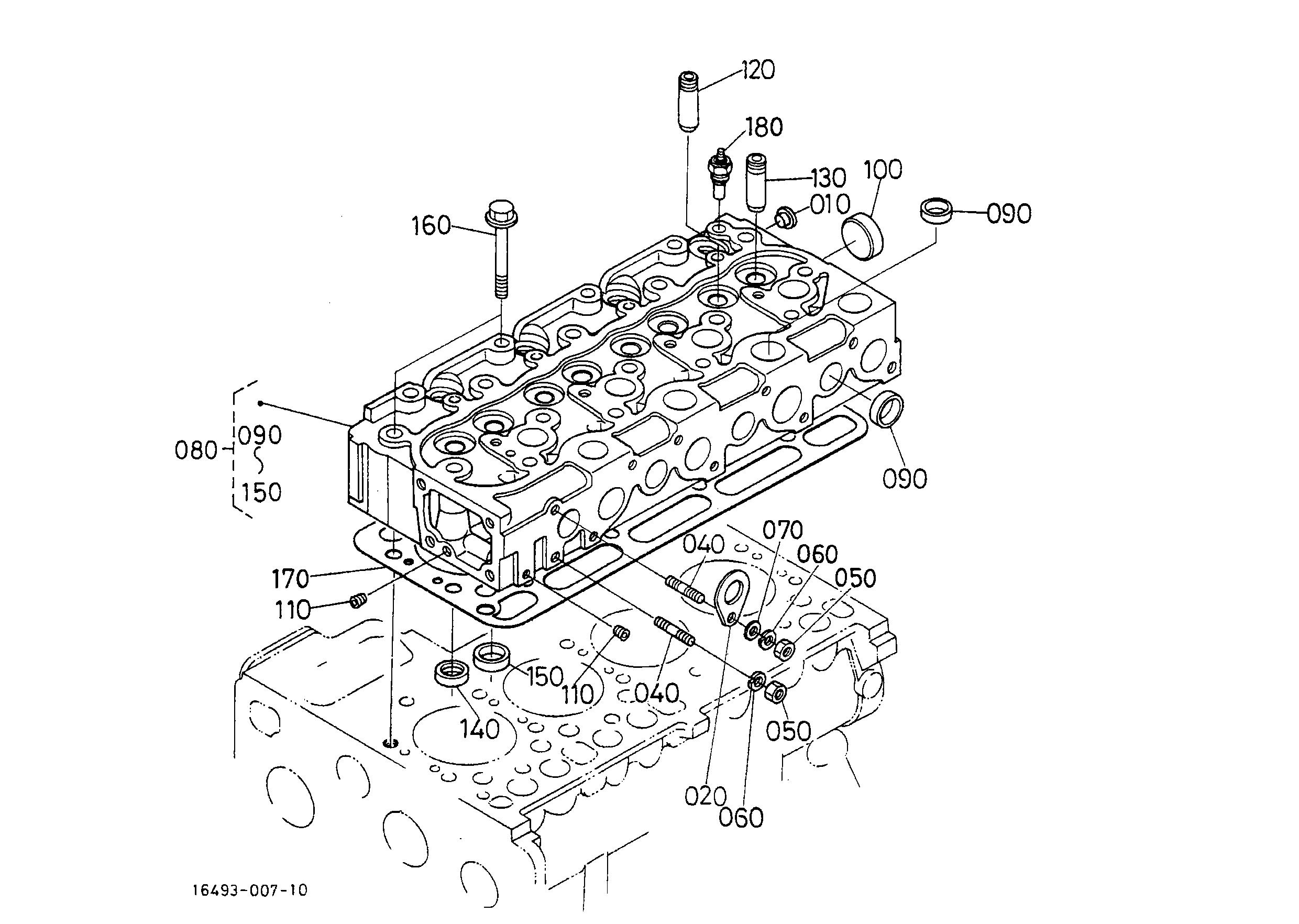

DIAG-T00600-93338 T00600 CYLINDER HEAD
View Diagram -
DIAG-T00400-93338 T00400 MAIN BEARING CASE
View Diagram
