Kubota L2050DT T00500 FLYWHEEL Parts Diagram
Exploded-view parts diagram "T00500 FLYWHEEL" for the Kubota L2050DT and Kubota L2050F. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP FLYWHEEL 15331-25010 15331-25018 | 1 | $1,323.98 | |||
| 020 | GEAR, RING 15221-63822 15221-63820 | 1 | $260.56 | |||
| 030 | BOLT, FLYWHEEL 15321-25160 15321-25163 | 1 | $29.89 | |||
| 040 | WASHER 15321-25170 | 1 | $19.17 | |||
| 050 | HOUSING, FLYWHEE 15331-04602 15341-04600 Discontinued | 1 | $734.30 | |||
| 060 | PIN, STRAIGHT 05012-01025 | 1 | $1.51 | |||
| 070 | PLUG 31220-14293 31220-14290 | 1 | $1.62 | |||
| 080 | COVER 31220-14172 31220-14170 | 1 | $8.98 | |||
| 090 | BOLT 01123-50814 | 1 | $0.71 | |||
| 100 | BOLT 01173-50130 01073-51030 | 1 | $2.36 | |||
| 110 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 120 | Bolt 01073-51240 | 1 | $2.54 | |||
| 130 | Spring Washer (Lock Washer) M12 04512-50120 | 1 | $2.57 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-T00400-85220 T00400 MAIN BEARING CASE
View Diagram -

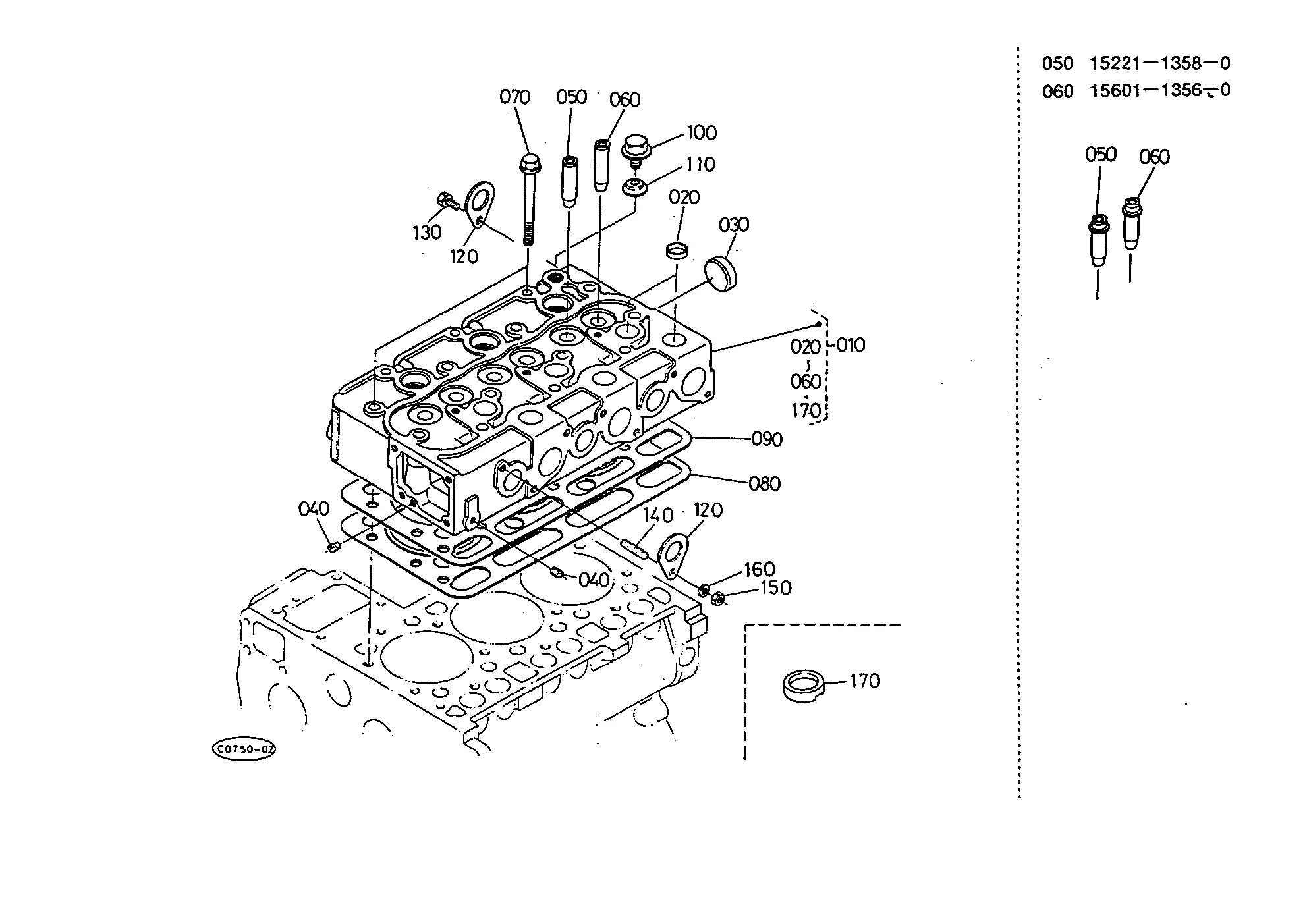

DIAG-T00600-85220 T00600 CYLINDER HEAD
