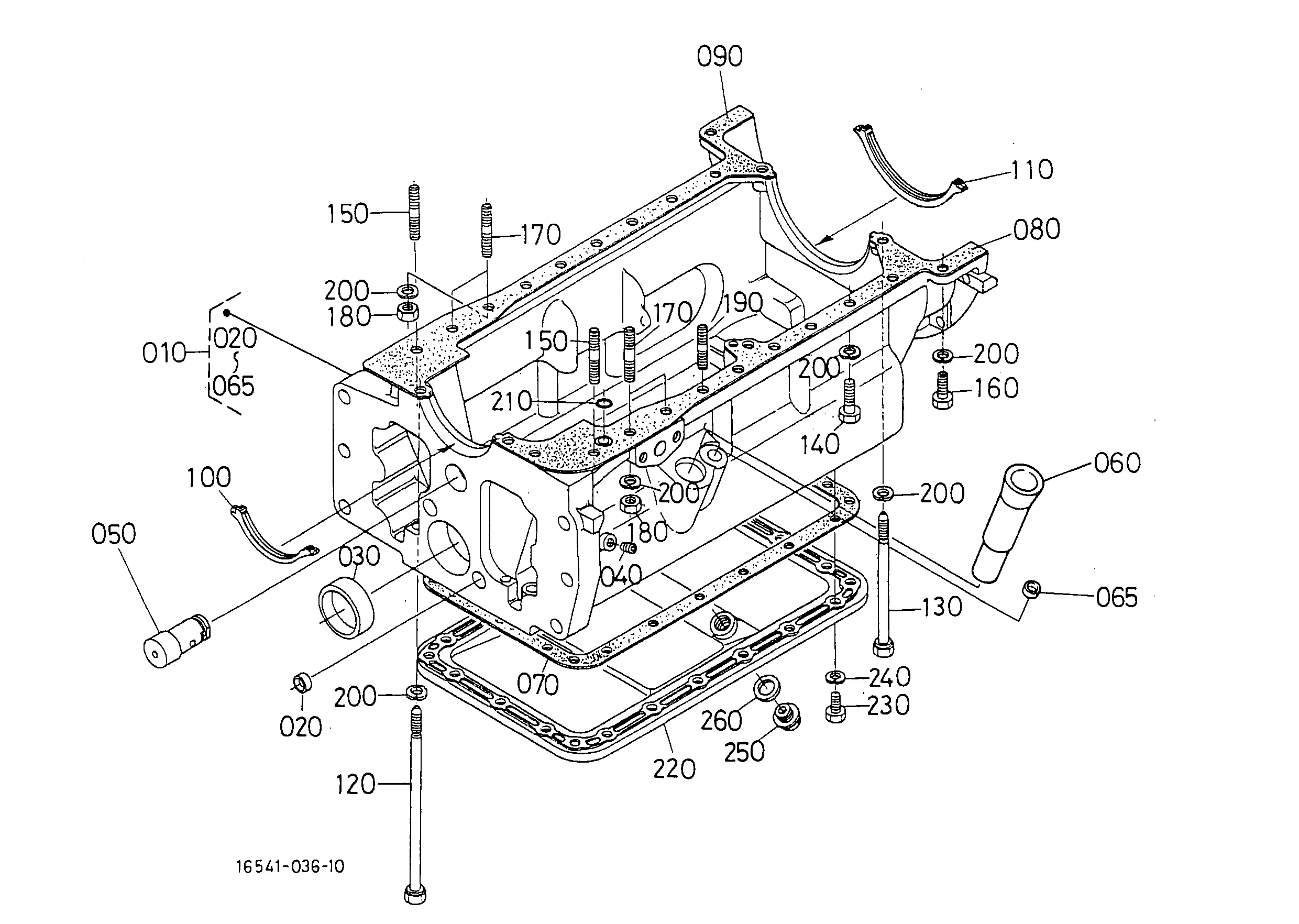

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | OIL STRAINER 15451-32110 Discontinued | 1 | $31.87 | |||
| 010 | TUBE,SUCTION SCR 16541-32110 Discontinued | 1 | $51.22 | |||
| 020 | GASKET NON ASBES 15451-32270 16541-32270 | 1 | $2.47 | |||
| 030 | BOLT 01011-50820 01053-50820 | 1 | $0.87 | |||
| 030 | M8 Flange Bolt 01754-50816 | 1 | $1.07 | |||
| 040 | BOLT 01010-10816 01053-50816 | 1 | $1.25 | |||
| 040 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 050 | Eng Oil Filter 16121-32430 HH160-32430 | 1 | $27.60 | |||
| 050 | Filter 16543-99170 | 1 | $35.36 | |||
| 050 | FILTER, UNPAINTE 16541-32430 Discontinued | 1 | $33.61 | |||
| 055 | LABEL, OIL FILTE 15453-88390 | 1 | $5.78 | |||
| 056 | LABEL 16543-88400 | 1 | $4.46 | |||
| 060 | PLUG, OIL FILLER 16121-33140 Discontinued | 1 | $19.20 | |||
| 070 | O'RING 04811-50300 | 1 | $1.42 | |||
| 080 | ASSY PUMP, OIL 15451-35010 15481-35010 Discontinued | 1 | $708.44 | |||
| 080 | PUMP, ASSY OIL 15481-35050 16541-35010 | 1 | $1,045.88 | |||
| 120 | SHAFT, ASSY OIL 15481-35060 | 1 | $332.40 | |||
| 130 | COVER, OIL PUMP 15481-35130 | 1 | $304.67 | |||
| 140 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 150 | O-RING 15451-96770 | 1 | $5.59 | |||
| 160 | Bolt 01010-00825 01053-50825 | 1 | $1.10 | |||
| 160 | Bolt Fastener 01754-50820 | 1 | $0.54 | |||
| 170 | PLUG, OIL DRAIN 15109-33632 15109-33630 | 1 | $7.51 | |||
| 180 | Oil Drain Plug Gasket 15109-33660 | 1 | $1.21 | |||
| 190 | VALVE, ASSY RELI 15451-36070 15481-36070 | 1 | $222.62 | |||
| 200 | VALVE, RELIEF 15481-36920 | 1 | $22.27 | |||
| 210 | SPRING 15481-36950 | 1 | $9.25 | |||
| 220 | GASKET 15481-96700 | 1 | $2.49 | |||
| 230 | O-Ring Seal 04811-00180 04816-00180 | 1 | $1.19 | |||
| 240 | GASKET NA 15451-96690 16541-96690 | 1 | $4.83 | |||
| 250 | BOLT 01010-50838 01053-50838 | 1 | $1.69 | |||
| 250 | BOLT, FLANGE * 01754-50835 | 1 | $1.01 | |||
| 260 | Washer 04011-50080 04012-50080 | 1 | $4.16 | |||
| 270 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 290 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.92 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-

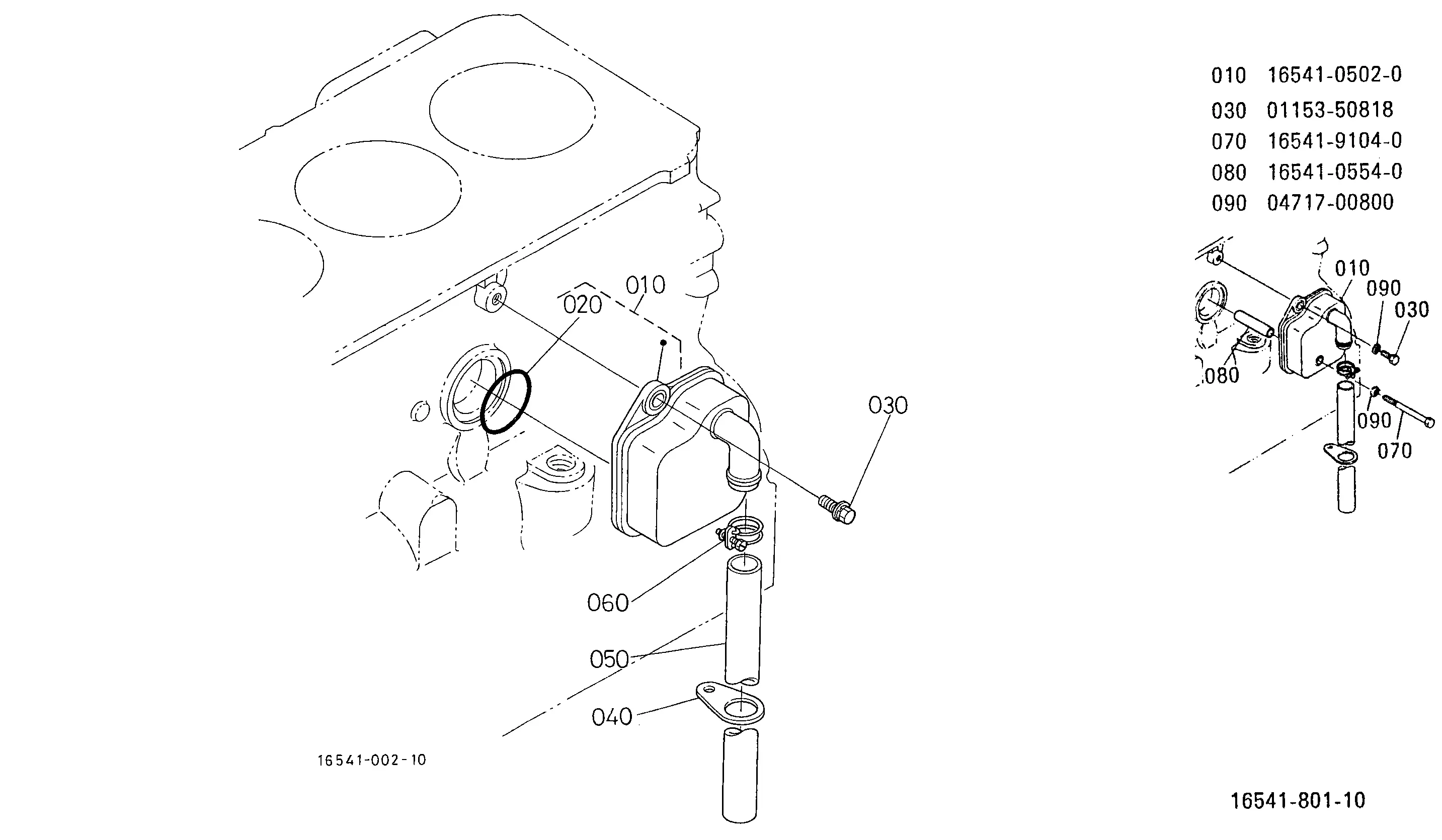

DIAG-T00202-85796 T00202 BREATHER [NEW TYPE]
View Diagram -
DIAG-T00401-85796 T00401 OIL PAN [OLD TYPE]
View Diagram -

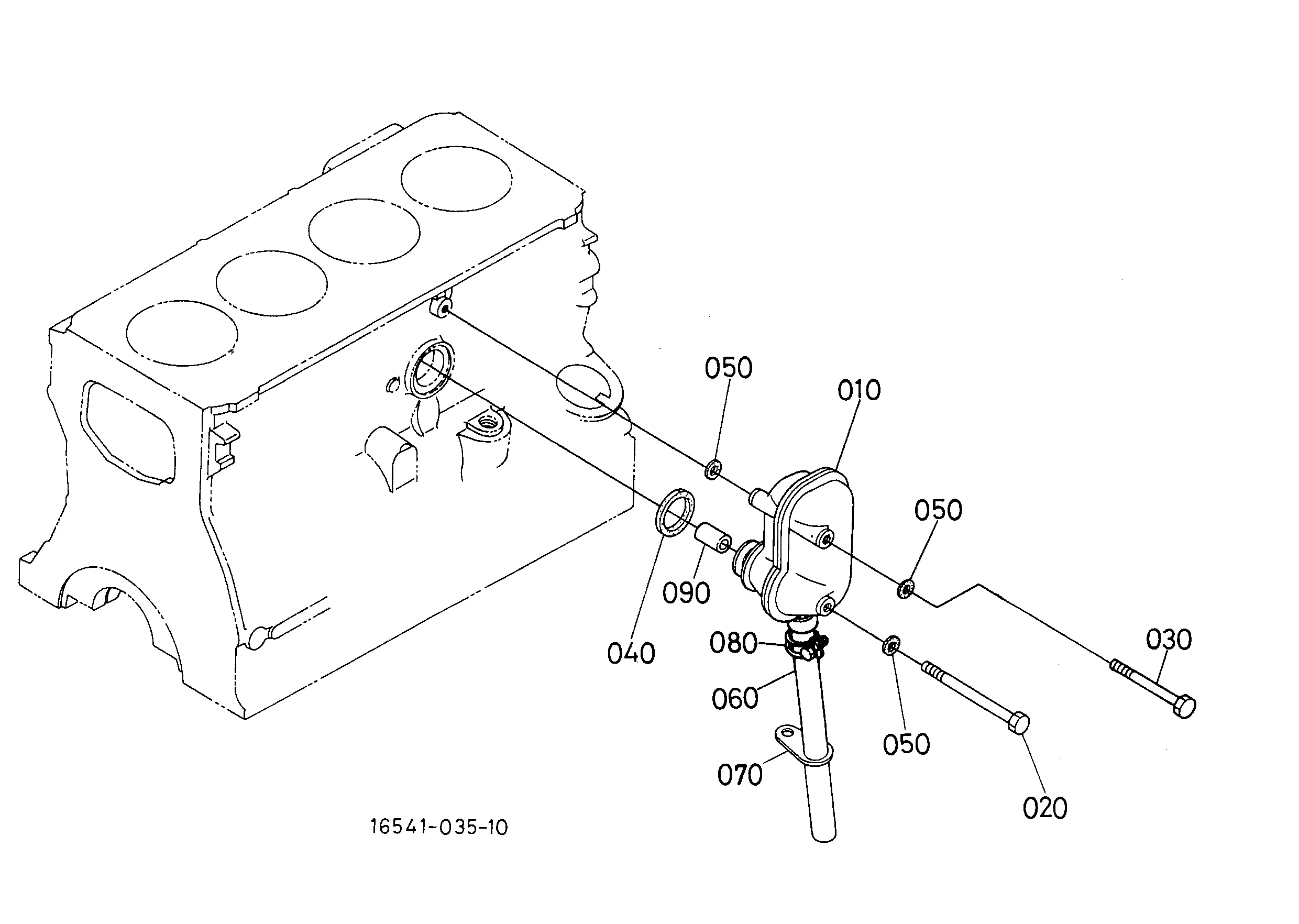

DIAG-T00201-85796 T00201 BREATHER [OLD TYPE]
View Diagram
