| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP. CRANKCASE 17321-01010 Discontinued | 1 | $2,869.10 | |||
| 020 | PLUG 15521-96022 15521-96020 | 1 | $5.15 | |||
| 030 | PLUG 15521-96032 15521-96030 | 1 | $3.09 | |||
| 040 | PLUG, EXPANSION 06311-75018 | 1 | $0.54 | |||
| 050 | PLUG 06311-70045 06311-75045 | 1 | $1.14 | |||
| 060 | Sealing Plug 15221-03383 15221-03380 | 1 | $5.90 | |||
| 070 | Cap. Sealing 15221-03392 15221-03390 | 1 | $8.57 | |||
| 080 | PIN 05011-00408 05012-00408 | 1 | $0.60 | |||
| 090 | PIN 05012-00609 | 1 | $0.80 | |||
| 100 | PIN 05011-00612 05012-00612 | 1 | $0.80 | |||
| 110 | PIN 05012-01018 | 1 | $1.51 | |||
| 120 | PIN, PIPE 15221-33650 | 1 | $4.60 | |||
| 130 | PIPE, WATER RETU 15321-73342 15321-73340 | 1 | $9.29 | |||
| 140 | PLUG * 15221-33611 15221-33610 | 1 | $4.93 | |||
| 150 | Copper Gasket 15451-96730 15021-33660 | 1 | $17.71 | |||
| 160 | O'RING 15221-33700 | 1 | $2.57 | |||
| 170 | ASSY PUMP, OIL 17331-35012 17331-35013 | 1 | $171.16 | |||
| 180 | GASKET, OIL PUMP 15296-35150 1A021-35150 | 1 | $2.01 | |||
| 190 | BOLT 01053-50648 | 1 | $1.69 | |||
| 200 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.14 | |||
| 210 | GEAR, OIL PUMP D 19202-35660 1G896-35660 | 1 | $61.55 | |||
| 220 | KEY, FEATHER 05712-00410 | 1 | $1.91 | |||
| 230 | NUT, FLANGE 15221-35680 15221-35682 | 1 | $4.60 | |||
| 240 | Engine Oil Pressure Sender Switch 15531-39010 1A024-39010 | 1 | $37.17 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

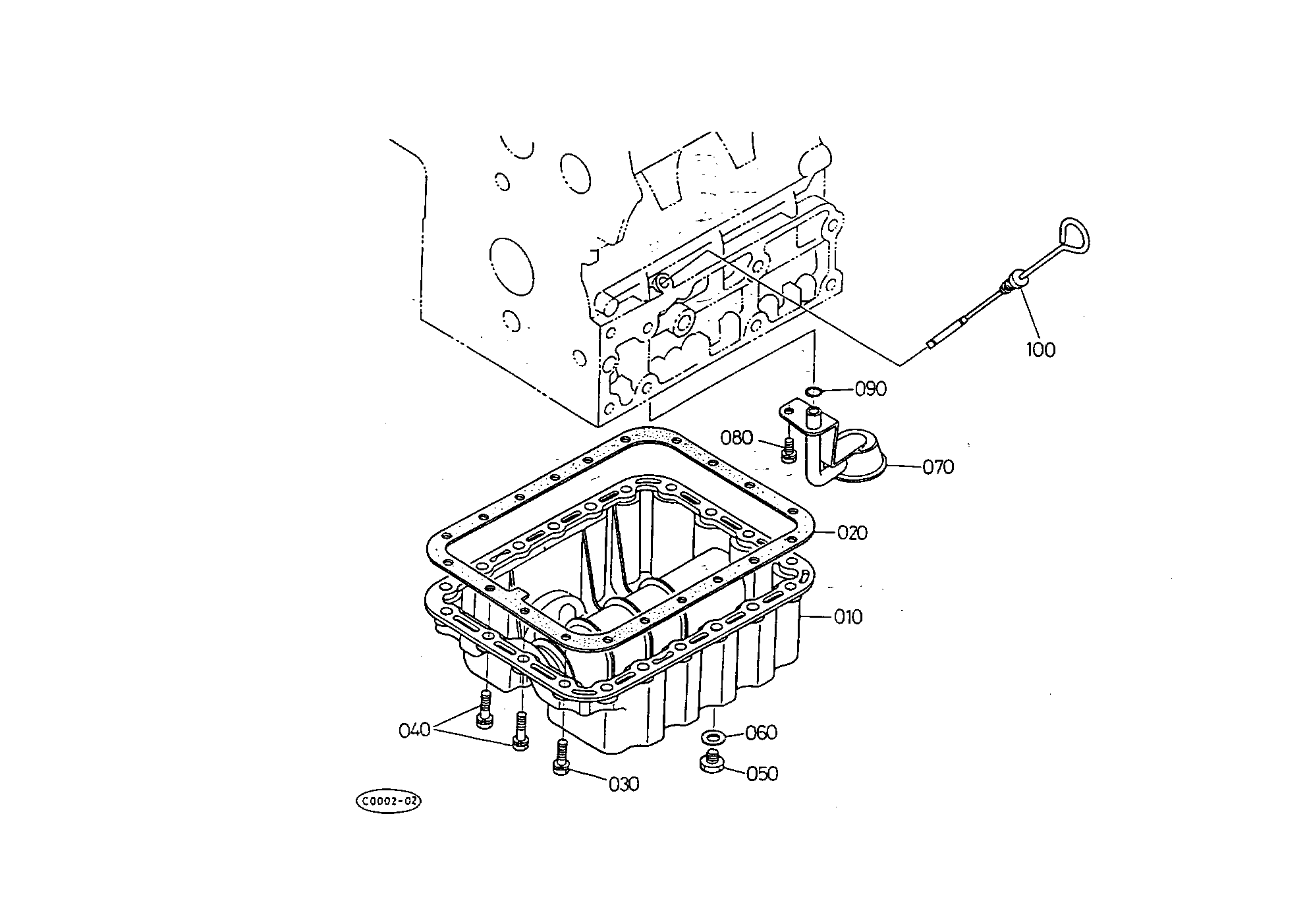

DIAG-T00200-85289 T00200 OIL PAN
View Diagram -

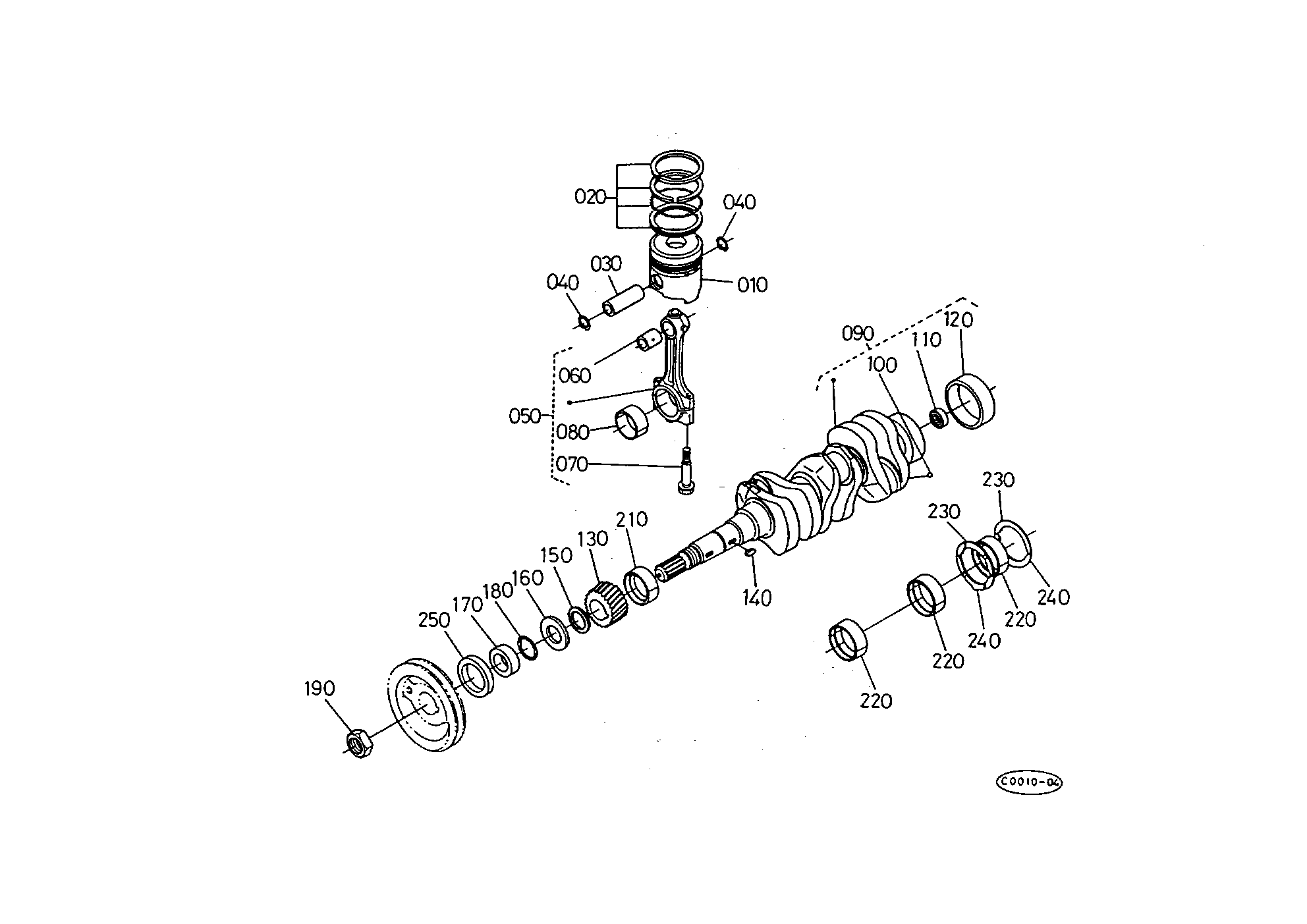

DIAG-T00300-85289 T00300 PISTON AND CRANKSHAFT
View Diagram -
DIAG-T00400-85289 T00400 MAIN BEARING CASE
View Diagram
