Scroll to zoom Click a part # to view details

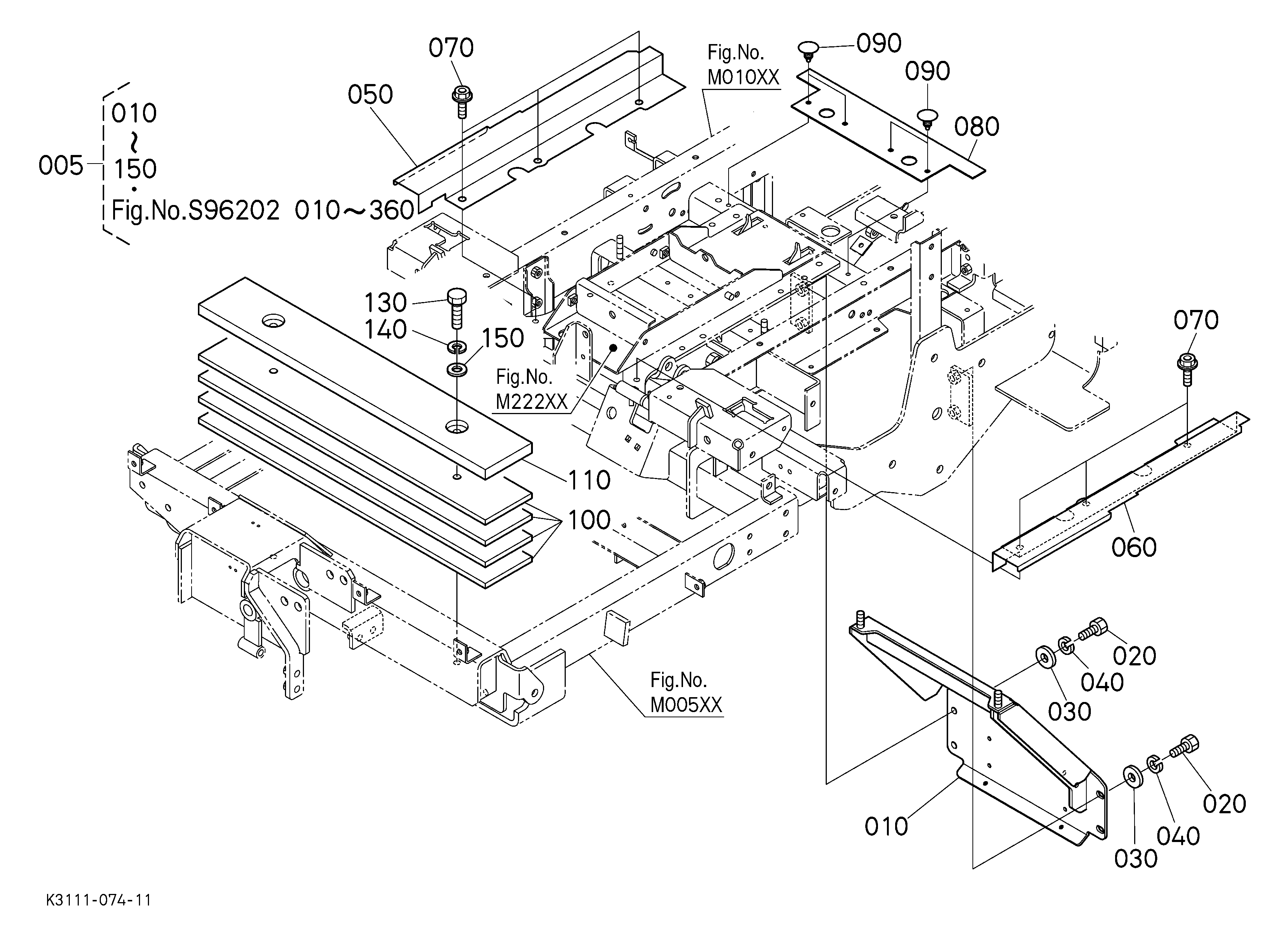

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 020 | LABEL, CAUTION K2591-65640 K2591-65642 | 1 | $19.13 | |||
| 030 | NUT,M10X1.25 HEX K3151-82550 K3151-82552 | 1 | $1.41 | |||
| 040 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 050 | Bolt 01010-00825 01053-50825 | 1 | $1.10 | |||
| 060 | Plain (Flat) Washer 60009-60701 75599-32012 | 1 | $0.14 | |||
| 070 | Lock Washer 60009-60601 75599-33012 | 1 | $0.27 | |||
| 090 | LABEL WARNING (R K2591-65570 K2591-65572 | 1 | $3.52 | |||
| 160 | CUSHION,BATTERY K3111-61420 | 1 | $2.64 | |||
| 170 | M10 x 1.2 SQ Bolt K3151-82580 K3151-82583 | 1 | $1.57 | |||
| 210 | ASSY, BOLT SET K2591-39400 | 1 | $21.87 | |||
| 220 | SAE Flat Washer 75599-32017 | 1 | $1.35 | |||
| 230 | Cotter Pin 05511-10430 05511-50430 | 1 | $0.41 | |||
| 240 | NUT, CASTLE M16* TA240-48362 TA240-48360 | 1 | $15.57 | |||
| 250 | Rail Cove Clamp 53721-61533 | 1 | $23.87 | |||
| 260 | BRACKET, RETAINE K2591-39560 K2591-39562 | 1 | $2.87 | |||
| 270 | SEAT BELT, ASSY K2561-56850 | 1 | $234.08 | |||
| 280 | SUPPORT K3151-82590 | 1 | $151.54 | |||
| 290 | BOLT,M10x1 SQU N K3151-82520 K3151-82523 | 1 | $1.16 | |||
| 320 | Bolt 01073-51025 | 1 | $2.17 | |||
| 330 | SET LABEL, ROPS K2597-65570 K3181-65903 | 1 | $6.59 | |||
| 360 | OM-MANUAL OPERAT K3151-71850 Discontinued | 1 | $6.87 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-000002-86441 000002 FREQUENTLY USED ITEMS
View Diagram -
DIAG-S96102-86441 S96102 ROPS KIT 1 [OPTION]
View Diagram -

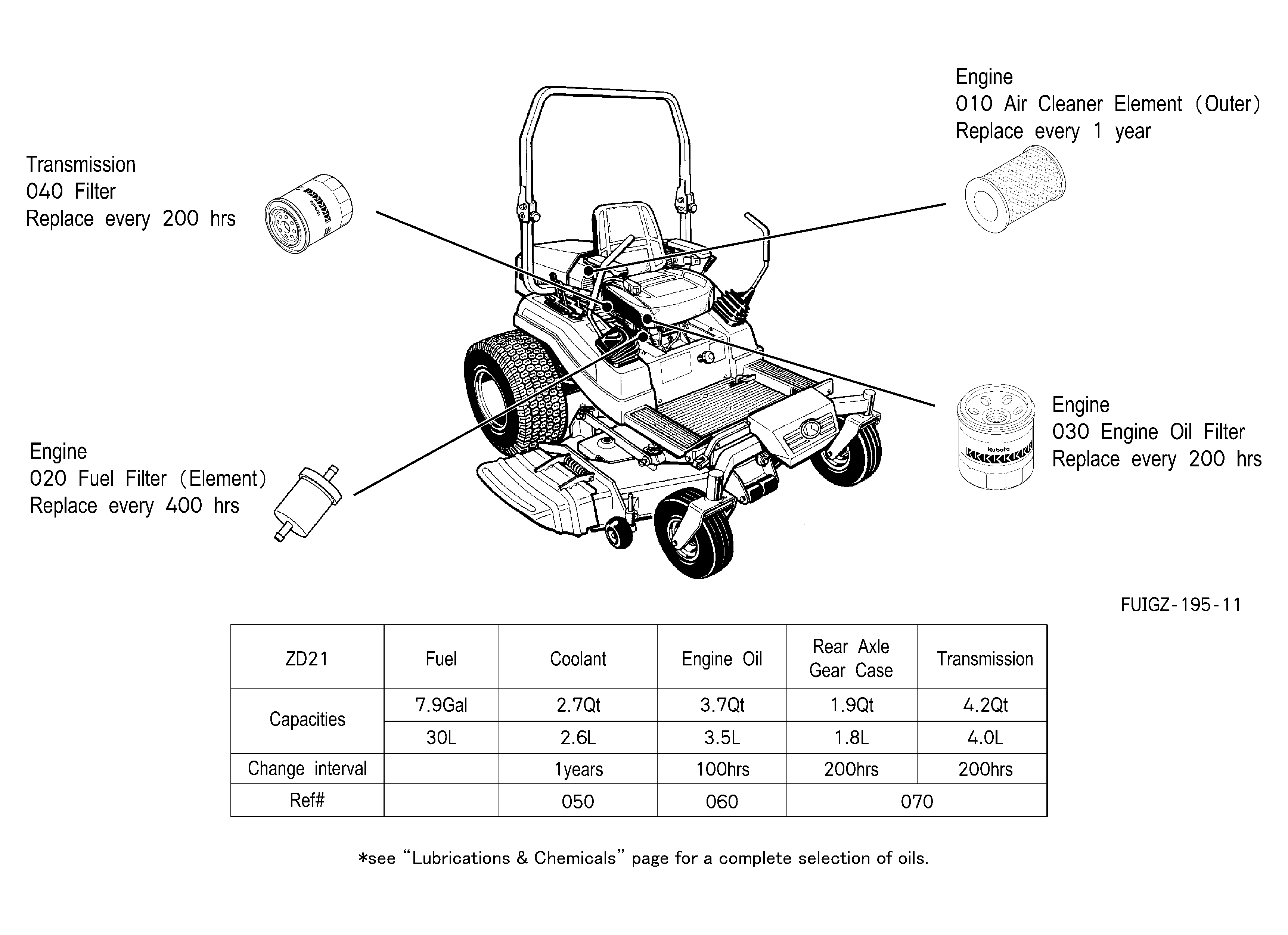

DIAG-000005-86441 000005 FILTER AND FLUID CAPACITY
View Diagram
