Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CYLINDER,HYDR,AS R2431-67210 | 1 | $3,517.16 | |||
| 020 | TUBE,ASSY(OUTRIGGER) R2431-93510 | 1 | $2,409.16 | |||
| 030 | ROD,ASSY(OUTRIGGER) R2431-93520 | 1 | $1,470.88 | |||
| 040 | HEAD, HYD CYL 68841-93230 | 1 | $613.61 | |||
| 050 | BUSH 68841-93240 | 1 | $98.73 | |||
| 060 | WASHER, LOCK 68811-93320 | 1 | $22.33 | |||
| 070 | PISTON, HYD. 68811-93450 | 1 | $445.87 | |||
| 080 | SHIM SET 68817-93320 | 1 | $41.14 | |||
| 090 | NUT 68817-93310 | 1 | $62.57 | |||
| 100 | PIN 68817-93330 | 1 | $23.41 | |||
| 110 | BUSH, PIN 68811-93310 | 1 | $119.74 | |||
| 120 | KIT, SEAL 68869-93500 | 1 | $463.49 | |||
| 130 | U-RING 68501-71540 | 1 | $63.80 | |||
| 140 | RING, WIPER 68511-71440 | 1 | $32.25 | |||
| 150 | O-RING 68811-93350 | 1 | $12.33 | |||
| 160 | RING, BACKUP 68501-71560 | 1 | $40.88 | |||
| 170 | O-RING 68841-93170 | 1 | $16.61 | |||
| 180 | SEAL, RING ASSY 68811-93380 | 1 | $83.88 | |||
| 190 | RING, SLIDE 68811-93390 | 1 | $131.59 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

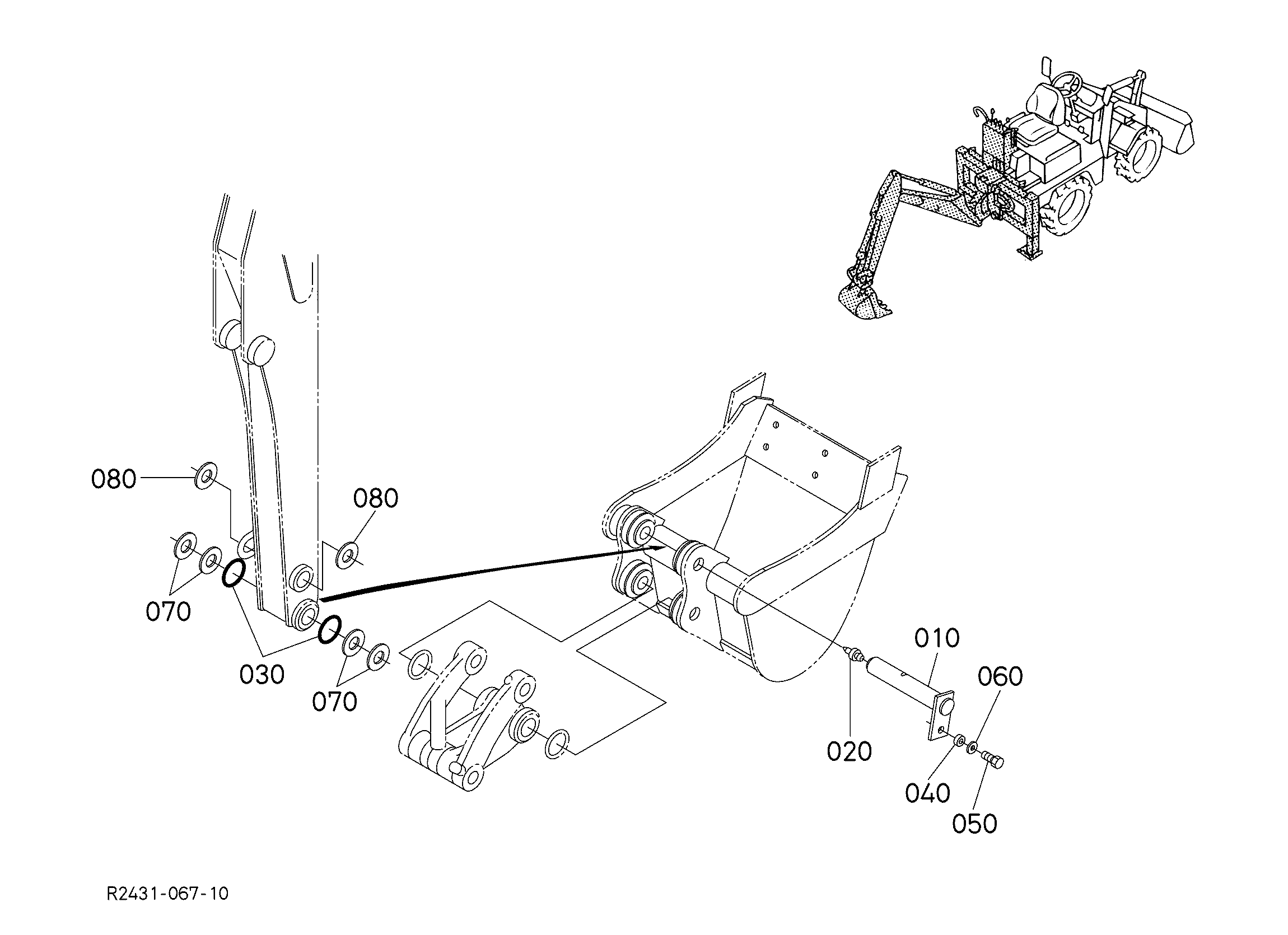

DIAG-S46000-125548 S46000 BUCKET
View Diagram -

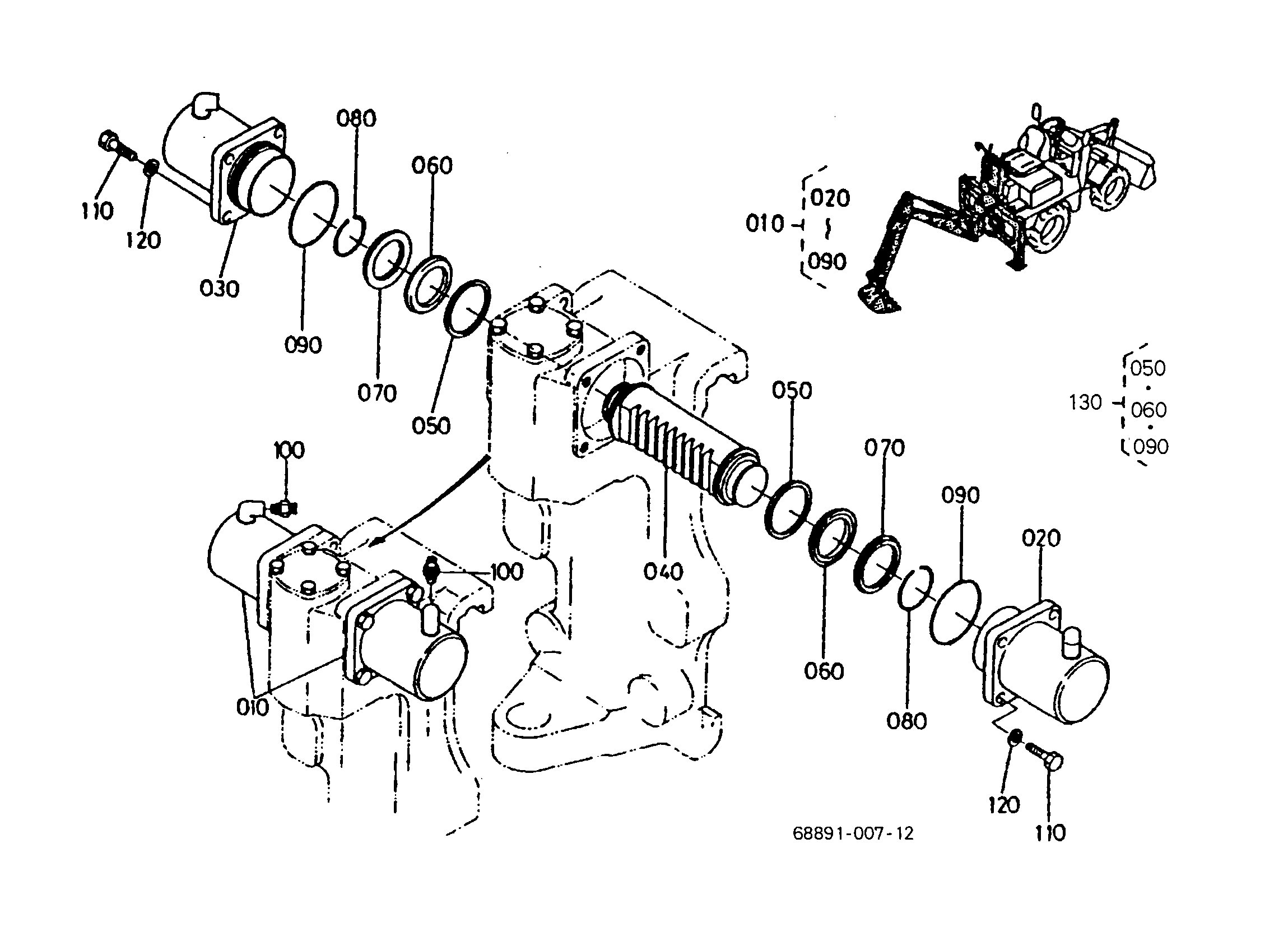

DIAG-S51000-125548 S51000 SWING CYLINDER
View Diagram -

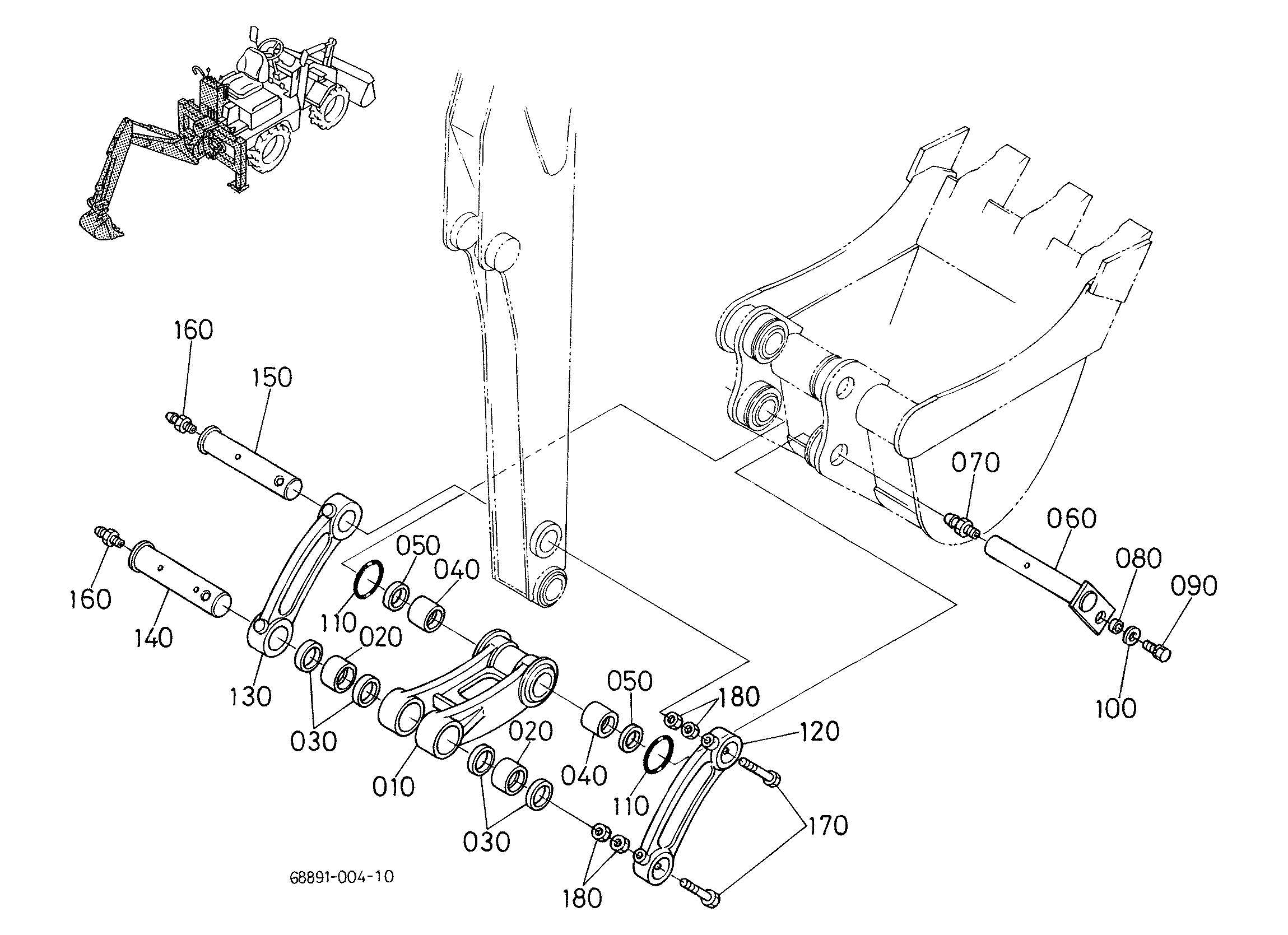

DIAG-S44000-125548 S44000 BUCKET LINK
