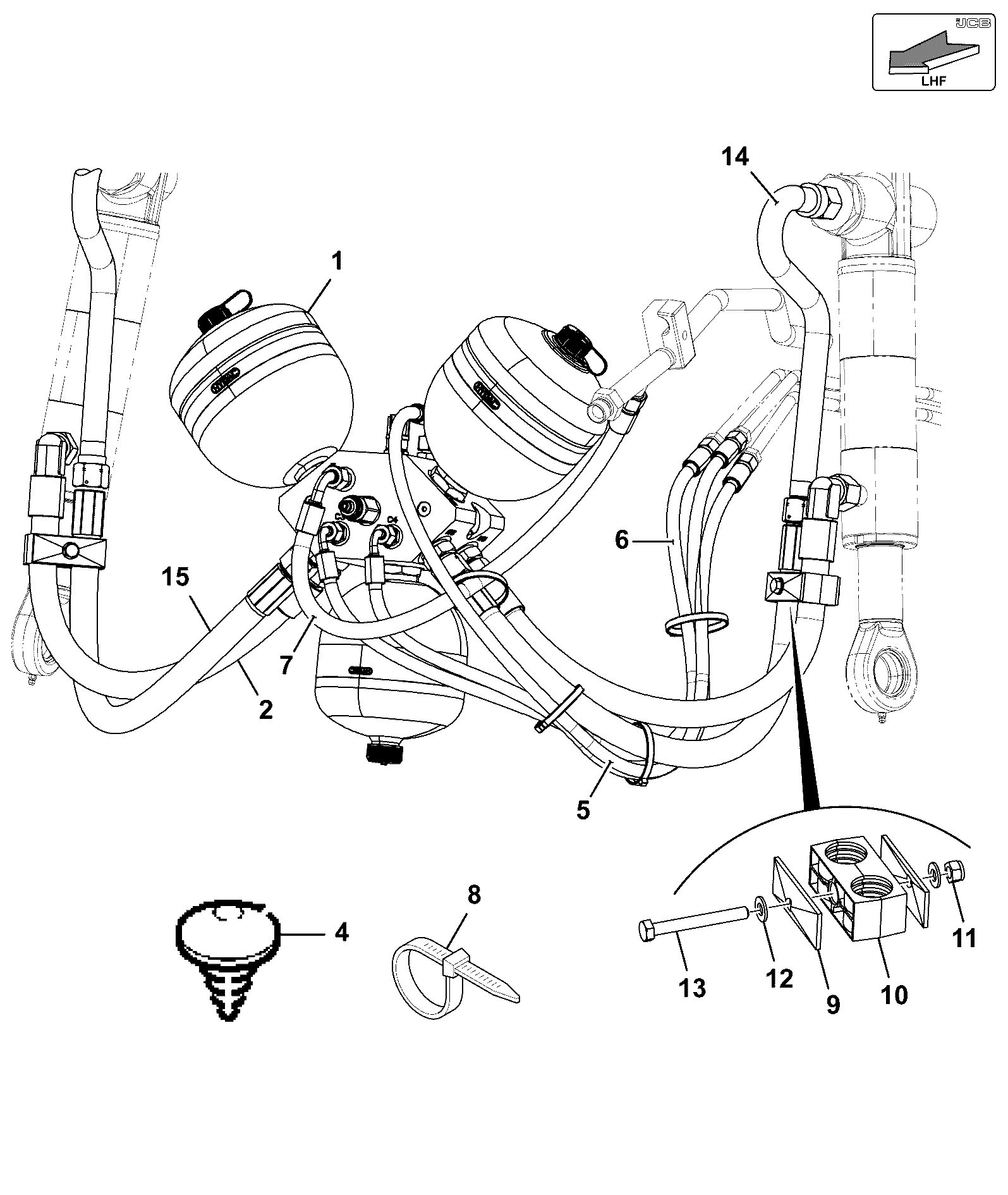

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | HOSE -12 BSP HP 1600mm B 35AM/BA160 | 1 | $134.86 | |||
| 3 | HOSE -12 BSP HP 500mm A 35AM/AA050 | 1 | $96.41 | |||
| 4 | P CLIP M8 28MM FIXING(KANBAN) (BR3) 821/10474 | 1 | $6.05 | |||
| 5 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 6 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 7 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 8 | STAUFF CLAMP BODY 428 PP 334/G3038 | 1 | $3.79 | |||
| 9 | STAUFF COVER PLATE DP4W3 334/J7888 | 1 | $1.67 | |||
| 10 | BOLT M6x65 1315/3215D | 1 | $2.59 | |||
| 11 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 12 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-S490-30-1-393736 S490-30-1 OTHER SUSPENSION CIRCUIT PARTS PARTS TO COMPLETE RAMS
View Diagram -
DIAG-S490-20-5-393736 S490-20-5 OTHER SUSPENSION CIRCUIT PARTS FRONT ROD & HEADSIDE ASSEMBLY
View Diagram -

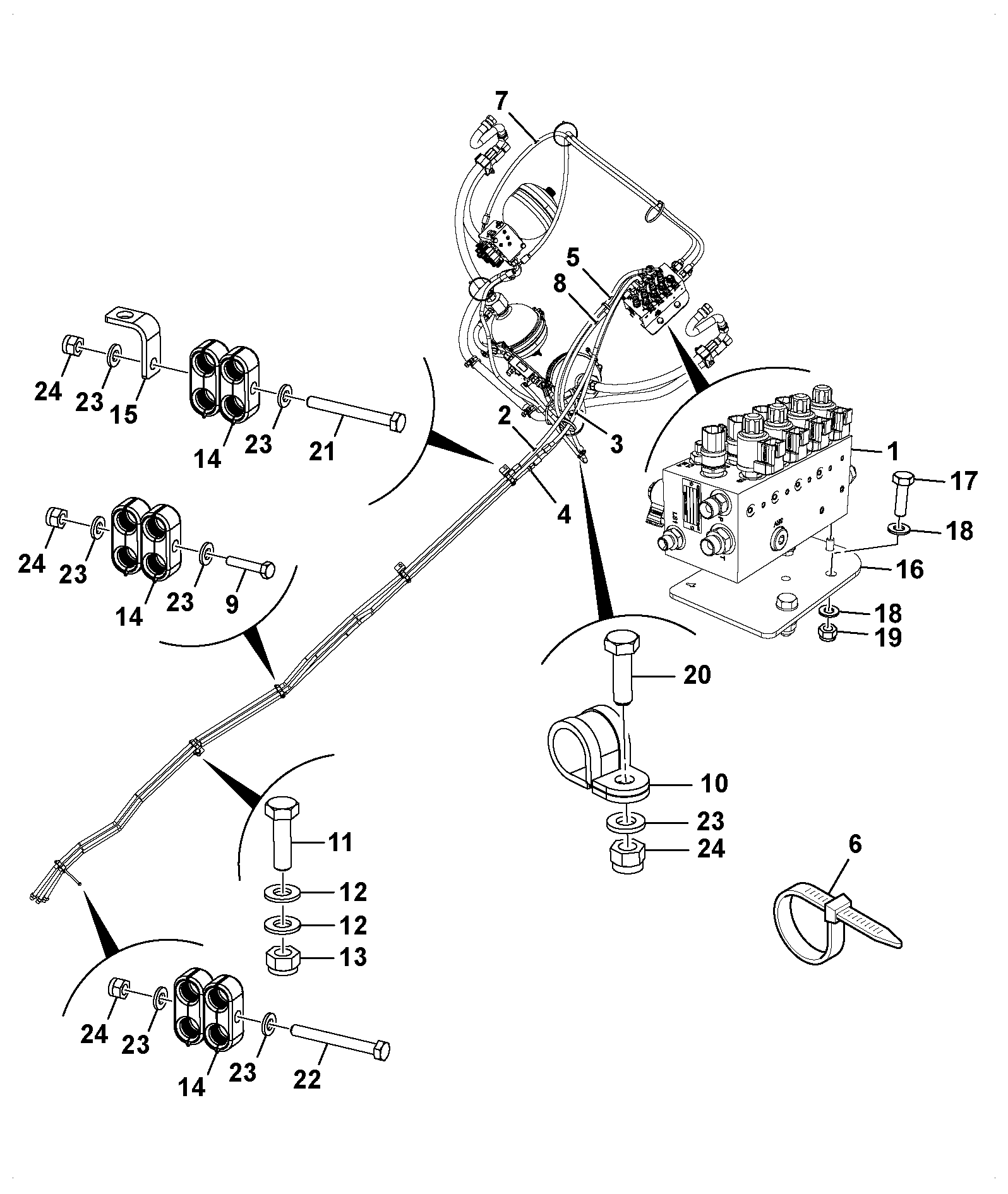

DIAG-S490-60-1-393736 S490-60-1 OTHER SUSPENSION CIRCUIT PARTS SUSPENSION PRESSURE CONTROL
View Diagram
