S240-10-1 SUSPENSION CYLINDER INSTALLATION CYLINDER 45 DIA Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	P148 GAS SPRING 35 BAR 477/01766 335/B1912	1	AVAILABLE TO ORDER	$232.05	Quantity
2	SUSP CYL:45 DIAM+CUSH 477/74500	1	AVAILABLE TO ORDER	$989.67	Quantity
3	P148 GAS SPRING 26 BAR 15/910700 335/B1913	1	AVAILABLE TO ORDER	$226.48	Quantity

Showing 1 to 3 of 3 parts

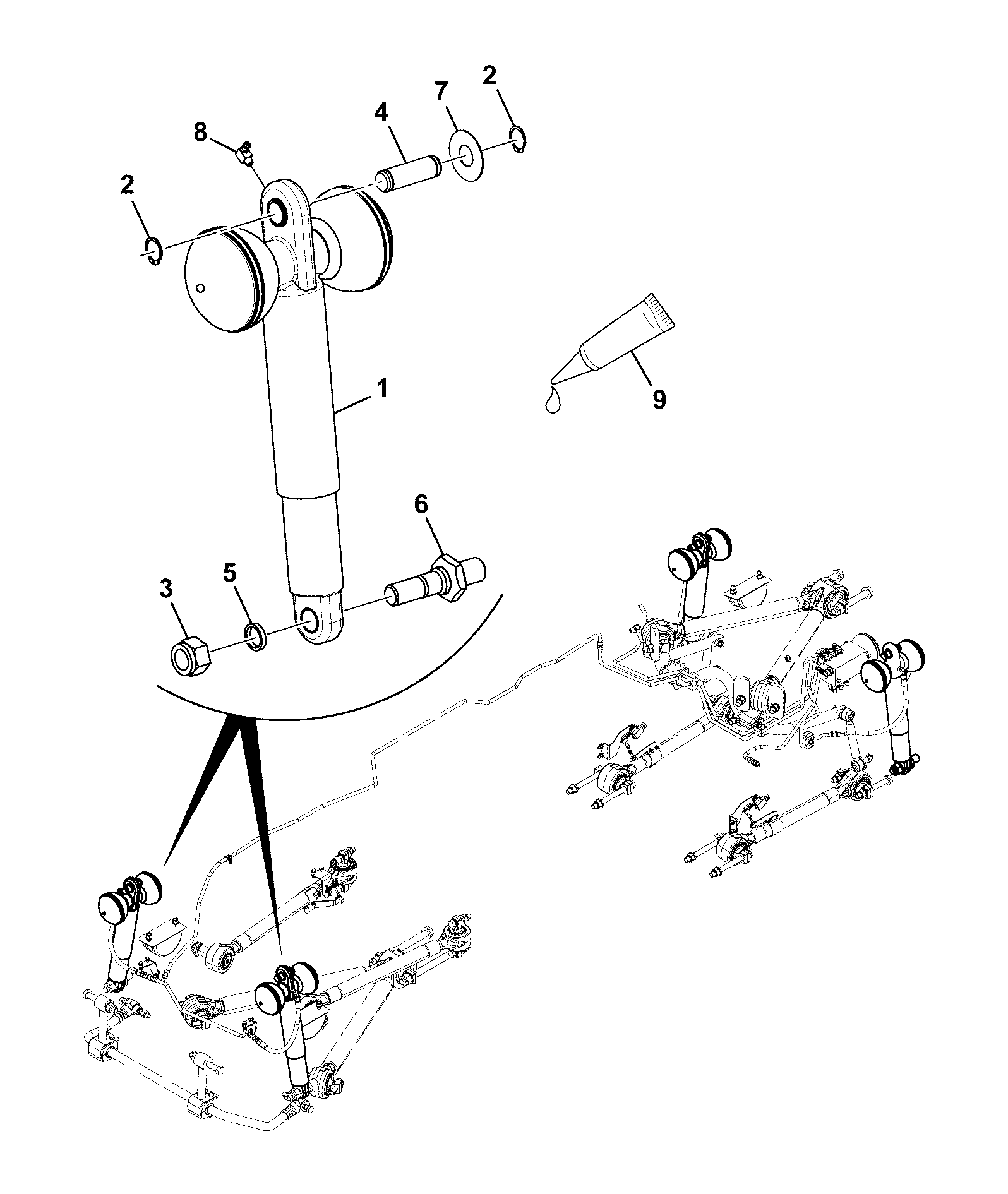

DIAG-S240-1-1-393660 S240-1-1 SUSPENSION CYLINDER INSTALLATION RAM ASSEMBLY , S/A 45F/45R
View Diagram
DIAG-S290-1-1-393660 S290-1-1 OTHER FRONT SUSPENSION PARTS AG FRONT ROD ACC BOLT ASSEMBLY
View Diagram

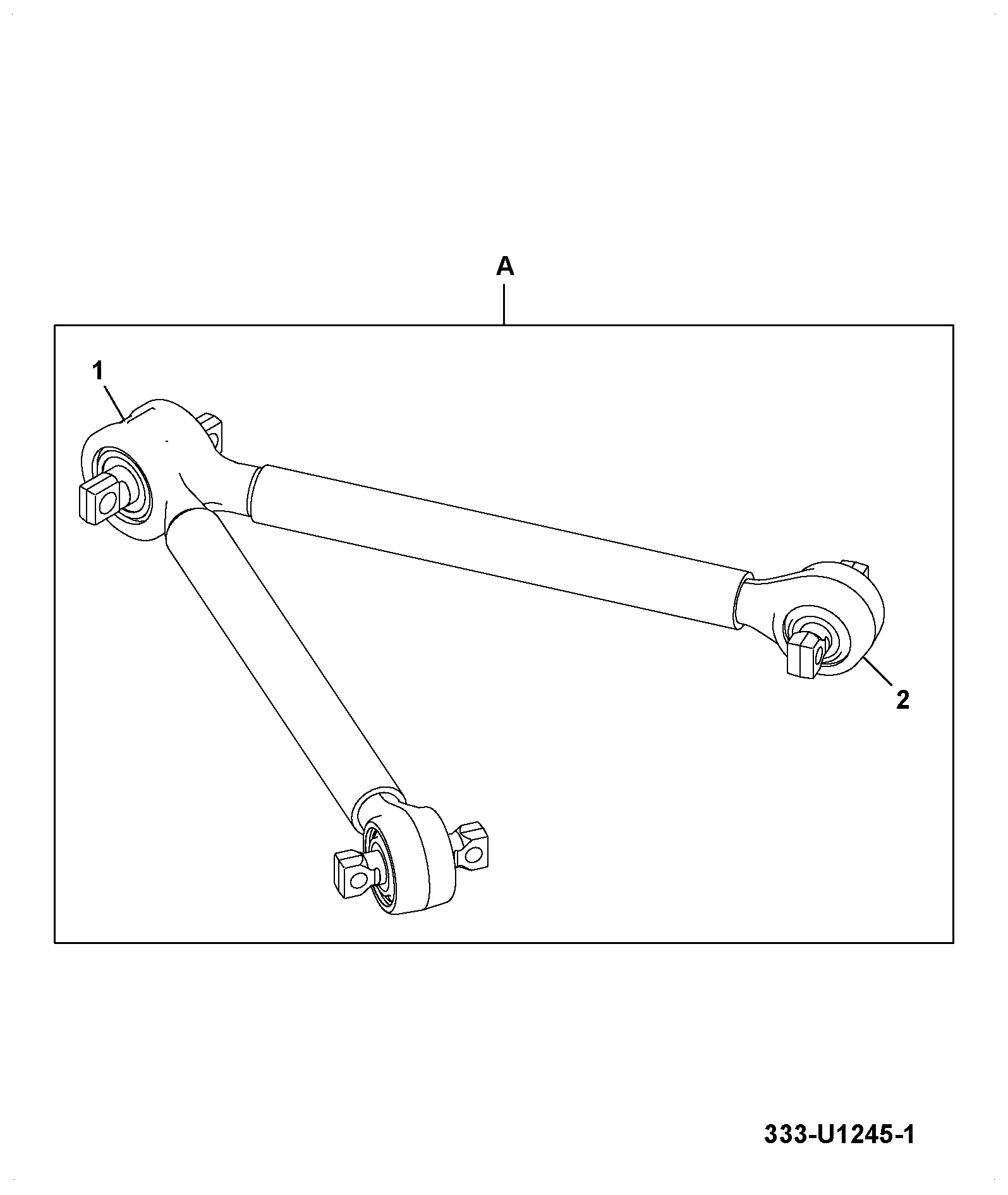

DIAG-S220-15-1-393660 S220-15-1 SUSPENSION ARMS FRONT V LINK 700
