Kubota M5-091HDC12/HDC12-1 S13003 LABEL (CAB INTERIOR) [A] Parts Diagram

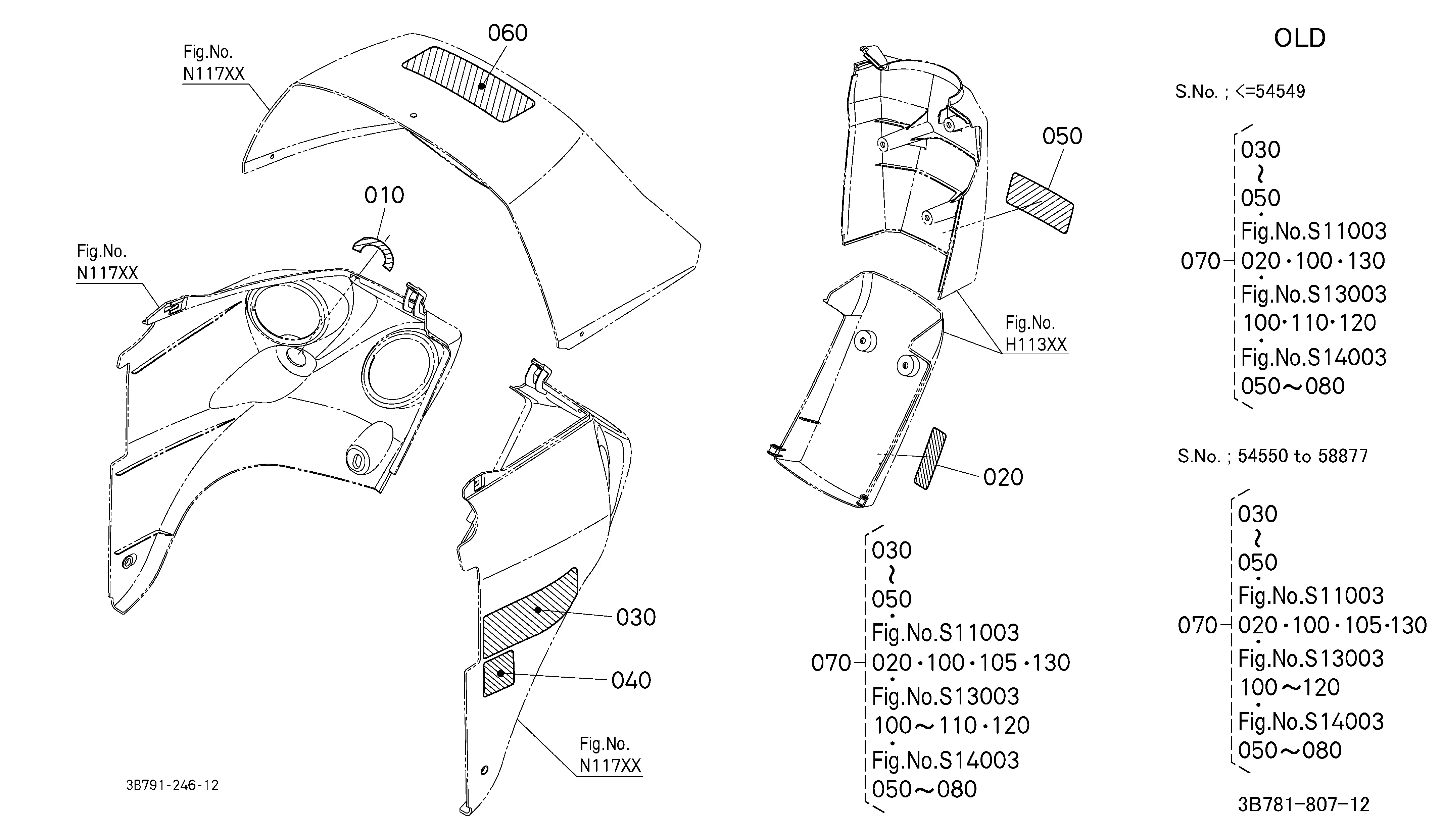

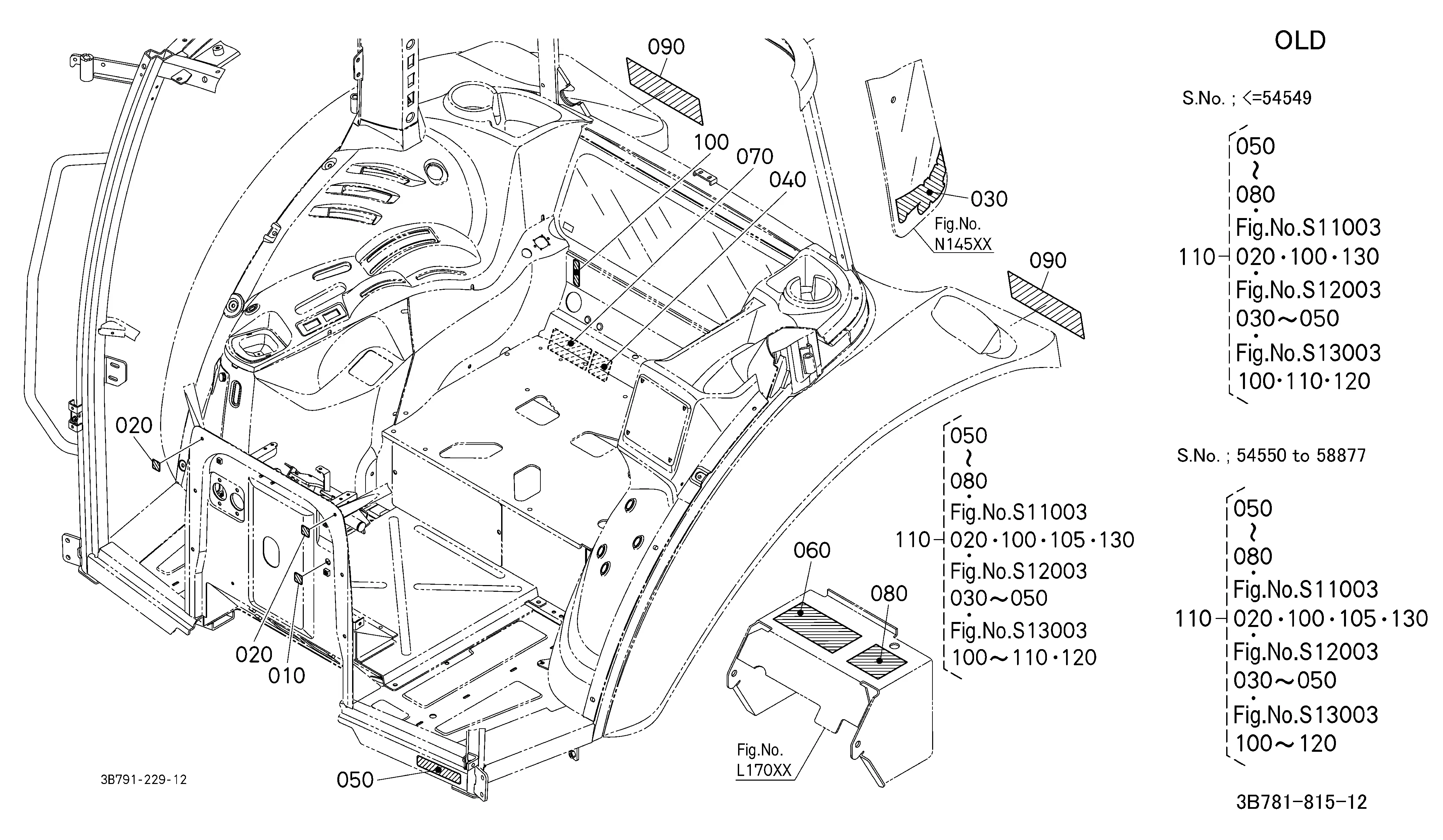

Exploded-view parts diagram "S13003 LABEL (CAB INTERIOR) [A]" for the Kubota M5-091HDC12/HDC12-1. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LABEL PARKING 3B791-98330 | 1 | $3.83 | |||
| 020 | LABEL,PTO SWITCH 3C151-98660 | 1 | $2.15 | |||
| 030 | MARK, DIFF LOCK TA040-49760 3C081-98410 | 1 | $21.64 | |||
| 040 | LABEL 3B791-98320 | 1 | $4.07 | |||
| 050 | LABEL DRAFT 3B791-98370 | 1 | $4.39 | |||
| 060 | LABEL POSITION 3B791-98230 | 1 | $5.73 | |||
| 070 | MARK, HYD ADJ TA470-49330 | 1 | $5.15 | |||
| 080 | LABEL, AUX CON V 3B791-98390 | 1 | $3.83 | |||
| 090 | LABEL,SPEED 3C651-98460 | 1 | $6.14 | |||
| 100 | LABEL SAFETY, WA 3S205-98360 | 1 | $10.53 | |||
| 105 | LABEL(PROPOSITIO TC650-65970 | 1 | $8.25 | |||
| 110 | LABEL, PARKING 6C151-47430 6C150-47430 | 1 | $8.62 | |||
| 115 | LABEL(SILICA,WARNING 3B791-98700 3B791-98702 Discontinued | 1 | $8.18 | |||
| 120 | LABEL, CAB WARNI TA043-49020 TA040-49020 | 1 | $5.15 | |||
| 130 | LABEL, 4WD 3A021-98650 3A121-98650 | 1 | $3.85 | |||
| 140 | LABEL,KIT 3B791-97300 3B791-97305 | 1 | $48.77 | |||
Showing 1 to 16 of 16 parts
