Kubota M100XDTC S12001 LABEL 2 (FRONT) [A] Parts Diagram

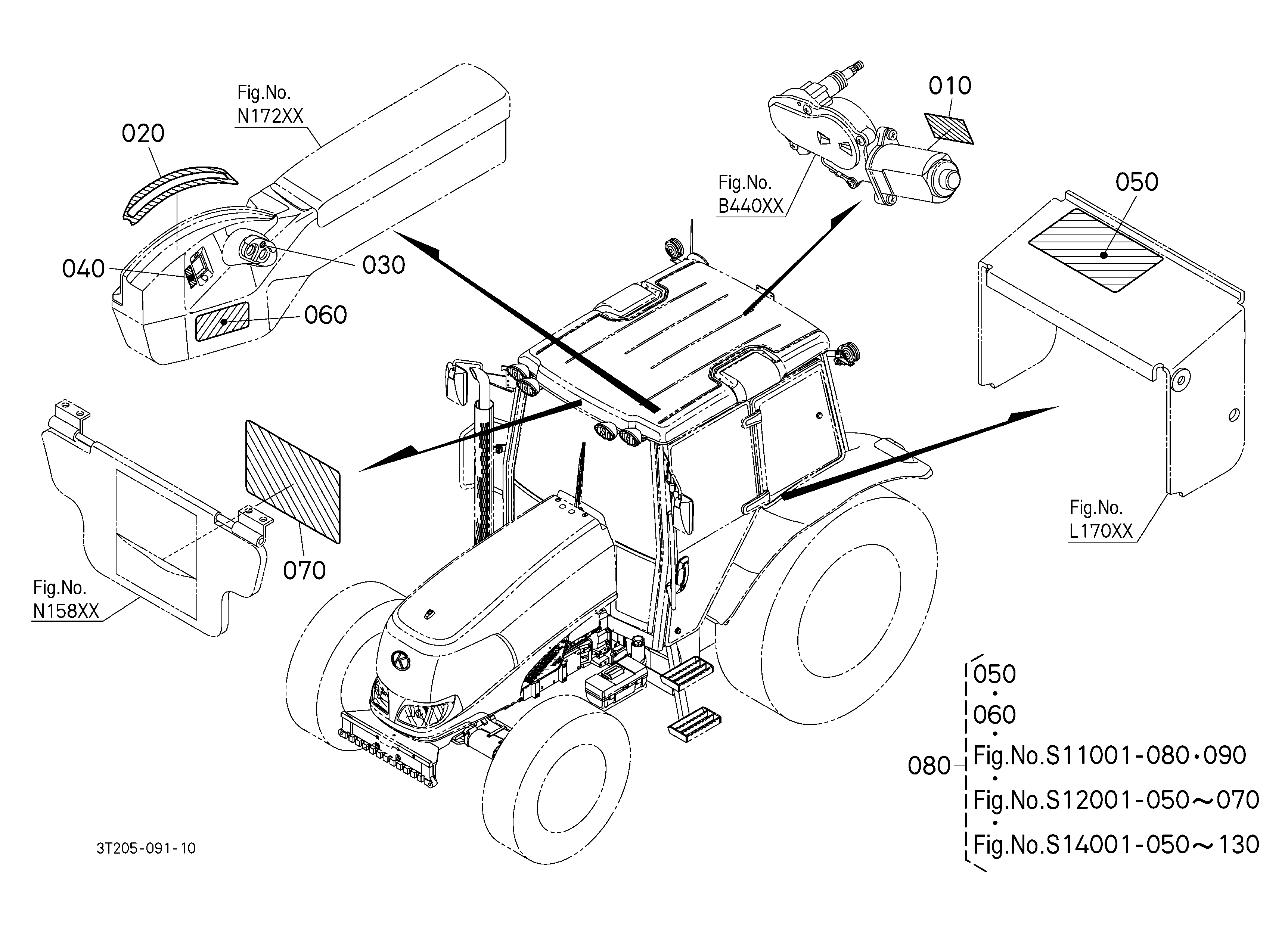

Exploded-view parts diagram "S12001 LABEL 2 (FRONT) [A]" for the Kubota M100XDTC and Kubota M110XDTC. 8 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LABEL, SEPARATOR 1G311-87460 | 1 | $11.47 | |||
| 030 | LABEL, RADIATOR 15227-87612 16478-88230 | 1 | $5.99 | |||
| 040 | LABEL 3N300-98920 | 1 | $23.05 | |||
| 050 | LABEL, FAN WARNI TA040-49570 | 1 | $5.15 | |||
| 060 | LABEL, A/C 3P205-98500 | 1 | $5.82 | |||
| 070 | LABEL (ERG, WARN 3N600-49580 | 1 | $5.74 | |||
| 090 | LABEL 3N300-98270 | 1 | $23.05 | |||
| 100 | KIT LABEL, SAFET 3T999-00023 | 1 | $97.27 | |||
Showing 1 to 8 of 8 parts
