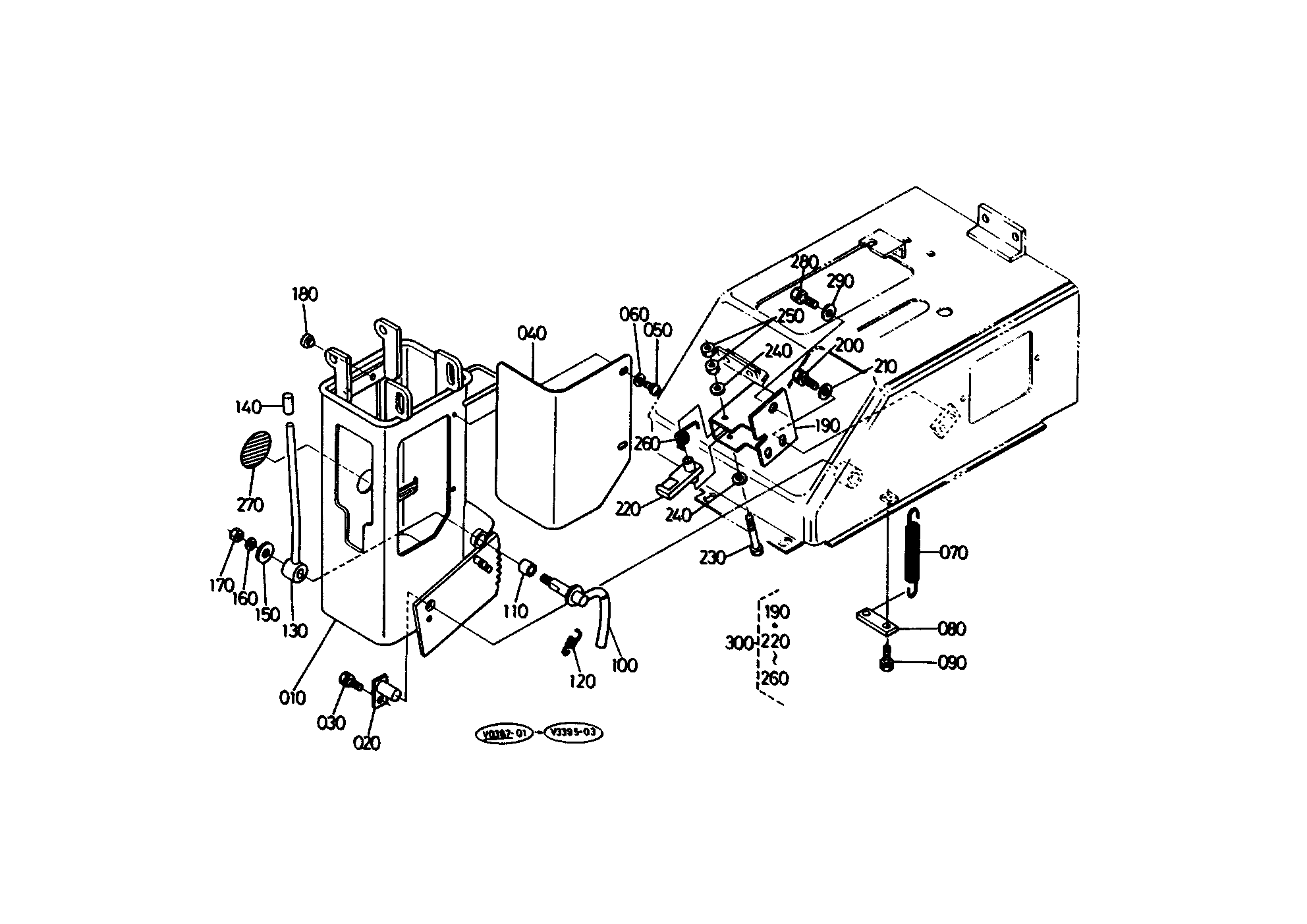

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIN 68021-32792 68021-32790 | 1 | $6.80 | |||
| 020 | Snap Pin 05525-50500 05525-70500 | 1 | $1.48 | |||
| 030 | PLATE 68311-65520 Discontinued | 1 | $20.49 | |||
| 040 | Joint Pin 05122-51045 05122-71045 | 1 | $4.83 | |||
| 050 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 060 | Split Pin (Cotter Pin) 05525-61000 05525-51000 | 1 | $1.43 | |||
| 070 | LEVER, TRAVEL LH 68328-65570 Discontinued | 1 | $225.14 | |||
| 080 | BRG NDL ROLLER18 68741-65360 | 1 | $25.50 | |||
| 090 | PIN 68391-65550 | 1 | $42.12 | |||
| 100 | BOLT 01176-61025 01176-71025 | 1 | $1.48 | |||
| 110 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 120 | GRIP 55571-17850 59470-17850 | 1 | $13.94 | |||
| 130 | RUBBER, BELLOWS 68161-65162 | 1 | $37.60 | |||
| 140 | PEDAL, DRIVE LH 68328-65610 | 1 | $113.99 | |||
| 150 | STOPPER 68311-92192 Discontinued | 1 | $20.49 | |||
| 160 | Bolt 01121-50820 01125-70820 | 1 | $1.21 | |||
Showing 1 to 16 of 16 parts
