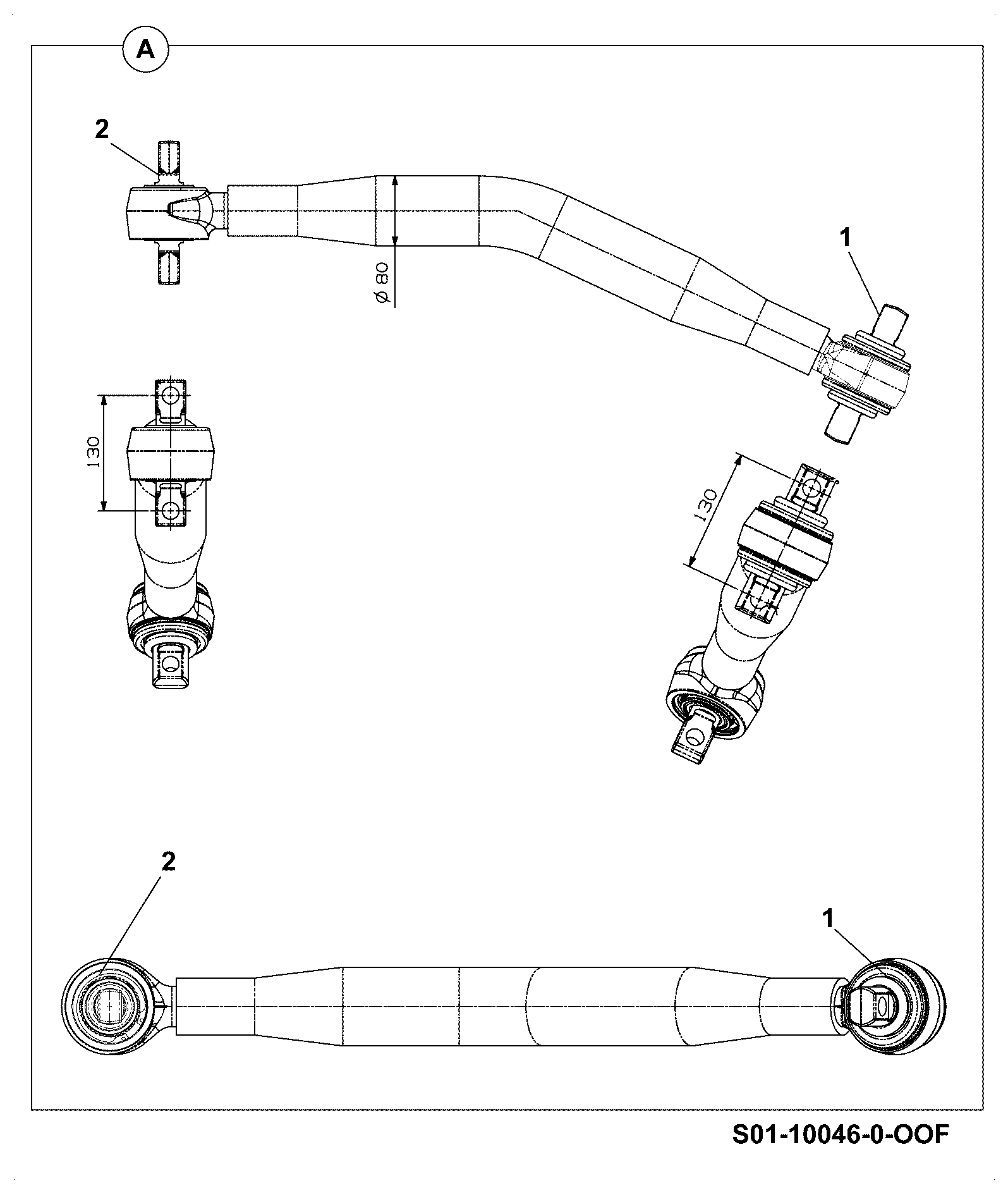

S1-3-1 ARM SUSPENSION 913/10230 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit-repair 481/02133	1	AVAILABLE TO ORDER	$506.58	Quantity
2	Kit-repair roller 481/02012	1	AVAILABLE TO ORDER	$394.03	Quantity
A	FRONT UPPER SUSP ARM 913/10230 332/R5771	1	AVAILABLE TO ORDER	$1,158.48	Quantity

Showing 1 to 3 of 3 parts
