Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | PIN MOUNTING SHOCK 478/00705 | 1 | $81.28 | |||
| 3 | WASHER 5/8 LARGE 1412/0007Z | 1 | $5.75 | |||
| 5 | CAP PROTECTIVE 835/00122 | 1 | $2.44 | |||
| 6 | BUMP STOP 476/00434 331/67820 | 1 | $37.15 | |||
| 7 | SPACER 10mm THK 476/00216 331/66955 | 1 | $171.49 | |||
| 8 | SET SCREW M12x35 1315/0509Z | 1 | $2.15 | |||
| 9 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $6.91 | |||
| 10 | COIL SPRING (HEAVY DUTY) 477/01277 332/L5036 | 1 | $532.91 | |||
| 11 | PEDESTAL 478/00022 | 1 | $483.77 | |||
| 12 | BOLT M20 x 90 lg. 1315/3819Z | 1 | $18.64 | |||
| 13 | (W) (P) WASHER M20 PLAIN 1420/0012Z | 1 | $1.94 | |||
| 14 | Spacer 478/00670 | 1 | $58.41 | |||
| 15 | ARM L/H 478/02044 | 1 | $730.90 | |||
| 16 | FRNT SUSP UPPERLINK-RH 478/02045 | 1 | $1,982.22 | |||
| 17 | ARM 478/01040 | 1 | $844.01 | |||
| 18 | BOLT M18 X 140 826/01792 | 1 | $26.07 | |||
| 19 | BOLT 826/01136 | 1 | $16.86 | |||
| 20 | NUT -M18 826/01132 826/10823 | 1 | $19.50 | |||
| 21 | BOLT M16x50 1315/3712Z | 1 | $9.15 | |||
| 22 | BOLT M16 X 150 HT 1315/3725Z | 1 | $45.47 | |||
| 23 | BOLT M16x110 1315/3721Z | 1 | $23.97 | |||
| 24 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $0.00 | |||
| 25 | PANHARD ROD 478/00960 | 1 | $1,602.09 | |||
| 26 | BRACKET ANTI-ROLL 478/02011 | 1 | $281.36 | |||
| 27 | RH ANTI-ROLL BAR BRKT 478/02012 | 1 | $281.36 | |||
| 28 | BOLT 826/01236 | 1 | $6.18 | |||
| 28 | Bolt M18X2.5X110 D 826/10824 | 1 | $15.81 | |||
| 30 | BUSH 476/00218 | 1 | $5.99 | |||
| 31 | SLEEVE 476/00219 | 1 | $35.67 | |||
| 33 | LINK-STABILISER ARM FRONT 476/01200 | 1 | $942.22 | |||
| 33A | Tube 481/02150 | 1 | $104.98 | |||
| 33B | Bush 481/02151 | 1 | $43.80 | |||
| 34 | Bush Insulator 477/00801 400/14612 | 1 | $203.95 | |||
| 35 | BOLT M10x80(KANBAN) 1315/3418Z | 1 | $1.63 | |||
| 36 | WASHER 823/00455 | 1 | $171.65 | |||
| 37 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 38 | BOLT 826/01131 | 1 | $46.75 | |||
| 40 | WASHER OVERSIZE 1412/0012Z | 1 | $8.29 | |||
| 41 | SET SCREW M16x35 1315/0709Z | 1 | $7.75 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-

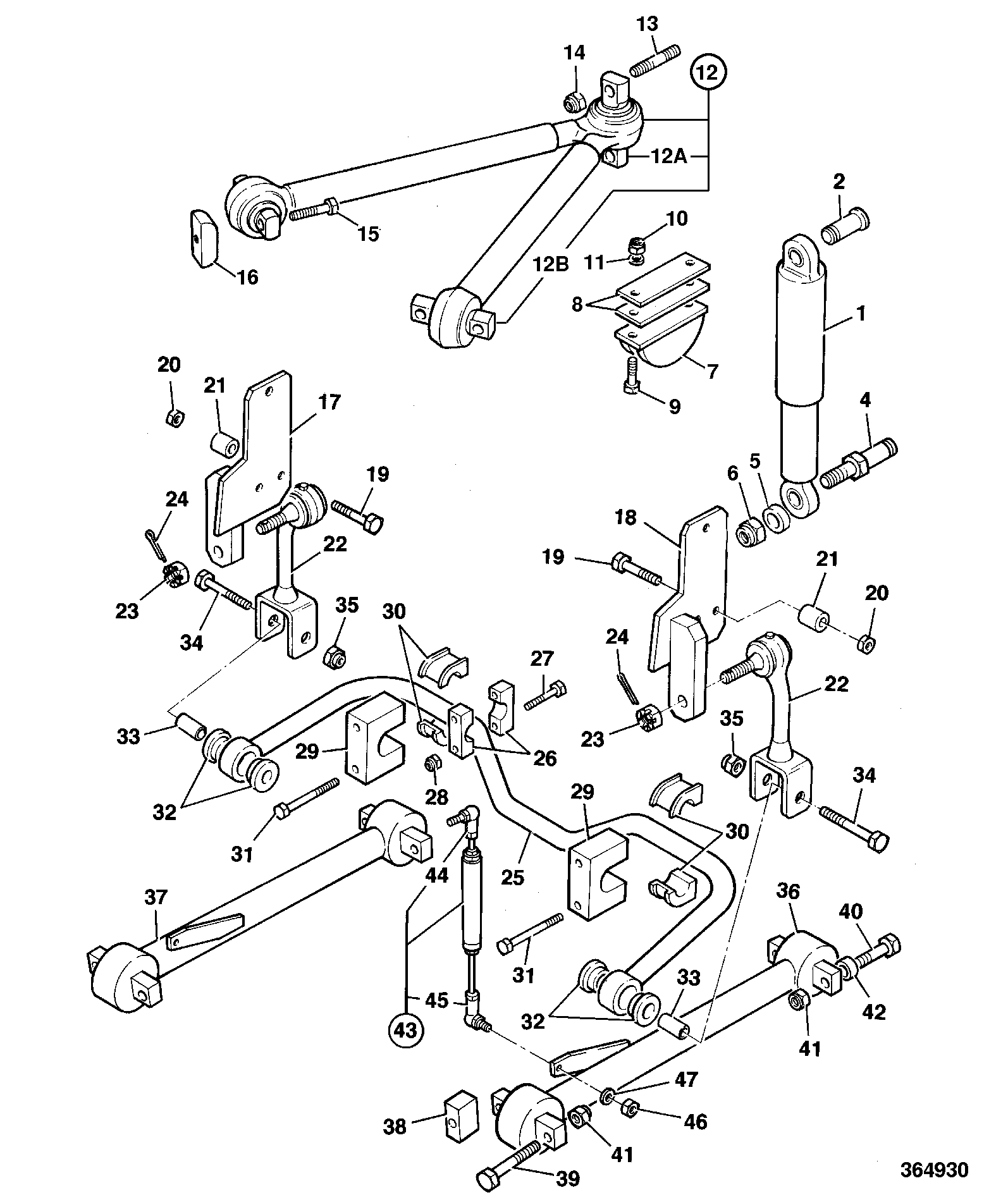

DIAG-S2-1-1-393531-10473560 S2-1-1 SUSPENSION REAR 2WS
View Diagram -

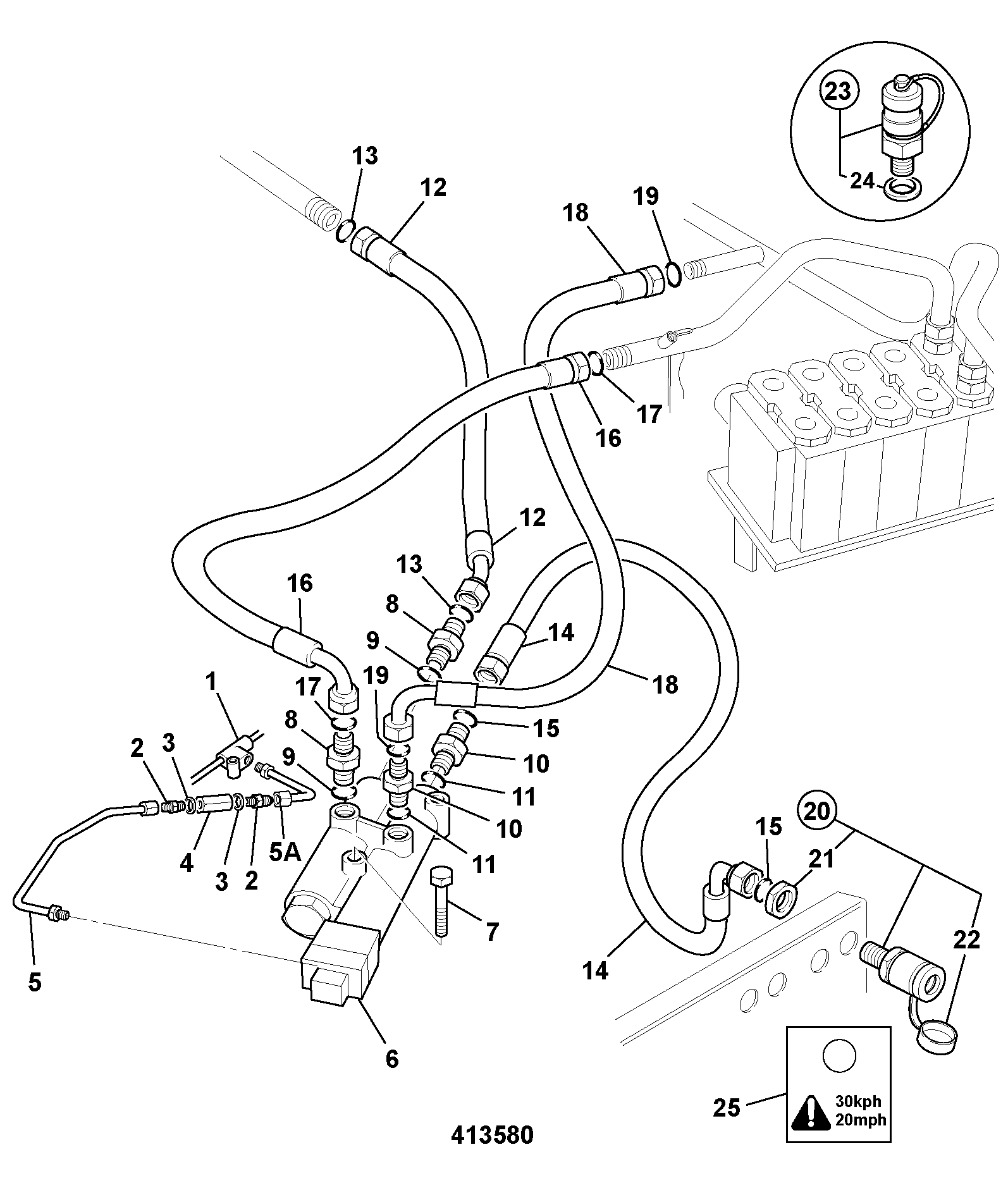

DIAG-G1-30-2-393531-10473554 G1-30-2 BRAKES, TRAILER HYDRAULIC
View Diagram -

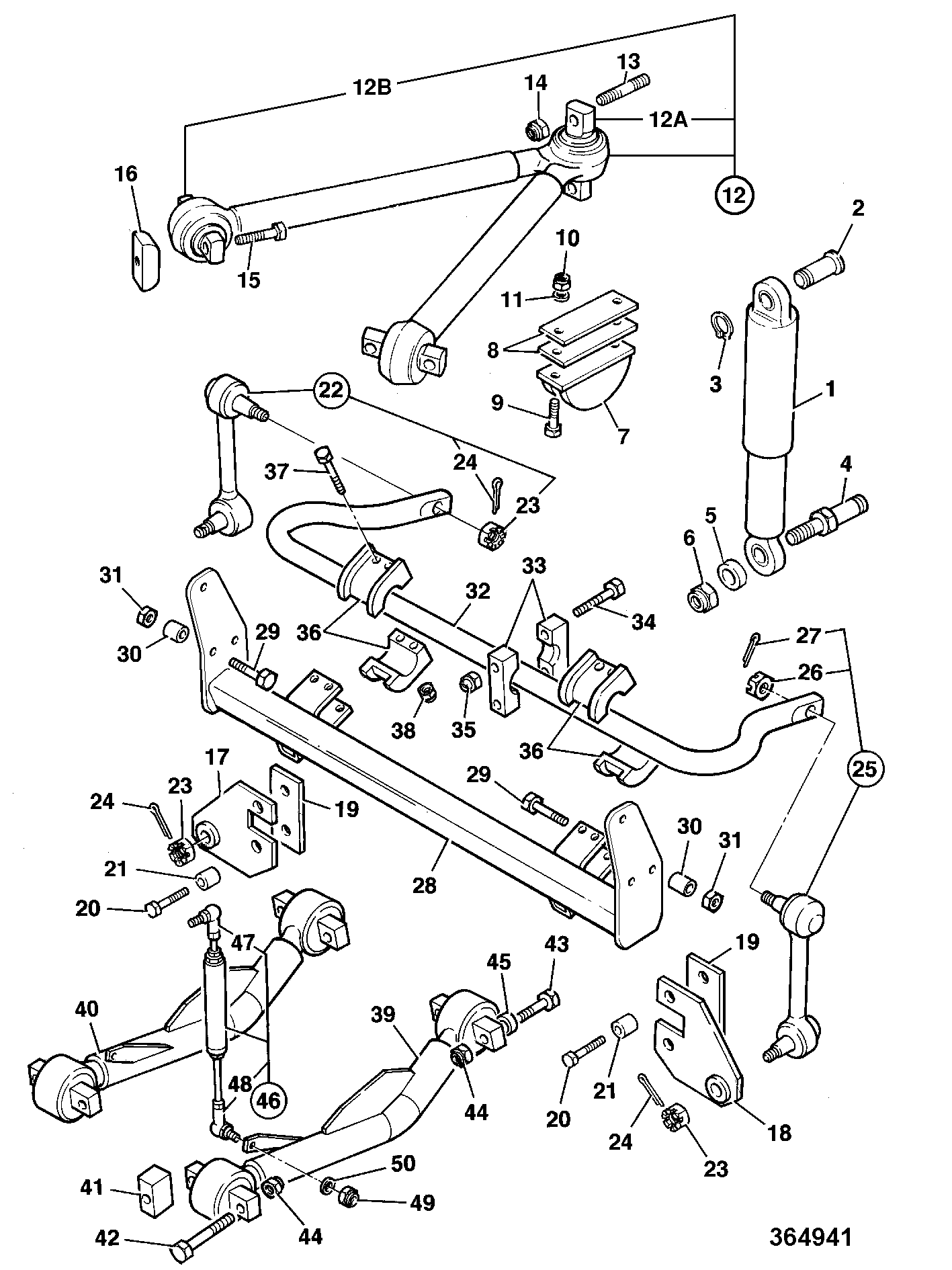

DIAG-S2-2-1-393531-10473562 S2-2-1 SUSPENSION REAR, 4WS
View Diagram
