Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CYLINDER, ASSY S RB108-67400 | 1 | $1,634.04 | |||
| 020 | KIT TUBE, CYLIND RB108-94420 Discontinued | 1 | $1,206.89 | |||
| 030 | KIT ROD,PISTON RB108-71220 RB108-94430 | 1 | $1,848.78 | |||
| 040 | HEAD, HYD CYL RB108-71230 | 1 | $742.97 | |||
| 050 | BUSH RB101-71270 | 1 | $98.73 | |||
| 060 | PISTON 68191-71340 | 1 | $575.66 | |||
| 070 | RING, SLIDE 78620-32280 | 1 | $97.80 | |||
| 080 | SCREW, SET 68191-71370 | 1 | $31.13 | |||
| 090 | BALL 68701-71650 | 1 | $13.72 | |||
| 100 | BUSH, PIN 68811-93310 | 1 | $119.74 | |||
| 110 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $3.54 | |||
| 120 | KIT SEAL RB101-91020 RC411-71880 | 1 | $350.48 | |||
| 130 | SEAL, ROD 68051-67430 | 1 | $26.03 | |||
| 140 | RING, WIPER RB101-71240 | 1 | $124.65 | |||
| 150 | O-Ring Seal 68811-93370 04810-50500 | 1 | $3.68 | |||
| 160 | RING, BACK UP 68511-71460 | 1 | $43.11 | |||
| 170 | O-Ring Seal 04811-50550 | 1 | $2.99 | |||
| 180 | RING, SEAL ASSY 68511-71490 Discontinued | 1 | $49.85 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

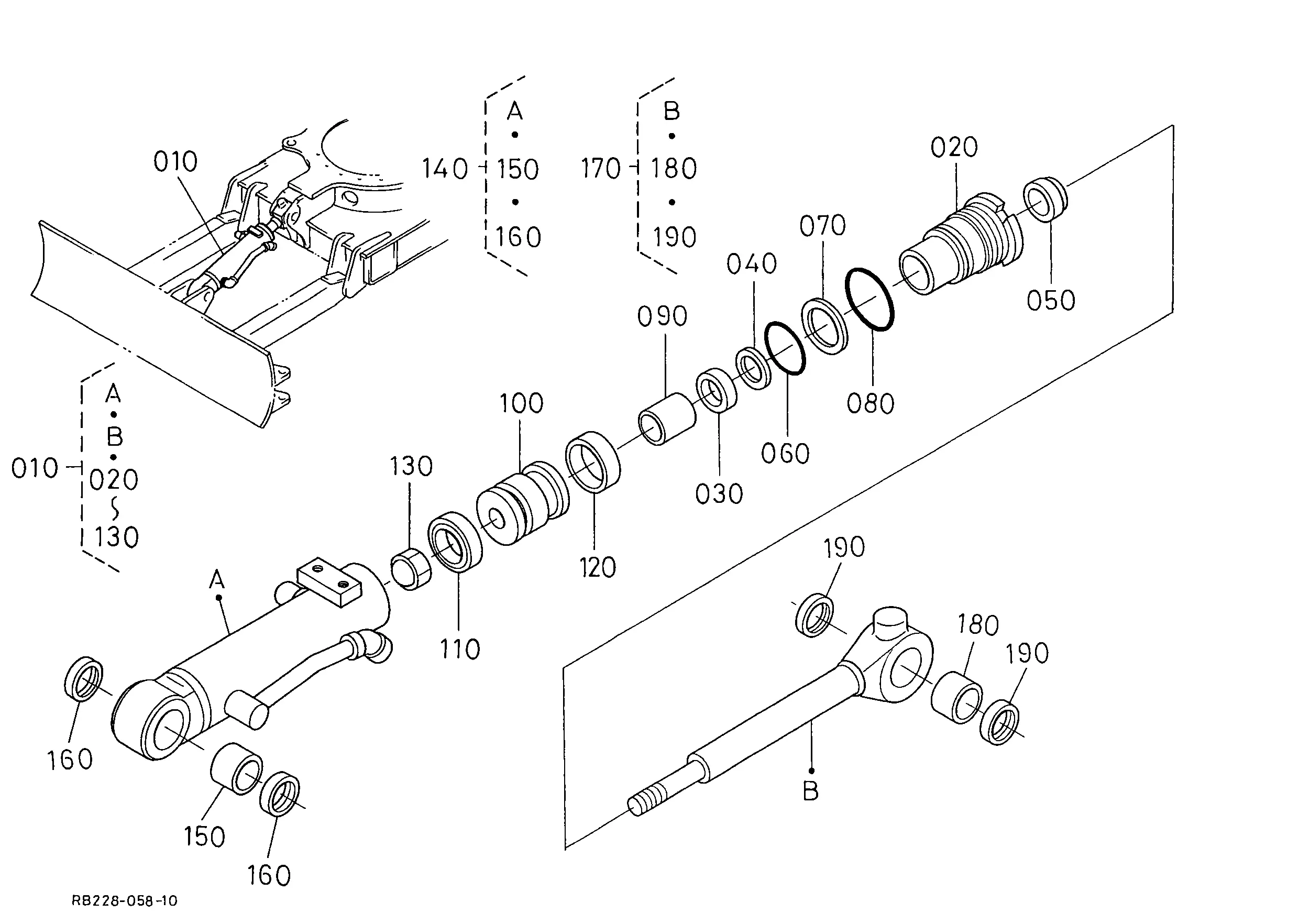

DIAG-S098-3-85170 S098-3 BLADE CYLINDER AND COMPONENT PARTS [KX41-2V]
View Diagram -
DIAG-000040-85170 000040 PAINT
View Diagram -

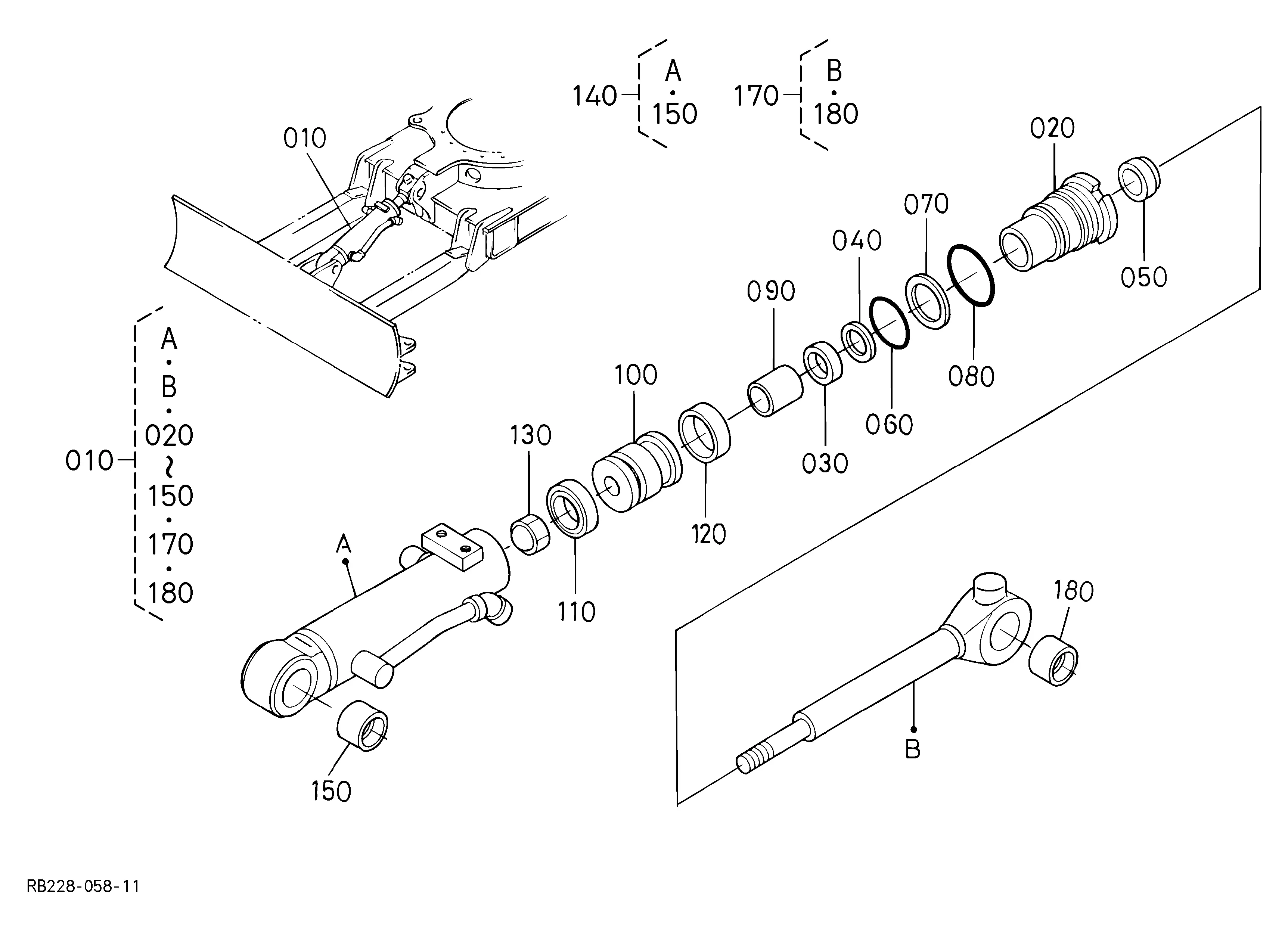

DIAG-S098-2-85170 S098-2 BLADE CYLINDER AND COMPONENT PARTS [KX41-2V]
View Diagram
