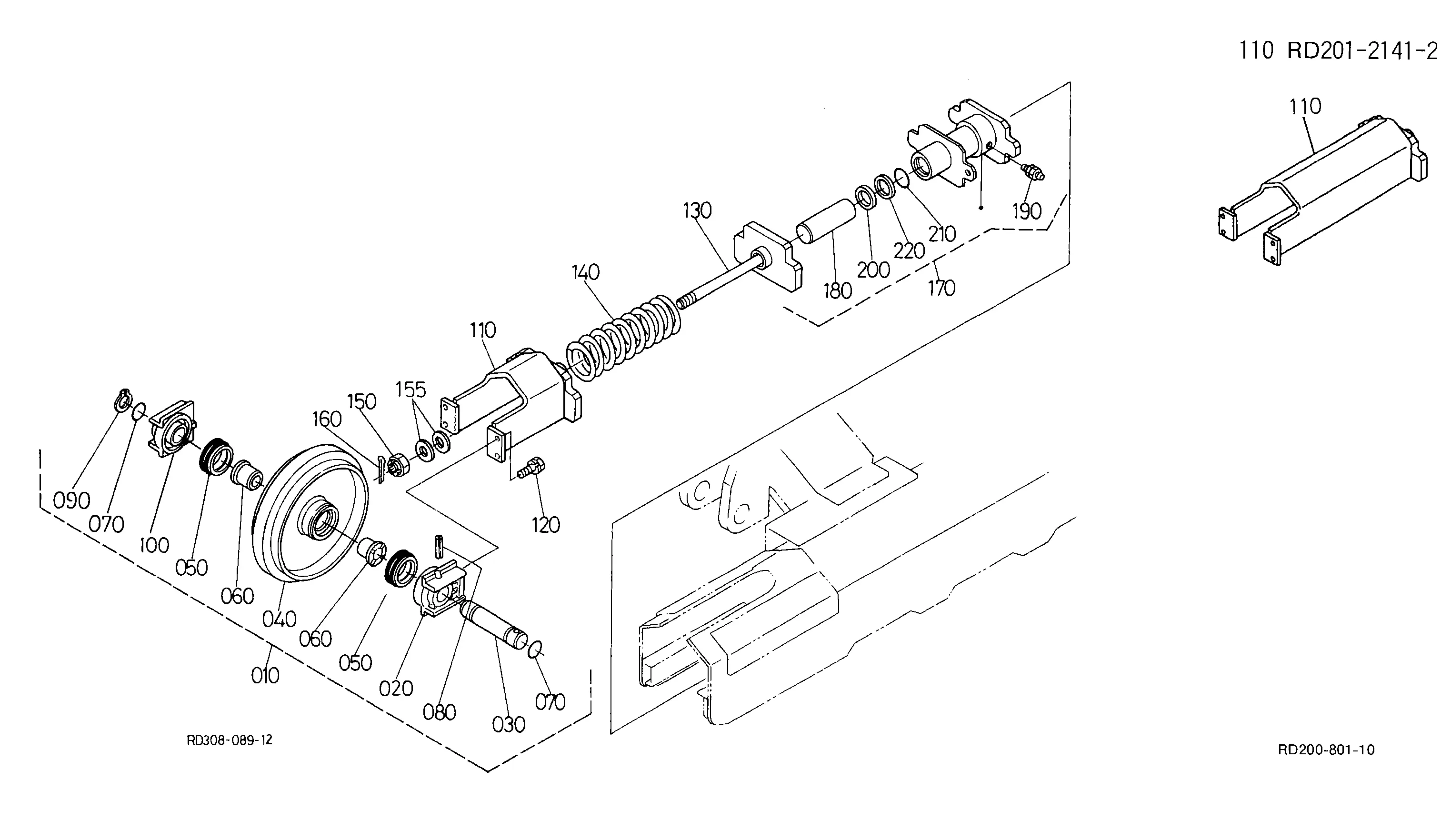

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY ROLLER,TRUC RD301-21700 | 1 | $513.93 | |||
| 010 | ROLLER, TRACK AS RD201-21700 RD401-21700 | 1 | $502.65 | |||
| 020 | ASSY SHAFT RD401-21710 | 1 | $230.92 | |||
| 020 | ASSY SHAFT RD401-21810 Discontinued | 1 | $218.10 | |||
| 030 | ROLLER TRACK RD301-21710 | 1 | $271.59 | |||
| 030 | ROLLER, WHEEL (T RD401-21750 | 1 | $271.59 | |||
| 040 | PLUG 15521-96022 15521-96020 | 1 | $3.35 | |||
| 050 | BUSH RD201-21740 Discontinued | 1 | $44.39 | |||
| 050 | BUSHING, TRACK R RD401-21890 | 1 | $41.48 | |||
| 060 | SEAL RP801-21730 | 1 | $89.59 | |||
| 060 | SEAL, FLOATING RD401-21790 | 1 | $84.13 | |||
| 070 | WIRE RD401-21780 | 1 | $2.63 | |||
| 070 | WIRE RD401-21880 | 1 | $6.83 | |||
| 080 | O'RING 04811-50350 | 1 | $2.19 | |||
| 090 | BRACKET RD401-21740 | 1 | $229.32 | |||
| 090 | BRACKET TRACK RO RD401-21840 | 1 | $102.50 | |||
| 100 | Bolt 01076-51230 01176-51230 | 1 | $1.99 | |||
| 100 | BOLT RC601-21850 | 1 | $7.26 | |||
| 110 | WASHER RC101-21790 RC101-21792 | 1 | $11.13 | |||
| 115 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
| 120 | ROLLER ASSY RD208-21900 RD208-21904 | 1 | $229.87 | |||
| 130 | COLLAR RD201-21952 | 1 | $318.25 | |||
| 140 | SEAL, OIL 52200-23142 | 1 | $36.70 | |||
| 150 | BRG BALL RADIAL3 38430-21580 36920-40090 | 1 | $30.71 | |||
| 160 | COLLAR RD201-21970 | 1 | $28.90 | |||
| 170 | Ball Bearing PL501-12230 08101-06206 | 1 | $14.46 | |||
| 180 | Internal Circlip 04611-10620 04611-00620 | 1 | $5.62 | |||
| 190 | Circlip Retaining Ring (Snap Ring) 04612-10300 04612-00300 | 1 | $1.31 | |||
| 200 | SHAFT, CARRIER R RD201-21922 RD201-21923 | 1 | $143.74 | |||
| 210 | WASHER, SPRING ( 68671-21930 | 1 | $20.57 | |||
| 220 | NUT 68671-21940 | 1 | $73.61 | |||
| 230 | PLUG 36200-21230 | 1 | $23.97 | |||
| 250 | SPACER 68351-21960 | 1 | $21.10 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-S096-1-85164 S096-1 TRACK ROLLER (RUBBER CRAWLER)
View Diagram -
DIAG-S096-3-85164 S096-3 TRACK ROLLER (IRON CRAWLER)
View Diagram -
DIAG-S09500-85164 S09500 IDLER
View Diagram
