Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIN*** 68741-74442 68741-74440 | 1 | $91.59 | |||
| 020 | BOLT 01173-61285 01173-71285 | 1 | $3.73 | |||
| 030 | Nut 02174-60120 02174-70120 | 1 | $1.05 | |||
| 040 | PIN,BUCKET (S/N> 68761-66740 RC401-66750 | 1 | $246.76 | |||
| 050 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $3.54 | |||
| 060 | BOLT 01173-61200 01173-51200 | 1 | $6.11 | |||
| 080 | BUCKET ASSY RD108-66800 Discontinued | 1 | $2,922.90 | |||
| 080 | BUCKET ASSY RD108-68300 Discontinued | 1 | $2,276.98 | |||
| 090 | SHANK, CAST (ADA 70090-20853 77700-03301 | 1 | $79.17 | |||
| 100 | TOOTH, LONG 68000-31720 70090-33091 | 1 | $68.90 | |||
| 110 | PLUG, RUBBER 68000-31730 | 1 | $29.04 | |||
| 120 | PIN, LOCKING 68241-66880 68000-31740 | 1 | $21.05 | |||
| 130 | ASSY CUTER,SIDE 68678-66200 | 1 | $237.44 | |||
| 140 | CUTTER,SIDE LH 68678-66930 Discontinued | 1 | $141.21 | |||
| 150 | BOLT 01176-61635 01176-51635 | 1 | $2.50 | |||
| 160 | NUT 02076-60160 02076-70160 | 1 | $3.37 | |||
| 170 | ASSY CUTTER, SID 68678-66300 | 1 | $245.01 | |||
| 180 | CUTTER, SIDE RH 68678-66940 | 1 | $144.74 | |||
| 210 | BUSH RC401-66870 | 1 | $286.09 | |||
| 220 | PLATE RC401-66880 | 1 | $33.82 | |||
| 230 | Bolt - Equipment Fastener 01130-51025 01133-51025 | 1 | $2.36 | |||
| 240 | SHIM RC401-66840 | 1 | $10.05 | |||
| 240 | SHIM RC401-66890 | 1 | $8.79 | |||
| 250 | Bucket Link O-Ring 68761-66852 68761-66850 | 1 | $23.37 | |||
| 260 | Shim 1 68131-67722 68131-67720 | 1 | $10.18 | |||
| 260 | SHIM 2 68131-67732 68131-67730 | 1 | $11.14 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

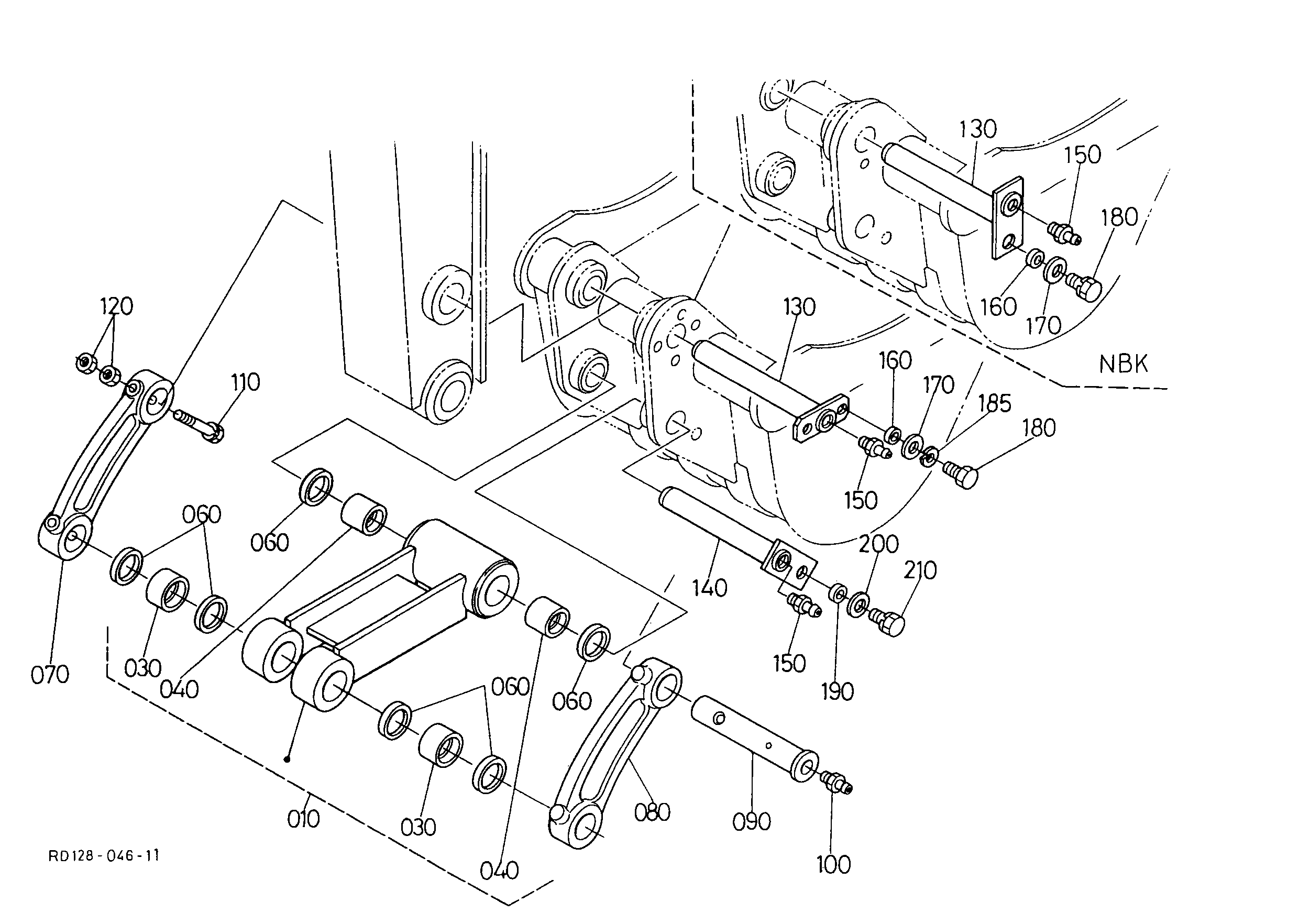

DIAG-S09200-85159 S09200 BUCKET LINK
View Diagram -

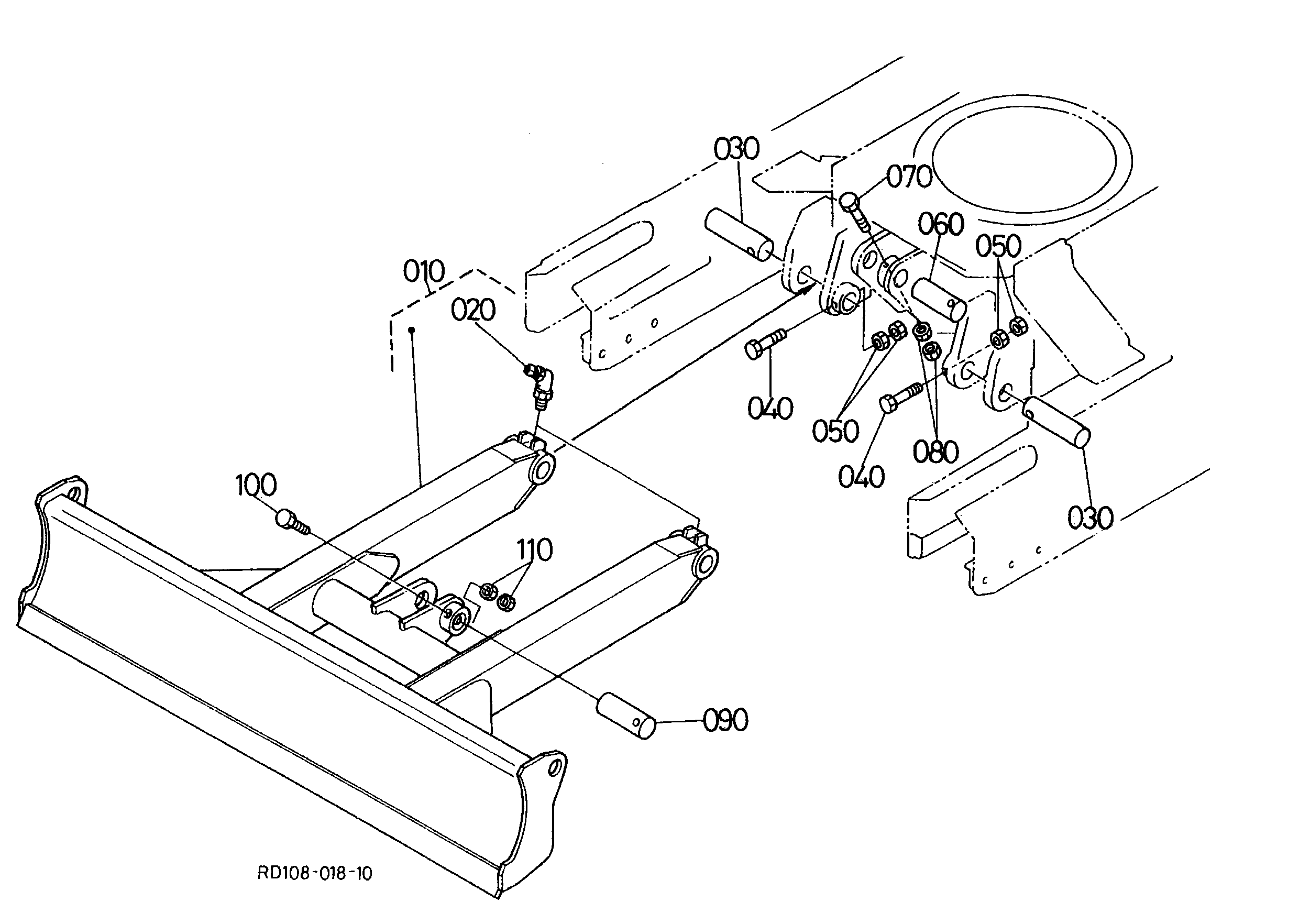

DIAG-S09400-85159 S09400 BLADE
View Diagram -

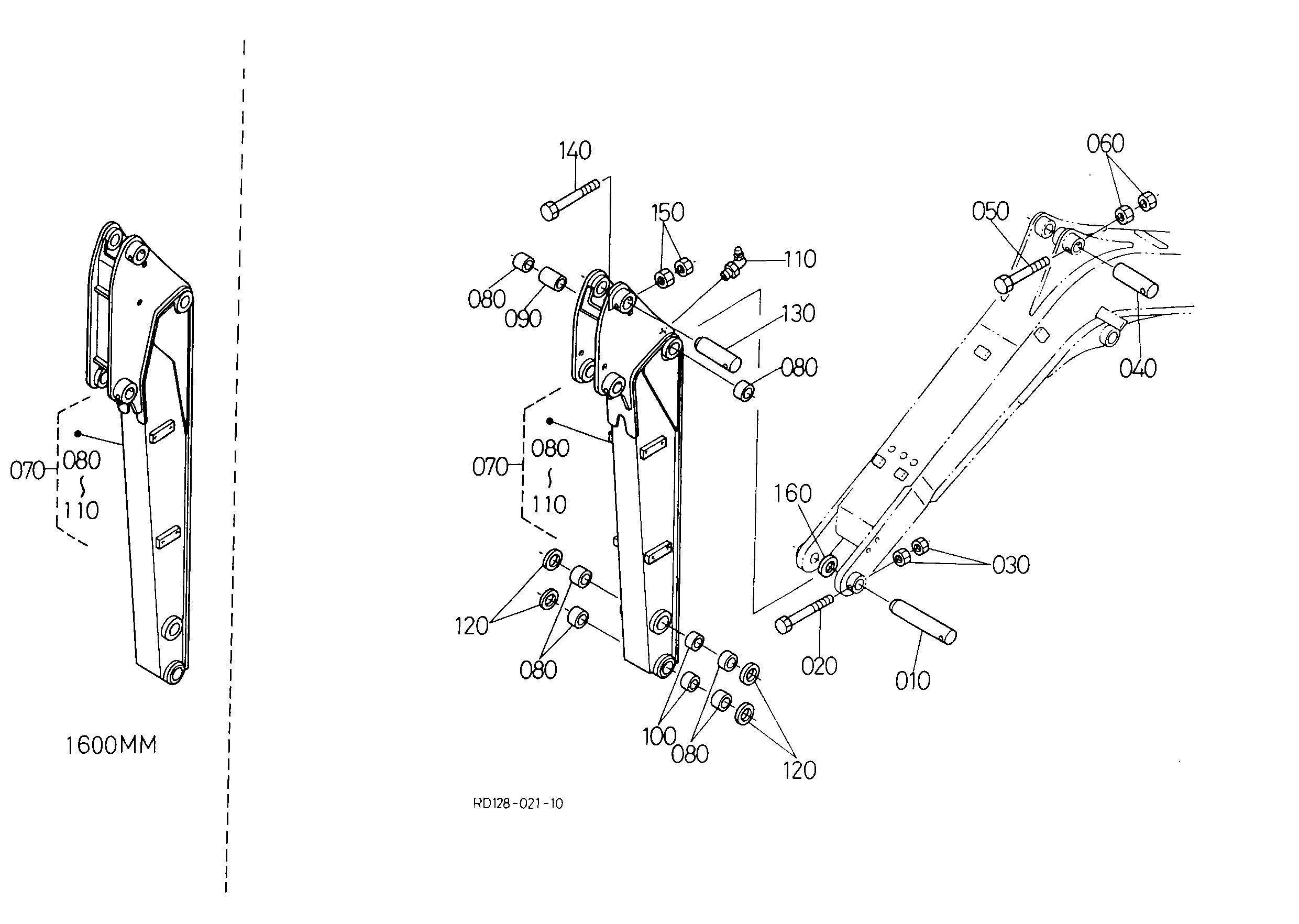

DIAG-S09100-85159 S09100 ARM
View Diagram
