Kubota KX161-2 S08200 OIL PIPING (S/P) Parts Diagram
Exploded-view parts diagram "S08200 OIL PIPING (S/P)" for the Kubota KX161-2. 20 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | O-Ring Seal 04810-00180 04817-00180 | 1 | $2.26 | |||
| 020 | JOINT RC101-63840 Discontinued | 1 | $47.24 | |||
| 080 | HOSE HYDRAULIC RD201-92510 | 1 | $272.29 | |||
| 090 | HOSE HYDRAULIC RD201-92522 | 1 | $284.68 | |||
| 100 | JOINT,PIPE 68351-68540 06111-54042 | 1 | $12.90 | |||
| 110 | PIPE,HYDRAULIC RD328-92330 | 1 | $361.95 | |||
| 120 | PLUG * 06312-10040 | 1 | $9.22 | |||
| 130 | PIPE,HYDRAULIC RD328-92360 | 1 | $361.95 | |||
| 140 | BOLT 01135-61020 01135-71020 | 1 | $1.99 | |||
| 150 | ASSY CLAMP, SP RD411-92300 69738-92300 | 1 | $48.74 | |||
| 160 | BOLT 01133-61055 01133-71055 | 1 | $2.95 | |||
| 170 | HOSE HYDRAULIC RD201-92580 | 1 | $152.22 | |||
| 180 | PIPE,HYDRAULIC RD328-92530 Discontinued | 1 | $412.51 | |||
| 190 | PIPE,HYDRAULIC RD328-92540 Discontinued | 1 | $412.51 | |||
| 200 | BOLT 01133-61045 01133-71045 | 1 | $2.86 | |||
| 210 | Plain Washer 04015-60100 04015-70100 | 1 | $1.05 | |||
| 240 | HOSE HYDRAULIC RD201-92590 Discontinued | 1 | $222.11 | |||
| 260 | PIPE,HYD. RD108-92970 Discontinued | 1 | $147.50 | |||
| 280 | CLAMP 68318-92240 RC348-92240 | 1 | $12.61 | |||
| 290 | Bolt Fastener 01133-61020 01133-71020 | 1 | $1.99 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

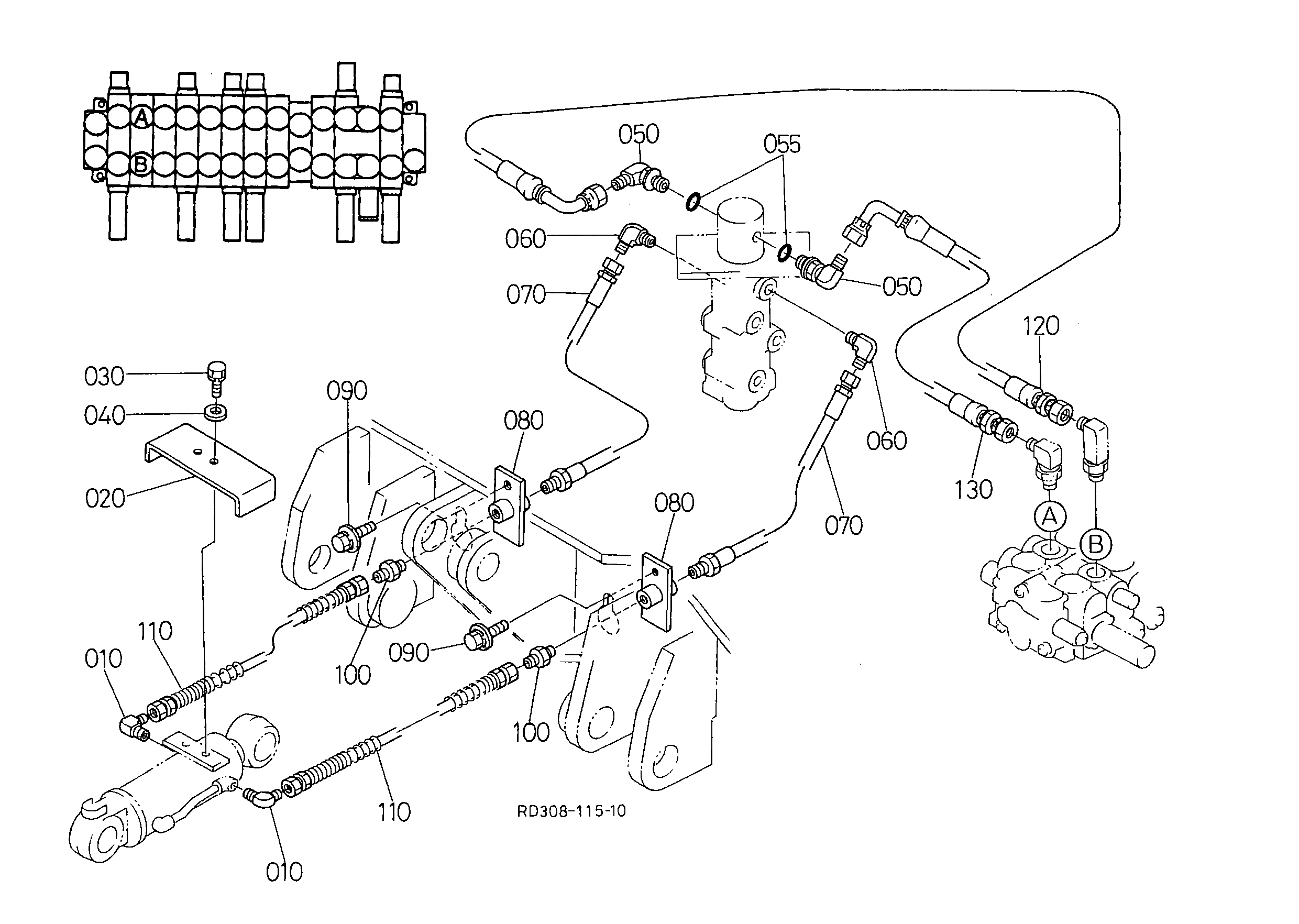

DIAG-S08100-85165 S08100 OIL PIPING (CLAMP)
View Diagram -

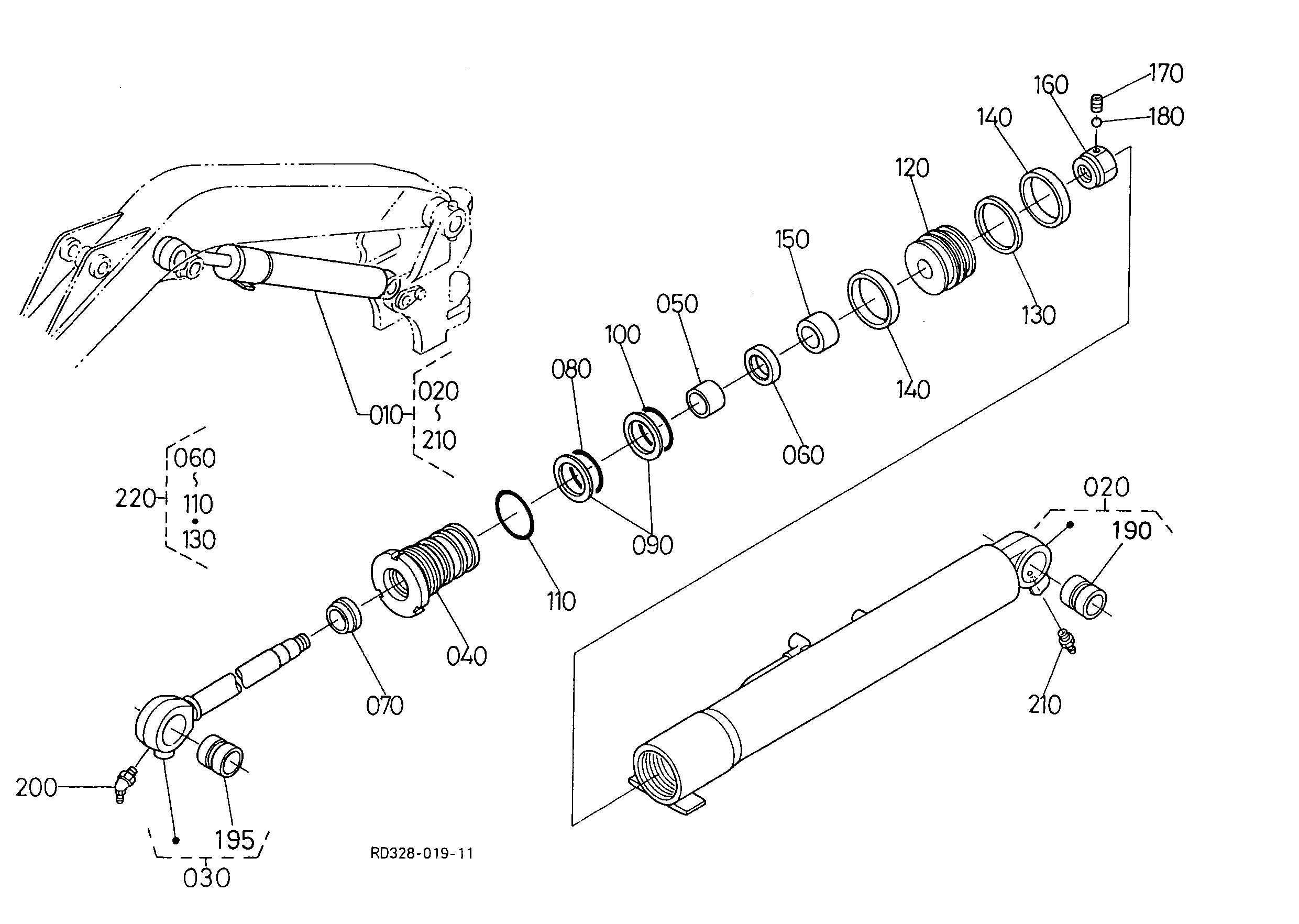

DIAG-S08300-85165 S08300 BOOM CYLINDER AND COMPONENT PARTS
