Kubota KX121-2 S08200 BOOM CYLINDER AND COMPONENT PARTS Parts Diagram

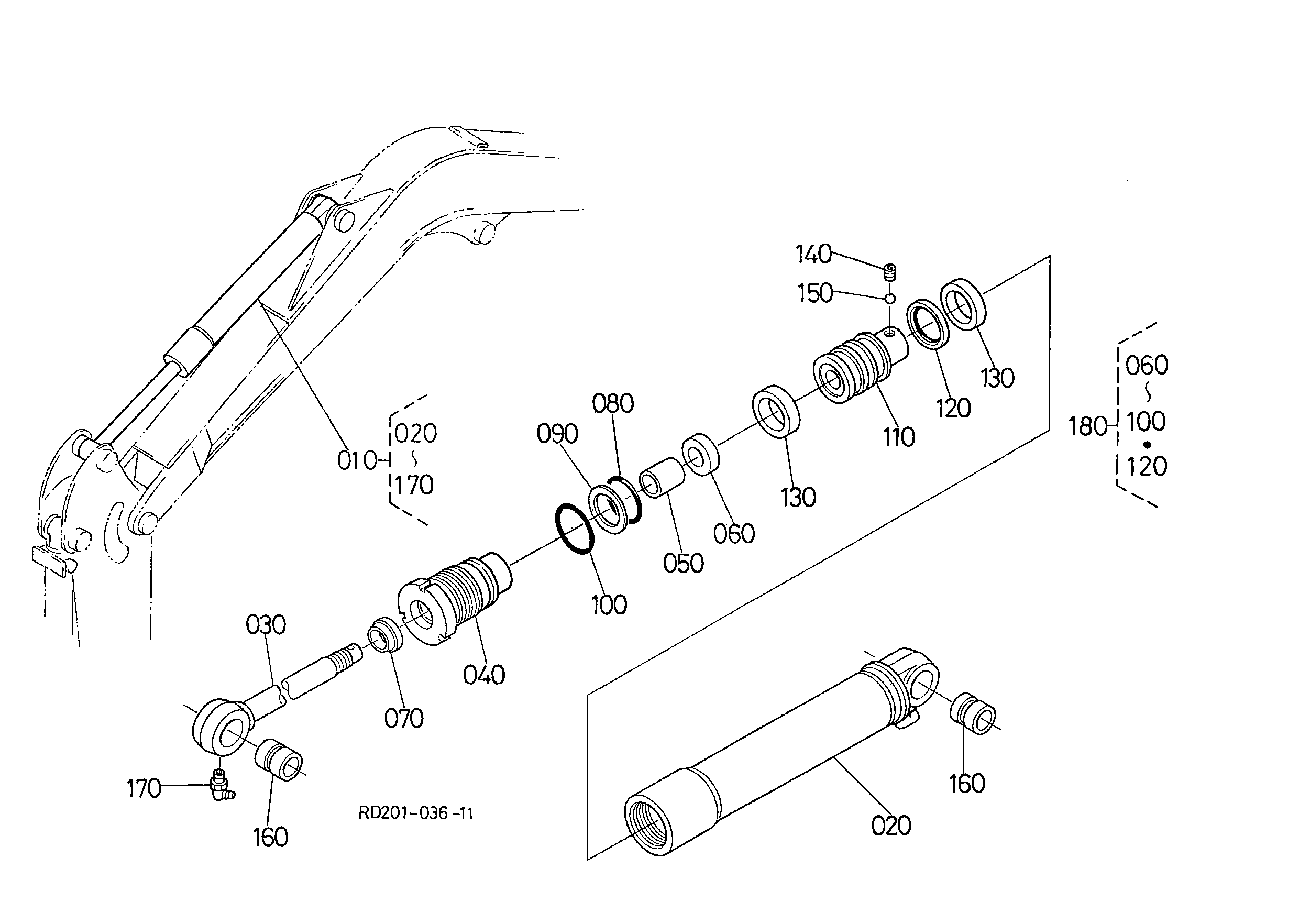

Exploded-view parts diagram "S08200 BOOM CYLINDER AND COMPONENT PARTS" for the Kubota KX121-2. 22 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CYLINDER,BOOM AS RD108-67500 Discontinued | 1 | $3,285.29 | |||
| 020 | TUBE,CYLINDER AS RD108-71310 RD108-94320 | 1 | $3,228.80 | |||
| 030 | KIT ROD,PISTON RD108-71320 RD108-94330 | 1 | $2,302.27 | |||
| 040 | HEAD,CYLINDER RD108-71330 | 1 | $710.98 | |||
| 050 | BUSH RD101-71340 | 1 | $143.26 | |||
| 060 | U-RING 68241-67830 | 1 | $105.78 | |||
| 070 | RING,WIPER RD101-71350 | 1 | $133.12 | |||
| 080 | O-RING 69201-91280 04810-50900 | 1 | $9.66 | |||
| 090 | RING RD101-71360 | 1 | $50.54 | |||
| 100 | O-RING 04810-50850 | 1 | $9.13 | |||
| 110 | O'RING 04811-50950 | 1 | $6.36 | |||
| 120 | Grease Nipple Fitting 68721-71990 06616-25010 | 1 | $2.60 | |||
| 130 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $3.54 | |||
| 140 | PISTON RD101-71370 Discontinued | 1 | $735.07 | |||
| 150 | RING ASSY RD101-71380 | 1 | $249.23 | |||
| 160 | RING RD101-71390 Discontinued | 1 | $144.19 | |||
| 170 | SCREW, SET 68493-67650 | 1 | $22.10 | |||
| 180 | BALL 68493-67670 | 1 | $12.88 | |||
| 190 | SPACER RD101-71410 Discontinued | 1 | $177.18 | |||
| 200 | BEARING RD101-71420 Discontinued | 1 | $314.69 | |||
| 210 | BUSH RD101-71430 | 1 | $269.08 | |||
| 220 | KIT, BOOM CYL SE RD101-94310 | 1 | $514.50 | |||
Showing 1 to 22 of 22 parts
