Kubota KX121-2 S07900 OIL PIPING (BUCKET 2) Parts Diagram

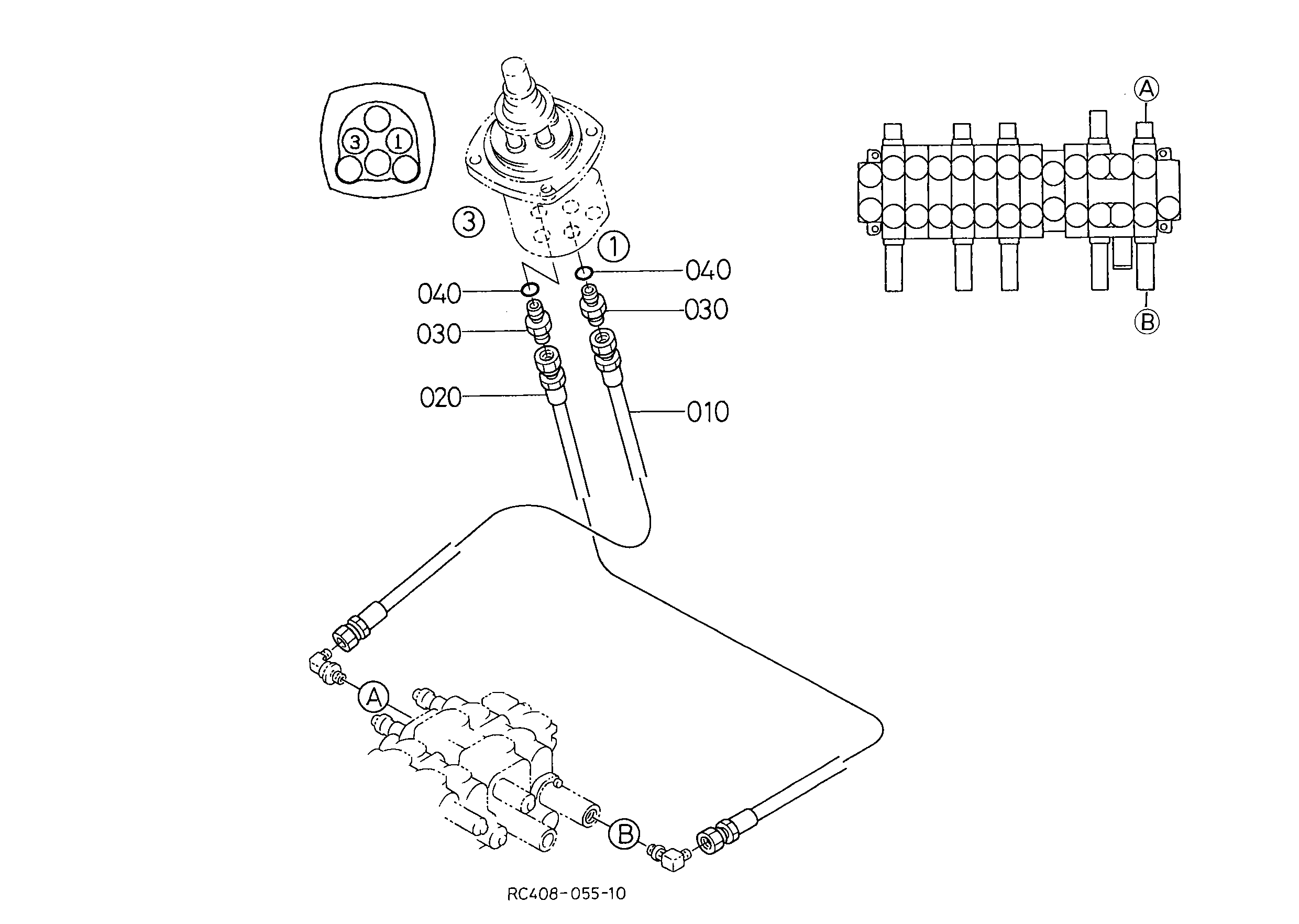

Exploded-view parts diagram "S07900 OIL PIPING (BUCKET 2)" for the Kubota KX121-2. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIPE,HYDRAULIC RD128-68810 Discontinued | 1 | $290.89 | |||
| 020 | PIPE,HYDRAULIC RD128-68820 Discontinued | 1 | $298.85 | |||
| 030 | CLAMP 6 68318-68750 | 1 | $5.04 | |||
| 035 | CLAMP 7 68318-68760 | 1 | $5.52 | |||
| 040 | Bolt 01133-61035 01133-51035 | 1 | $2.77 | |||
| 050 | Bolt Fastener 01133-61020 01133-71020 | 1 | $1.99 | |||
| 060 | HOSE,HYDRAULIC RD128-64350 | 1 | $205.00 | |||
| 060 | HOSE,HYDRAULIC RD128-64360 | 1 | $197.05 | |||
| 070 | HOSE,HYDRAULIC RD128-64330 Discontinued | 1 | $262.24 | |||
| 080 | HOSE,HYDRAULIC RD128-64340 | 1 | $306.94 | |||
| 100 | BAND,CORD RD101-53350 | 1 | $7.15 | |||
Showing 1 to 11 of 11 parts
