Scroll to zoom Click a part # to view details

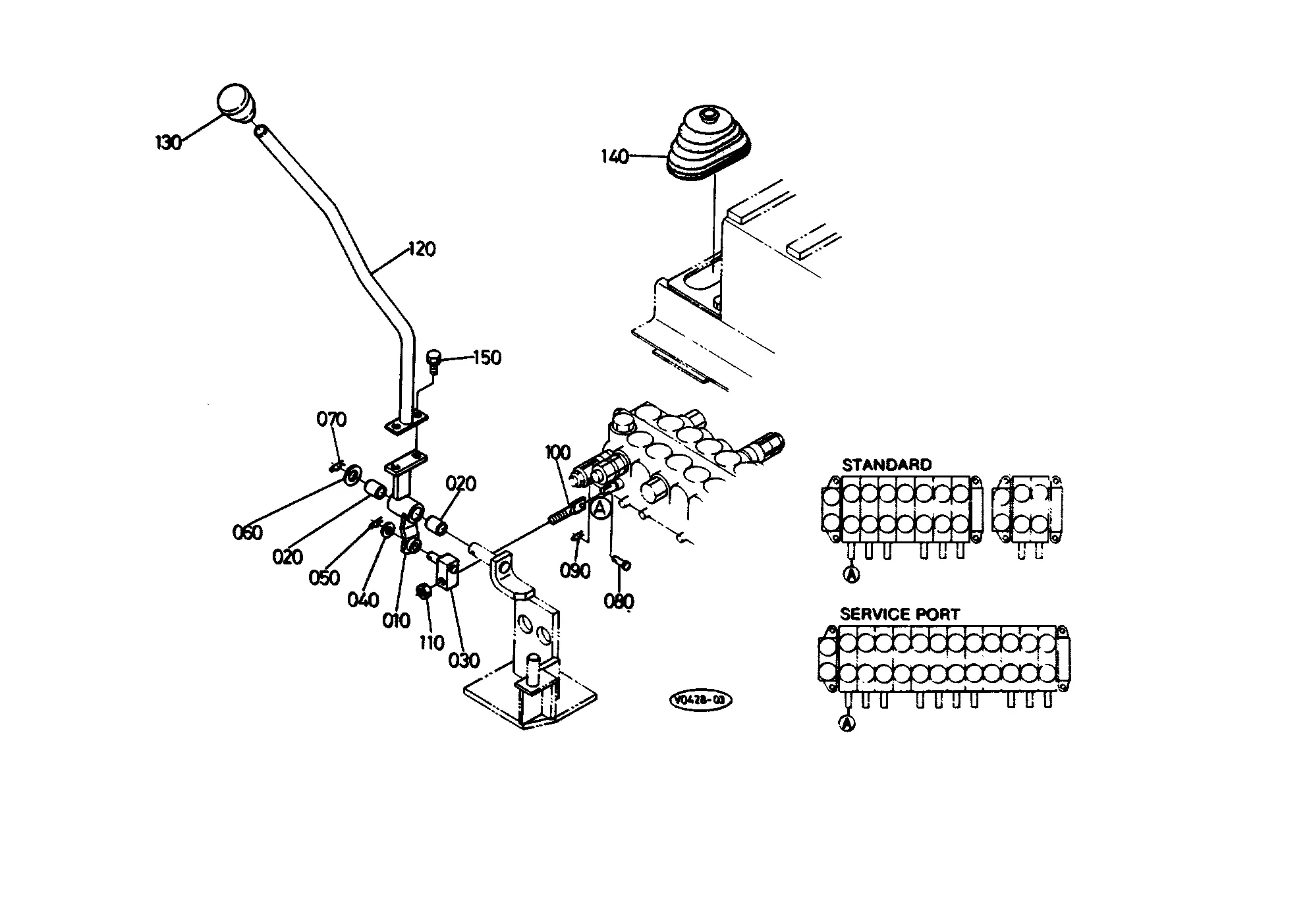

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET SERVICE 68511-92210 Discontinued | 1 | $26.95 | |||
| 020 | BUSH 68021-62210 | 1 | $16.60 | |||
| 030 | SERVICE PORT ARM 68511-92230 Discontinued | 1 | $43.37 | |||
| 040 | BUSH 41081-12120 08511-01210 | 1 | $5.05 | |||
| 050 | PEDAL 68511-92240 Discontinued | 1 | $34.04 | |||
| 060 | PIN, JOINT 05112-51270 05122-51270 | 1 | $6.24 | |||
| 070 | Washer 04012-50120 04011-50120 | 1 | $0.36 | |||
| 080 | Cotter Pin 05511-10430 05511-50430 | 1 | $0.41 | |||
| 090 | ARM PEDAL 68511-92220 Discontinued | 1 | $27.43 | |||
| 100 | Bolt - Equipment Fastener 01130-51025 01133-51025 | 1 | $2.36 | |||
| 110 | JOINT 68551-33250 | 1 | $51.61 | |||
| 130 | replaces #01135-61025 BOLT 01135-61025 01135-71025 | 1 | $2.47 | |||
| 140 | BRACKET SERVICE 68511-92150 | 1 | $47.37 | |||
| 150 | SPACER 68501-65170 Discontinued | 1 | $4.45 | |||
| 170 | PIN 68021-32792 68021-32790 | 1 | $10.08 | |||
| 180 | Snap Pin 05525-50500 05525-70500 | 1 | $1.48 | |||
| 190 | LIKE SERVICE POR 68511-92380 Discontinued | 1 | $46.88 | |||
| 200 | BUSH 68221-35180 | 1 | $7.41 | |||
| 210 | PIN FLUCRUM 68511-92390 Discontinued | 1 | $11.49 | |||
| 220 | Plain Washer 04011-00100 04011-50100 | 1 | $0.36 | |||
| 230 | Snap Pin Retaining Pin 05515-51000 | 1 | $1.51 | |||
| 240 | END, ROD 68111-65260 | 1 | $52.93 | |||
| 250 | Nut 02114-60100 02114-50100 | 1 | $0.80 | |||
| 260 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 270 | BOLT 01176-61025 01176-71025 | 1 | $1.48 | |||
| 280 | LINK, SERVICE PO 68511-92180 Discontinued | 1 | $23.26 | |||
| 300 | Washer 04011-50140 | 1 | $0.60 | |||
| 310 | Pin for 3-Point Hitch, Lift Rod, and Linkage Assemblies 05511-00425 05511-50425 | 1 | $0.41 | |||
| 320 | END, LH ROD 68221-34310 | 1 | $40.04 | |||
| 340 | NUT 02116-60100 02116-70100 | 1 | $0.87 | |||
| 350 | ROD ADJUSTING 68511-92190 Discontinued | 1 | $10.71 | |||
| 360 | NUT, LOCK 68731-65240 | 1 | $3.83 | |||
| 380 | MAT, RUBBER 68511-92260 Discontinued | 1 | $87.43 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-S07700-85120 S07700 CONTROL LEVER (H PATERN) [KTC KCL]
View Diagram -

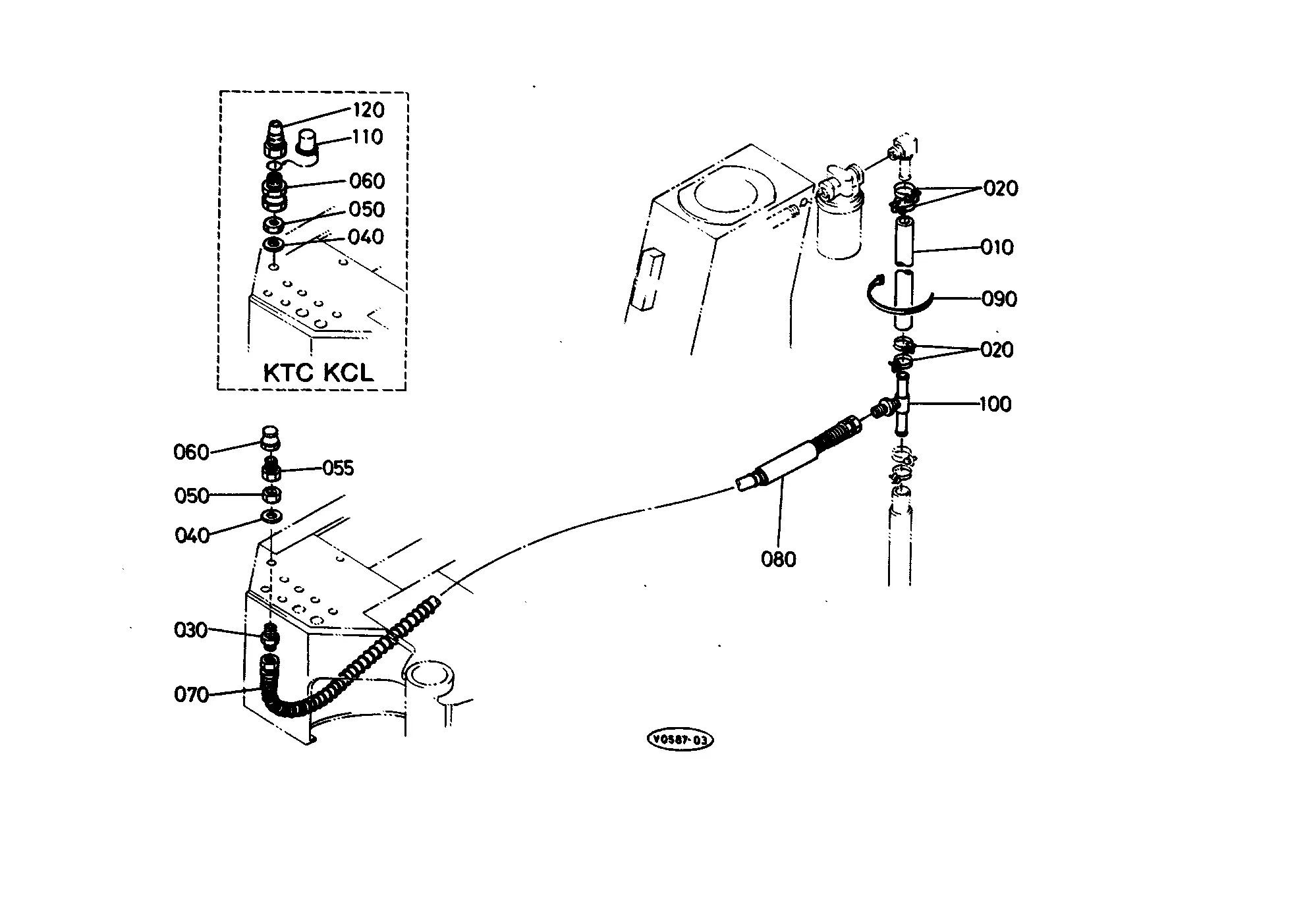

DIAG-S08501-85120 S08501 OIL PIPING (OIL TANK) [KE (KE-A) KE-(S) KDG KTA P. KTC KCL]
View Diagram -
DIAG-S07500-85120 S07500 CONTROL LEVER (DOZER) [KH-41(H)]
View Diagram
