Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | HOSE 68773-69280 | 1 | $177.42 | |||
| 020 | PIPE, HYDRAULIC 68493-68620 | 1 | $187.73 | |||
| 030 | PIPE, HYDRAULIC 68493-68630 Discontinued | 1 | $110.60 | |||
| 040 | CLAMP 68773-68910 Discontinued | 1 | $10.38 | |||
| 050 | Bolt 01133-61035 01133-51035 | 1 | $2.77 | |||
| 060 | CLAMP, PIPE 68351-63740 | 1 | $5.90 | |||
| 080 | HOSE 68591-69290 | 1 | $145.42 | |||
| 090 | JOINT,PIPE 68351-68540 06111-54042 | 1 | $12.90 | |||
| 100 | BODY 68773-68320 Discontinued | 1 | $24.56 | |||
| 110 | O-Ring Seal 04810-00180 04817-00180 | 1 | $2.26 | |||
| 120 | PIPE, HYDRAULIC 68493-63770 Discontinued | 1 | $149.69 | |||
| 130 | NUT 68773-68330 | 1 | $15.30 | |||
| 140 | SLEEVE 68773-68340 | 1 | $11.42 | |||
| 150 | Washer 04011-10200 04011-50200 | 1 | $0.60 | |||
| 160 | NUT 68131-61680 Discontinued | 1 | $7.66 | |||
| 190 | PIPE, HYDRAULIC 68493-63780 Discontinued | 1 | $146.84 | |||
| 240 | PLATE 68773-63710 | 1 | $80.00 | |||
| 250 | replaces #01135-61025 BOLT 01135-61025 01135-71025 | 1 | $2.47 | |||
| 270 | BOLT 01133-61040 01133-71040 | 1 | $2.24 | |||
| 290 | BOLT 01133-61045 01133-71045 | 1 | $2.86 | |||
| 300 | Fastener Nut 02118-60100 02118-70100 | 1 | $1.07 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

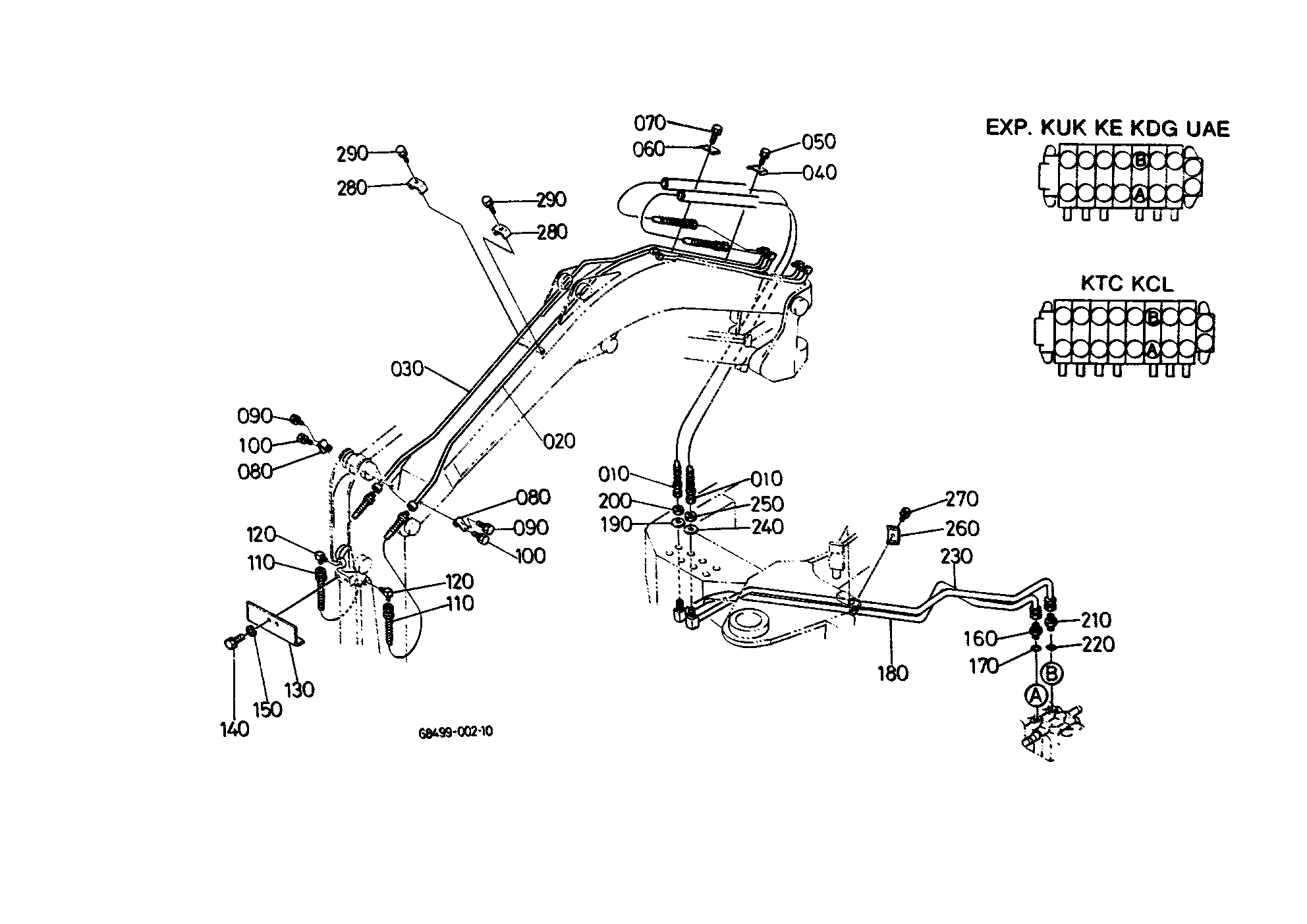

DIAG-S07100-85116 S07100 OIL PIPING (BOOM)
View Diagram -

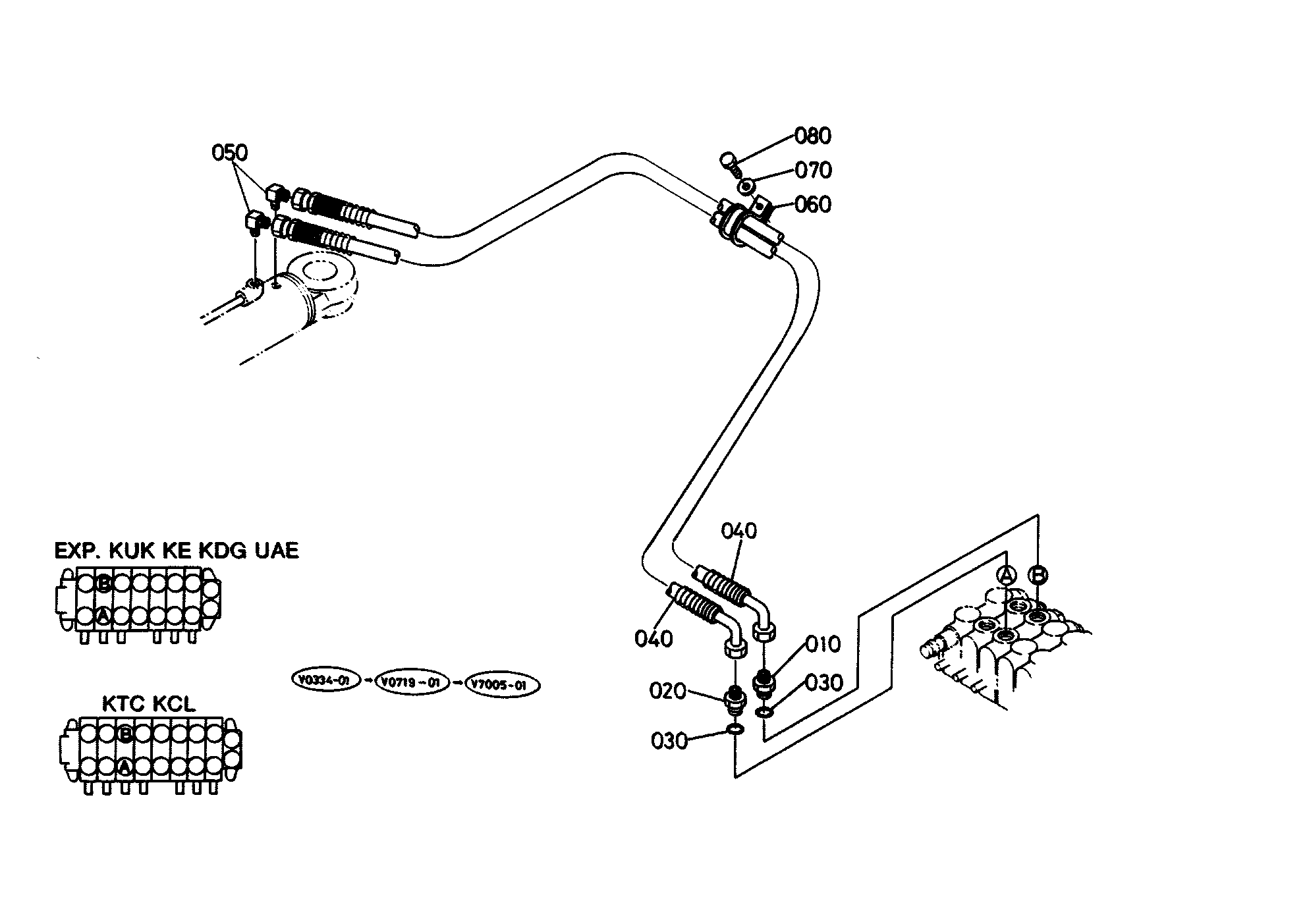

DIAG-S07300-85116 S07300 OIL PIPING (BUCKET)
View Diagram -
DIAG-S07000-85116 S07000 OIL PIPING (SWING)
View Diagram
