| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LEVER 1 68548-65222 | 1 | $108.38 | |||
| 020 | BRG NDL ROLLER16 68741-65410 | 1 | $28.34 | |||
| 030 | CAP 68741-65430 | 1 | $1.50 | |||
| 070 | END, LH ROD 68221-34310 | 1 | $40.04 | |||
| 080 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 090 | FULCRUM, CONTROL 68748-65230 Discontinued | 1 | $26.58 | |||
| 110 | BOLT 01176-61025 01176-71025 | 1 | $1.48 | |||
| 160 | LEVER, CONTROL L 68548-65550 Discontinued | 1 | $142.98 | |||
| 160 | LEVER, CONTROL L 68548-65570 | 1 | $113.99 | |||
| 170 | LEVER, CONTROL L 68548-65540 Discontinued | 1 | $239.91 | |||
| 180 | BUSH 08511-00810 | 1 | $5.63 | |||
| 190 | BOLT 68641-65330 Discontinued | 1 | $7.58 | |||
| 200 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.43 | |||
| 210 | PIN 68641-65490 | 1 | $5.67 | |||
| 220 | SPRING 68641-65484 Discontinued | 1 | $13.07 | |||
| 230 | COLLAR 68641-65463 | 1 | $11.16 | |||
| 240 | PIN, LOCK 68641-65340 Discontinued | 1 | $7.01 | |||
| 250 | CIR-CLIP, EXTERN 04613-00050 04613-50050 | 1 | $4.85 | |||
| 260 | END, RH ROD 68221-34330 | 1 | $39.07 | |||
| 280 | Fastener Nut 02118-60100 02118-70100 | 1 | $1.07 | |||
| 290 | PIN, FULCRUM 68748-65522 Discontinued | 1 | $189.10 | |||
| 300 | BRG NDL ROLLER16 68748-65550 | 1 | $26.35 | |||
| 310 | PIN, FULCRUM 68748-65540 Discontinued | 1 | $19.52 | |||
| 320 | Bolt 01222-50612 01202-50612 | 1 | $0.61 | |||
| 330 | Bearing 08141-06002 | 1 | $11.61 | |||
| 340 | M5 Series Plain Washer 04015-60080 04015-70080 | 1 | $0.60 | |||
| 350 | BOLT 01123-60816 01123-70816 | 1 | $1.13 | |||
| 360 | RUBBER, BELLOWS 68748-65590 | 1 | $233.39 | |||
| 370 | RIP 68773-65270 | 1 | $80.35 | |||
| 380 | CONTROL ROD 68748-65240 | 1 | $81.68 | |||
| 400 | NUT, LOCK 68011-32680 | 1 | $1.66 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-S05500-85126 S05500 CONTROL LEVER (FREME) [EXCEPT H.R.C.]
View Diagram -
DIAG-S05700-85126 S05700 CONTROL LEVER (TRAVEL LH-2) [EXCEPT H.R.C.]
View Diagram -

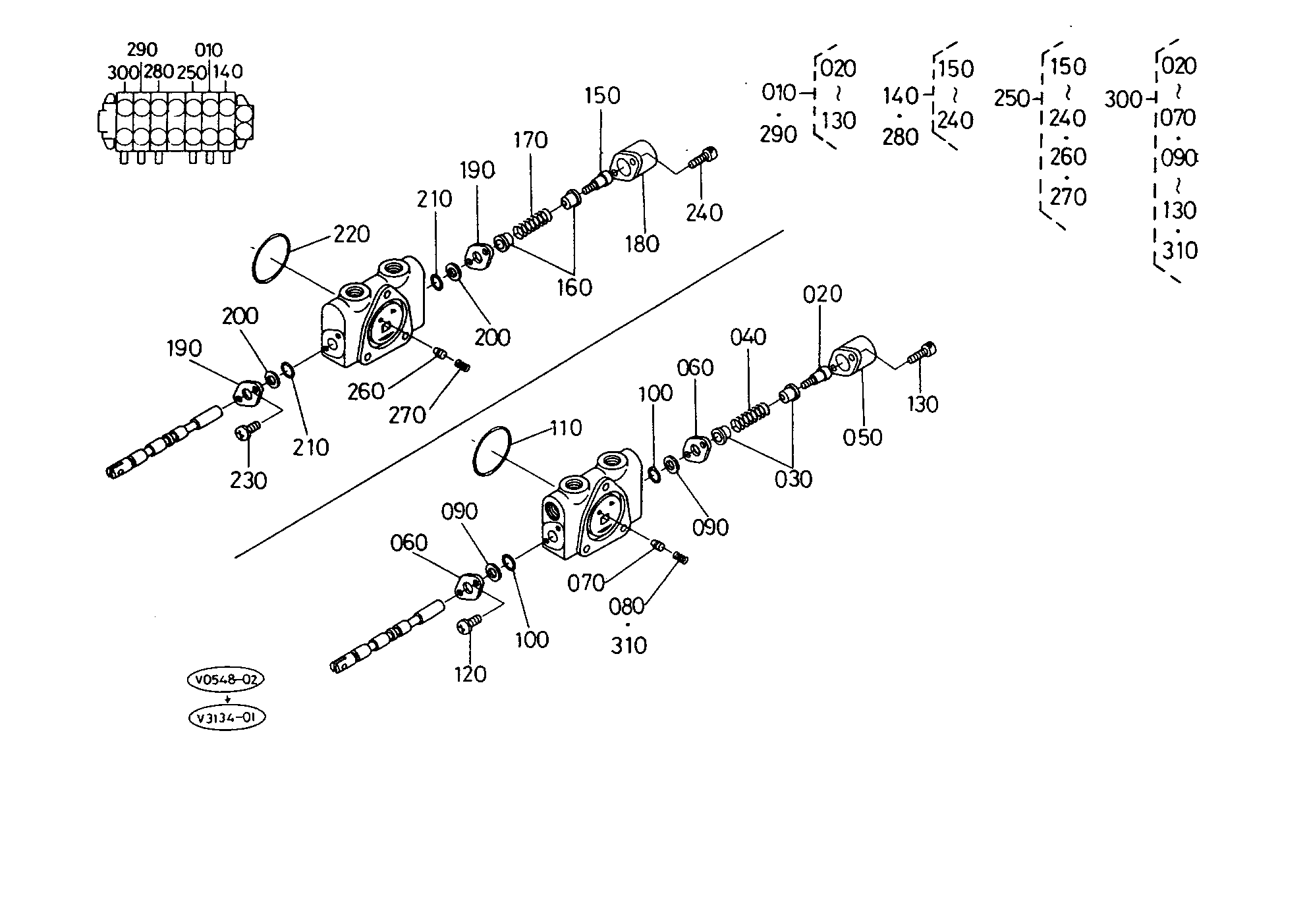

DIAG-S05000-85126 S05000 CONTROL VALVE (2) SPOOL SECTION [KH-66(H)] [EXCEPT H.R.C.]
View Diagram
