Kubota KX121-2 S04000 SWIVEL MOTOR AND COMPONENT PARTS Parts Diagram

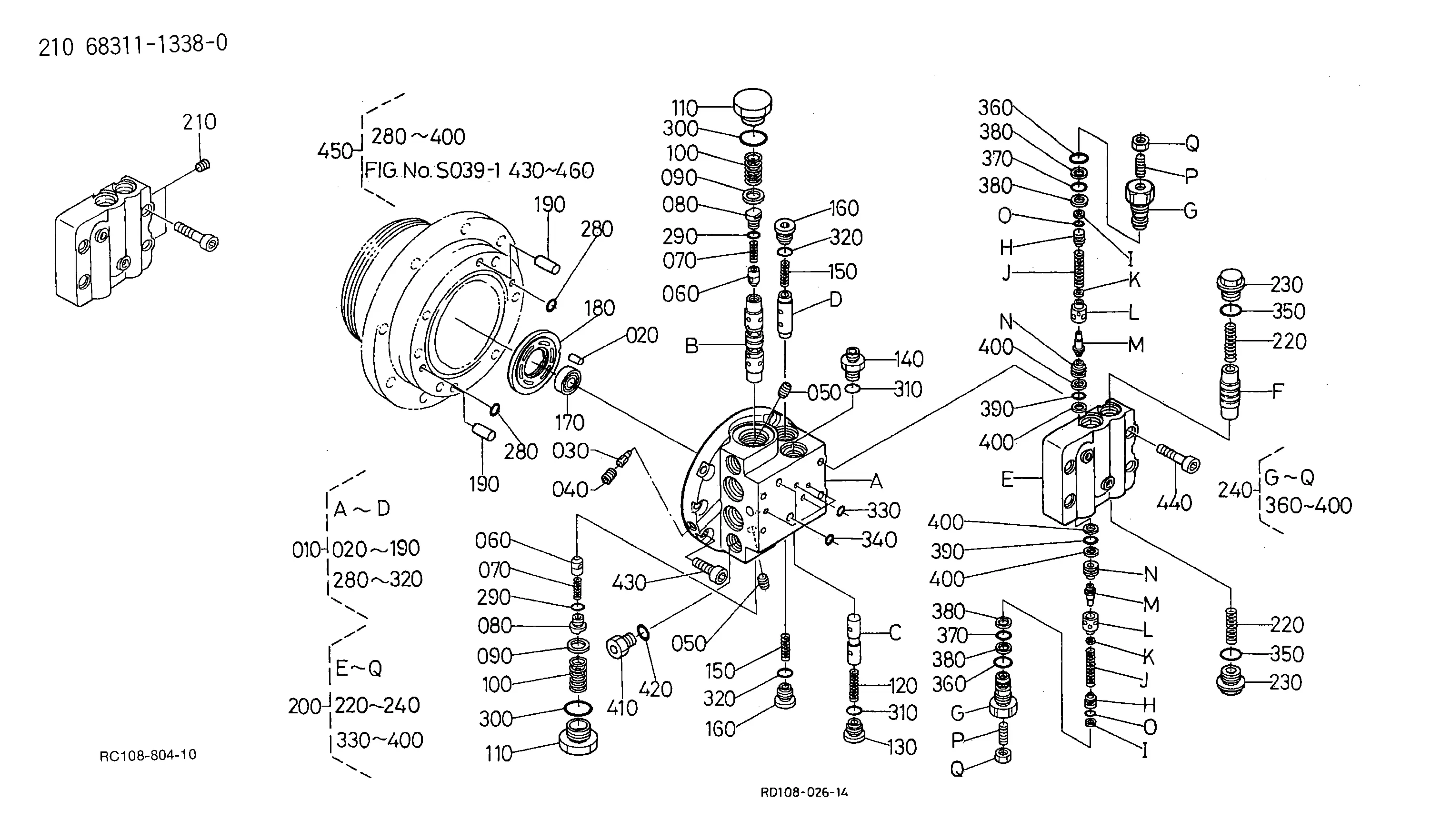

Exploded-view parts diagram "S04000 SWIVEL MOTOR AND COMPONENT PARTS" for the Kubota KX121-2. 43 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, MOTOR SWIN RC501-61702 RC501-61708 Discontinued | 1 | $4,888.27 | |||
| 030 | HOUSING, RELIEF RC301-73310 | 1 | $573.99 | |||
| 040 | SEAL, OIL RC301-73330 | 1 | $26.57 | |||
| 050 | PLATE RC301-73350 | 1 | $4.77 | |||
| 060 | CIR-CLIP, INTERN 04611-00450 | 1 | $2.50 | |||
| 070 | Spindle Ball Bearing 6A700-16570 08101-06205 | 1 | $11.98 | |||
| 080 | Circlip Retaining Ring K7591-32880 04612-00250 | 1 | $2.05 | |||
| 090 | SHAFT RC301-73320 | 1 | $366.17 | |||
| 100 | PLATE RC301-73340 | 1 | $166.83 | |||
| 110 | PIN 05011-00612 05012-00612 | 1 | $0.80 | |||
| 120 | ASSY CYLINDER BL RC301-73490 Discontinued | 1 | $1,418.35 | |||
| 130 | WASHER RC101-73770 | 1 | $18.21 | |||
| 132 | SPRING 66415-39250 | 1 | $10.76 | |||
| 134 | HOLDER, SPRING 66415-39240 | 1 | $7.46 | |||
| 140 | Circlip Retaining Ring 04611-00280 | 1 | $1.31 | |||
| 150 | PIN RC101-73710 | 1 | $3.16 | |||
| 160 | PLATE RC101-73730 | 1 | $307.73 | |||
| 170 | HOLDER,RETAINER RC101-73720 | 1 | $247.67 | |||
| 180 | O-RING 04811-10950 | 1 | $6.92 | |||
| 190 | ASSY, VALVE, SWI RC501-72203 RC501-72208 Discontinued | 1 | $2,432.41 | |||
| 200 | PLUG 68051-62380 68311-13380 | 1 | $5.15 | |||
| 210 | BEARING NEEDLE 08812-02715 | 1 | $20.35 | |||
| 220 | POPPET RC301-72244 | 1 | $58.11 | |||
| 230 | SPRING RC301-72280 | 1 | $18.13 | |||
| 240 | PLUG*** RC101-72630 | 1 | $24.59 | |||
| 250 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 270 | PLUG RC301-72290 Discontinued | 1 | $17.14 | |||
| 280 | O-Ring Seal 04810-00180 04817-00180 | 1 | $2.26 | |||
| 310 | RING, BACK UP 34076-66250 | 1 | $14.25 | |||
| 320 | O'RING 04810-00060 | 1 | $2.07 | |||
| 325 | RING, BACK UP RC101-72840 | 1 | $5.05 | |||
| 330 | O-Ring Seal 04810-00120 04817-00120 | 1 | $2.50 | |||
| 340 | RING, BACK-UP 68551-61420 | 1 | $4.54 | |||
| 350 | SCREW, SET 03650-60816 | 1 | $1.86 | |||
| 360 | NUT 02052-60080 | 1 | $1.30 | |||
| 365 | ASSY, VALVE, REL RC501-72300 RC501-72305 | 1 | $607.81 | |||
| 370 | PLATE RC301-73450 Discontinued | 1 | $197.21 | |||
| 380 | PIN, STRAIGHT 05012-00410 | 1 | $0.60 | |||
| 400 | BOLT, HEX-SOC-HD 01311-11055 | 1 | $7.21 | |||
| 410 | KIT, SWIVEL MTR RC301-73920 Discontinued | 1 | $71.52 | |||
| 420 | O'RING 04811-11000 | 1 | $8.08 | |||
| 430 | BOLT 01138-61435 01138-71435 | 1 | $9.13 | |||
| 430 | BOLT 01138-51435 | 1 | $3.44 | |||
Showing 1 to 43 of 43 parts
