Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | REGULATOR ASSY. 33251-74010 | 1 | $173.86 | |||
| 020 | SCREW, PAN HEAD 03014-60616 03014-50616 | 1 | $0.64 | |||
| 030 | NUT 02014-60060 02014-70060 | 1 | $0.60 | |||
| 040 | Plain Washer (Flat Washer) 04013-60060 04013-70060 | 1 | $0.60 | |||
| 050 | Spring Washer 04512-60060 04512-70060 | 1 | $0.60 | |||
| 060 | FUSE BOX,ASSY 68741-53280 Discontinued | 1 | $131.26 | |||
| 070 | COVER 68111-53260 Discontinued | 1 | $17.47 | |||
| 080 | SCREW, PAN HEAD 03054-60516 | 1 | $0.65 | |||
| 090 | WASHER,SPRING 04512-60050 04512-70050 | 1 | $0.36 | |||
| 100 | NUT 02054-60050 02054-70050 | 1 | $0.60 | |||
| 110 | TIMER,LAMP QUICK 15694-65990 | 1 | $147.90 | |||
| 160 | HORN 68171-53130 | 1 | $163.56 | |||
| 170 | BOLT 01123-60820 01123-70820 | 1 | $1.37 | |||
| 190 | UNT FUEL 68741-53130 RP801-53170 | 1 | $359.71 | |||
| 200 | GASKET 38240-35120 36330-75310 | 1 | $5.79 | |||
| 210 | SCREW,w/WASHER 03024-60512 03024-70512 | 1 | $1.06 | |||
| 220 | Air Cleaner Restriction Indicator 90067-51162 15831-11090 | 1 | $76.69 | |||
| 230 | ASSY CONDENSER 68773-53410 Discontinued | 1 | $25.25 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

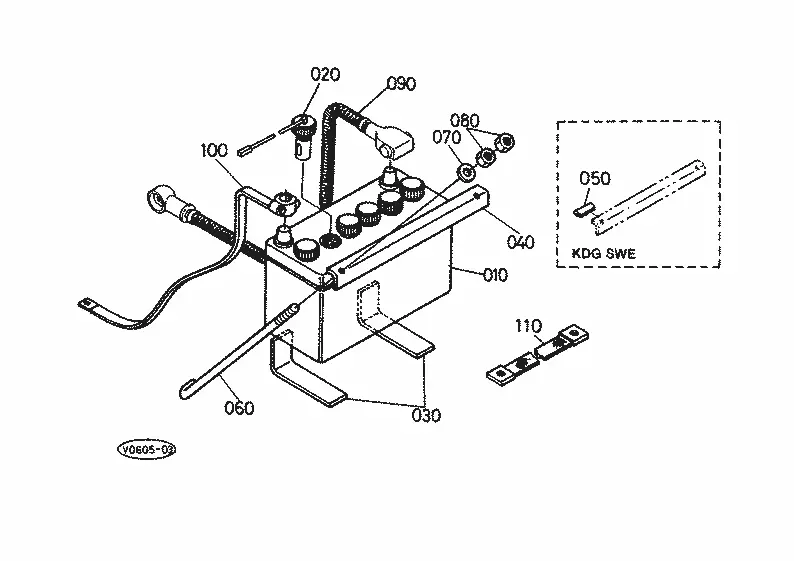

DIAG-S03000-85112 S03000 BATTERY
View Diagram -

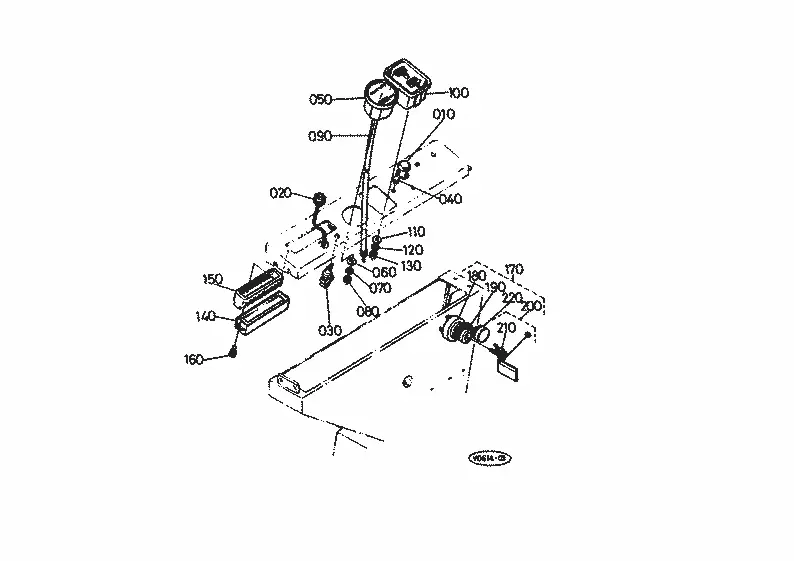

DIAG-S03201-85112 S03201 SWITCH METER [EXCEPT H.R.C.] [EXP. KUK NOR KCL KE S. KTA]
View Diagram -

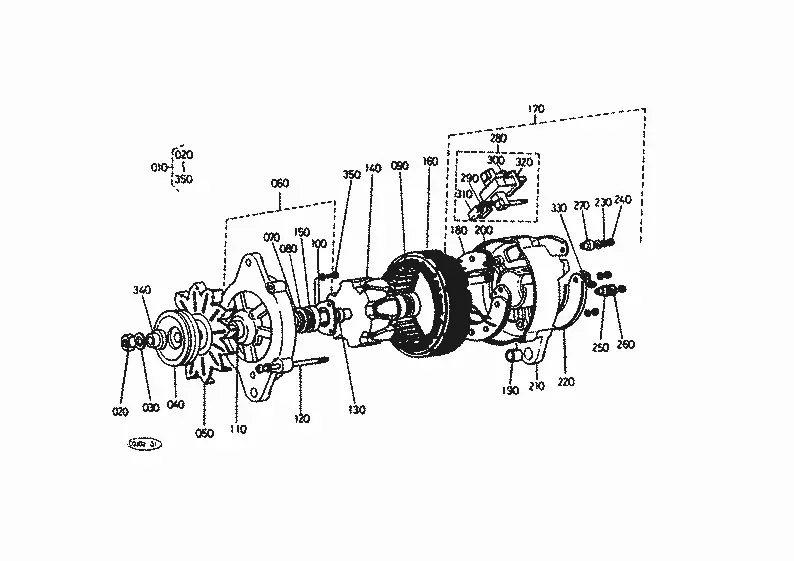

DIAG-S02900-85112 S02900 DYNAMO (COMPONENT PARTS)
View Diagram
