Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | OIL PAN 16215-01610 | 1 | $458.22 | |||
| 020 | GASKET,OIL PAN 16261-01620 16261-01630 | 1 | $17.34 | |||
| 030 | Bolt 01023-50168 01023-50618 | 1 | $1.10 | |||
| 040 | PLUG 15221-33752 15221-33750 | 1 | $8.74 | |||
| 050 | Engine Oil Pan Gasket 6C090-58960 | 1 | $4.85 | |||
| 050 | Oil Drain Plug Gasket 15109-33660 | 1 | $1.21 | |||
| 060 | SCREEN, OIL SUMP 16261-32114 | 1 | $38.89 | |||
| 070 | BOLT 01123-60816 01123-70816 | 1 | $1.21 | |||
| 080 | O-Ring Seal 04814-00160 | 1 | $5.79 | |||
| 090 | GAUGE, OIL 16215-36412 | 1 | $52.11 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-S00100-85169 S00100 CRANKCASE
View Diagram -

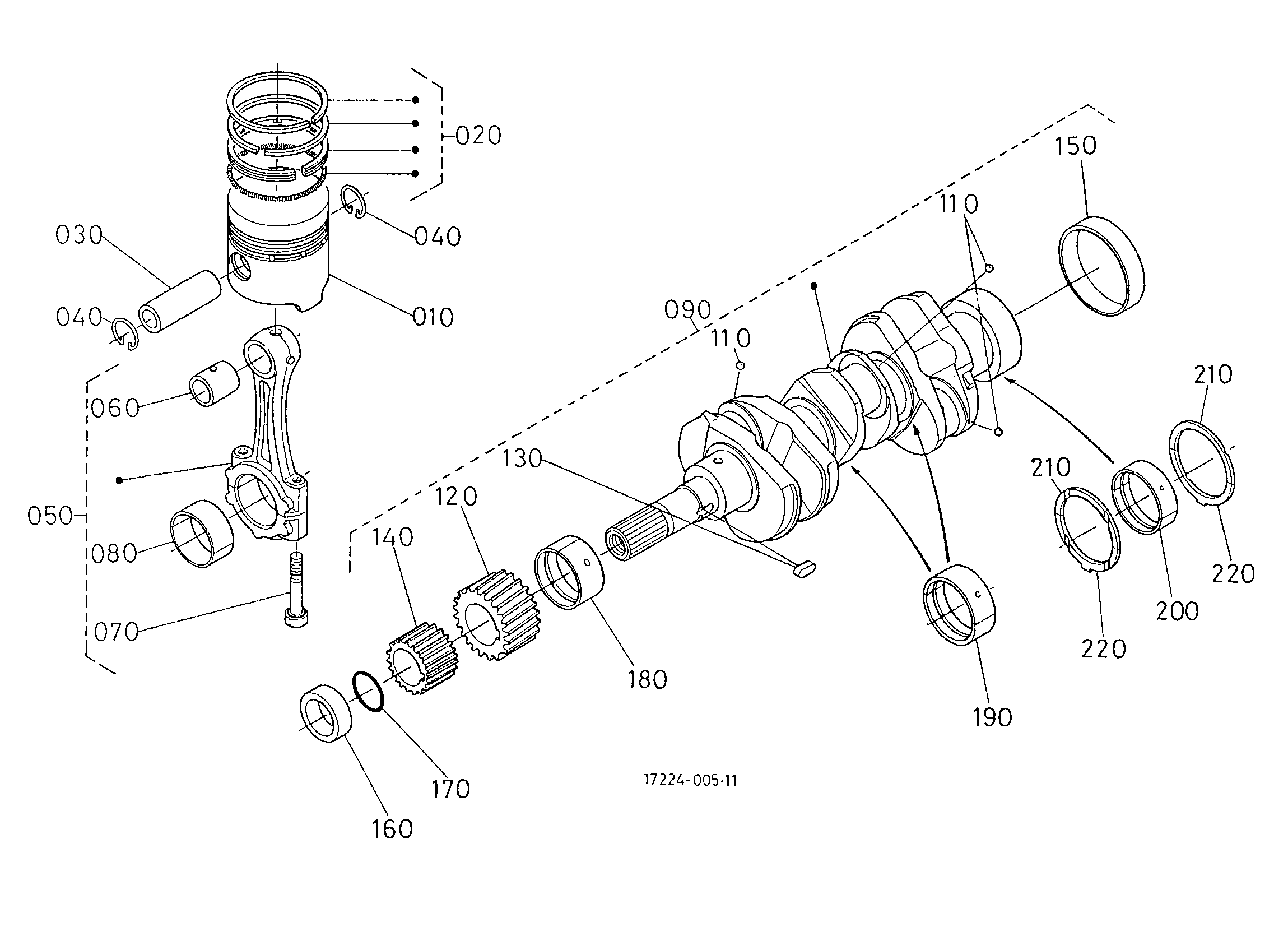

DIAG-S00300-85169 S00300 PISTON,CRANKSHAFT
View Diagram -

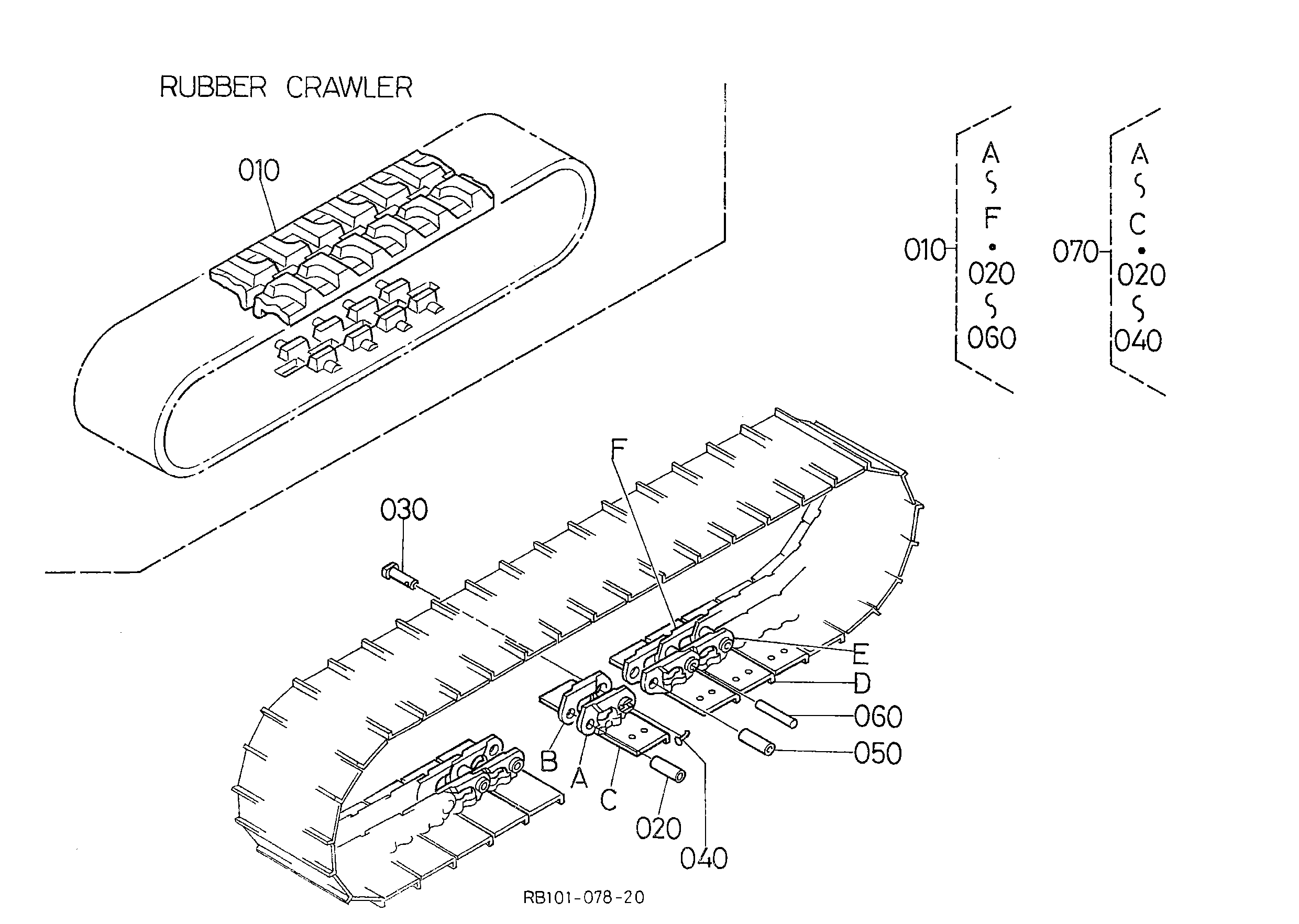

DIAG-S10700-85169 S10700 CRAWLER
View Diagram
