| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 4 | RUBBER BEADING 50M Roll 824/50017 | 1 | $10.43 | |||
| 5 | STRIP-9.14 METRES 824/50018 | 1 | $259.68 | |||
| 6 | (P) SET 3/8UNFx1 HT 1305/0206Z | 1 | $2.49 | |||
| 7 | (P) NUT 3/8UNF STD SELF LOCK 1340/0203Z | 1 | $1.75 | |||
| 8 | WASHER 3/8 SMALL PLAIN(KANBAN) 1410/0003Z | 1 | $0.00 | |||
| 8A | WASHER 3/8" SPRING 1416/0006Z | 1 | $0.45 | |||
| 10 | 1/2 UNF NUT STD 1340/0401Z | 1 | $2.23 | |||
| 11 | WASHER 1/2 SPRING 1416/0008Z | 1 | $0.71 | |||
| 11A | WASHER 1/2 SMALL PLAIN 1410/0005Z | 1 | $0.00 | |||
| 12 | BOLT 1/2 X 2-1/2 UNF 1305/3418Z | 1 | $9.37 | |||
| 13 | (W) (P) WASHER 1/2 MEDIUM PLAIN 1411/0005Z | 1 | $2.97 | |||
| 14 | WASHER 1/2 LARGE PLAIN 1412/0005Z | 1 | $2.73 | |||
| 15 | MOUNTING 257/16801 | 1 | $0.00 | |||
| 16 | NUT 1/2UNF STD SELF LOCK 1340/0403Z | 1 | $3.41 | |||
| 18 | SET 1/4UNFx3/4 HT 1305/0004Z | 1 | $2.08 | |||
| 19 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.14 | |||
| 22 | SET 5/16UNFx3/4 HT 1305/0104Z | 1 | $1.04 | |||
| 23 | WASHER 5/16 SMALL PLAIN 1410/0002Z | 1 | $1.22 | |||
| 24 | SET 5/16UNFx1 HT 1305/0106Z | 1 | $10.89 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

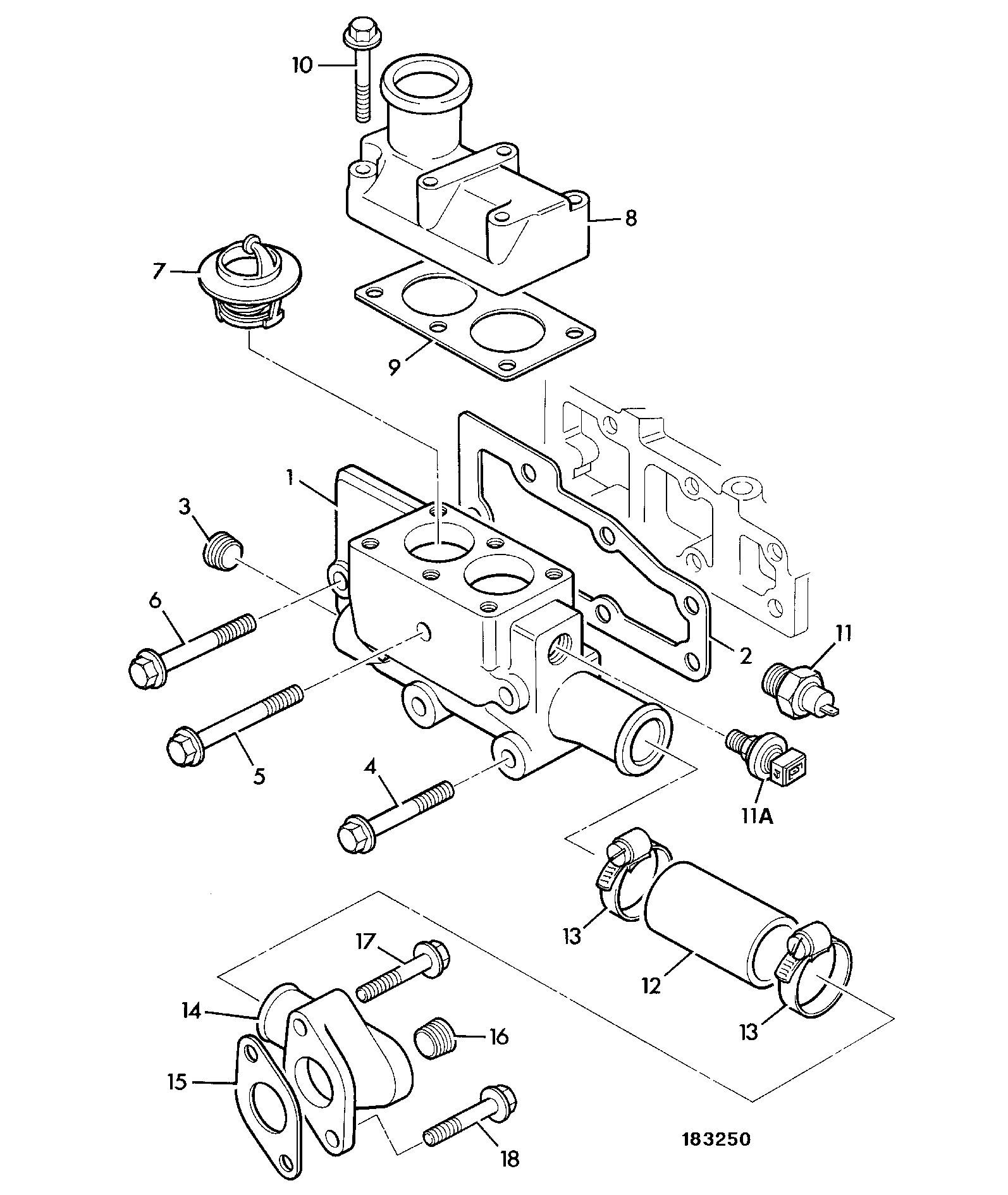

DIAG-R4-2-1-404797 R4-2-1 THERMOSTAT, HOUSING INLET & OUTLET YB BUILD
View Diagram -
DIAG-R4-4-2-404797 R4-4-2 RADIATOR HOSES & PIPEWORK YB BUILD
View Diagram -

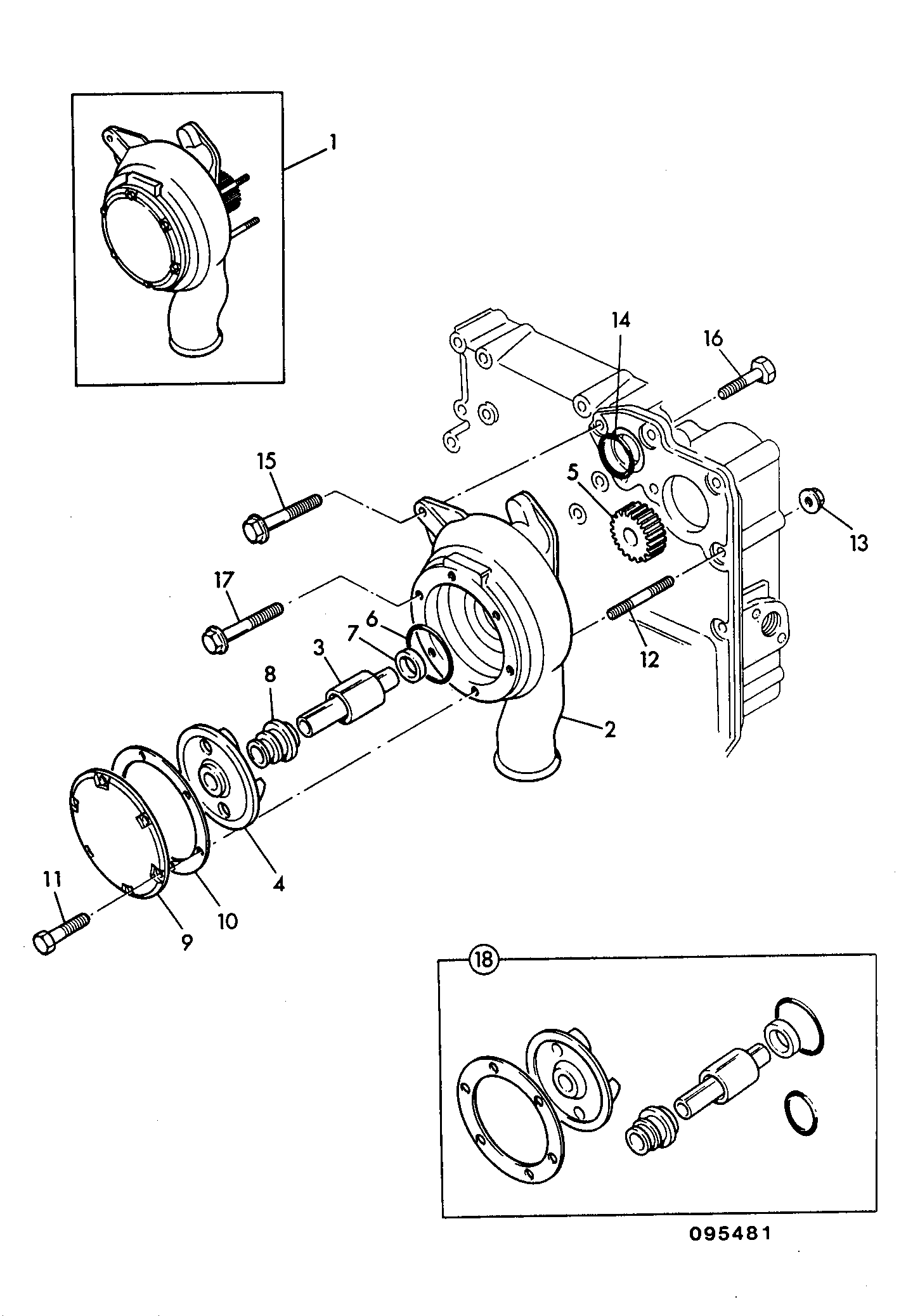

DIAG-R4-1-1-404797 R4-1-1 PUMP, WATER YB BUILD
View Diagram
