R2-3-1 ROCKER COVER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cover 02/941231	1	AVAILABLE TO ORDER	$830.59	Quantity
2	Bolt 02/930189	1	AVAILABLE TO ORDER	$15.87	Quantity
3	Valve Breather 02/941232	1	AVAILABLE TO ORDER	$113.54	Quantity
6	Gasket . 02/941234	1	AVAILABLE TO ORDER	$68.58	Quantity
7	CAP 02/930054 333/C4017	1	AVAILABLE TO ORDER	$42.03	Quantity

Showing 1 to 5 of 5 parts

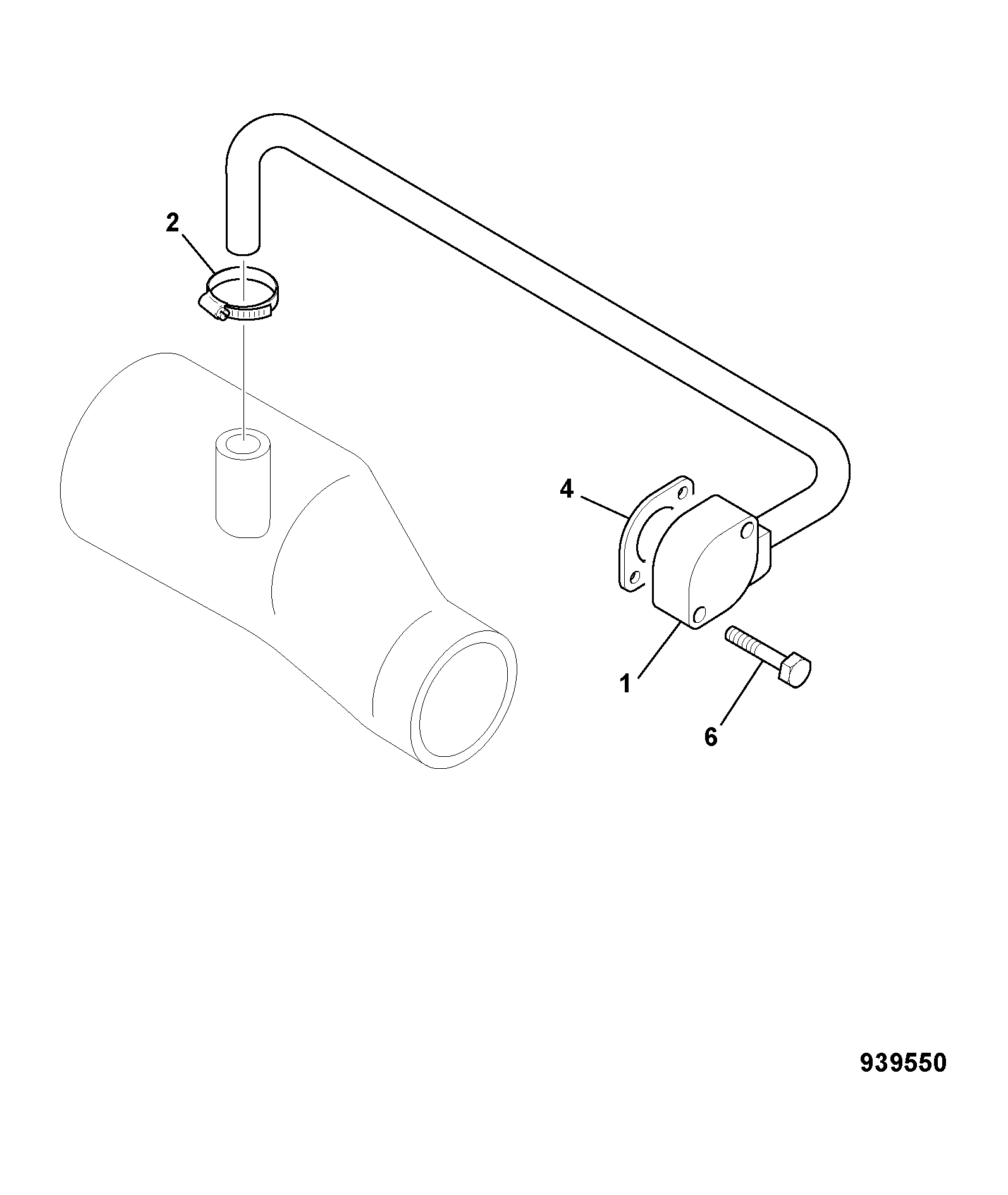

DIAG-R2-4-1-404457 R2-4-1 CRANKCASE BREATHER
View Diagram

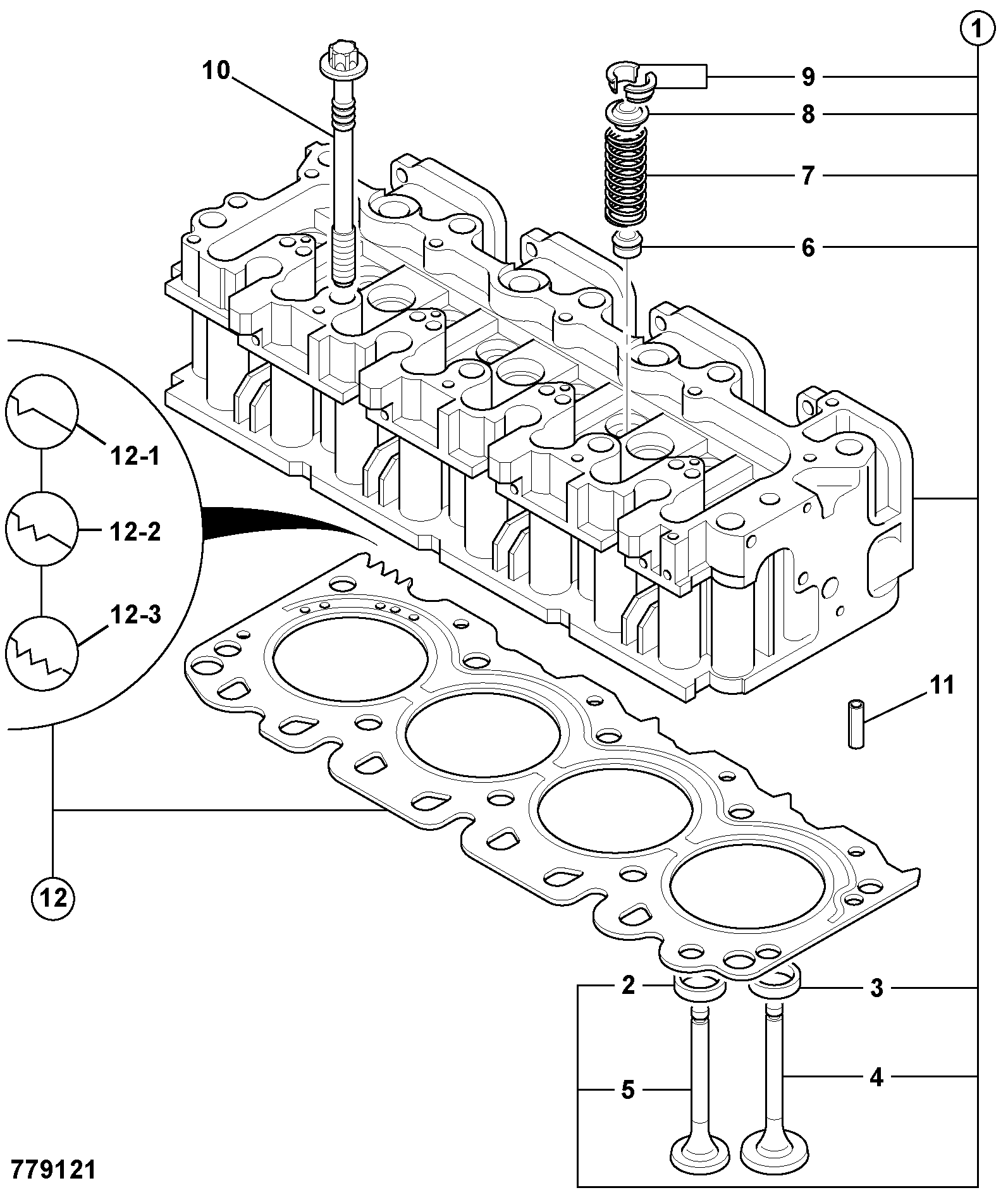

DIAG-R2-1-1-404457 R2-1-1 CYLINDER HEAD ASSEMBLY
View Diagram

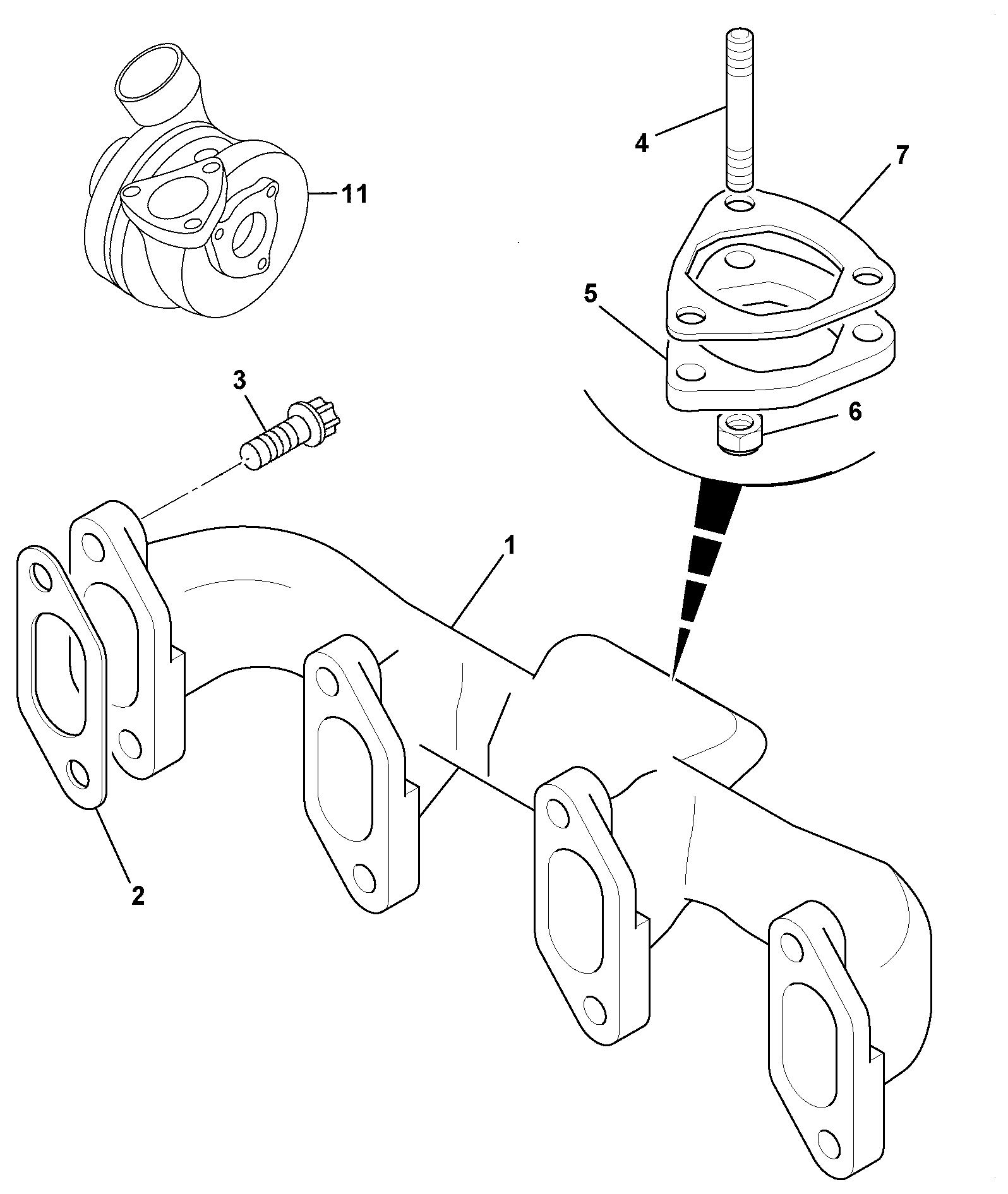

DIAG-R3-1-1-404457 R3-1-1 EXHAUST MANIFOLD AND TURBOCHARGER
View Diagram

Previous Assembly DIAG-R2-1-1-404457 R2-1-1 CYLINDER HEAD ASSEMBLY Next Assembly DIAG-R2-4-1-404457 R2-4-1 CRANKCASE BREATHER
