Scroll to zoom Click a part # to view details

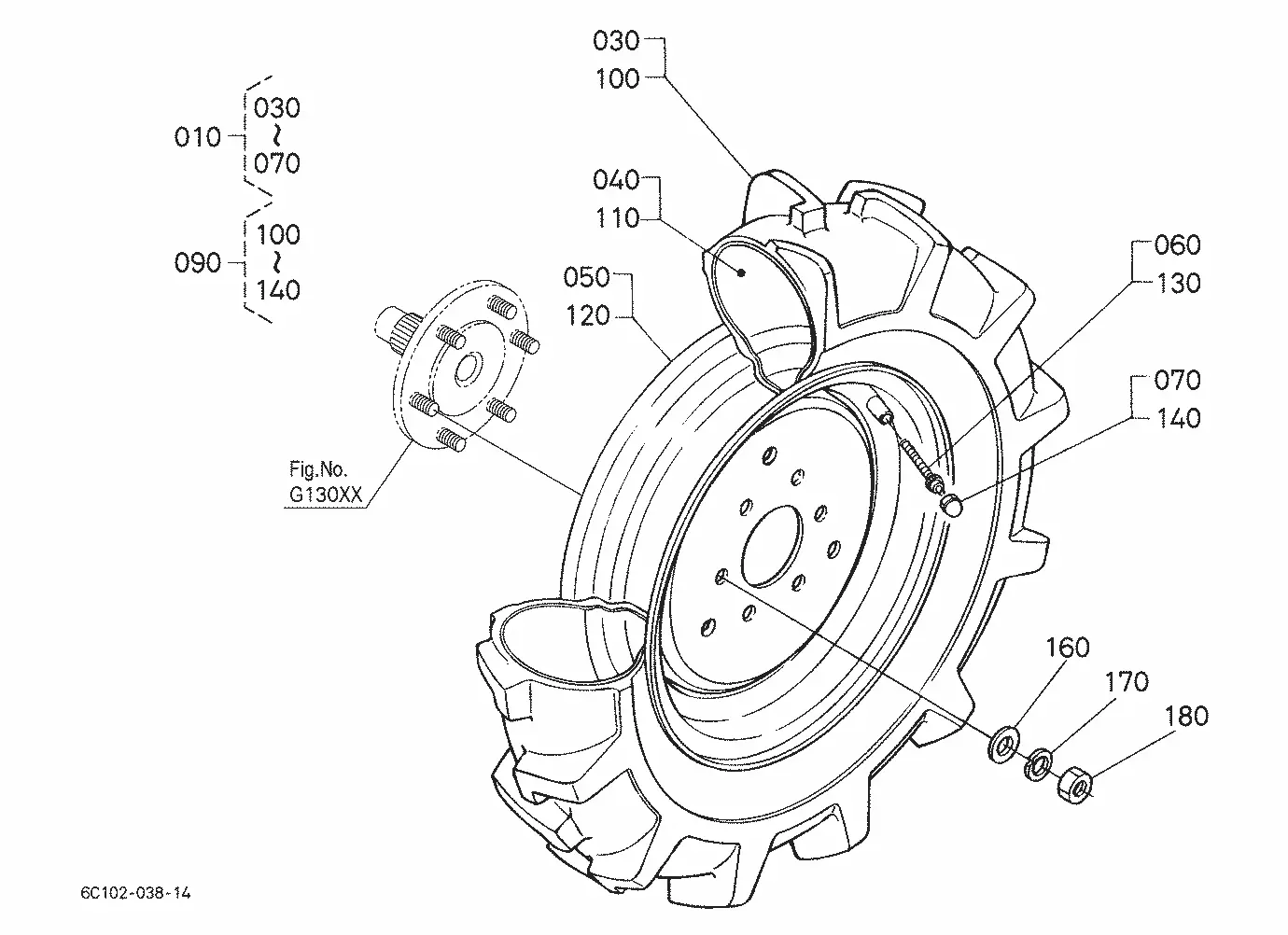

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ABR8753BL (8.3-1 TC230-10740 TC230-10720 Discontinued | 1 | $0.11 | |||
| 020 | TIRE, 8.3 X 16 R TD050-43040 TC230-43040 | 1 | $435.23 | |||
| 030 | RIM 16X6 6ON6BC 33500-49030 70000-00028 | 1 | $138.54 | |||
| 050 | ABR8753BR (8.3-1 TC230-10730 TC230-10710 Discontinued | 1 | $0.06 | |||
| 090 | ASSY HUB,WHEEL 6C040-17413 6C040-17414 | 1 | $306.00 | |||
| 100 | Rear Wheel Bolt 66704-17310 66704-17313 | 1 | $9.12 | |||
| 110 | COTTER, SET 6C190-17450 6C190-17452 | 1 | $75.43 | |||
| 120 | BOLT 01173-51695 | 1 | $4.51 | |||
| 130 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 140 | Nut Fastener 02173-50160 02174-50160 | 1 | $2.26 | |||
| 150 | Wheel Hub Pin 63733-17270 | 1 | $6.52 | |||
| 160 | Snap Pin 63733-17280 62131-17290 | 1 | $1.89 | |||
| 170 | Nut (Fastener) for Rear Wheel / Wheel Hub Assemblies TC404-11390 35340-11390 | 1 | $6.49 | |||
| 180 | WASHER,SPRING 04512-60140 04512-70140 | 1 | $0.14 | |||
| 190 | WASHER,PLAIN 04013-60140 04013-70140 | 1 | $0.60 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

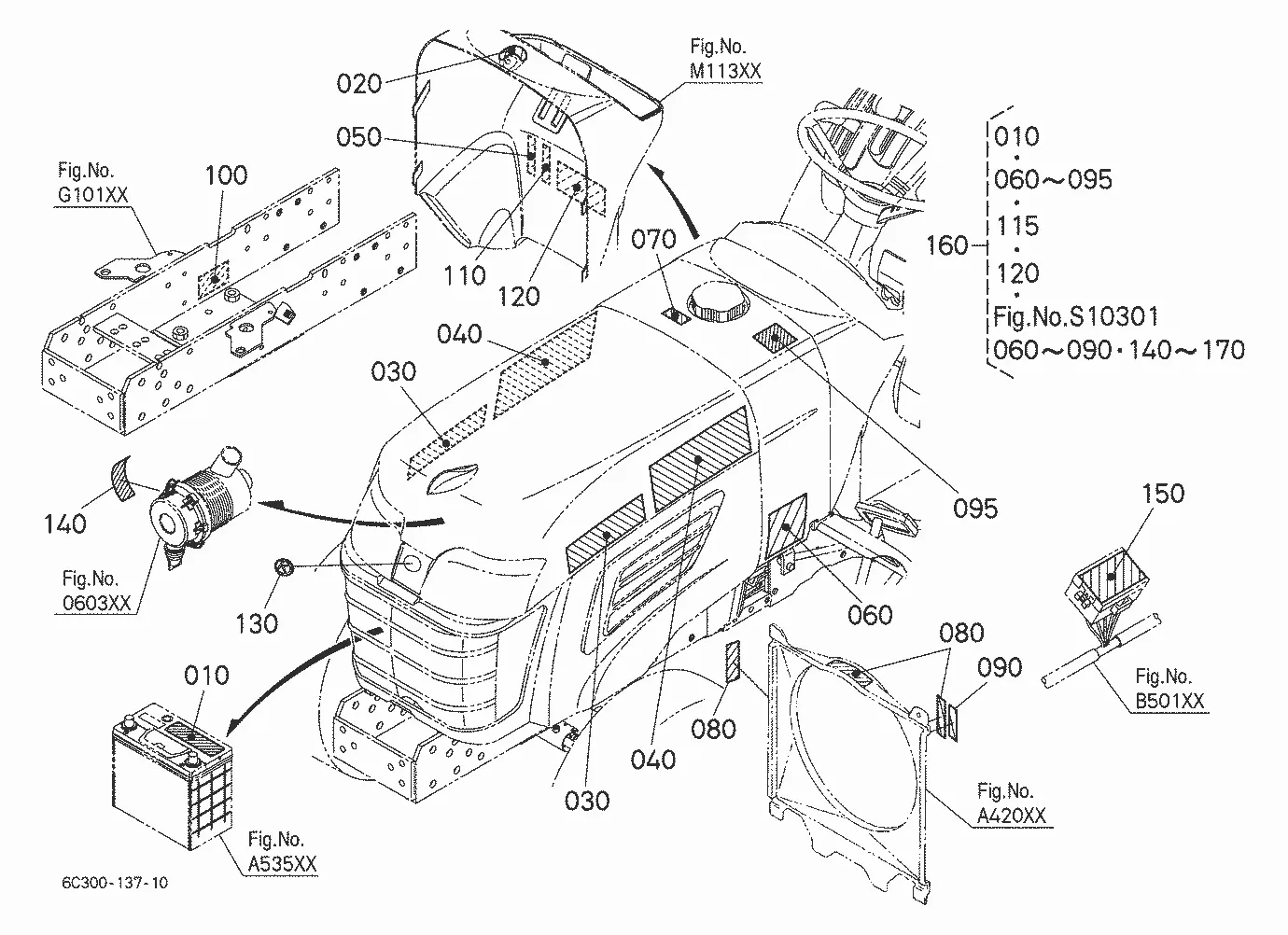

DIAG-S10201-84464 S10201 LABEL (FRONT) [ENGLISH]
View Diagram -

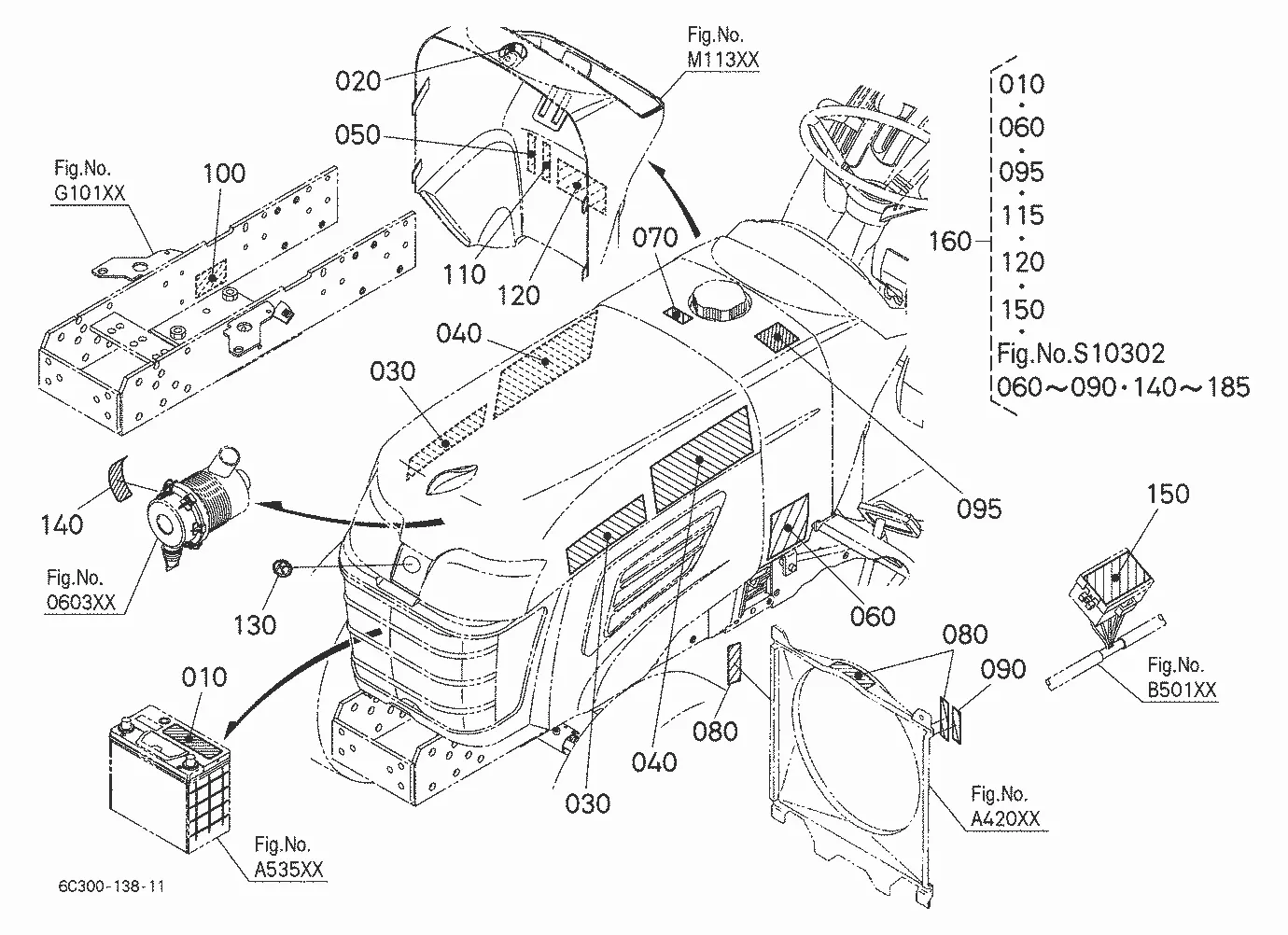

DIAG-S10202-84464 S10202 LABEL (FRONT) [FRENCH]
