Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT 5/8 X 5 UNF 1305/3634Z | 1 | $10.64 | ||||
| MOUNTING-70 SHORE 264/01101 | 1 | $0.00 | ||||
| 3 | STUD 02/291083 | 1 | $27.29 | |||
| 4 | NUT 02/291153 | 1 | $8.08 | |||
| 5 | BOLT 5/8 X 4-1/2 UNF 1305/3632Z | 1 | $10.23 | |||
| 6 | REBOUND PLATE 120/16902 | 1 | $0.00 | |||
| 7 | METACONE 270/15801 | 1 | $245.59 | |||
| 8 | WASHER 5/8 SMALL PLAIN 1410/0007Z | 1 | $2.54 | |||
| 9 | NUT 5/8UNF STD SELF LOCK 1340/0603Z | 1 | $5.13 | |||
| 10 | SET 3/8UNFx1.1/4 HT 1305/0208Z | 1 | $5.82 | |||
| 11 | (P) NUT 3/8UNF STD SELF LOCK 1340/0203Z | 1 | $1.75 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-

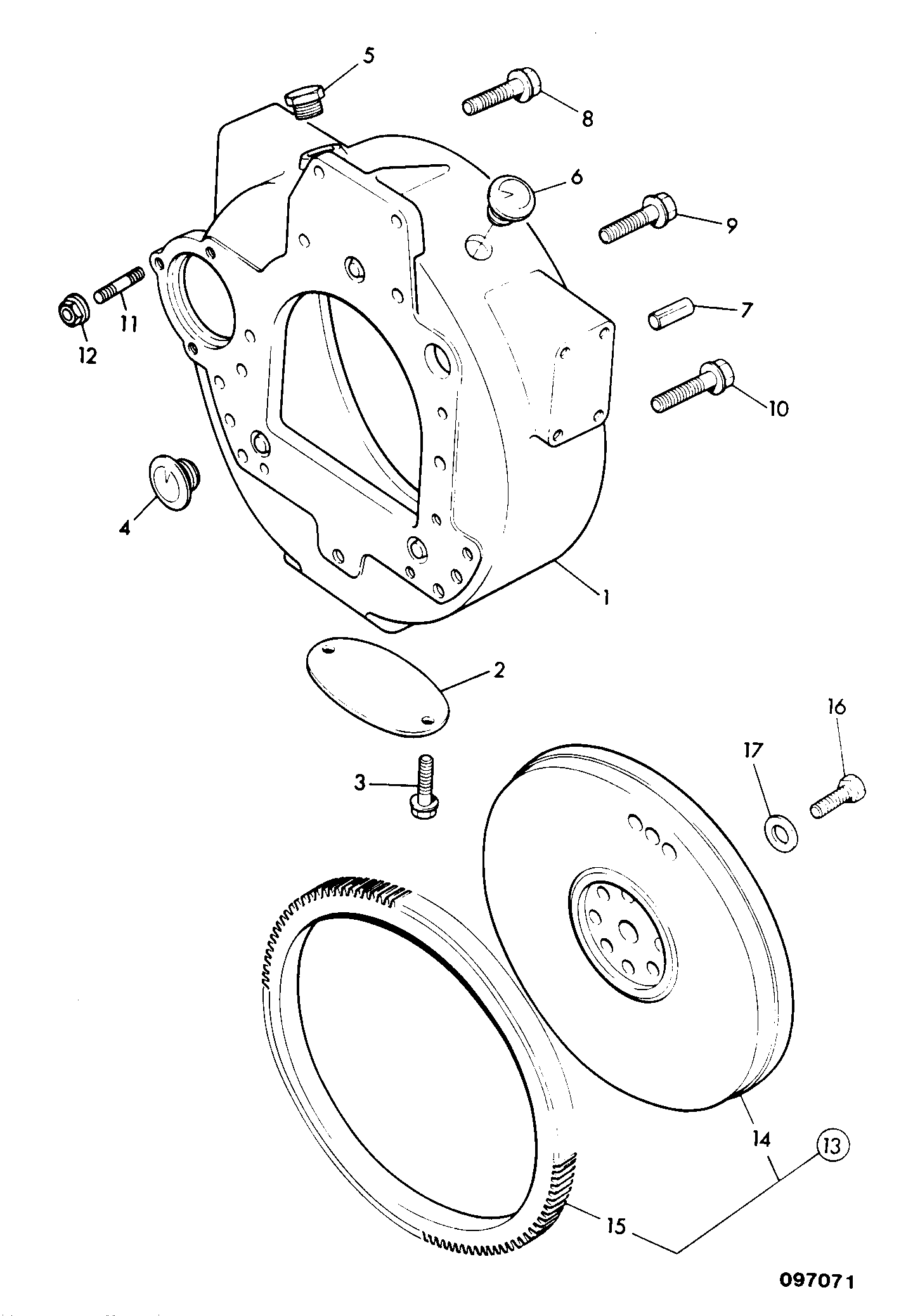

DIAG-R1-7-1-404797 R1-7-1 FLYWHEEL & HOUSING YB BUILD
View Diagram -

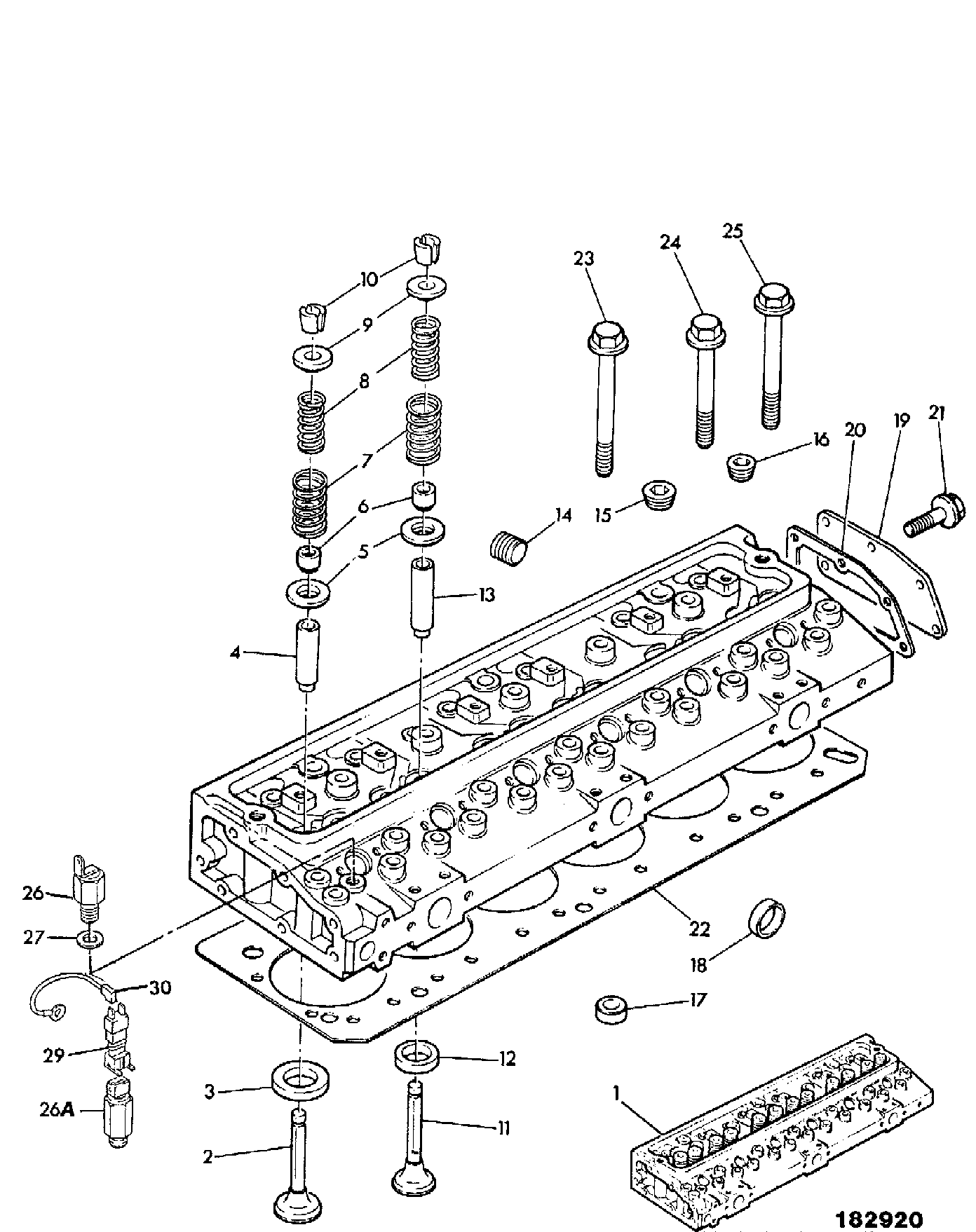

DIAG-R2-1-2-404797 R2-1-2 CYLINDER HEAD YB BUILD
View Diagram -

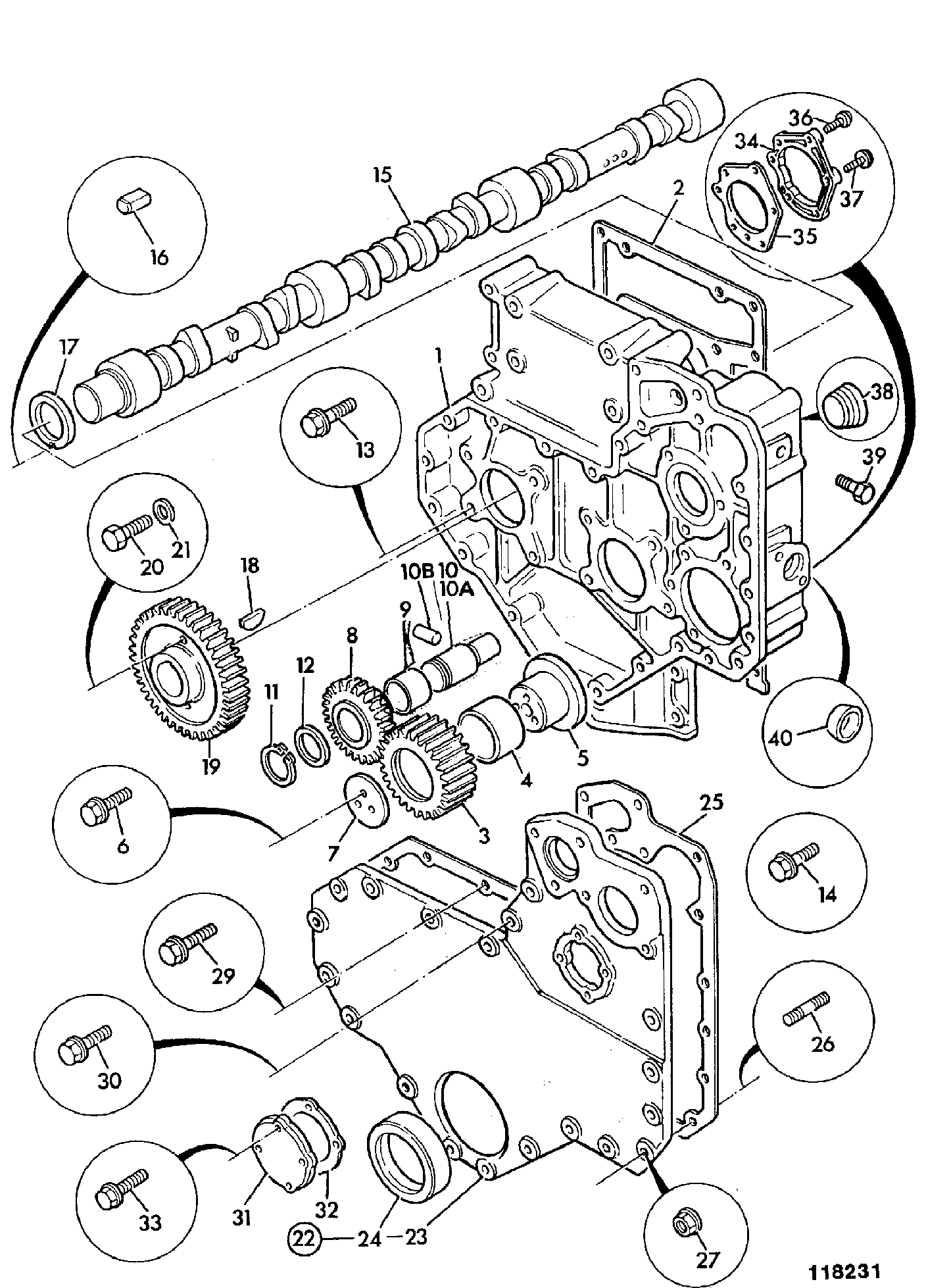

DIAG-R1-6-2-404797 R1-6-2 TIMING CASE CAMSHAFT & GEARS YB BUILD
View Diagram
