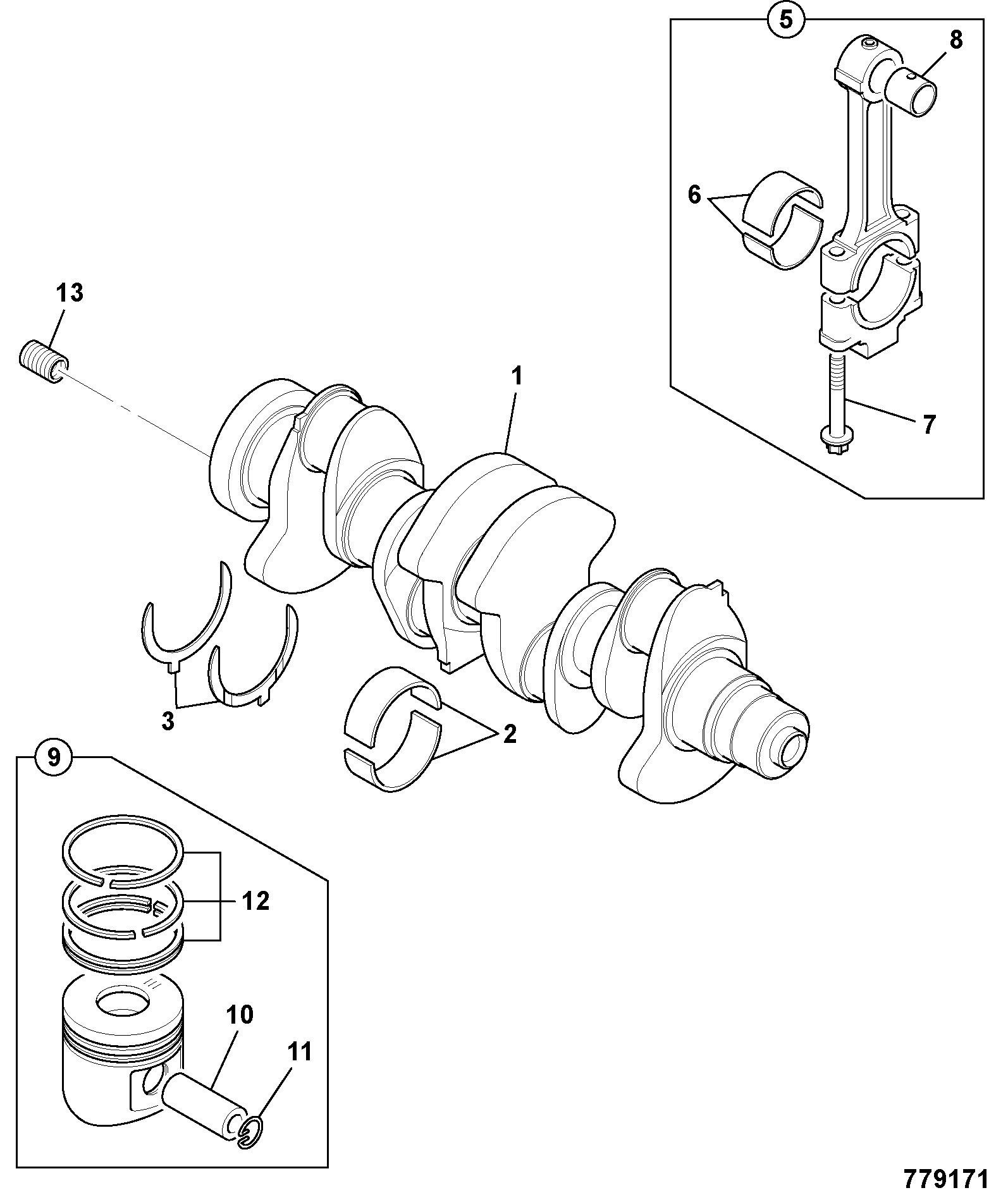

R1-4-2 CRANKSHAFT, BEARINGS PISTONS, CON-RODS UNDERSIZE/OVERSIZE SERVICE REPAIR PARTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Bearing main, 69.7 02/930032	1	AVAILABLE TO ORDER	$87.27	Quantity
4	Washer thrust 2.6 333/E7949 02/930035	1	AVAILABLE TO ORDER	$126.78	Quantity
5	Bearing big-end 54 02/930037	1	AVAILABLE TO ORDER	$97.69	Quantity
6	Bearing 02/930038	1	AVAILABLE TO ORDER	$170.08	Quantity

Showing 1 to 4 of 4 parts

DIAG-R1-4-1-404375 R1-4-1 CRANKSHAFT, BEARINGS PISTONS, CON-RODS STANDARD
View Diagram
DIAG-R1-5-1-404375 R1-5-1 COOLING FAN & CAMSHAFT DRIVE
View Diagram

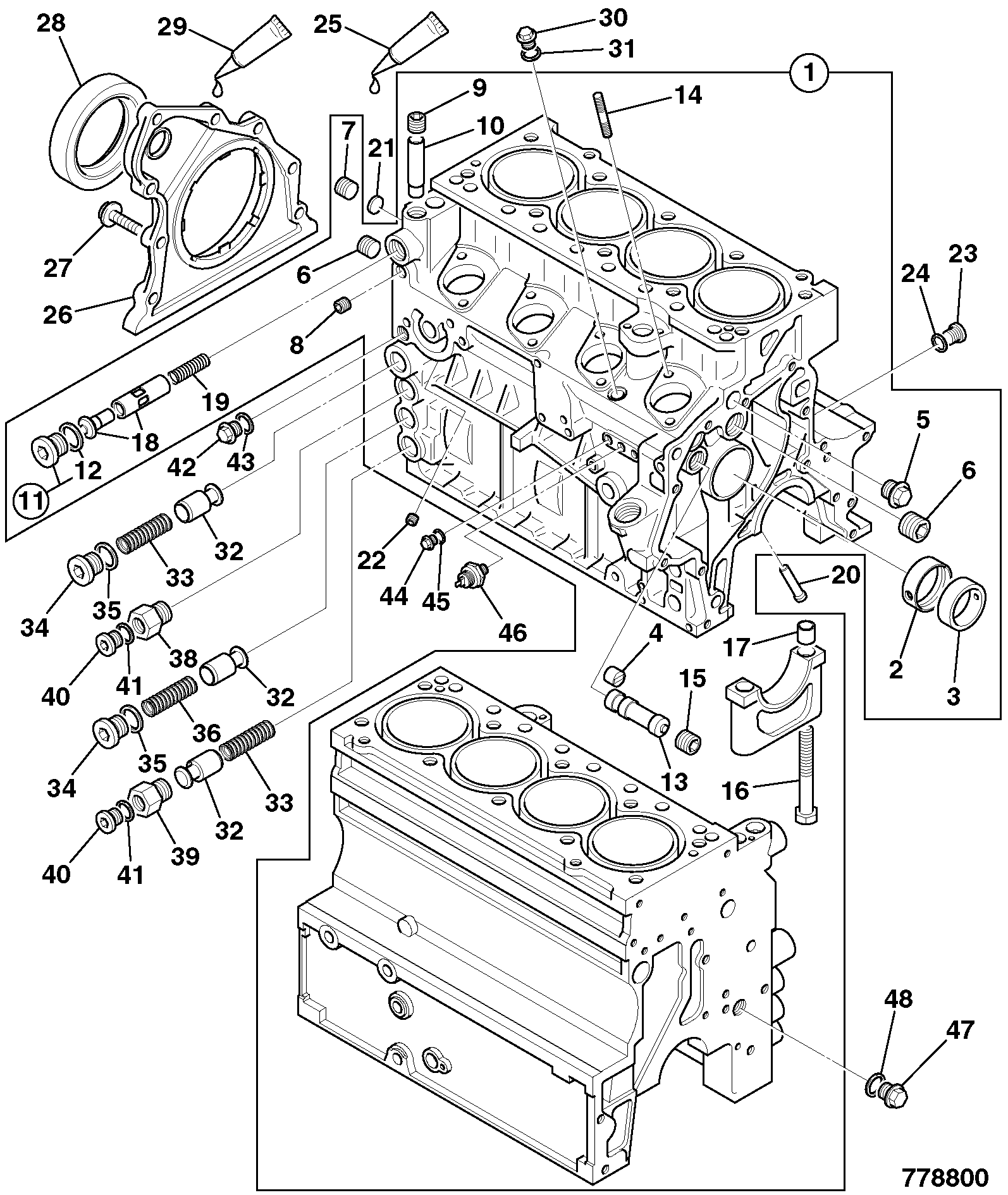

DIAG-R1-3-1-404375 R1-3-1 BLOCK ASSEMBLY
