Scroll to zoom Click a part # to view details

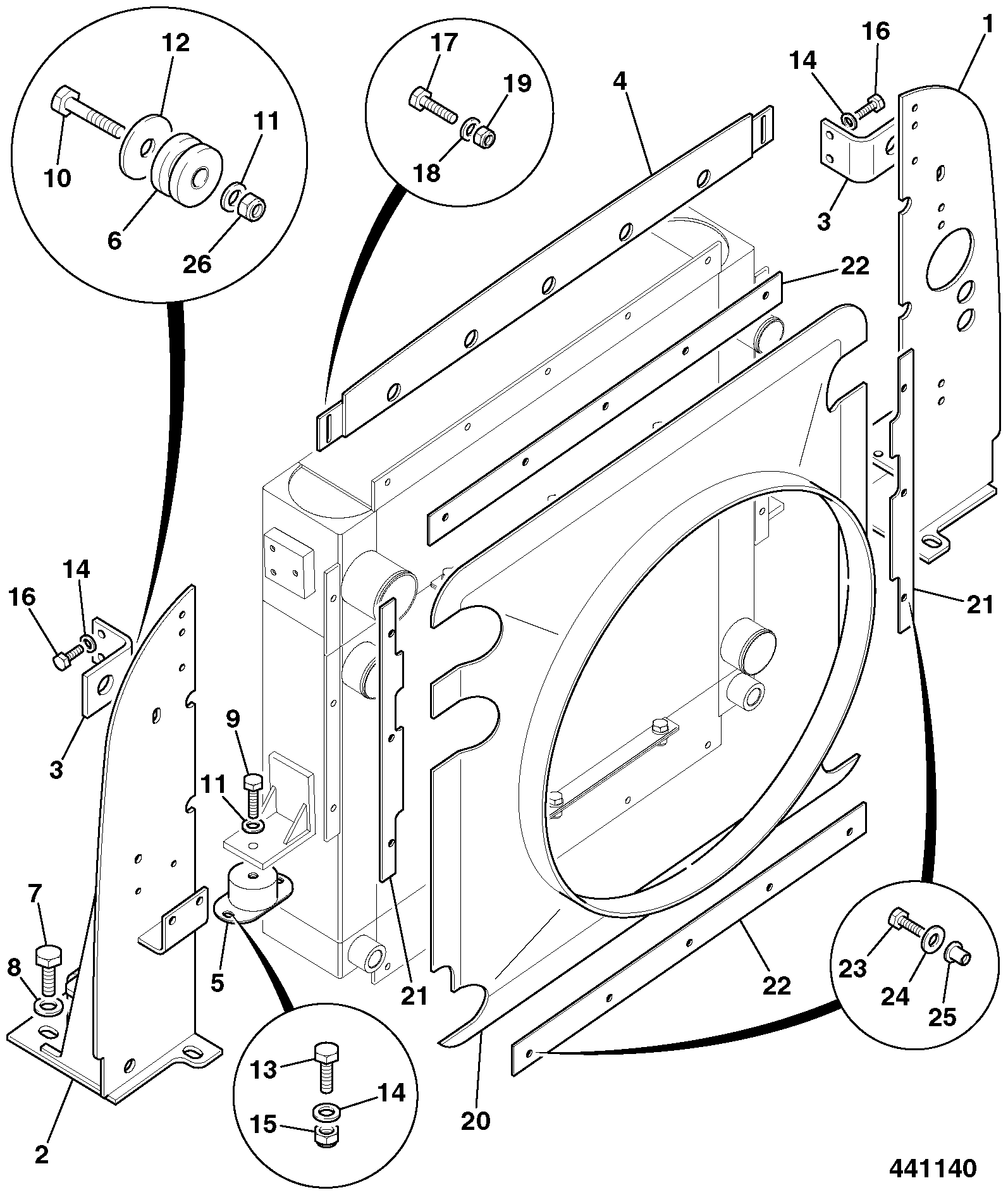

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | BAFFLE PLATE WA RH 335/07478 | 1 | $228.55 | |||
| 3 | SUPPORT PLATE 331/35061 | 1 | $140.10 | |||
| 4 | TOP BAFFLE PLATE WA 335/07486 | 1 | $449.68 | |||
| 5 | RADIATOR MOUNTING 331/34918 331/39654 | 1 | $171.49 | |||
| 6 | MOUNTING 257/16801 | 1 | $15.38 | |||
| 7 | HEX-SCREW M16 L-_45mm LG 1315/0711D | 1 | $7.72 | |||
| 8 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 9 | SET SCREW M12x40 1315/0510D | 1 | $2.86 | |||
| 10 | BOLT M12 L-_60mm 1315/3514D | 1 | $3.30 | |||
| 11 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 12 | WASHER 1/2 LARGE 1412/0005D | 1 | $2.03 | |||
| 13 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 14 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 16 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 17 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 19 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 20 | Cowling fan 30/926236 | 1 | $660.84 | |||
| 22 | FIXING PLATE 331/43391 | 1 | $21.49 | |||
| 23 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 24 | WASHER 1/4 MEDIUM PLAIN 1411/0001D | 1 | $7.13 | |||
| 25 | RIVET NUT M6(KANBAN) 826/01099 | 1 | $3.11 | |||
| 26 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-P4-3-1-403015 P4-3-1 RADIATOR FITTINGS & MOUNTINGS
View Diagram -
DIAG-P4-4-1-403015 P4-4-1 COOLER ASSEMBLY
View Diagram -

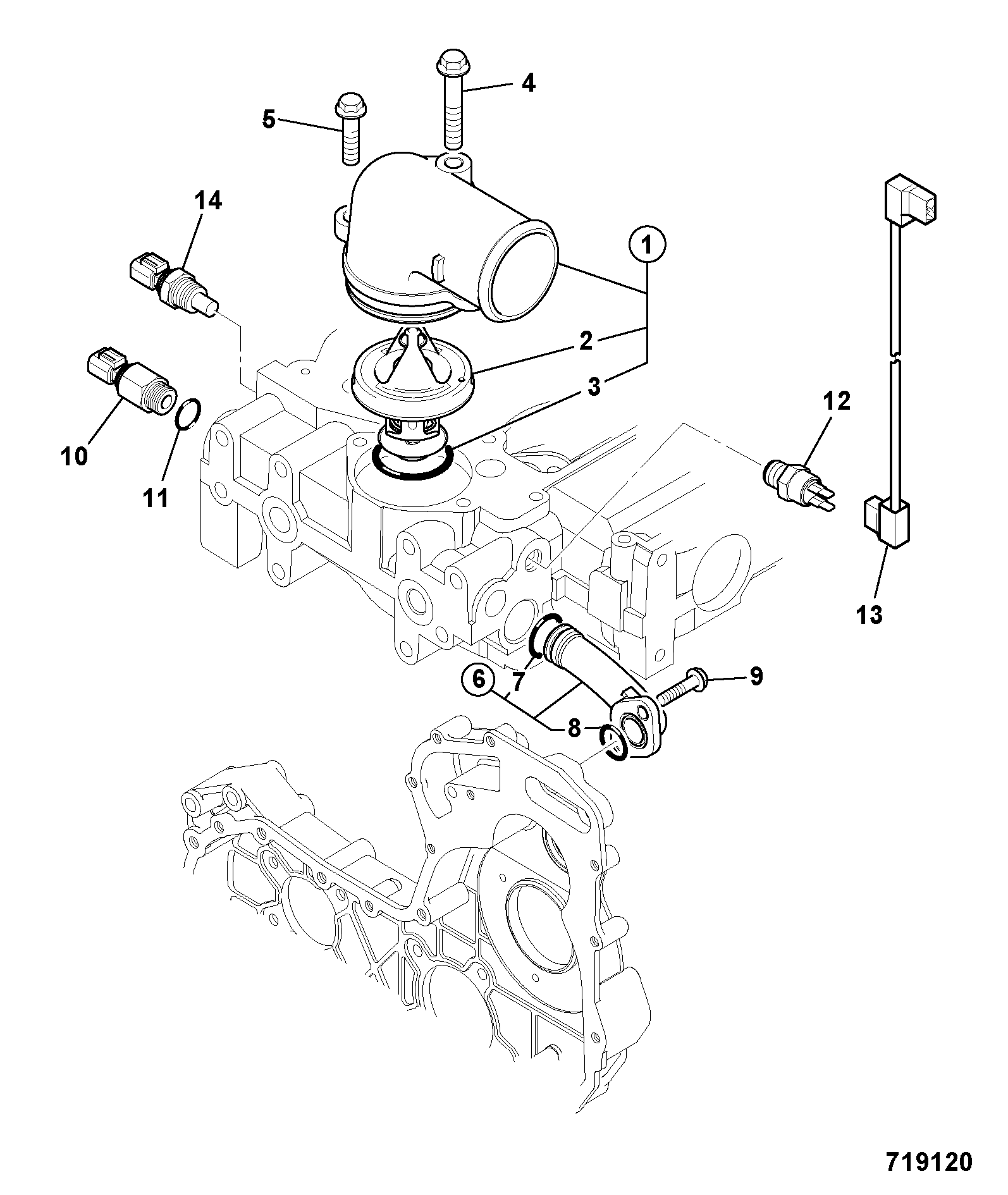

DIAG-P4-2-1-403015 P4-2-1 THERMOSTAT, HOUSING INLET & OUTLET RJ BUILDS
View Diagram
