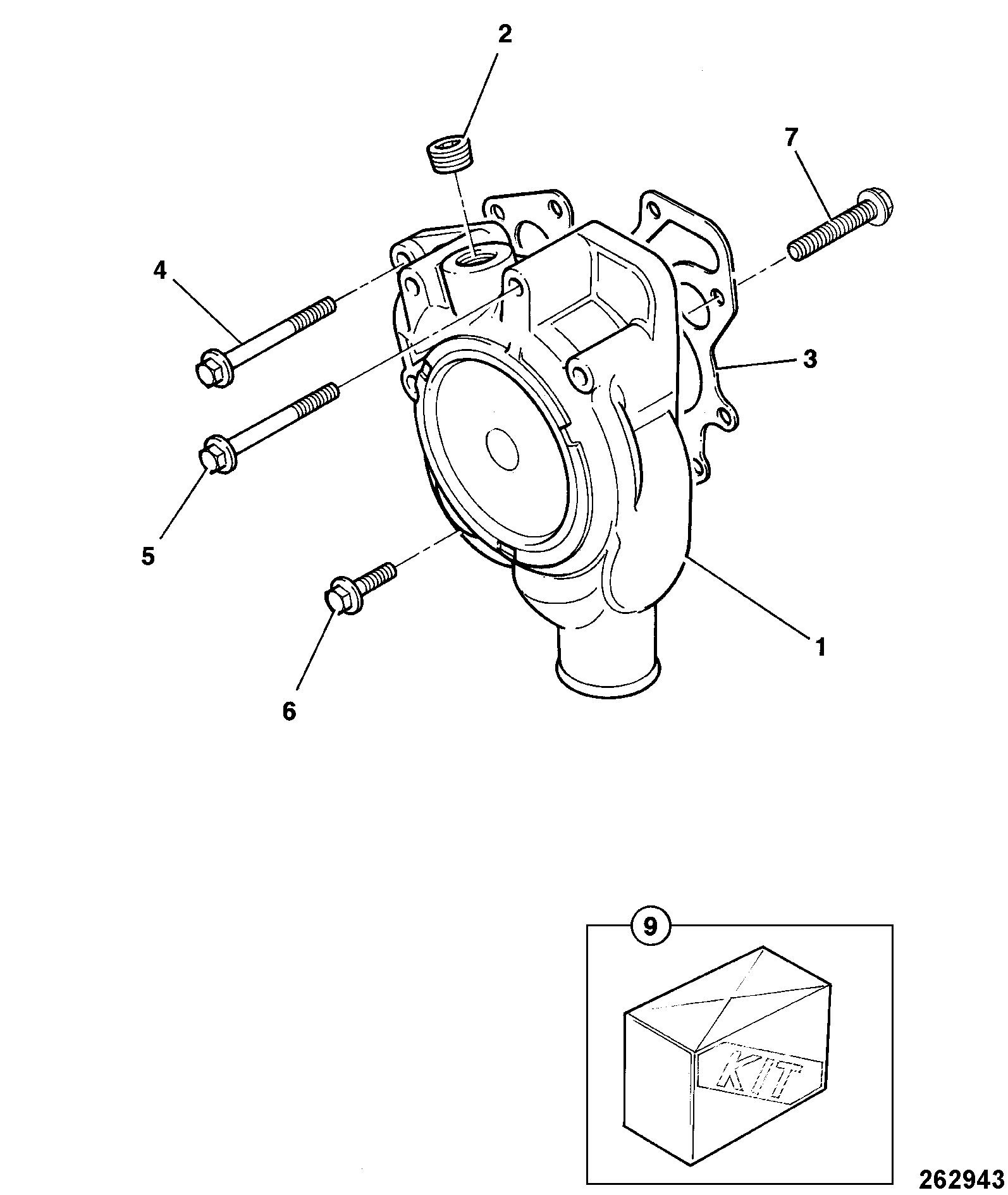

P4-1-1 PUMP, WATER AR & AK BUILDS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	BOLT 02/291030	1	AVAILABLE TO ORDER	$12.47	Quantity	Quantity
1	WATER PUMP 02/202110 02/202365	1	AVAILABLE TO ORDER	$184.95	Quantity	Quantity
3	GASKET W/PUMP 02/201539	1	1 IN STOCK	$12.52	Quantity	Quantity
4	SCREW 02/291109	1	AVAILABLE TO ORDER	$2.62	Quantity	Quantity
5	BOLT 02/291033	1	AVAILABLE TO ORDER	$2.15	Quantity	Quantity
6	SCREW 02/291122	1	19 IN STOCK	$6.97	Quantity	Quantity
7	BOLT 02/291025	1	AVAILABLE TO ORDER	$3.20	Quantity	Quantity

Showing 1 to 7 of 7 parts

DIAG-P4-1-1-395107-11198578 P4-1-1 PUMP, WATER AR & AK BUILDS
View Diagram

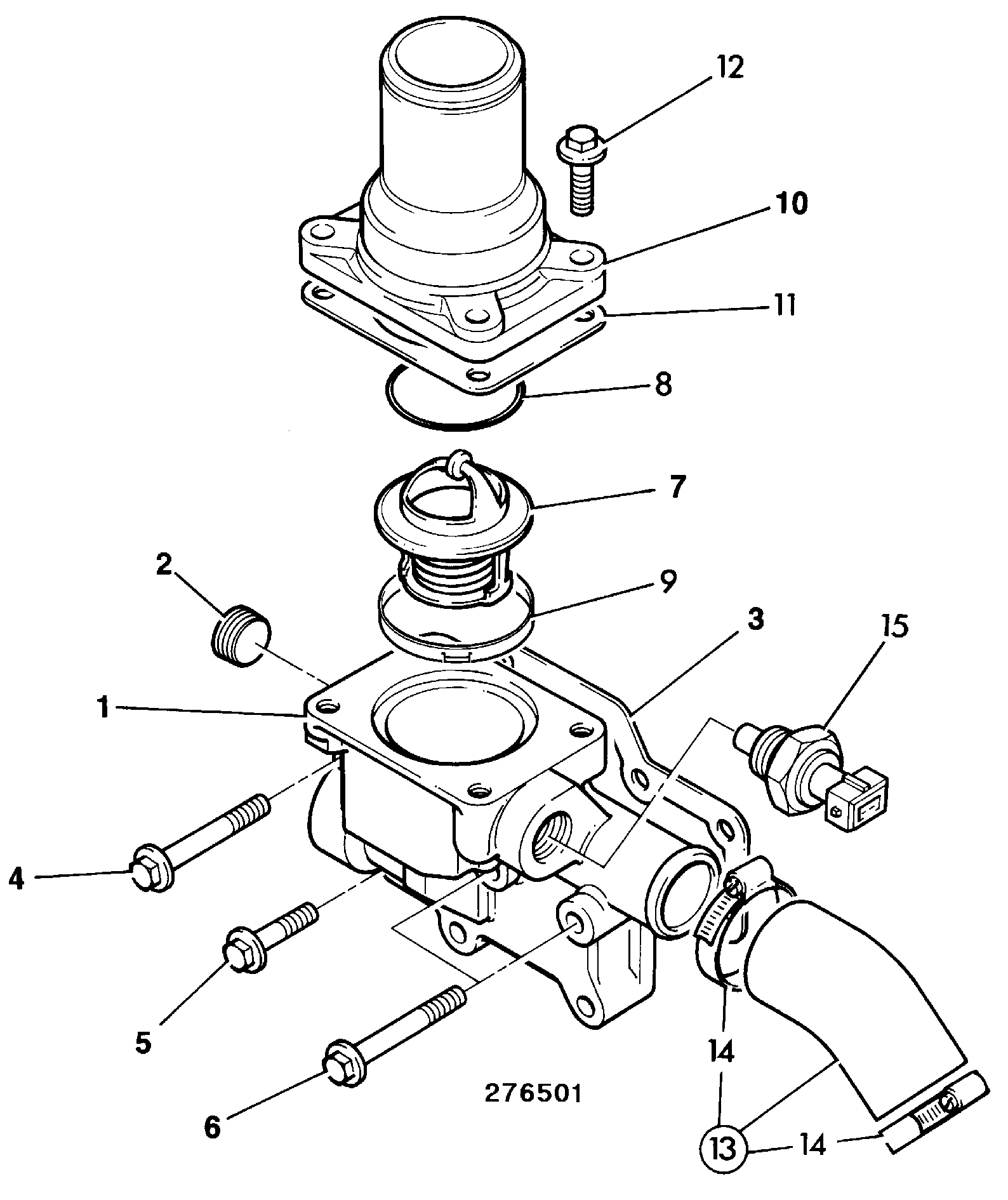

DIAG-P4-2-1-395107 P4-2-1 THERMOSTAT, HOUSING INLET & OUTLET AR & AK BUILDS
View Diagram
DIAG-P4-1-1-395107 P4-1-1 PUMP, WATER AR & AK BUILDS
View Diagram
