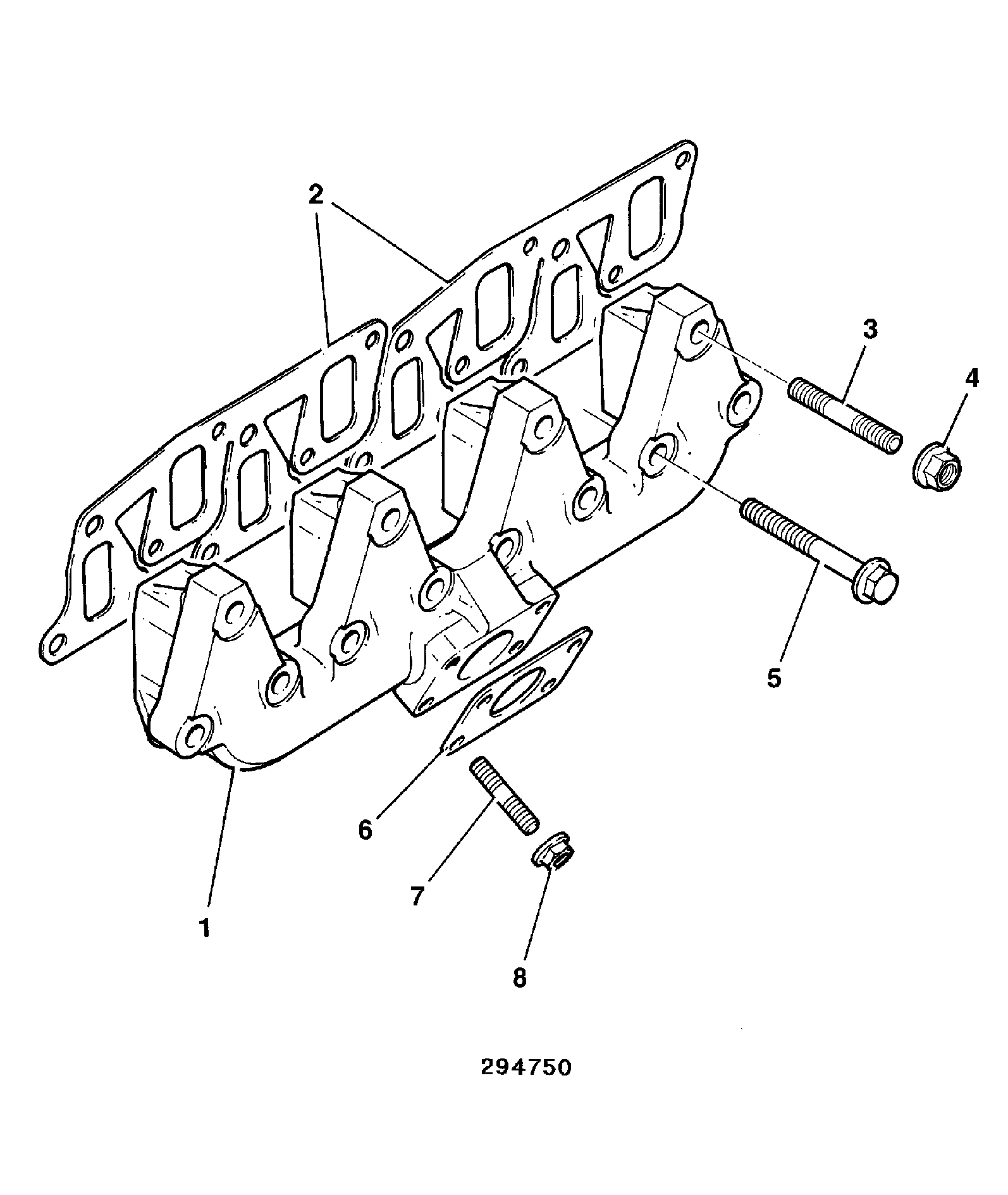

P3-2-1 MANIFOLD, EXHAUST AR BUILD Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MANIFOLD EXHAUST 02/201837	1	AVAILABLE TO ORDER	$1,422.63	Quantity
2	GASKET IND/EXHST 02/201836	1	AVAILABLE TO ORDER	$127.97	Quantity
4	NUT 02/291240	1	AVAILABLE TO ORDER	$3.17	Quantity
6	STUD 02/291002	1	5 IN STOCK	$12.91	Quantity
8	EXHAUST ELBOW 02/200075	1	AVAILABLE TO ORDER	$272.79	Quantity
10	STUD 02/291251	1	AVAILABLE TO ORDER	$10.82	Quantity
11	NUT M10 02/291061	1	18 IN STOCK	$19.60	Quantity

Showing 1 to 7 of 7 parts
