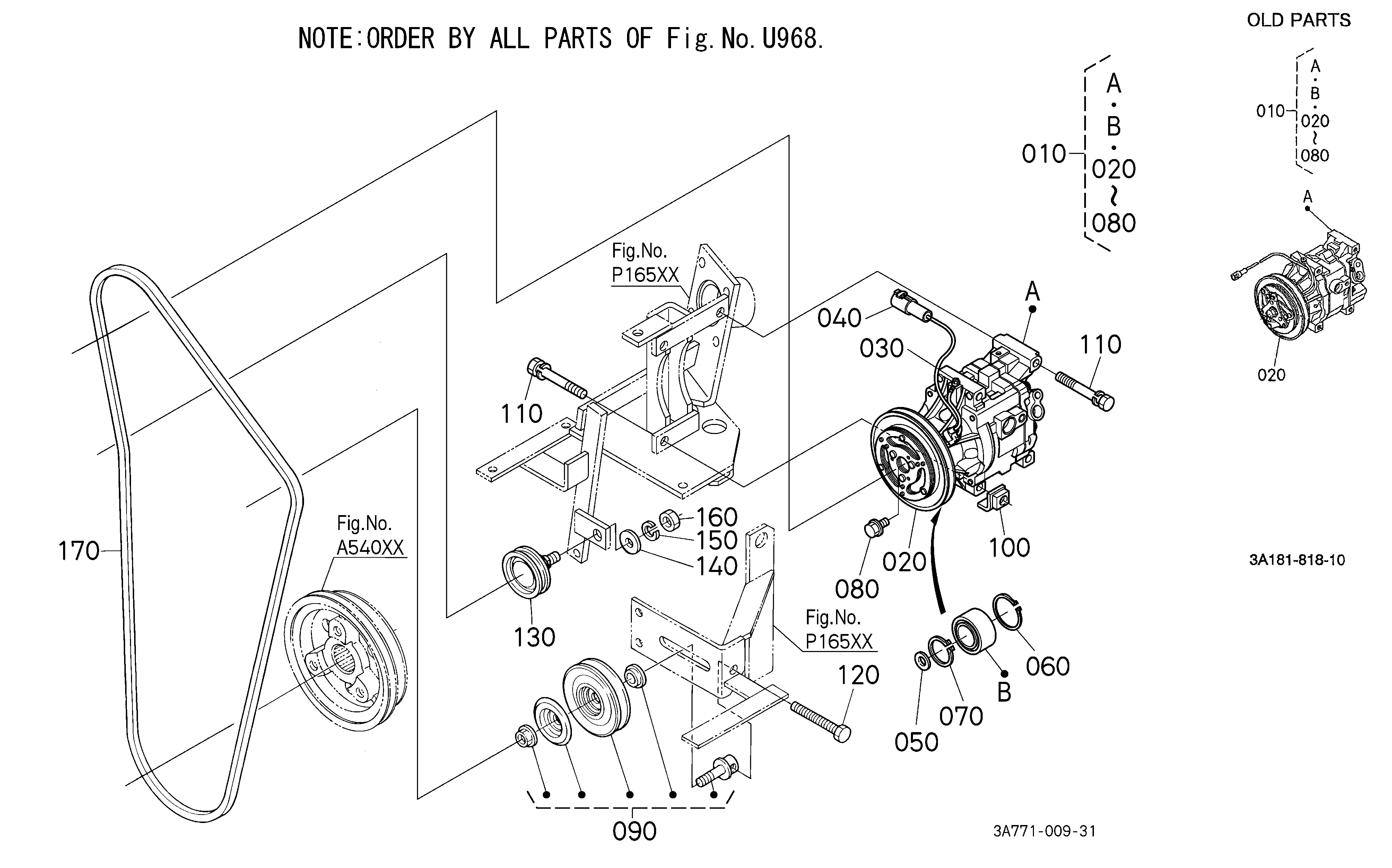

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY COMPRESSOR 6A671-97110 6A671-97114 | 1 | $763.30 | |||
| 020 | ASSY CLUTCH 6A671-97310 | 1 | $1,093.05 | |||
| 020 | ASSY CLUTCH, MAG T1065-87310 T3635-87310 | 1 | $964.20 | |||
| 020 | ASSY, CLUTCH 6A671-97210 | 1 | $1,093.05 | |||
| 030 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 040 | ASSY WIRE T1065-87330 Discontinued | 1 | $304.78 | |||
| 050 | SHIM T1065-87340 | 1 | $1.44 | |||
| 050 | SHIM T1065-87350 | 1 | $4.11 | |||
| 050 | SHIM T1065-87360 | 1 | $4.11 | |||
| 050 | SHIM T1065-87370 | 1 | $4.11 | |||
| 050 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 060 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 070 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 080 | BOLT T1065-87460 | 1 | $3.16 | |||
| 090 | PULLEY 1, TENSIO 3G710-50090 | 1 | $132.82 | |||
| 100 | NUT *** 3A761-72340 | 1 | $12.79 | |||
| 110 | BOLT 01123-50880 | 1 | $4.09 | |||
| 120 | BOLT 01155-50880 | 1 | $4.22 | |||
| 130 | Air Conditioner Compressor Tension Pulley 33760-50090 | 1 | $60.65 | |||
| 140 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 150 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 160 | Nut 02114-60100 02114-50100 | 1 | $0.80 | |||
| 170 | BELT,V 3A851-79320 | 1 | $17.05 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-P16002-85848 P16002 COMPRESSOR [OLD TYPE]
View Diagram -

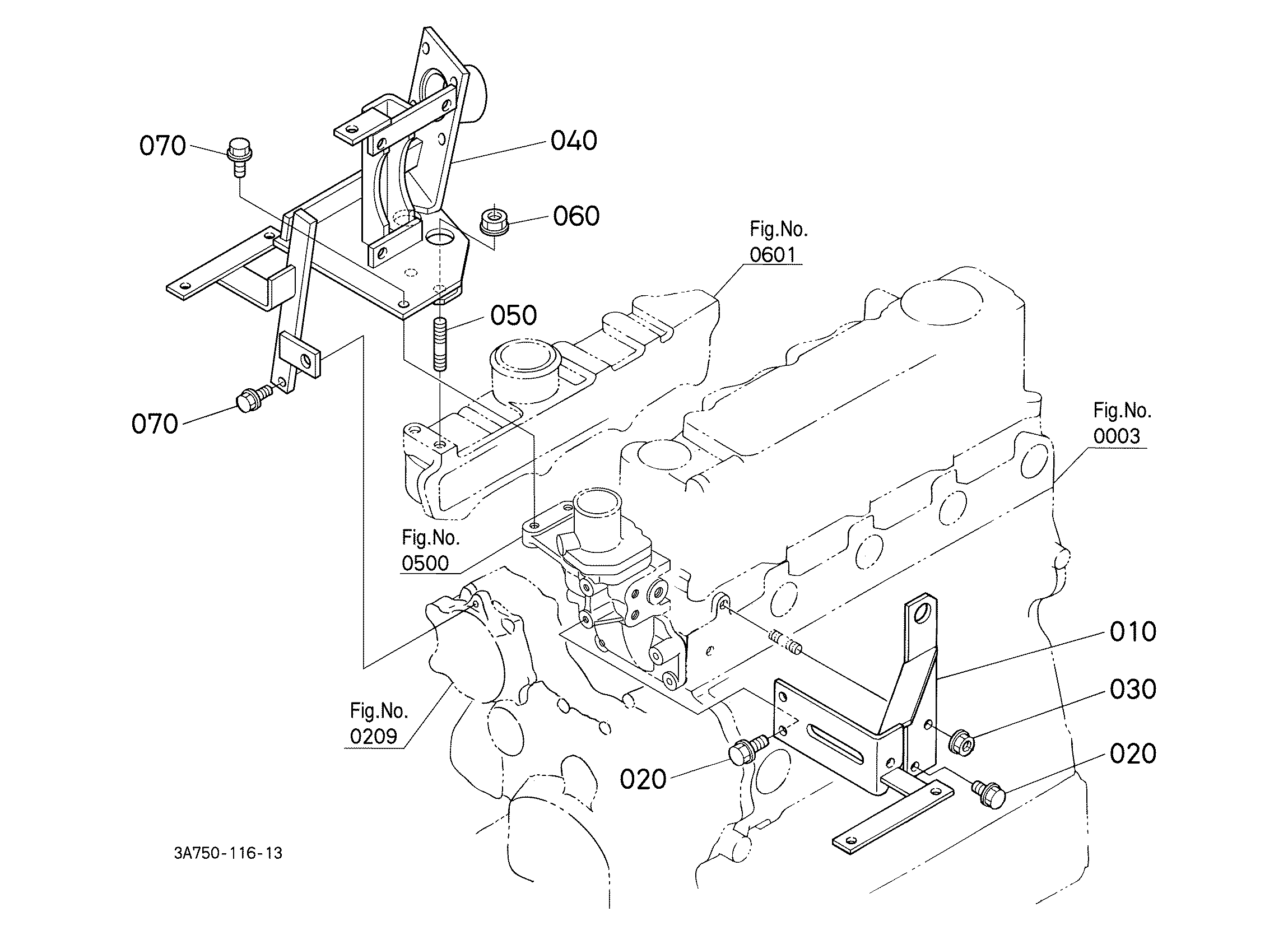

DIAG-P16502-85848 P16502 COMPRESSOR BRACKET [[CA] NEW TYPE]
View Diagram -

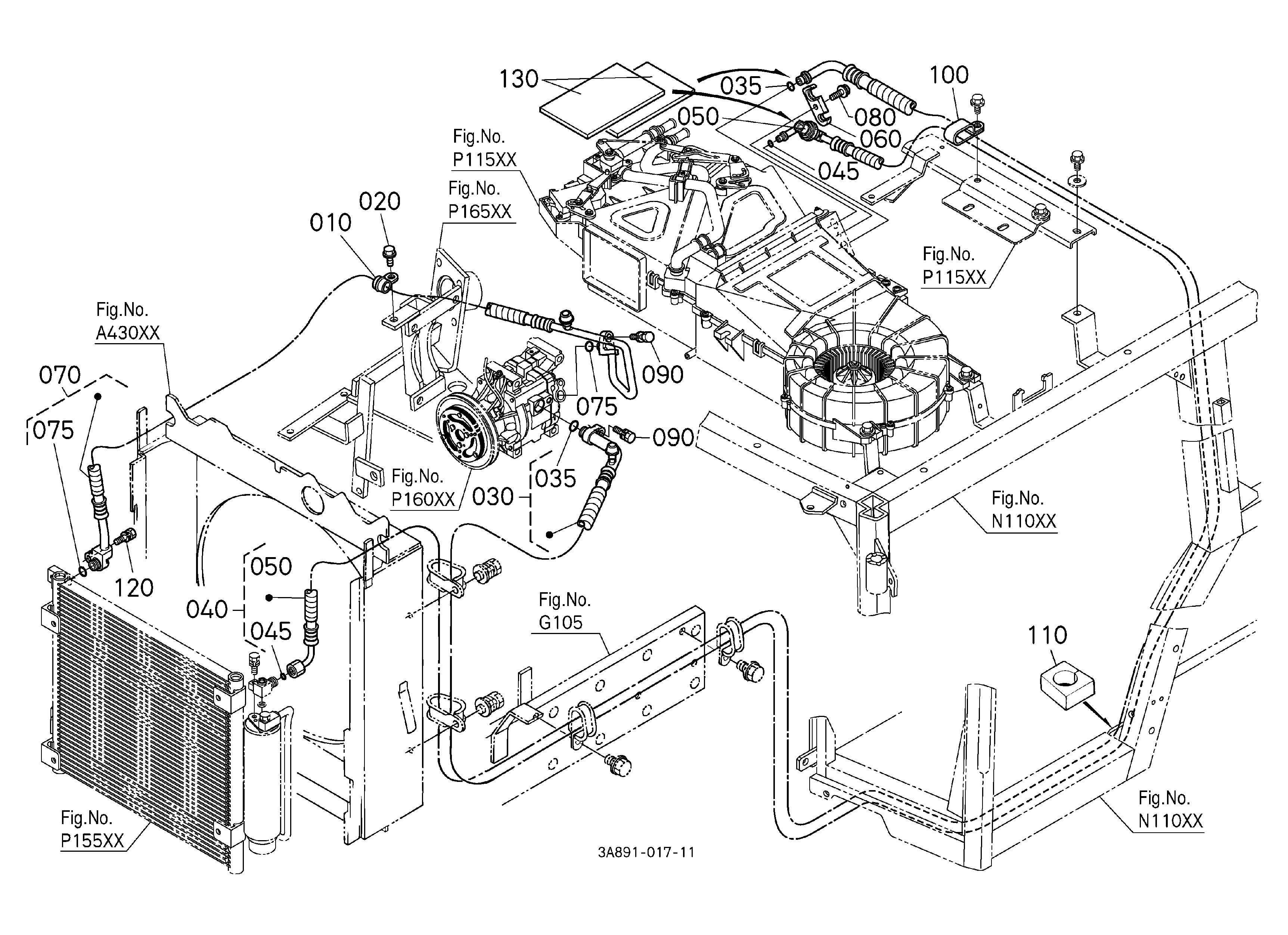

DIAG-P15700-85848 P15700 AIR CONDITIONER HOSE / CONDENSER HOSE [NEW TYPE]
View Diagram
