Kubota M9000DTMC P16002 COMPRESSOR [CAB TYPE] [NEW TYPE] Parts Diagram

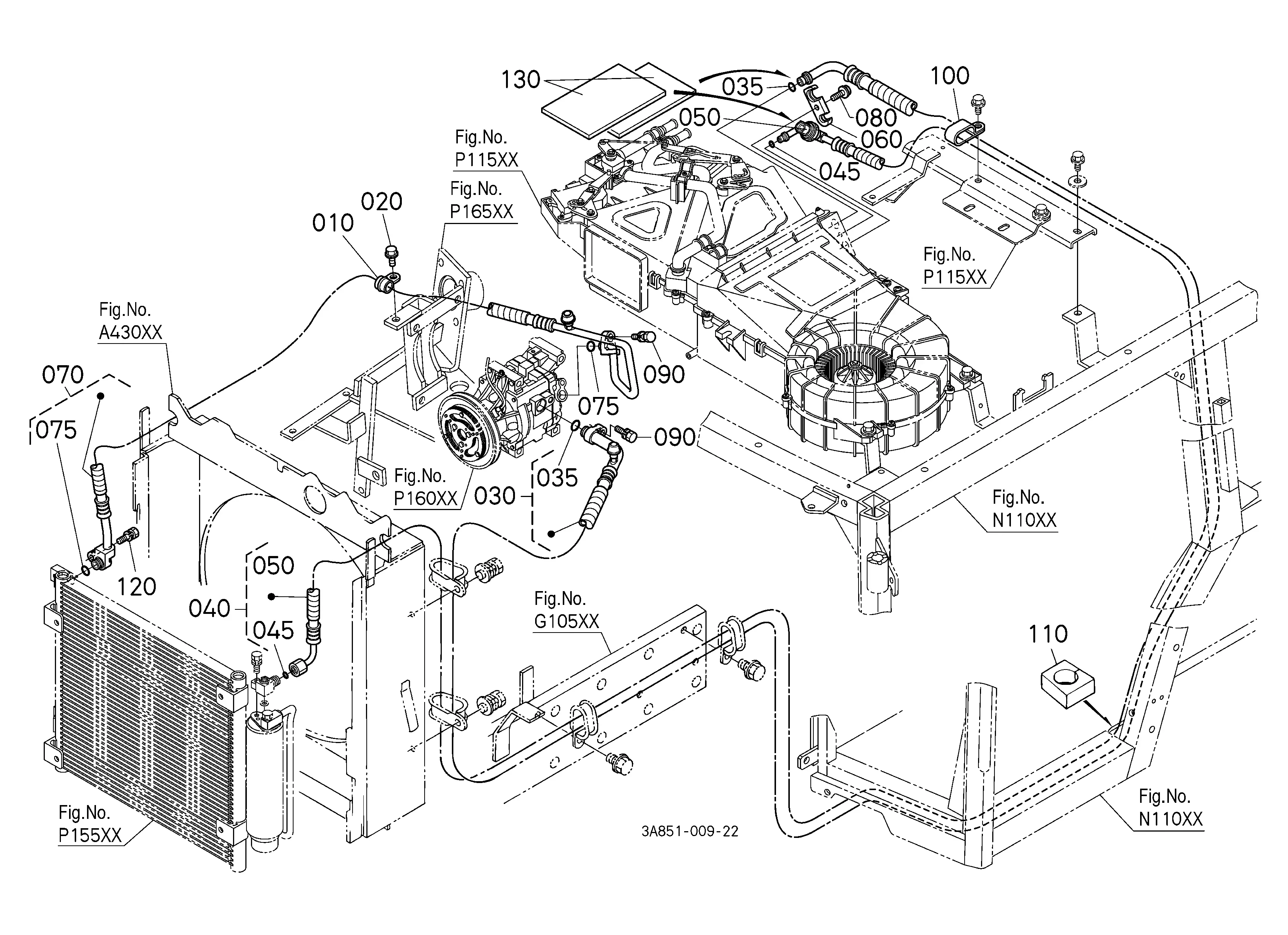

Exploded-view parts diagram "P16002 COMPRESSOR [CAB TYPE] [NEW TYPE]" for the Kubota M9000DTMC. 23 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY COMPRESSOR 6A671-97110 6A671-97114 | 1 | $763.30 | |||
| 020 | ASSY CLUTCH 6A671-97310 | 1 | $1,093.05 | |||
| 020 | ASSY CLUTCH, MAG T1065-87310 T3635-87310 | 1 | $964.20 | |||
| 020 | ASSY, CLUTCH 6A671-97210 | 1 | $1,093.05 | |||
| 030 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 040 | ASSY WIRE T1065-87330 Discontinued | 1 | $304.78 | |||
| 050 | SHIM T1065-87340 | 1 | $1.44 | |||
| 050 | SHIM T1065-87350 | 1 | $4.11 | |||
| 050 | SHIM T1065-87360 | 1 | $4.11 | |||
| 050 | SHIM T1065-87370 | 1 | $4.11 | |||
| 050 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 060 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 070 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 080 | BOLT T1065-87460 | 1 | $3.16 | |||
| 090 | PULLEY 1, TENSIO 3G710-50090 | 1 | $132.82 | |||
| 100 | NUT *** 3A761-72340 | 1 | $12.79 | |||
| 110 | BOLT 01123-50880 | 1 | $4.09 | |||
| 120 | BOLT 01155-50880 | 1 | $3.47 | |||
| 130 | Air Conditioner Compressor Tension Pulley 33760-50090 | 1 | $60.65 | |||
| 140 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 150 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 160 | Nut 02114-60100 02114-50100 | 1 | $0.80 | |||
| 170 | BELT,V 3A851-79320 | 1 | $17.05 | |||
Showing 1 to 23 of 23 parts
