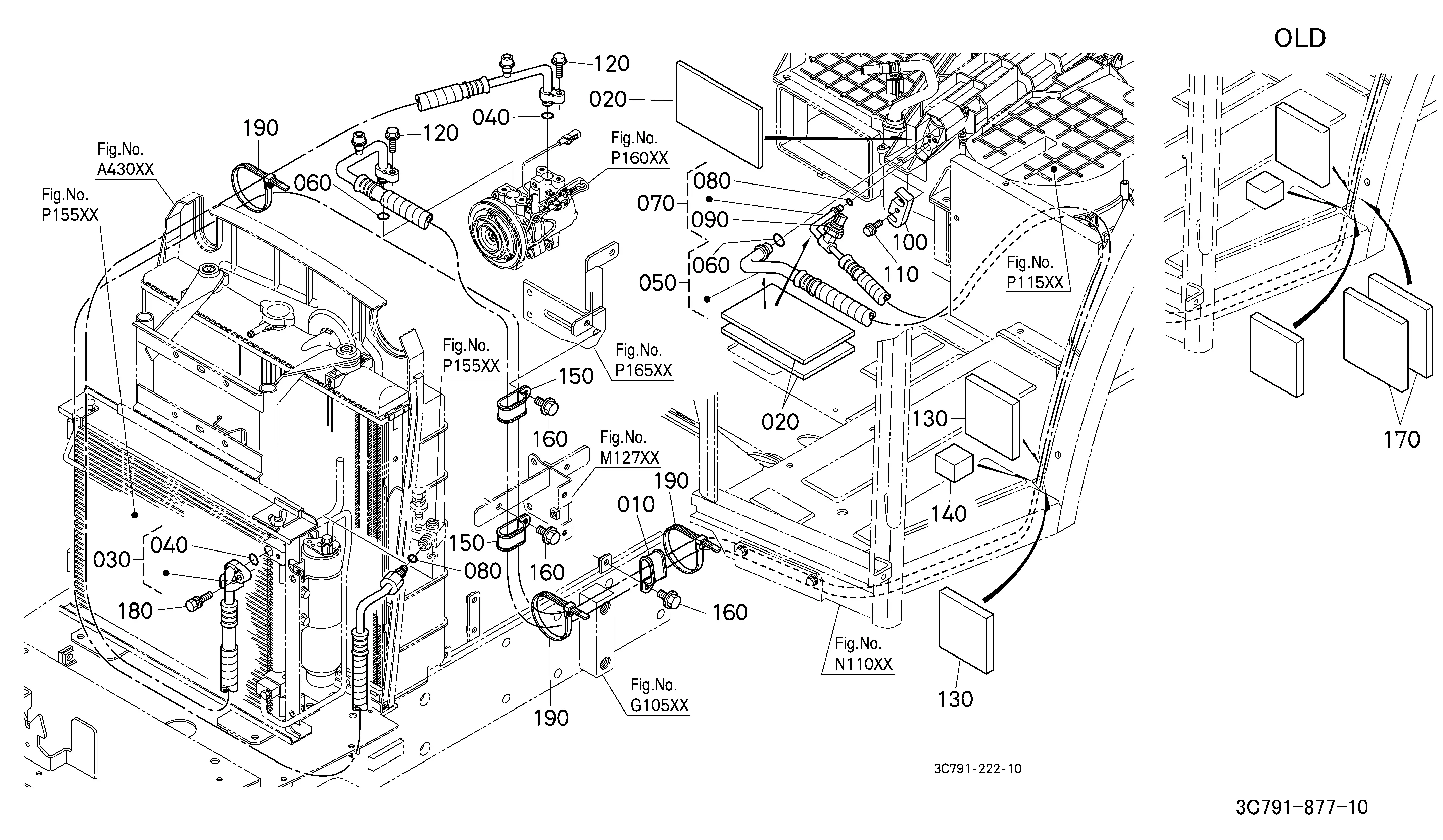

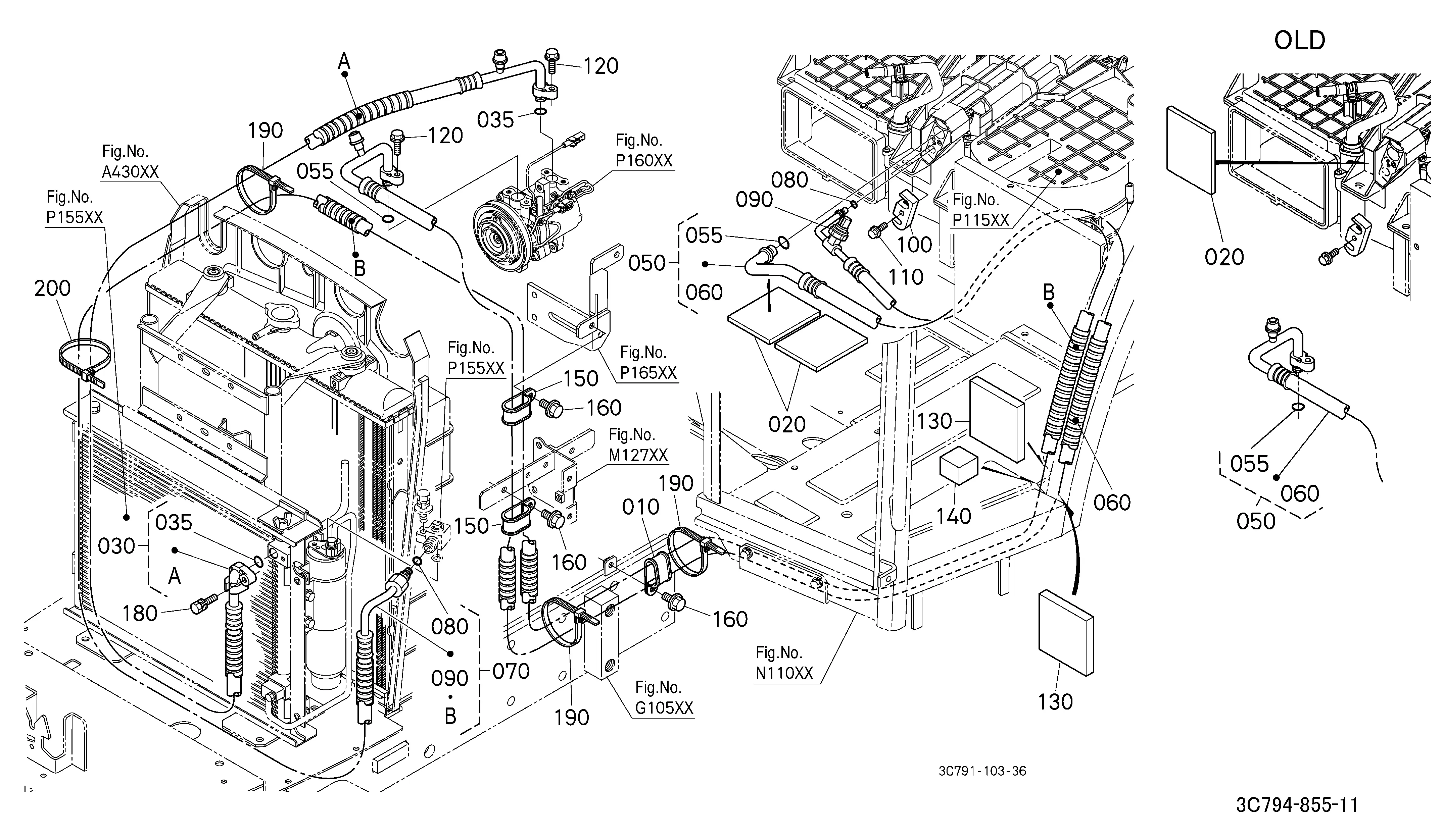

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BUSH T0270-72320 | 1 | $18.36 | |||
| 020 | BOLT, FLANGE * 01754-50835 | 1 | $5.49 | |||
| 030 | Air Conditioner Compressor Assembly 3C581-97590 RD451-93900 | 1 | $993.20 | |||
| 040 | ASSY CLUTCH, MA 3C581-96110 | 1 | $1,105.89 | |||
| 050 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 060 | ASSY WIRE T1065-87330 Discontinued | 1 | $304.78 | |||
| 070 | SHIM T1065-87340 | 1 | $1.44 | |||
| 070 | SHIM T1065-87350 | 1 | $4.11 | |||
| 070 | SHIM T1065-87360 | 1 | $4.11 | |||
| 070 | SHIM T1065-87370 | 1 | $4.11 | |||
| 070 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 080 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 090 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 100 | BOLT T1065-87460 | 1 | $3.16 | |||
| 110 | PULLEY, TENSION 3C581-50090 | 1 | $161.69 | |||
| 120 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 130 | BOLT 01155-50880 | 1 | $4.22 | |||
| 140 | Air Conditioner Compressor Tension Pulley 33760-50090 | 1 | $60.65 | |||
| 150 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 160 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 170 | Nut 02114-60100 02114-50100 | 1 | $0.80 | |||
| 180 | BELT, V 3C581-79320 | 1 | $48.45 | |||
| 190 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-P15703-85855 P15703 AIR CONDITIONER HOSE / CONDENSER HOSE [NEW]
View Diagram -
DIAG-P16002-85855 P16002 COMPRESSOR [NEW]
View Diagram -
DIAG-P15702-85855 P15702 AIR CONDITIONER HOSE / CONDENSER HOSE [OLD]
View Diagram
