Scroll to zoom Click a part # to view details

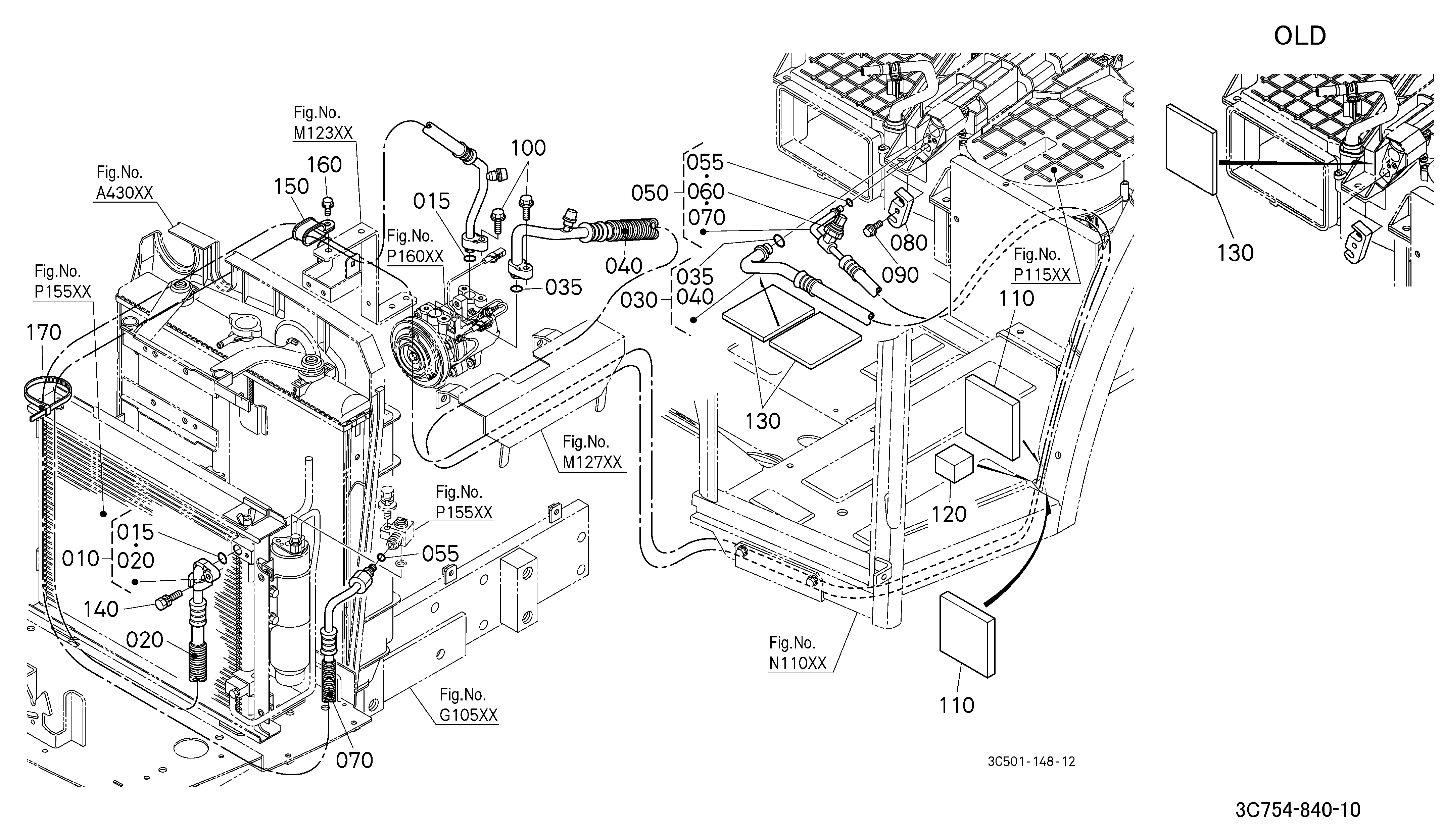

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP BRACKET 3C501-72320 3C501-72322 | 1 | $110.23 | |||
| 020 | Bolt, Flange 01774-51225 | 1 | $4.33 | |||
| 030 | BOLT, FLANGE 01774-51250 | 1 | $5.29 | |||
| 040 | Bolt 01130-51020 01133-51020 | 1 | $2.17 | |||
| 040 | BOLT, FLANGE 01774-51018 | 1 | $3.71 | |||
| 050 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
| 060 | BUSH T0270-72320 | 1 | $18.36 | |||
| 070 | BOLT, FLANGE * 01754-50835 | 1 | $5.49 | |||
| 080 | Air Conditioner Compressor Assembly 3C581-97590 RD451-93900 | 1 | $993.20 | |||
| 090 | ASSY CLUTCH, MA 3C581-96110 | 1 | $1,105.89 | |||
| 100 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 110 | ASSY WIRE T1065-87330 Discontinued | 1 | $304.78 | |||
| 120 | SHIM T1065-87340 | 1 | $1.44 | |||
| 120 | SHIM T1065-87350 | 1 | $4.11 | |||
| 120 | SHIM T1065-87360 | 1 | $4.11 | |||
| 120 | SHIM T1065-87370 | 1 | $4.11 | |||
| 120 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 130 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 140 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 150 | BOLT T1065-87460 | 1 | $3.16 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

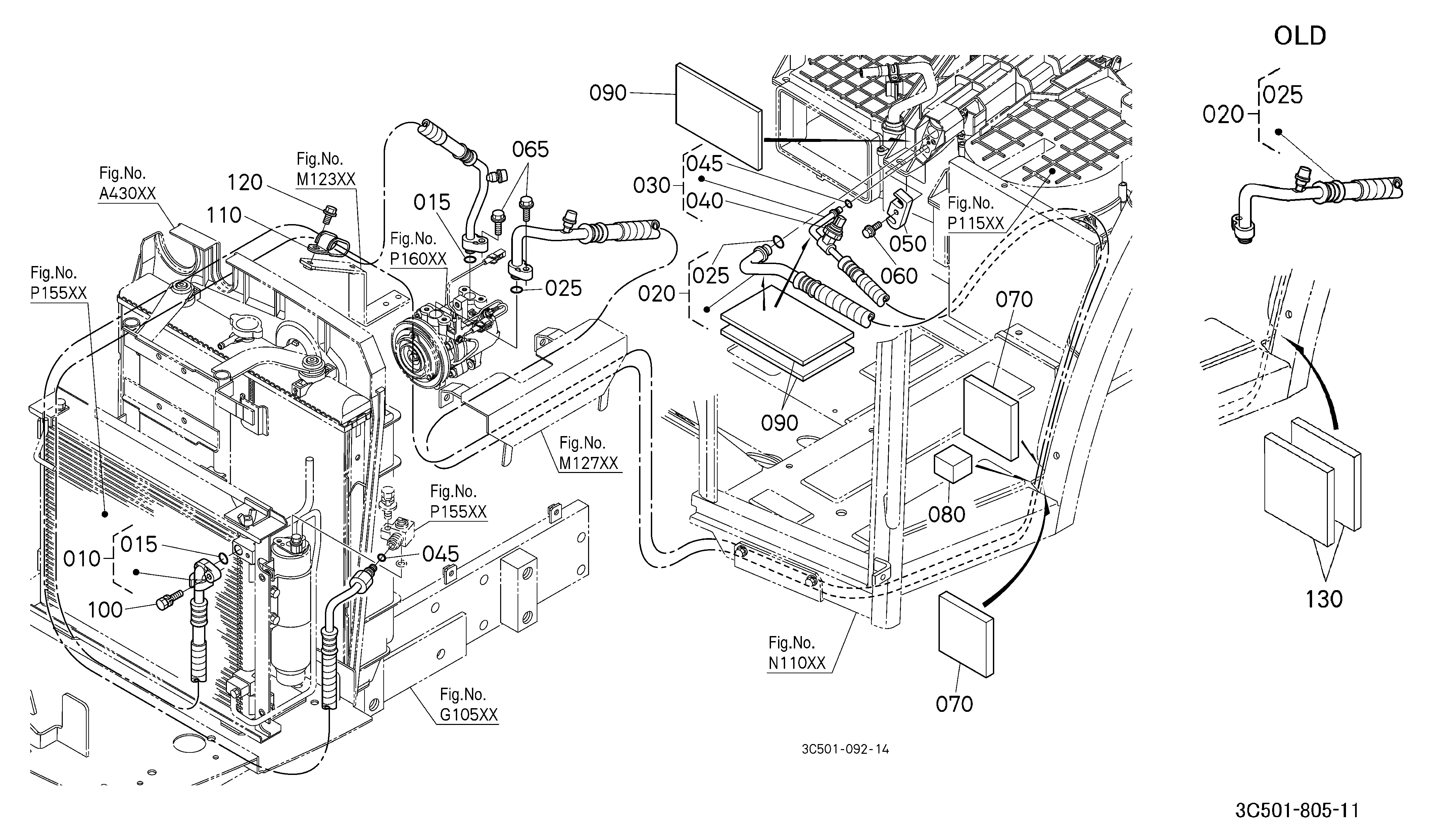

DIAG-P15702-85733 P15702 AIR CONDITIONER HOSE / CONDENSER HOSE [NEW]
View Diagram -

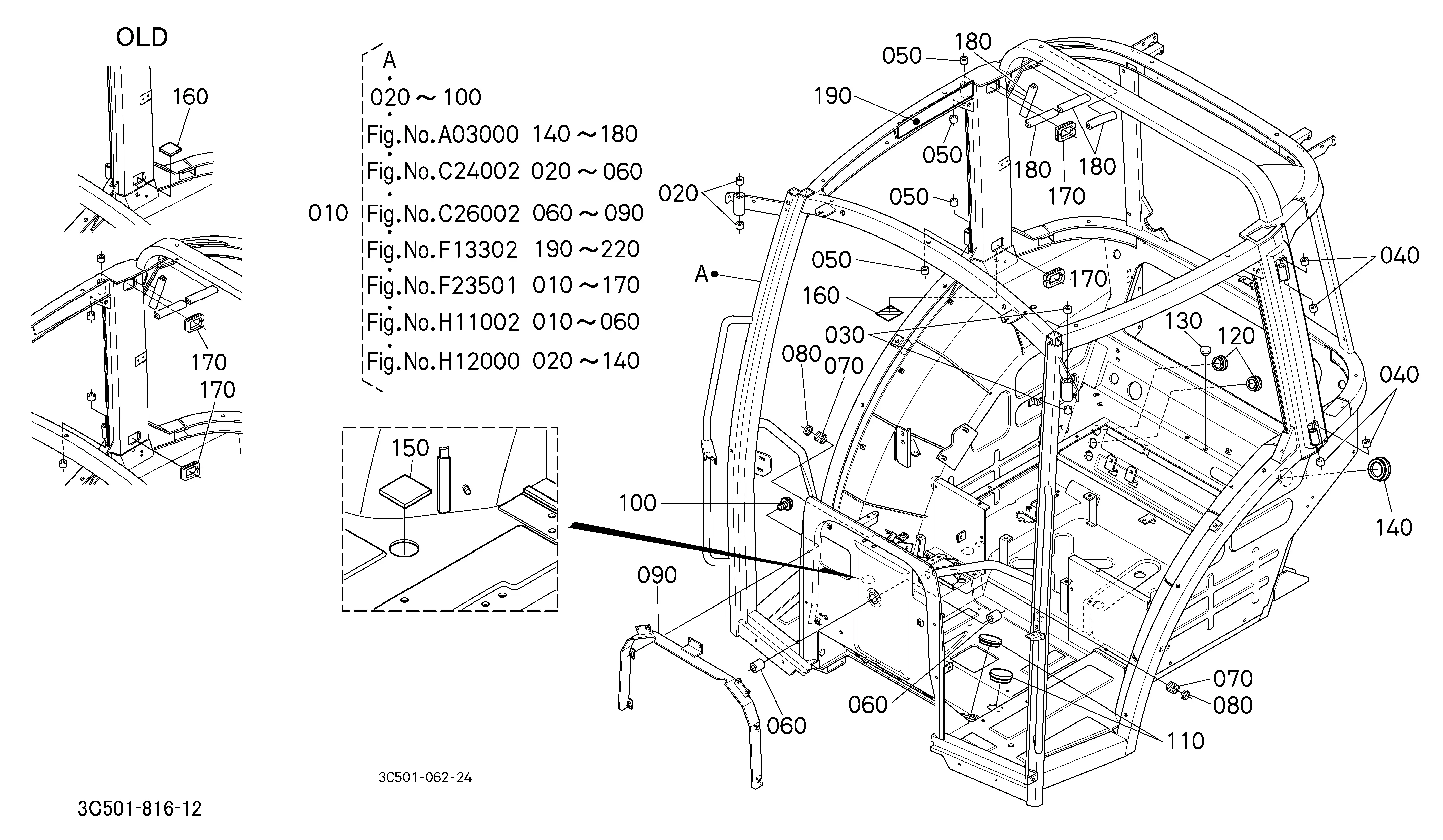

DIAG-N11002-85733 N11002 CAB FRAME
View Diagram -
DIAG-P15701-85733 P15701 AIR CONDITIONER HOSE / CONDENSER HOSE [OLD]
View Diagram
