Kubota M126XDTC P15500 CONDENSER Parts Diagram

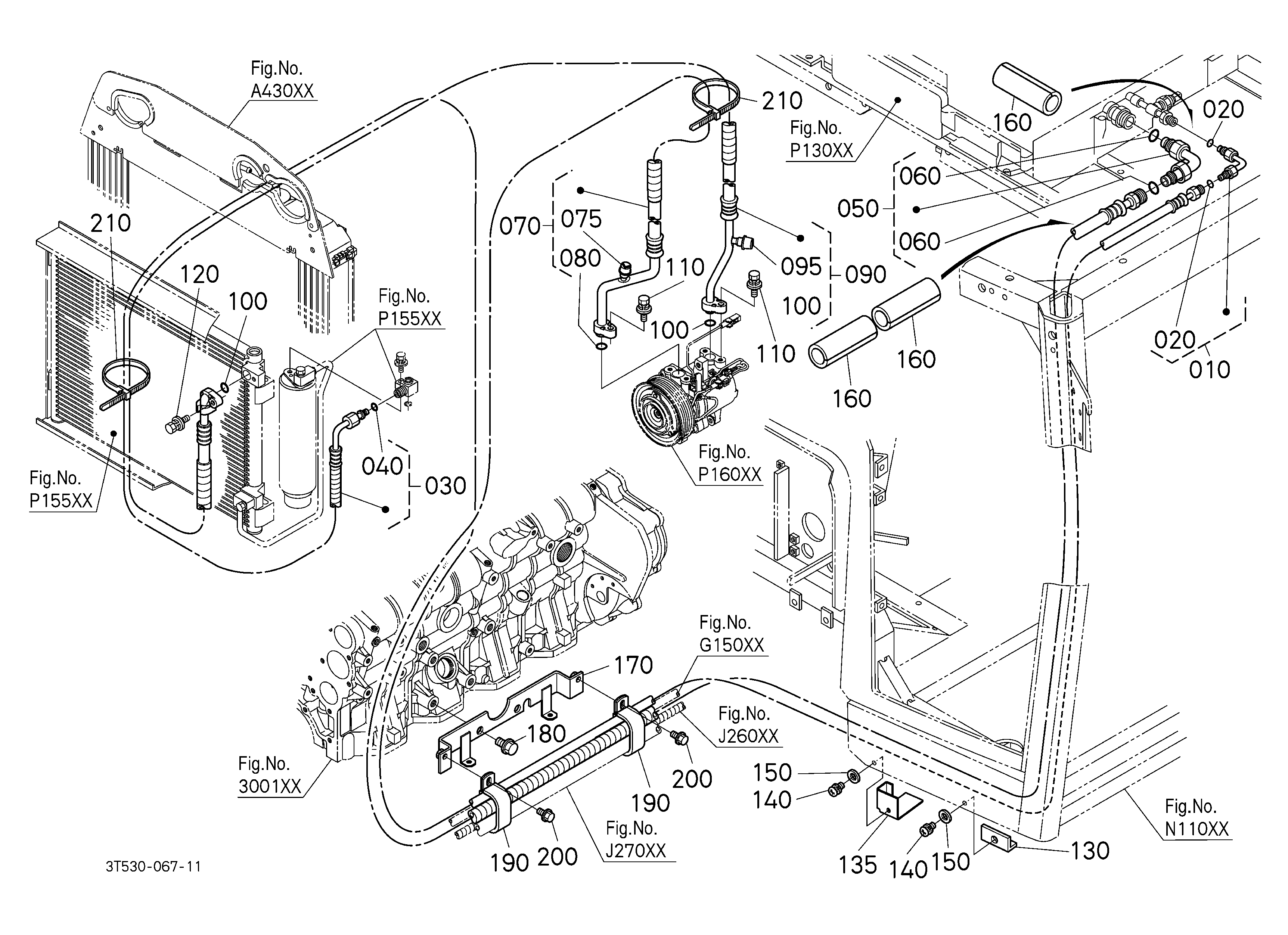

Exploded-view parts diagram "P15500 CONDENSER" for the Kubota M126XDTC, Kubota M126XDTPC and Kubota M135XDTC/DTSC. 29 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CONDENSER 3P300-50040 | 1 | $1,489.14 | |||
| 020 | KIT RECEIVER 3P999-00230 | 1 | $324.70 | |||
| 025 | LABEL 3P305-98500 | 1 | $5.74 | |||
| 030 | TUBE, CORRUGATE 3N300-50100 | 1 | $363.81 | |||
| 040 | Air Conditioner and Condenser Hose O-Ring 33760-56960 | 1 | $13.65 | |||
| 050 | JOINT T0270-87170 | 1 | $86.18 | |||
| 070 | FRAME, CONDENSER 3T400-79300 | 1 | $319.49 | |||
| 080 | Flange Bolt 01754-50614 | 1 | $2.07 | |||
| 090 | NUT, CONDENSER T1065-72290 | 1 | $5.61 | |||
| 100 | STAY 3N300-79340 | 1 | $8.32 | |||
| 110 | NUT 34070-71390 | 1 | $4.85 | |||
| 120 | Flange Bolt 01754-50625 | 1 | $3.23 | |||
| 140 | Bolt (Fastener) 01020-50612 01023-50612 | 1 | $0.80 | |||
| 150 | NUT PA801-46790 | 1 | $3.71 | |||
| 160 | NET, CONDENSER 3P300-79310 | 1 | $135.20 | |||
| 170 | SPRING 3N300-79330 | 1 | $10.25 | |||
| 180 | BOLT 3A851-80670 | 1 | $1.35 | |||
| 190 | HOLDER, RECEIVER 3Y205-79360 T0180-79380 | 1 | $24.29 | |||
| 200 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
| 210 | Bolt 01020-50625 01023-50625 | 1 | $1.37 | |||
| 220 | Bolt 01023-50630 | 1 | $1.57 | |||
| 230 | PLATE, RH 3T400-79380 | 1 | $216.63 | |||
| 240 | SPRING 3G700-83542 | 1 | $12.90 | |||
| 250 | SCREW, W/WASHER 03024-50408 | 1 | $0.26 | |||
| 260 | BRACKET 3P300-79390 | 1 | $13.71 | |||
| 270 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 280 | GROMMET 51601-27310 | 1 | $4.85 | |||
| 290 | TRIM 3P903-17280 | 1 | $5.02 | |||
| 300 | TRIM 5J035-43270 | 1 | $11.13 | |||
Showing 1 to 29 of 29 parts
