Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | JOINT, WATER 3C501-72350 | 1 | $34.31 | |||
| 020 | JOINT 3G700-72530 3G700-72532 | 1 | $37.82 | |||
| 030 | JOINT 54800-38250 | 1 | $38.99 | |||
| 030 | PIPE 34070-72850 | 1 | $17.76 | |||
| 040 | CLAMP 54800-38260 | 1 | $13.95 | |||
| 040 | CLAMP, HOSE T2255-38260 | 1 | $4.85 | |||
| 050 | HOSE, UNIT 3C591-72590 | 1 | $45.18 | |||
| 060 | HOSE, UNIT (HEAT 3C511-72560 3C511-72562 | 1 | $141.03 | |||
| 070 | HOSE, UNIT (HEAT 3C511-72570 3C511-72572 | 1 | $125.35 | |||
| 080 | SPONGE, HOSE 3C581-74902 | 1 | $33.64 | |||
| 090 | CLAMP, HOSE (PS) T0270-50230 | 1 | $8.19 | |||
| 100 | Flange Nut TA140-18310 02751-50080 | 1 | $3.77 | |||
| 110 | CLAMP RC411-47550 | 1 | $15.11 | |||
| 120 | M8 Flange Bolt 01754-50816 | 1 | $1.07 | |||
| 130 | RUBBER 67950-54930 | 1 | $3.78 | |||
| 140 | SPONGE, HOSE 3C581-74980 | 1 | $41.09 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-P14700-85724 P14700 INNER AIR RECIRCULATION
View Diagram -
DIAG-P15002-85724 P15002 HEATER HOSE [NEW]
View Diagram -

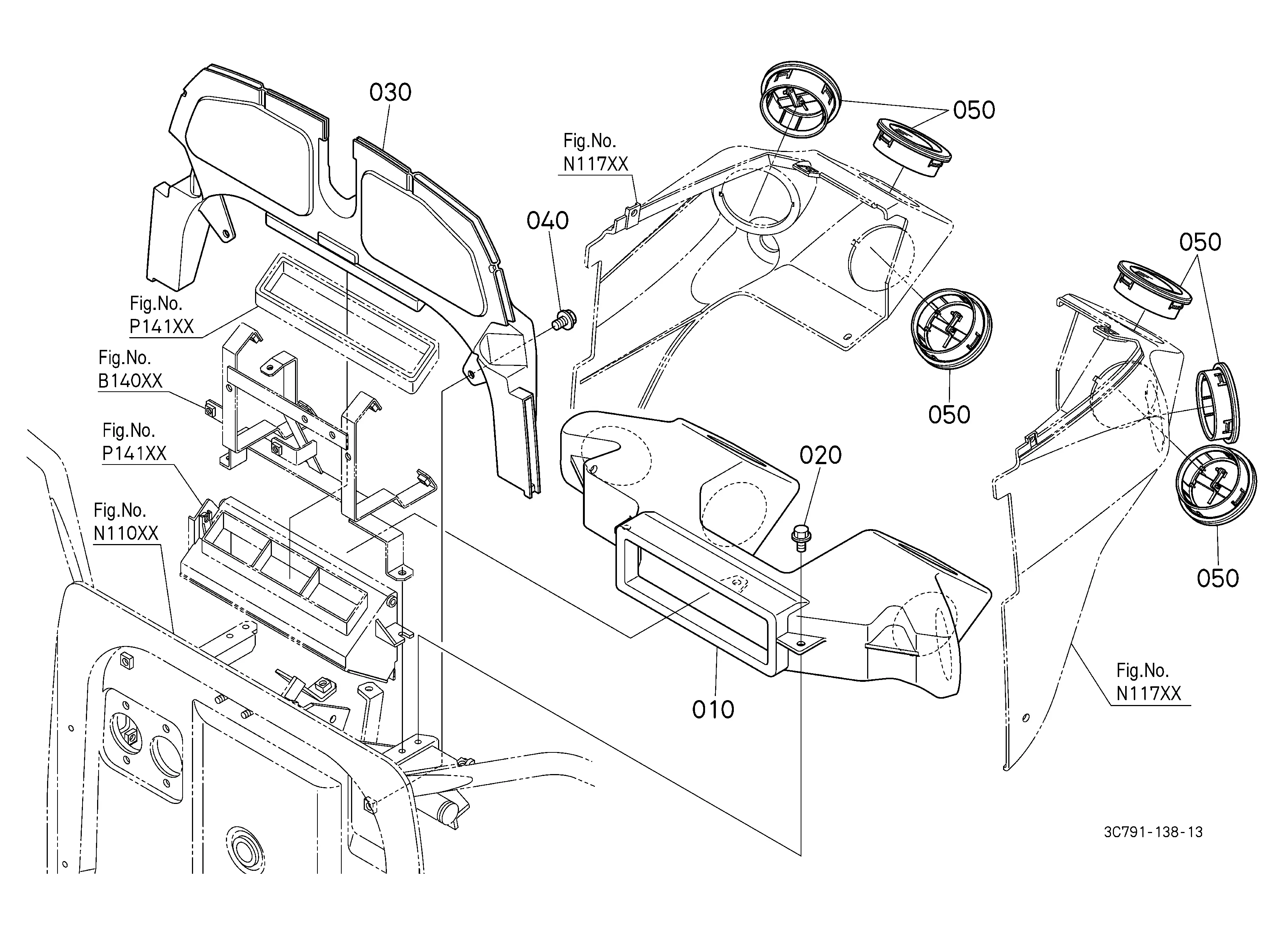

DIAG-P14300-85724 P14300 DASHBOARD AIR OUTLETS
