P150-2-1 CAMSHAFT Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Washer 02/930214	1	AVAILABLE TO ORDER	$112.22	Quantity
2	Bolt 02/930216	1	AVAILABLE TO ORDER	$18.07	Quantity
3	Camshaft . 333/E8101 02/941121	1	AVAILABLE TO ORDER	$2,661.03	Quantity

Showing 1 to 3 of 3 parts

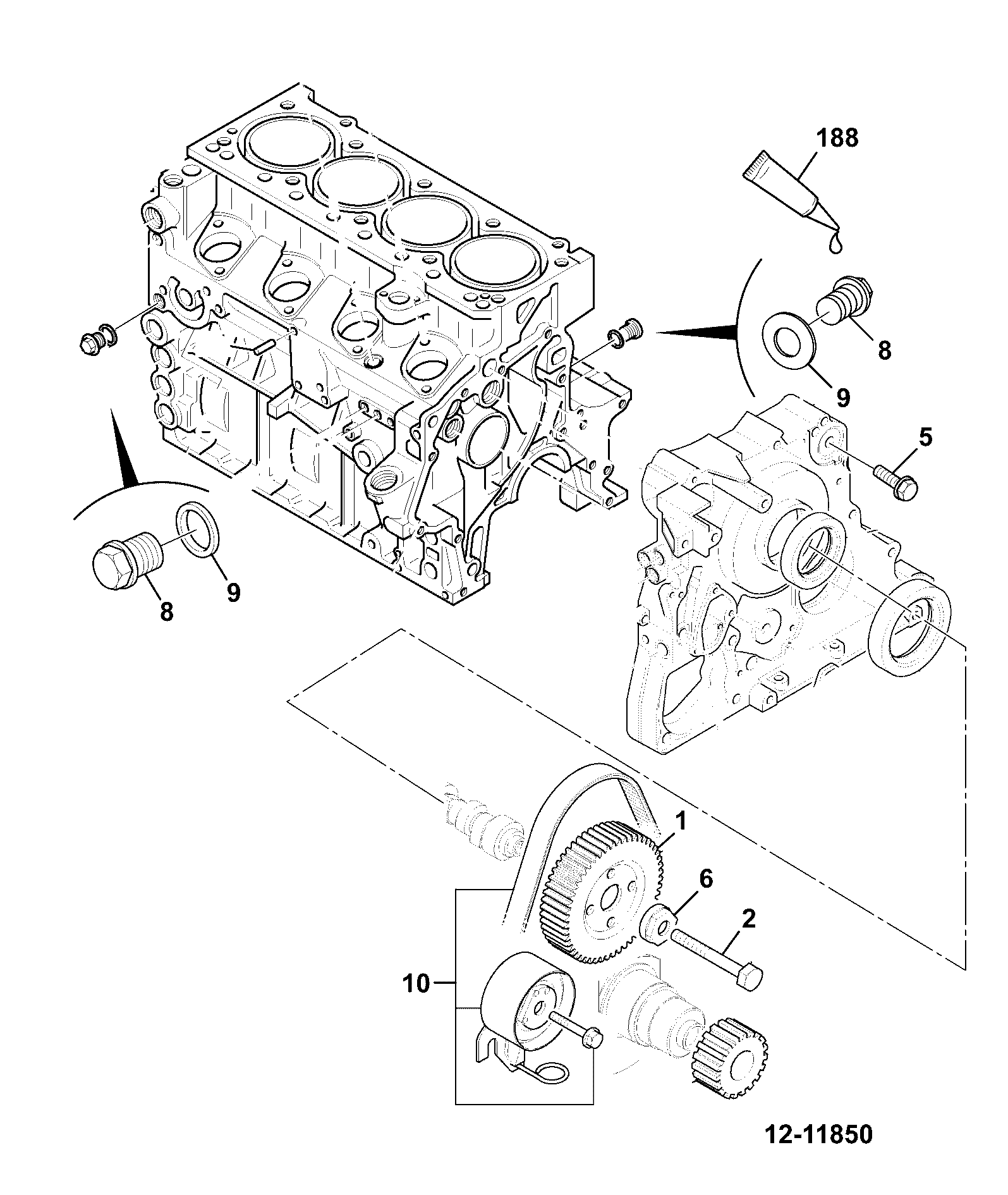

DIAG-P150-1-1-397234 P150-1-1 CAMSHAFT DRIVE
View Diagram

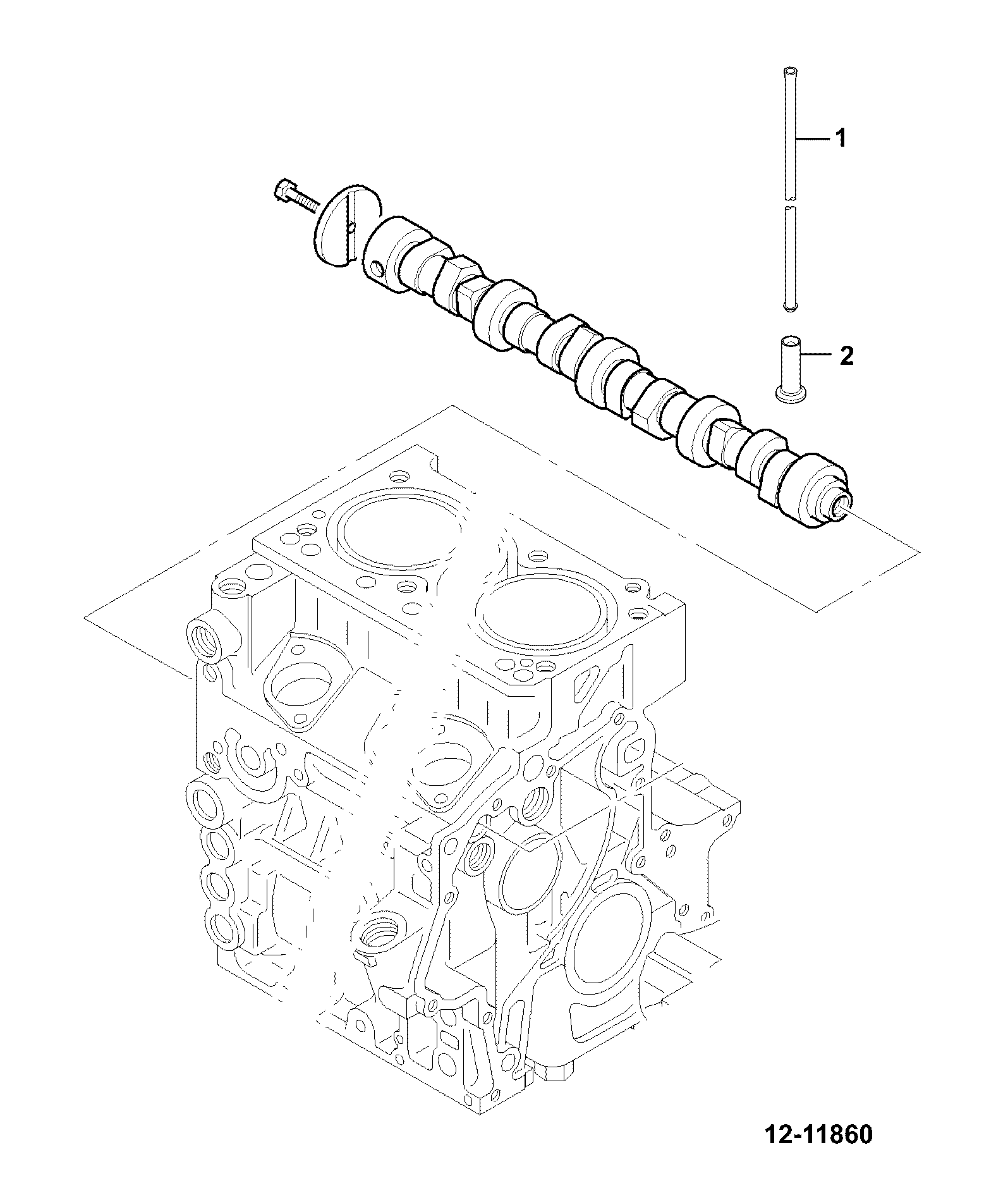

DIAG-P150-3-1-397234 P150-3-1 CAMSHAFT PUSH RODS & TAPPETS
View Diagram

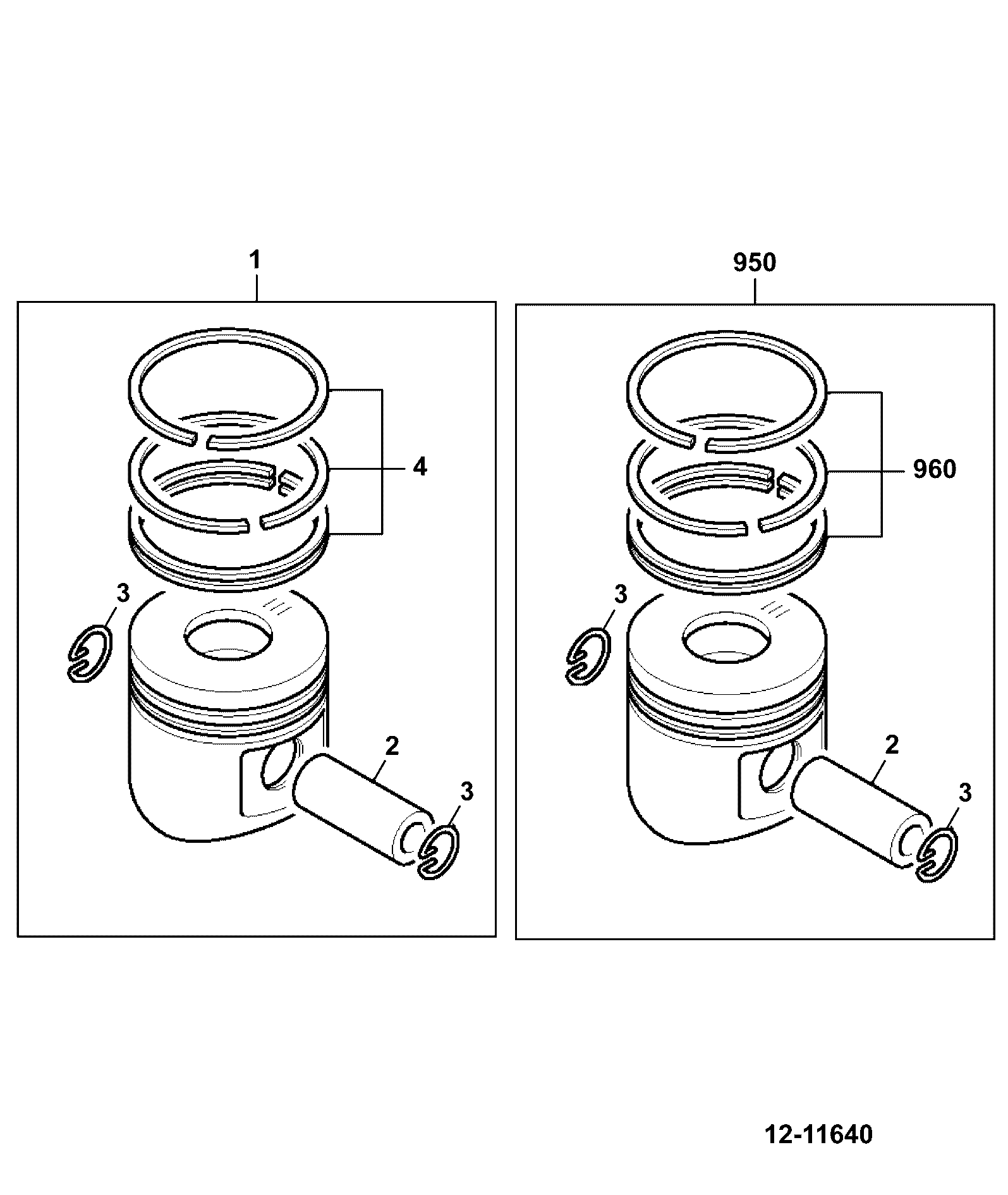

DIAG-P140-2-1-397234 P140-2-1 PISTON AND CONROD ASSEMBLIES PISTON ASSEMBLY
