Kubota M7060HDC12 P14300 DASHBOARD AIR OUTLETS Parts Diagram
Exploded-view parts diagram "P14300 DASHBOARD AIR OUTLETS" for the Kubota M7060HDC12. 6 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | DUCT, FRONT AIR 3C581-87843 | 1 | $475.46 | |||
| 020 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 030 | DUCT 3C581-87810 | 1 | $536.86 | |||
| 040 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 050 | GRILLE TC860-50290 | 1 | $40.50 | |||
| 050 | GRILLE(2,AC,D86) 3C581-50294 V0651-39690 | 1 | $29.58 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-P14100-93292 P14100 MODE CASE
View Diagram -

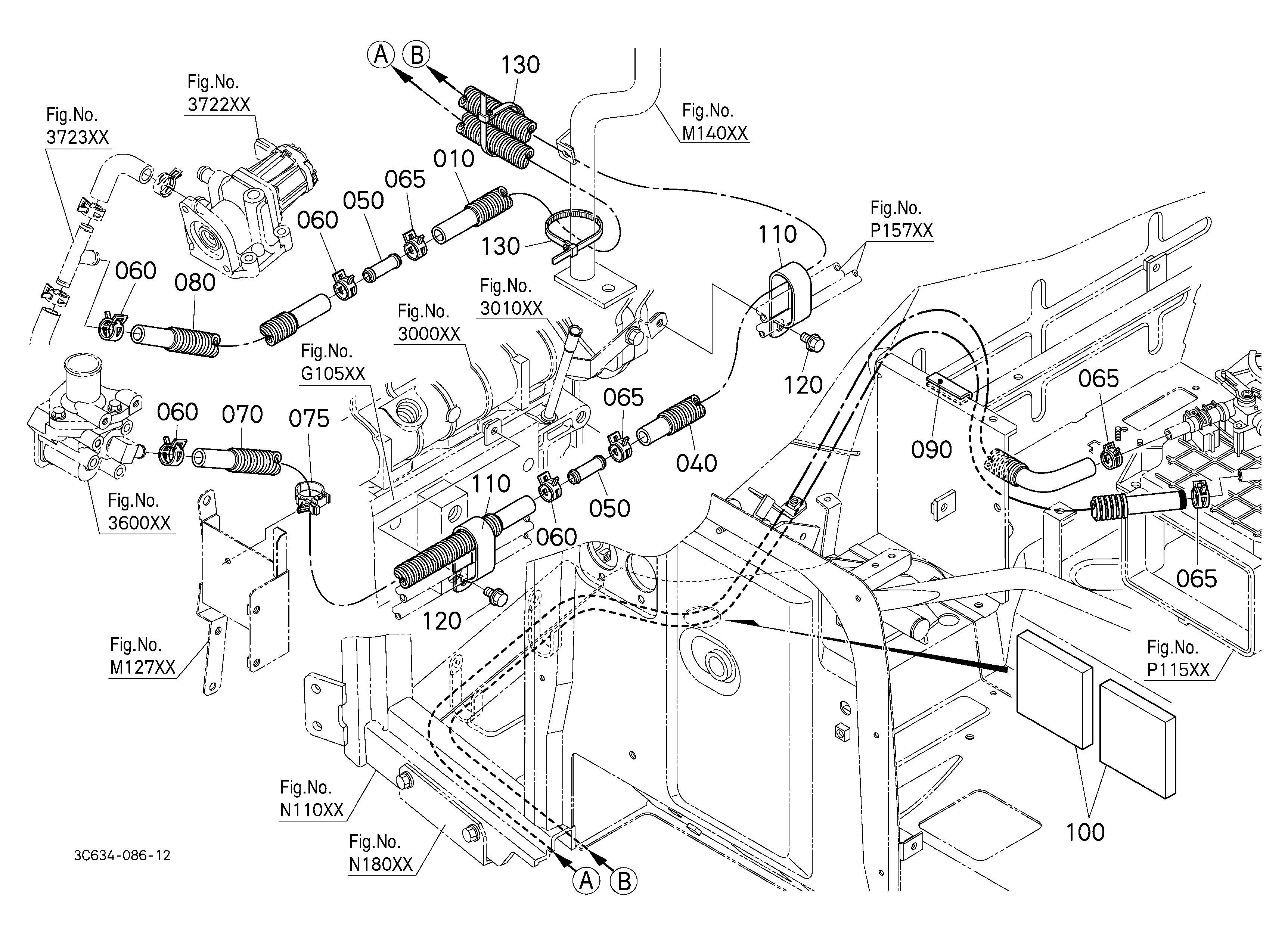

DIAG-P15000-93292 P15000 HEATER HOSE
View Diagram -

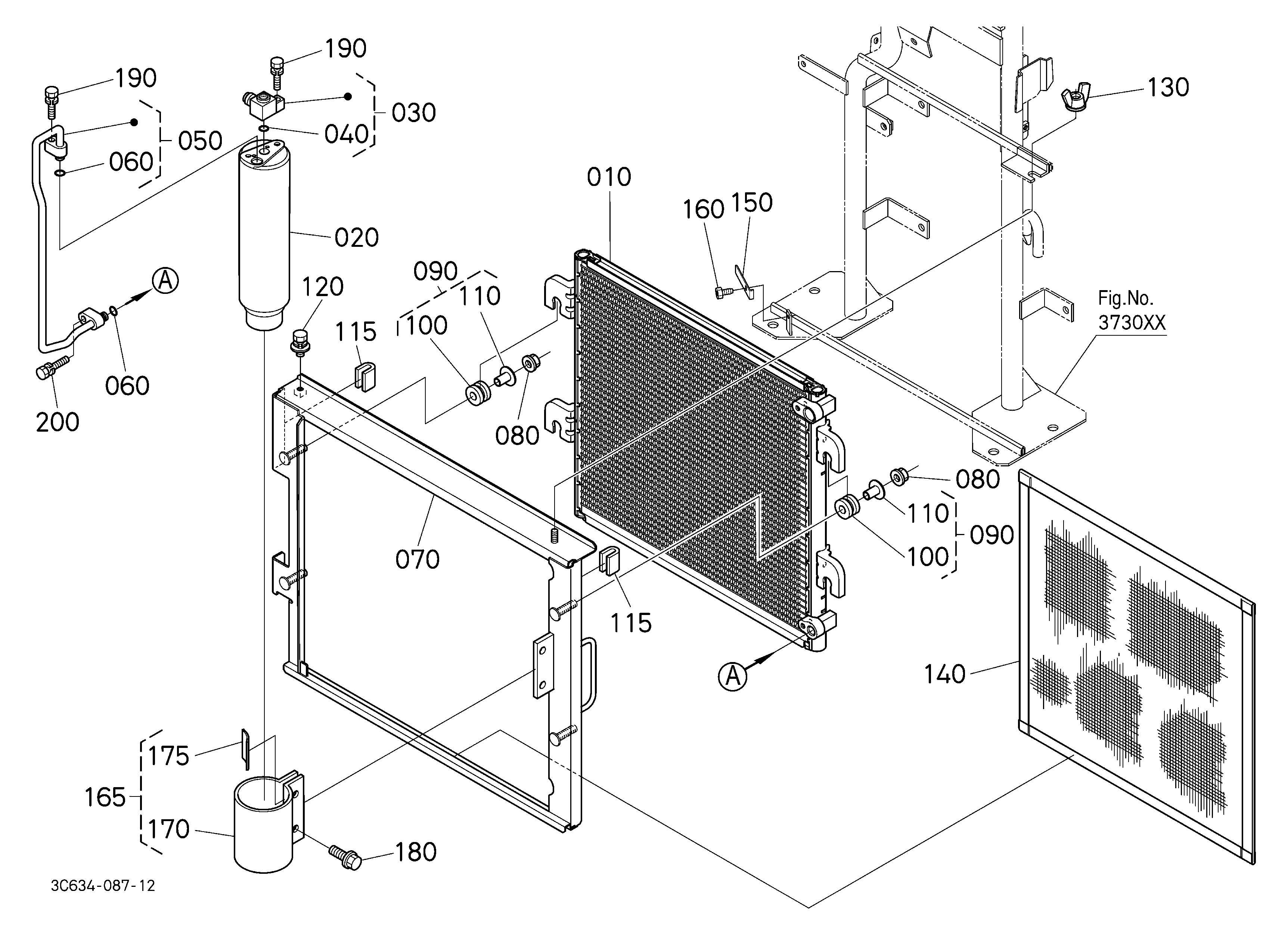

DIAG-P15500-93292 P15500 CONDENSER
