Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY TIRE, 11.2- TC220-00830 Discontinued | 1 | $2.92 | |||
| 020 | TIRE (11.2-24 TU TC220-00850 Discontinued | 1 | $980.32 | |||
| 030 | RIM, OUTER 24X10 35070-27640 70000-00053 | 1 | $345.31 | |||
| 040 | DISK, 24 IN 35080-27660 | 1 | $354.35 | |||
| 050 | Rear Wheel Bolt 31220-27684 31220-27680 | 1 | $8.26 | |||
| 060 | Spring Washer (Size 5) 3N300-13570 75599-33017 | 1 | $1.47 | |||
| 070 | Nut Fastener 02173-50160 02174-50160 | 1 | $2.26 | |||
| 090 | ASSY TIRE, 11.2- TC220-00840 Discontinued | 1 | $2.92 | |||
| 170 | Bolt Fastener 01033-51630 | 1 | $7.82 | |||
| 180 | Nut Fastener 02076-50160 | 1 | $2.50 | |||
| 190 | Wheel Stud 01517-51632 | 1 | $2.62 | |||
| 200 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

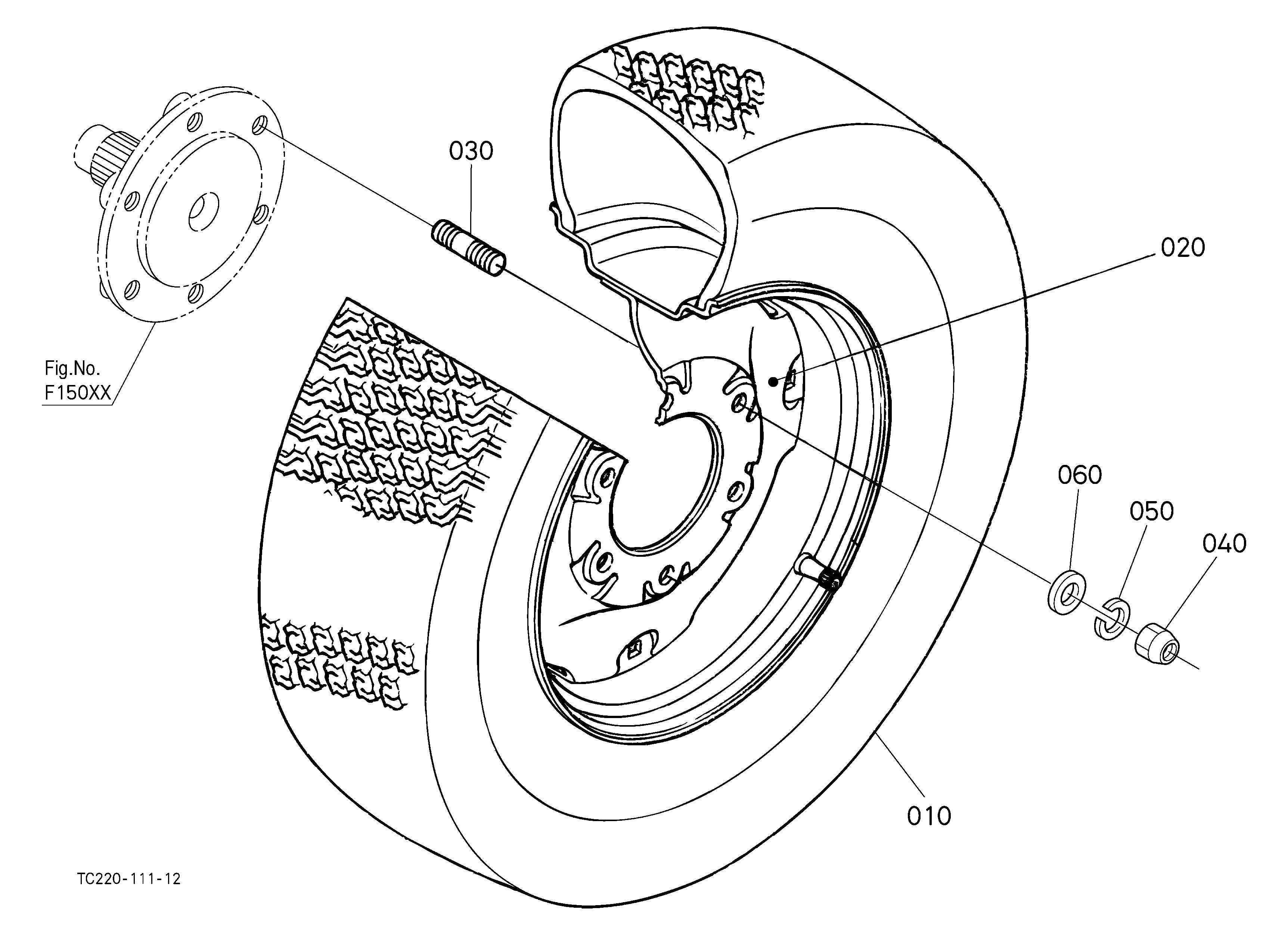

DIAG-P10103-85376 P10103 FRONT WHEEL (27*8. 50-15)
View Diagram -
DIAG-P11002-85376 P11002 REAR WHEEL (11.2-24)
View Diagram -

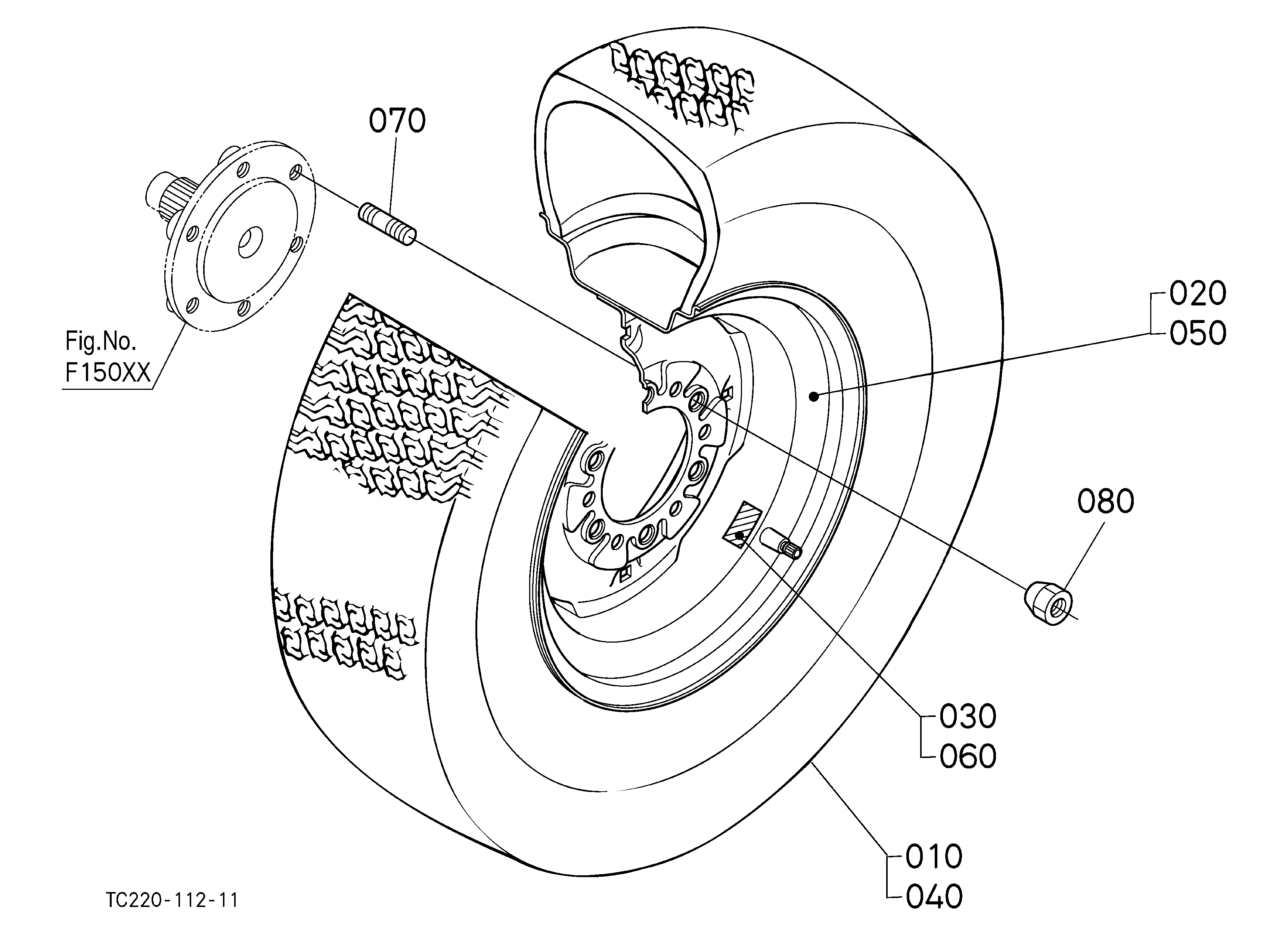

DIAG-P10102-85376 P10102 FRONT WHEEL (25*8. 50-14)
View Diagram
