Kubota B3030HSDC P10600 AIR CONDITIONER OPERATION Parts Diagram

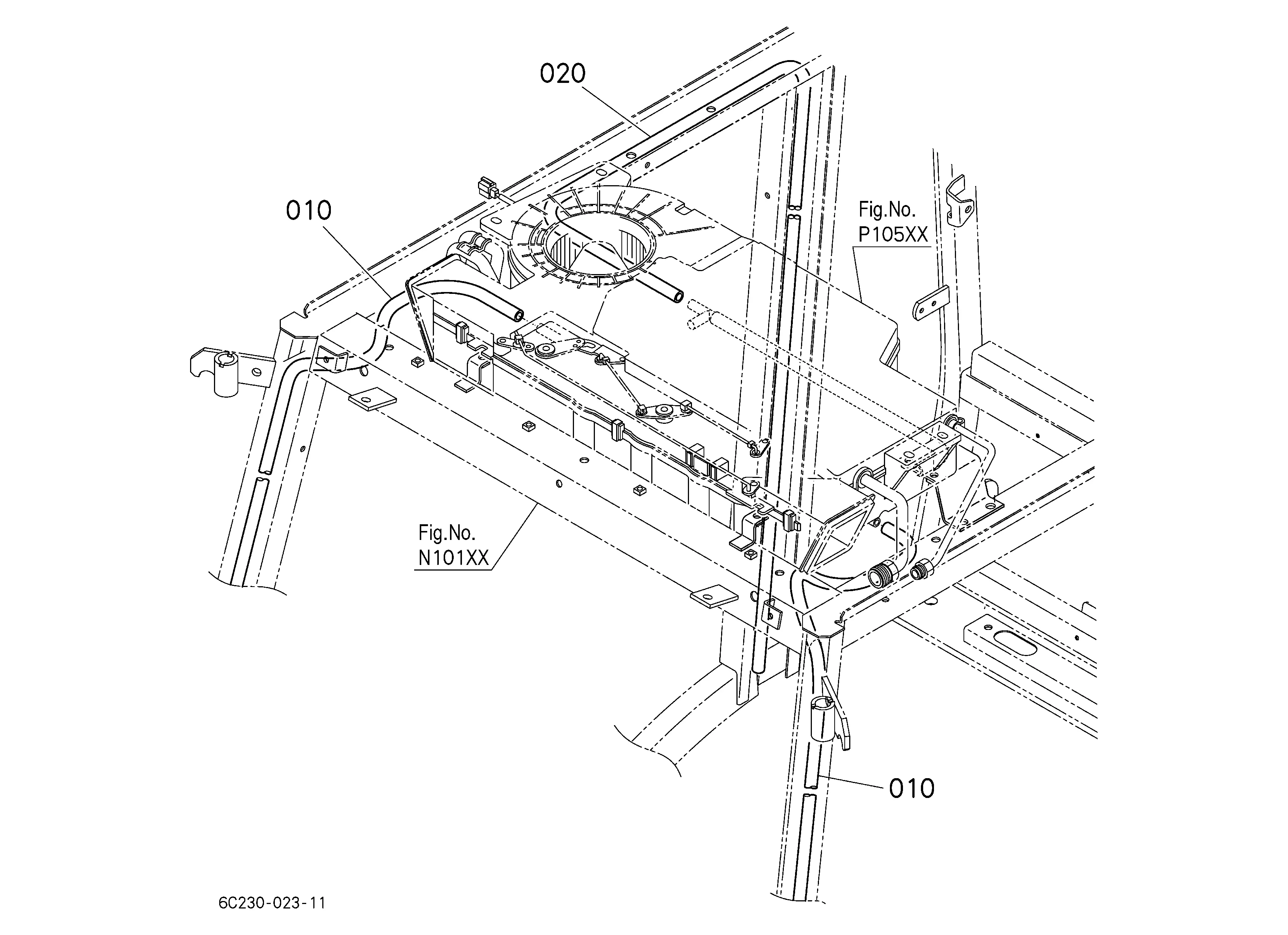

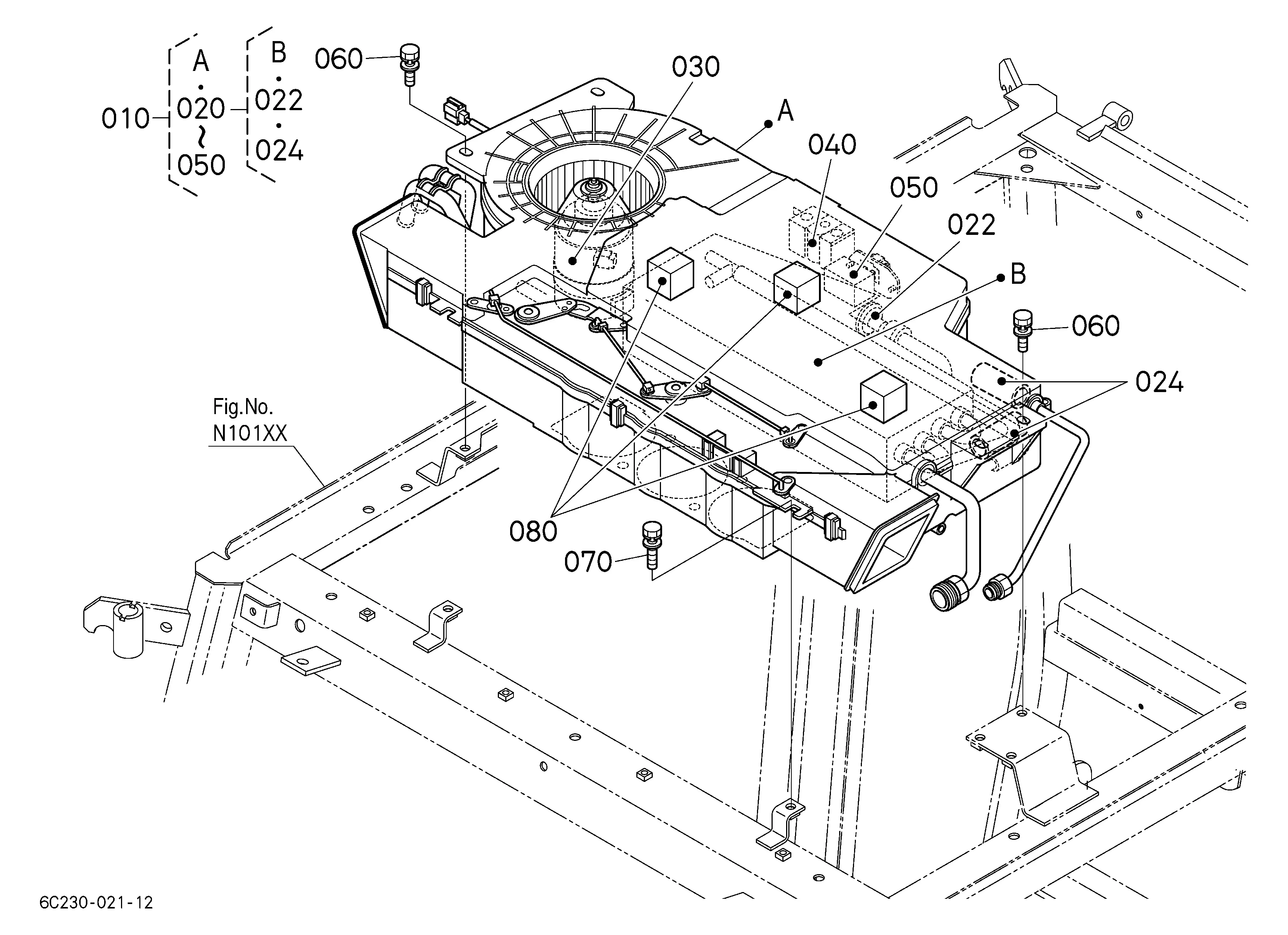

Exploded-view parts diagram "P10600 AIR CONDITIONER OPERATION" for the Kubota B3030HSDC and Kubota B3030HSDCC. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | E RING T0270-87190 | 1 | $0.95 | |||
| 020 | SWITCH,PANEL T0270-87232 T0270-87233 | 1 | $661.52 | |||
| 030 | CLAMP T0270-89990 | 1 | $9.13 | |||
| 040 | Cab Climate Control Switch T1065-72120 T1065-72122 | 1 | $168.78 | |||
| 050 | CABLE T0270-87060 | 1 | $21.03 | |||
| 060 | CABLE T2055-72970 | 1 | $30.36 | |||
| 070 | CABLE T0270-87080 | 1 | $21.03 | |||
| 080 | CLAMP T0270-87050 | 1 | $5.04 | |||
| 090 | SCREW, W/WASHER 03024-50410 | 1 | $0.46 | |||
| 120 | BRACKET (PANEL, 6A741-75172 | 1 | $6.86 | |||
| 130 | BOLT 01021-50612 01025-50612 | 1 | $0.99 | |||
| 140 | GROMMET 3G710-87730 | 1 | $8.38 | |||
| 150 | SCREW, W/WASHER 03024-50420 | 1 | $0.26 | |||
| 160 | NUT 6A741-75610 | 1 | $8.38 | |||
Showing 1 to 14 of 14 parts
