Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| FAN MOUNTING SPREADER PLA 331/52882 | 1 | $174.03 | ||||
| 1 | CRANKSHAFT PULLEY 02/200018 | 1 | $788.46 | |||
| 2 | BLOCK THRUST 02/200017 | 1 | $117.19 | |||
| 3 | SCREW 02/100579 | 1 | $0.00 | |||
| 4 | FAN 714/10812 | 1 | $28.88 | |||
| 5 | NUT & WASHER KIT 714/20405 | 1 | $84.12 | |||
| 6 | WASHER 714/16711 | 1 | $14.09 | |||
| 7 | PULLEY 02/200212 | 1 | $167.35 | |||
| 7 | PULLEY ALTERNATOR 02/201346 | 1 | $196.99 | |||
| 8 | BELT FAN, PAIR 02/201910 | 1 | $163.85 | |||
| 9 | FAN -22IN 262/74600 | 1 | $10,430.84 | |||
| 9 | PULLER FAN 30/925525 | 1 | $241.93 | |||
| 10 | SET 5/16UNFx7/8 HT 1305/0105Z | 1 | $2.21 | |||
| 11 | WASHER 5/16 SPRING 1416/0005Z | 1 | $2.54 | |||
| 13 | BRACKET MOUNTING 161/00856 | 1 | $387.60 | |||
| 14 | WASHER 1/4 MEDIUM PLAIN 1411/0001Z | 1 | $0.14 | |||
| 15 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 16 | BOLT M16x70 1315/3716Z | 1 | $2.77 | |||
| 17 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $0.00 | |||
| 18 | WASHER 5/8 LARGE 1412/0007Z | 1 | $5.75 | |||
| 19 | WASHER 5/8 SMALL PLAIN 1410/0007Z | 1 | $2.54 | |||
| 20 | BOLT 02/291038 | 1 | $9.90 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

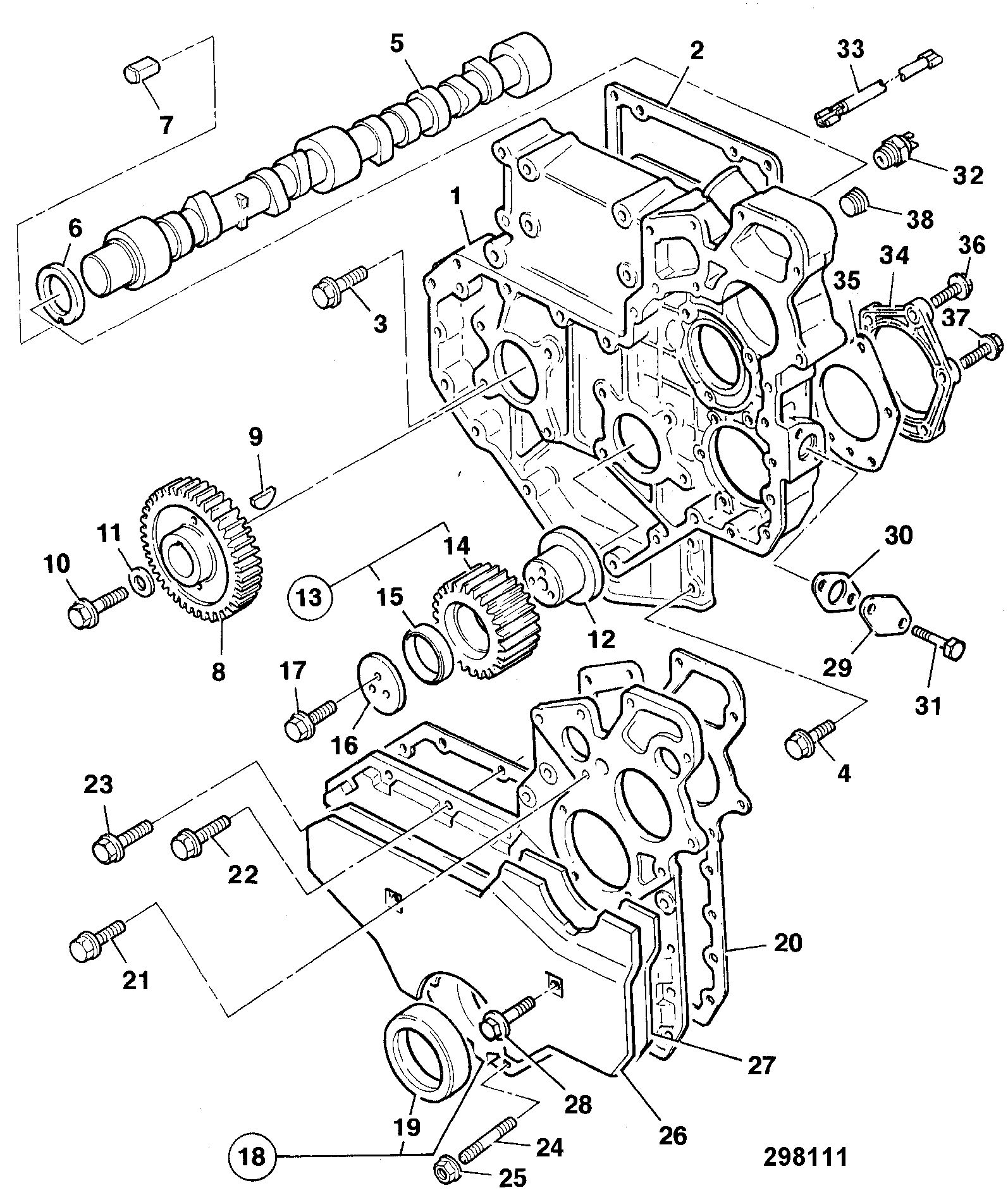

DIAG-P1-6-1-400852 P1-6-1 TIMING CASE CAMSHAFT & GEARS AR BUILD
View Diagram -

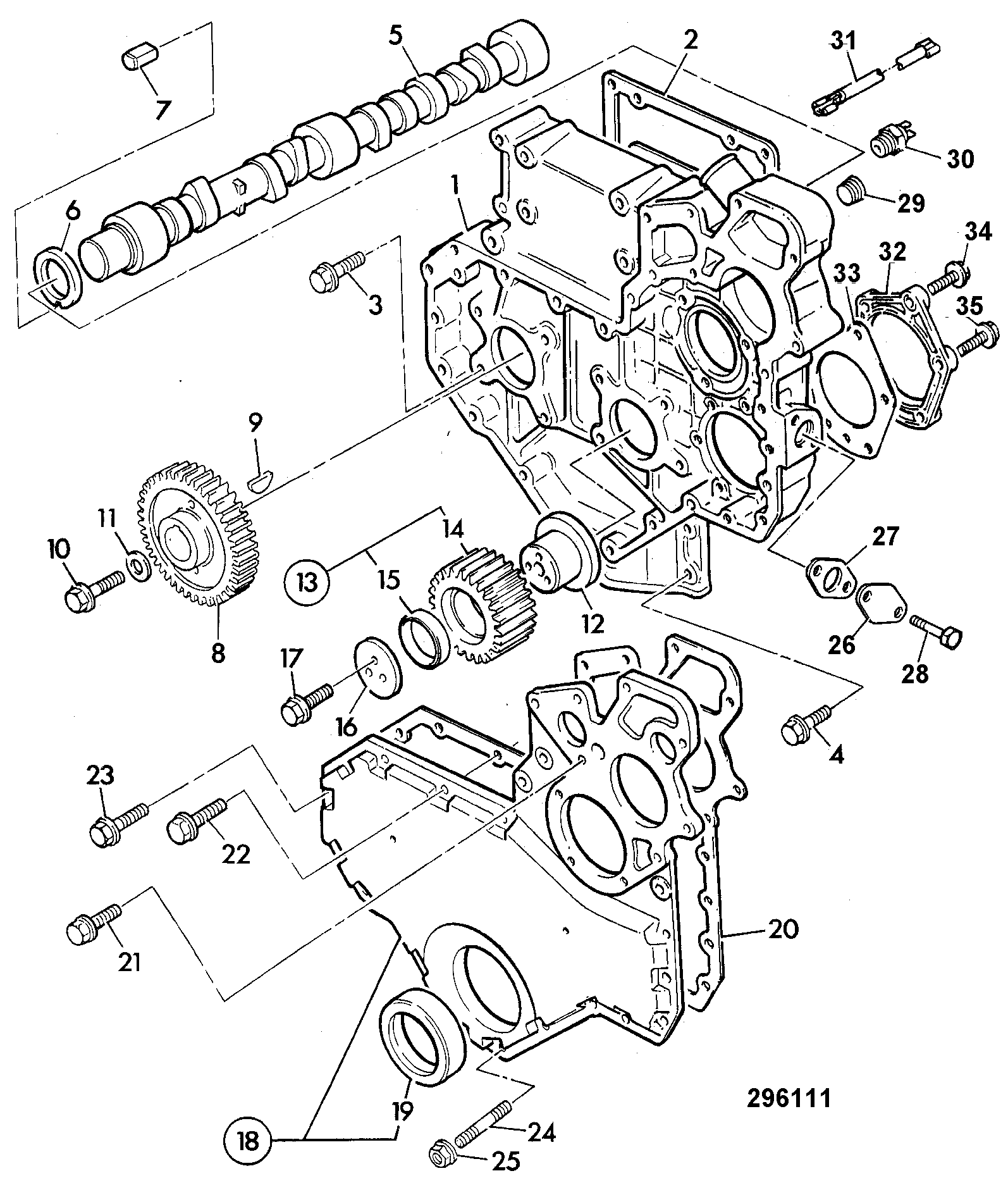

DIAG-P1-6-2-400852 P1-6-2 TIMING CASE CAMSHAFT & GEARS AK BUILD
View Diagram -

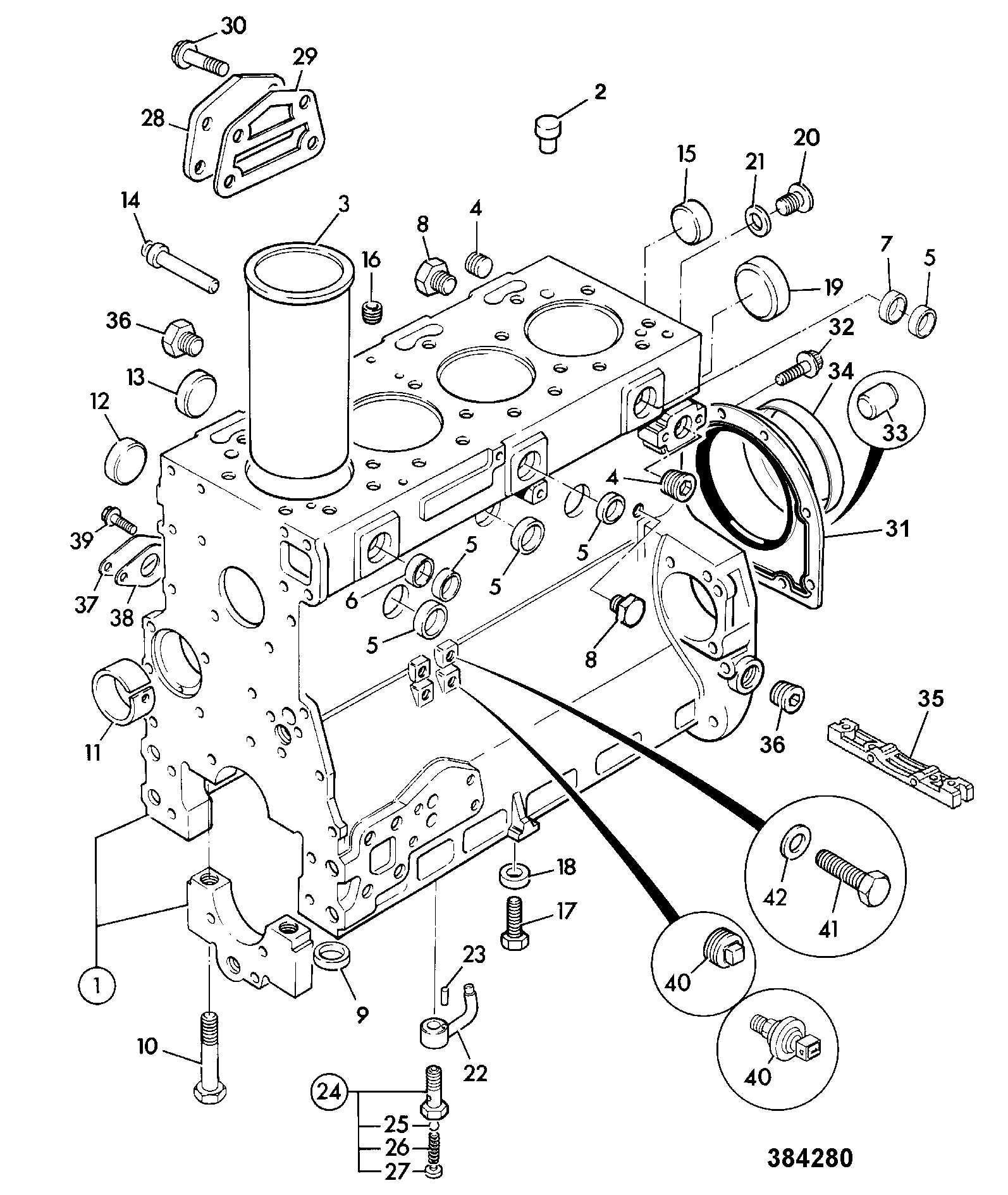

DIAG-P1-3-4-400852 P1-3-4 BLOCK ASSEMBLY AK BUILD
View Diagram
