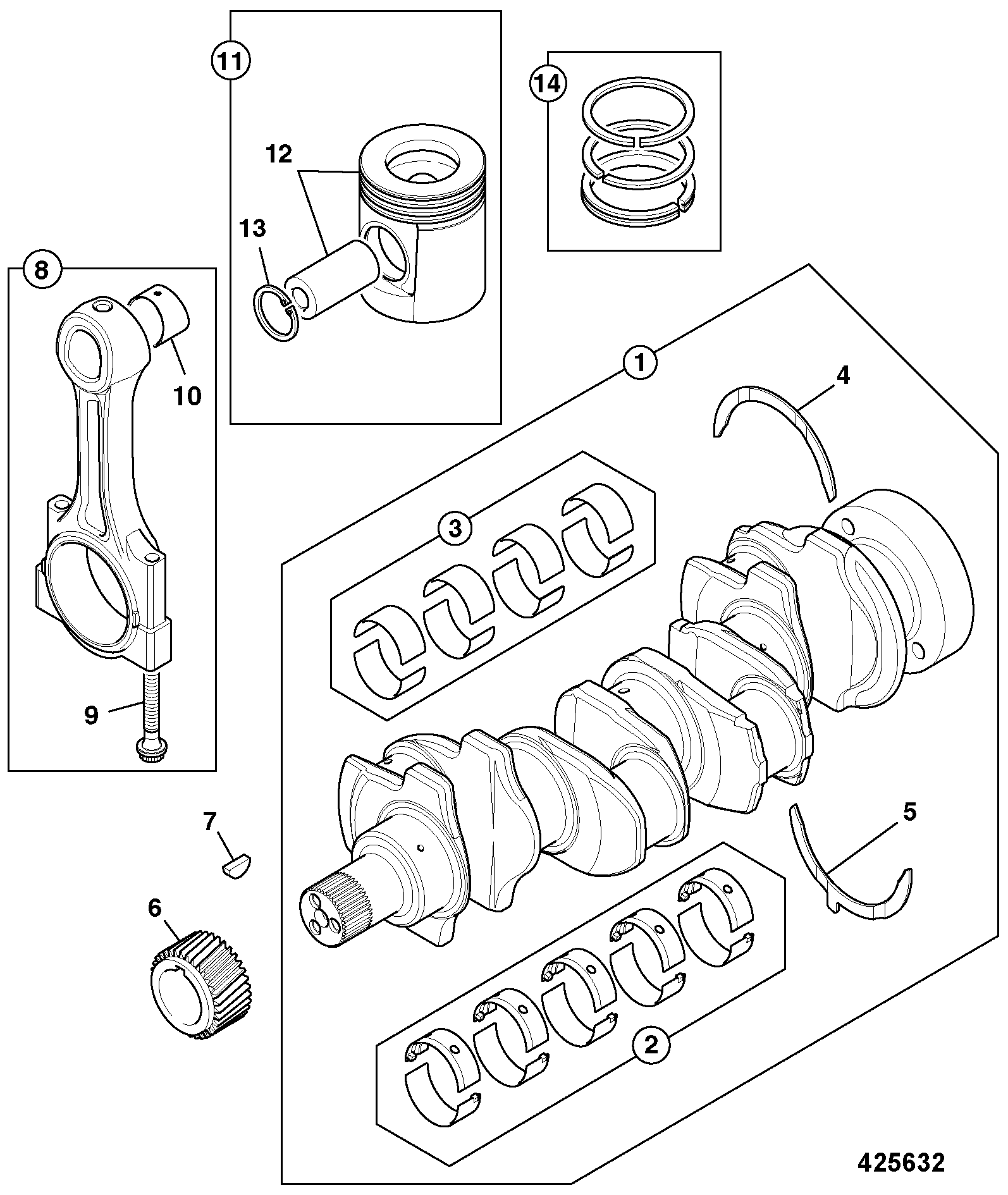

P1-4-1 CRANKSHAFT, BEARINGS PISTONS & CON-RODS AR BUILD Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	KIT-PISTON RING 02/201791	1	AVAILABLE TO ORDER	$148.55	Quantity	Quantity
	KIT-PISTON RING 02/201793	1	AVAILABLE TO ORDER	$136.75	Quantity	Quantity
	KIT-PISTON RING 02/201804	1	AVAILABLE TO ORDER	$174.95	Quantity	Quantity
	PISTON 02/201790	1	AVAILABLE TO ORDER	$452.16	Quantity	Quantity
	PISTON 02/201792	1	AVAILABLE TO ORDER	$452.16	Quantity	Quantity
1	CRANKSHAFT ASSEMBL 02/202196 02/201287	1	AVAILABLE TO ORDER	$862.94	Quantity	Quantity
2	MAIN BRG. SET - .010 02/192003	1	AVAILABLE TO ORDER	$160.04	Quantity	Quantity
2	MAIN BRG. SET - .020 02/192004	1	AVAILABLE TO ORDER	$140.18	Quantity	Quantity
2	MAIN BRG. SET - .030 02/192005	1	AVAILABLE TO ORDER	$140.18	Quantity	Quantity
2	SHELL SET MAIN 02/192002	1	1 IN STOCK	$0.00	Quantity	Quantity
3	Bearing Big End u/s 0.25mm 02/192086 332/G8430	1	AVAILABLE TO ORDER	$112.03	Quantity	Quantity
3	Kit Big End Bearin 02/192088 332/F5717	1	AVAILABLE TO ORDER	$166.01	Quantity	Quantity
3	KIT BIG END BEARING 02/192085 02/202915	1	AVAILABLE TO ORDER	$218.44	Quantity	Quantity
3	Kit-big end 02/192087 02/202917	1	AVAILABLE TO ORDER	$137.33	Quantity	Quantity
4	WASHER THRUST 02/192011	1	AVAILABLE TO ORDER	$10.67	Quantity	Quantity
4	WASHER-THRUST STD 02/192083	1	6 IN STOCK	$11.54	Quantity	Quantity
5	WASHER THRUST 02/192013	1	AVAILABLE TO ORDER	$23.10	Quantity	Quantity
5	WASHER-THRUST STD 02/192084	1	6 IN STOCK	$11.54	Quantity	Quantity
6	GEAR 02/290001	1	AVAILABLE TO ORDER	$308.69	Quantity	Quantity
7	KEY 02/100038	1	8 IN STOCK	$0.00	Quantity	Quantity
8	KIT - CONROD 02/202926	1	AVAILABLE TO ORDER	$224.01	Quantity	Quantity
8	KIT-CONROD GRADE 02/202922	1	AVAILABLE TO ORDER	$219.90	Quantity	Quantity
8	Kit-conrod grade ' 02/202927	1	AVAILABLE TO ORDER	$206.43	Quantity	Quantity
8	KIT-CONROD GRADE G 02/202923	1	AVAILABLE TO ORDER	$206.43	Quantity	Quantity
8	KIT-CONROD GRADE H 02/202924	1	AVAILABLE TO ORDER	$206.43	Quantity	Quantity
8	KIT-CONROD GRADE J 02/202925	1	AVAILABLE TO ORDER	$206.43	Quantity	Quantity
9	BOLT CONROD 02/202929	1	1 IN STOCK	$27.48	Quantity	Quantity
10	BUSH SMALL END 02/202928	1	AVAILABLE TO ORDER	$36.88	Quantity	Quantity
11	PISTON ASSEMBLY 02/201805	1	AVAILABLE TO ORDER	$545.83	Quantity	Quantity
13	CIRCLIP 02/201151	1	AVAILABLE TO ORDER	$3.54	Quantity	Quantity

Showing 1 to 30 of 30 parts
