Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | LINER-CYLINDER 02/201142 | 1 | $252.88 | |||
| 3 | LINER-PRESS FIT 02/201141 | 1 | $72.28 | |||
| 4 | PLUG 02/100134 | 1 | $11.32 | |||
| 5 | PLUG 02/100396 | 1 | $7.37 | |||
| 6 | PLUG 02/201304 | 1 | $18.97 | |||
| 7 | PLUG 02/200003 | 1 | $135.23 | |||
| 9 | THIMBLE 02/100101 | 1 | $11.32 | |||
| 10 | BOLT 02/100102 | 1 | $25.29 | |||
| 11 | BUSH CAMSHAFT 02/192094 | 1 | $42.23 | |||
| 12 | PLUG 02/200454 | 1 | $2.14 | |||
| 13 | PLUG 02/201361 | 1 | $4.26 | |||
| 14 | PLUG 02/101827 | 1 | $8.83 | |||
| 16 | PLUG 02/100108 | 1 | $7.18 | |||
| 17 | PLUG 02/101756 | 1 | $17.91 | |||
| 18 | SPACER 823/00287 | 1 | $10.26 | |||
| 19 | PLUG 02/201362 02/100107 | 1 | $9.90 | |||
| 22 | JET PISTON COOLING 02/201734 | 1 | $50.08 | |||
| 23 | PIN ROLL 02/201731 | 1 | $11.16 | |||
| 24 | VALVE 02/101898 | 1 | $35.30 | |||
| 25 | BALL 02/200099 | 1 | $2.68 | |||
| 26 | SPRING 02/200098 | 1 | $16.31 | |||
| 27 | RETAINER 02/200097 | 1 | $60.41 | |||
| 28 | PLATE 02/200826 | 1 | $165.48 | |||
| 29 | GASKET 02/200484 | 1 | $4.85 | |||
| 30 | BOLT 02/291042 | 1 | $11.96 | |||
| 31 | HOUSING 02/200958 | 1 | $280.66 | |||
| 32 | SEAL-REAR 02/101436 | 1 | $76.11 | |||
| 33 | GASKET 02/201092 | 1 | $22.25 | |||
| 34 | SCREW 826/00869 | 1 | $2.08 | |||
| 35 | CAPSCREW 02/291185 | 1 | $6.56 | |||
| 36 | DOWEL 02/100308 | 1 | $11.16 | |||
| 37 | PLATE 02/200004 | 1 | $10.34 | |||
| 38 | GASKET 02/200475 | 1 | $4.12 | |||
| 39 | BOLT 02/291031 | 1 | $8.83 | |||
| 40 | Switch 701/80225 | 1 | $34.56 | |||
| 40 | SWITCH eng.oil pressure 701/80327 | 1 | $57.00 | |||
| 41 | SCREW 1315/0402Z | 1 | $23.22 | |||
| 42 | WASHER 823/00273 | 1 | $2.06 | |||
| 43 | PLUG 02/100132 | 1 | $11.96 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-

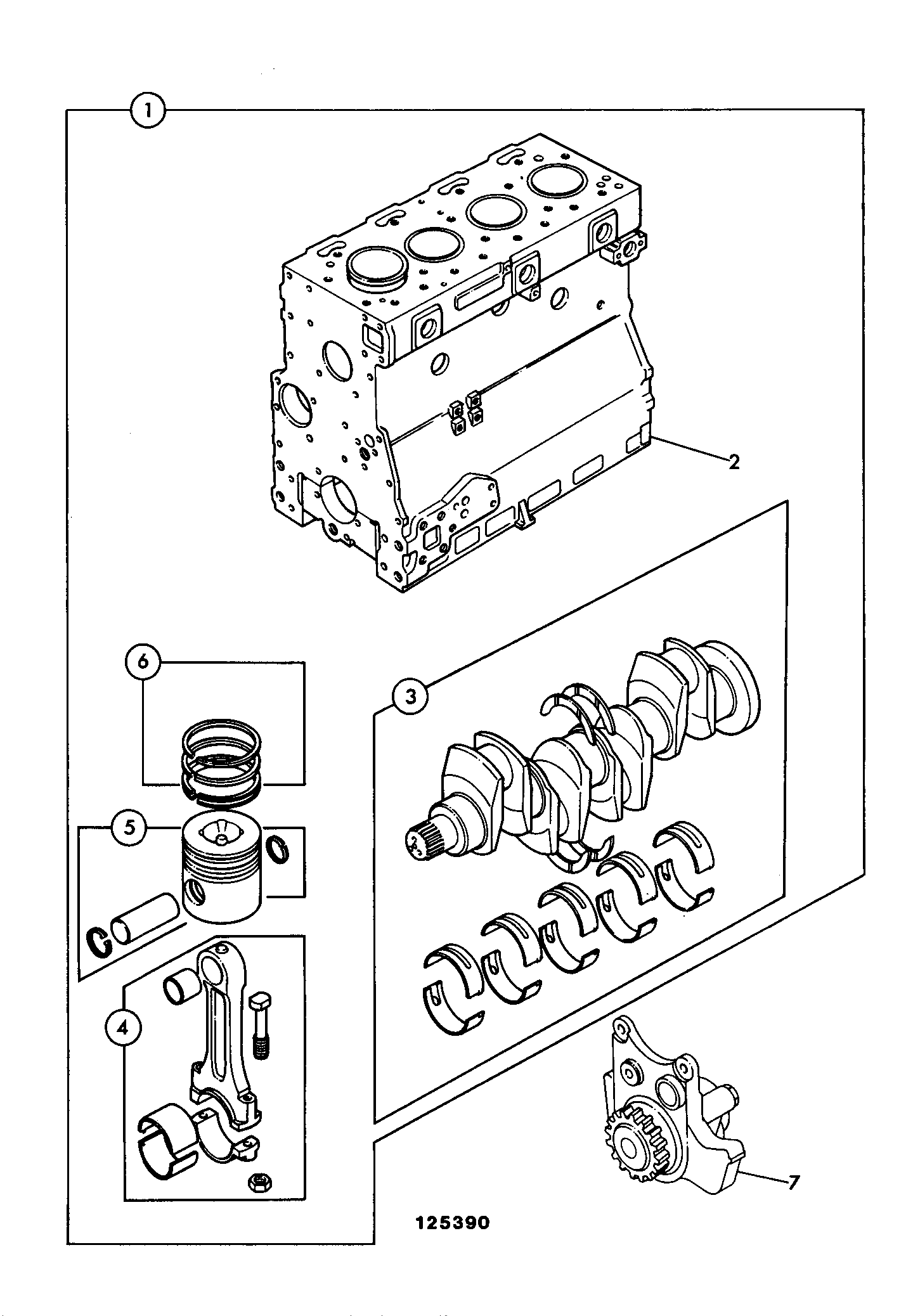

DIAG-P1-3-1-400235 P1-3-1 BLOCK ASSEMBLY AR BUILD
View Diagram -
DIAG-P1-4-1-400235 P1-4-1 CRANKSHAFT, BEARINGS PISTONS & CON-RODS AR BUILD
View Diagram -
DIAG-P1-2-2-400235 P1-2-2 ENGINE, SHORT AK BUILDS
View Diagram
