Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | Plug core D=19mm 02/202162 | 1 | $12.30 | |||
| 4 | PLUG 02/100134 | 1 | $11.32 | |||
| 5 | PLUG 02/100396 | 1 | $7.37 | |||
| 9 | THIMBLE 02/100101 | 1 | $11.32 | |||
| 10 | BOLT 02/100102 | 1 | $25.29 | |||
| 11 | PLUG 02/101756 | 1 | $17.91 | |||
| 11A | SPACER 823/00287 | 1 | $10.26 | |||
| 12 | BUSH CAMSHAFT 02/192094 | 1 | $42.23 | |||
| 13 | PLUG 02/200454 | 1 | $2.14 | |||
| 14 | PLUG 02/201361 | 1 | $4.26 | |||
| 15 | PLUG 02/101827 | 1 | $8.83 | |||
| 16 | PLUG 02/100108 | 1 | $7.18 | |||
| 17 | PLUG 02/100132 | 1 | $11.96 | |||
| 19 | PLUG 02/201362 02/100107 | 1 | $9.90 | |||
| 22 | JET PISTON COOLING 02/201734 | 1 | $50.08 | |||
| 23 | PIN ROLL 02/201731 | 1 | $11.16 | |||
| 24 | VALVE 02/101898 | 1 | $35.30 | |||
| 25 | BALL 02/200099 | 1 | $2.68 | |||
| 26 | SPRING 02/200098 | 1 | $16.31 | |||
| 27 | RETAINER 02/200097 | 1 | $60.41 | |||
| 28 | PLATE 02/200826 | 1 | $165.48 | |||
| 29 | GASKET 02/200484 | 1 | $4.85 | |||
| 30 | BOLT 02/291042 | 1 | $11.96 | |||
| 31 | HOUSING 02/202370 | 1 | $259.52 | |||
| 32 | BOLT 826/10721 | 1 | $12.37 | |||
| 33 | DOWEL 02/100308 | 1 | $11.16 | |||
| 34 | SLEEVE SPEEDY 02/202422 | 1 | $396.06 | |||
| 35 | PIECE 02/202369 | 1 | $146.73 | |||
| 37 | PLATE 02/200004 | 1 | $10.34 | |||
| 38 | GASKET 02/200475 | 1 | $4.12 | |||
| 39 | BOLT 02/291032 | 1 | $3.89 | |||
| 41 | SCREW 1315/0402Z | 1 | $23.22 | |||
| 42 | WASHER 823/00273 | 1 | $2.06 | |||
| 43 | PLUG PARALLEL THRE 02/201364 | 1 | $12.28 | |||
| 44 | Plug Core D 14mm 02/201363 333/H3725 | 1 | $6.14 | |||
| 45 | PLUG 02/100409 | 1 | $6.39 | |||
| 47 | DOWEL 02/201706 | 1 | $11.51 | |||
Showing 1 to 37 of 37 parts
Related Assemblies
-

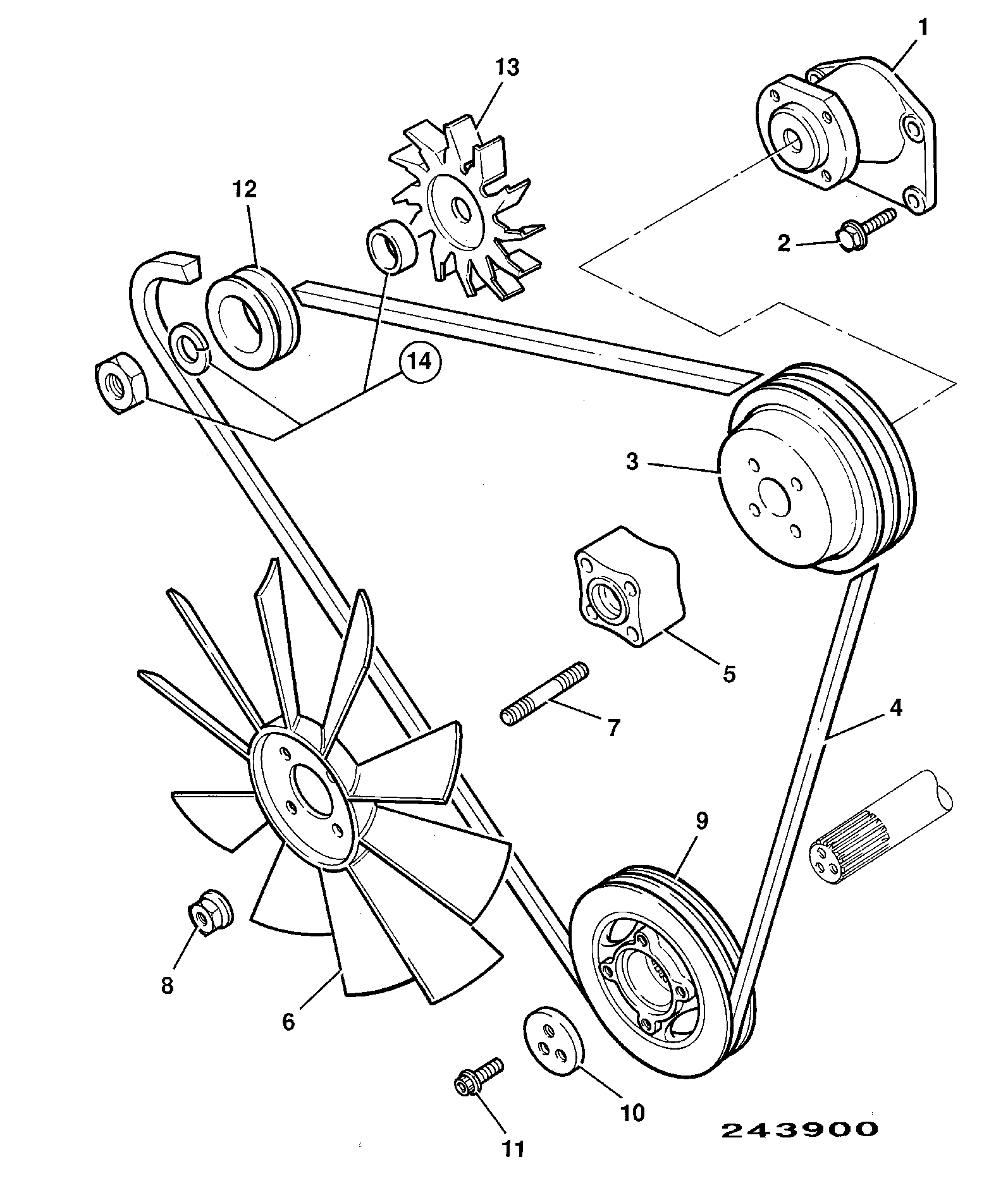

DIAG-P1-5-1-394289 P1-5-1 FANS, PULLEYS & FAN BELT AR BUILD
View Diagram -

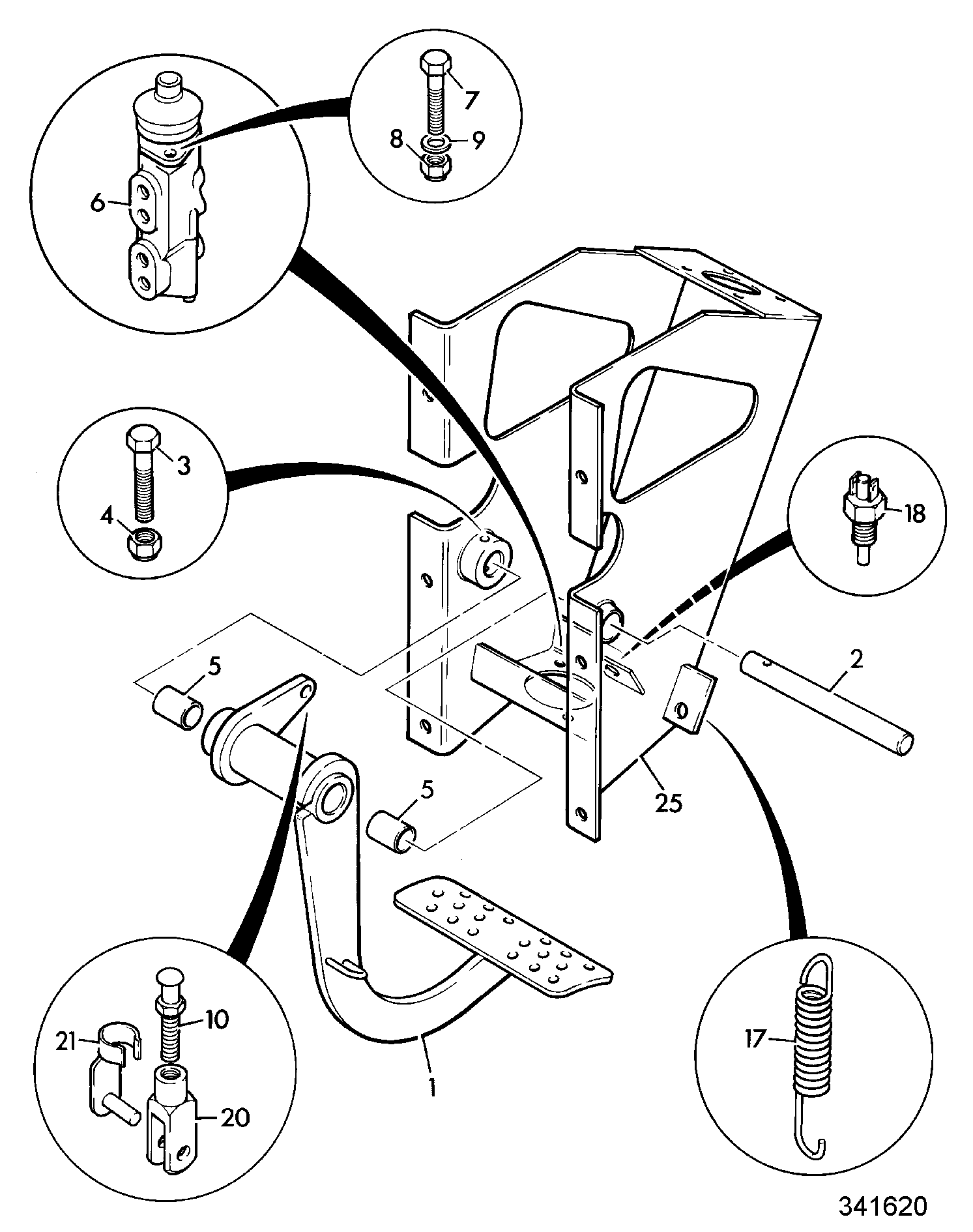

DIAG-G1-4-2-394289 G1-4-2 BRAKE PEDAL
View Diagram -
DIAG-P1-5-2-394289 P1-5-2 FANS, PULLEYS & FAN BELT AIR CONDITIONING, AR BUILD
View Diagram
