Scroll to zoom Click a part # to view details

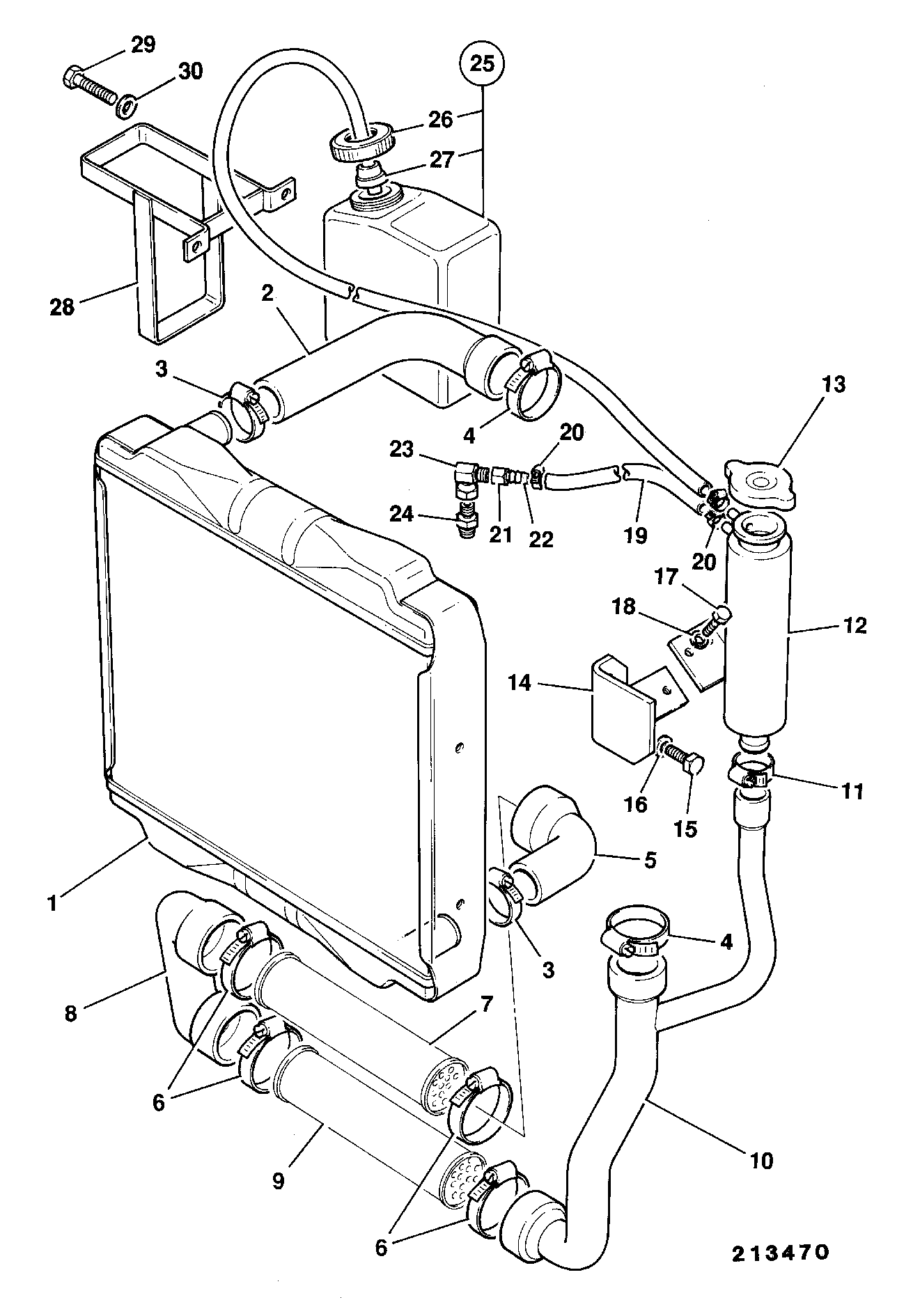

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| RADIATOR EPOXY COATED 160/02025 | 1 | $2,555.17 | ||||
| 1 | RADIATOR, ASSEMBLY 30/917300 | 1 | $2,185.47 | |||
| 2 | HOSE-TOP 834/00457 | 1 | $55.38 | |||
| 3 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 4 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 5 | HOSE BOTTOM 834/00456 | 1 | $66.08 | |||
| 6 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 8 | HOSE TOP 834/00439 | 1 | $156.07 | |||
| 9 | TUBE OIL TRANSFER 830/00640 | 1 | $142.22 | |||
| 10 | HOSE ENGINE RETURN 834/00535 | 1 | $301.27 | |||
| 11 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 12 | FILLER BOTTLE 161/00651 | 1 | $221.41 | |||
| 13 | CAP 121/60601 | 1 | $27.17 | |||
| 14 | BRACKET 161/00592 | 1 | $594.16 | |||
| 15 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 17 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 18 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 19 | HOSE CUT LENGHT 648/03502 | 1 | $27.62 | |||
| 21 | FEMALE NUT 826/00183 | 1 | $16.46 | |||
| 22 | NIPPLE 816/00343 | 1 | $14.99 | |||
| 23 | ADAPTOR 816/00464 | 1 | $11.19 | |||
| 24 | ADAPTOR G1/4A-R1/4 1609/0002 | 1 | $21.64 | |||
| 25 | EXPAN'S.TANK ASSY.[13787] 121/59800 | 1 | $155.05 | |||
| 26 | CAP-EXPANSION BOT 123/03532 | 1 | $8.12 | |||
| 27 | HOSE OVERFLOW 121/59803 | 1 | $86.60 | |||
| 28 | ADAPTER FIR TREE 816/60274 | 1 | $12.96 | |||
| 31 | BRACKET 161/00193 | 1 | $807.22 | |||
| 32 | SET-SCREW M10 L-_16mm 1315/0403Z | 1 | $1.95 | |||
| 34 | BONNET STRAP 120/38401 120/38401A | 1 | $15.52 | |||
Showing 1 to 30 of 30 parts
Related Assemblies
-
DIAG-N4-4-2-400570-12833066 N4-4-2 RADIATOR & HOSES WITH CAP 7PSI
View Diagram -

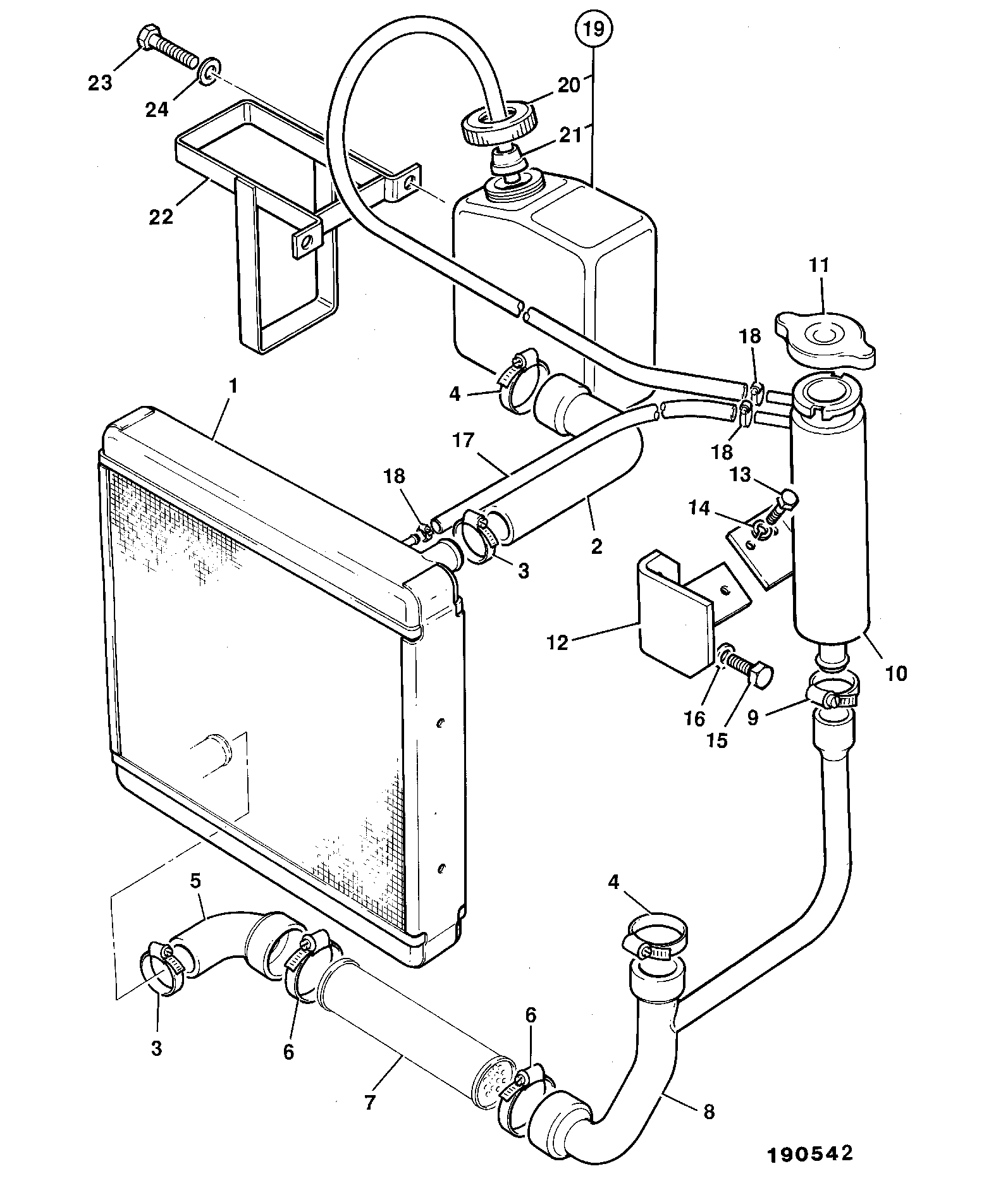

DIAG-N4-4-1-400570 N4-4-1 RADIATOR & HOSES
View Diagram -
DIAG-N5-2-1-400570 N5-2-1 PUMP, OIL & RELIEF VALVE AA BUILD
View Diagram
